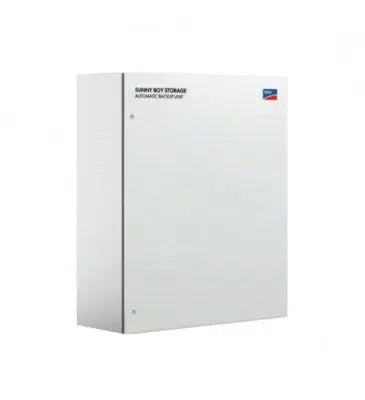

SMA 200 A Automatic Backup Unit with Energy Meter
-
Estimated Delivery:Jun 09 - Jun 13
-
Free Shipping & Returns: On all orders under $50
SMA 200 A Automatic Backup Unit with Energy Meter
![]()
SMA 200 A Automatic Backup Unit with Energy Meter
Ensure reliable power continuity and advanced energy monitoring with the SMA 200 A Automatic Backup Unit. Designed for residential and light commercial PV-battery systems, this unit seamlessly manages grid outages, system transitions, and energy metering—all in one pre-wired cabinet.
Key Features & Benefits
- High-capacity 200 A rated bus for direct connection with a main electrical panel or large service entrance
- Built-in energy meter and current transformers (CTs) for accurate monitoring of system consumption and power flows
- Automatic transfer switch architecture: upon grid failure the unit disconnects from utility and activates backup mode
- AC-coupled compatibility — supports integration of your existing PV system and/or battery inverter
- Outdoor-rated enclosure (NEMA 3R / UL50) and pre-wired design for simplified installation and commissioning
Technical Snapshot
| Specification | Value |
|---|---|
| Model | SBS-ABU-200-US-10 |
| Rated Grid Voltage | 240 V (split-phase 240/120 V) |
| Rated Current (Bus) | 200 A |
| Max Unbalanced Load in Backup | ~41.6 A at 120 V (~5 kVA) |
| Enclosure Type | Outdoor rated (NEMA 3R / UL50) |
| Operating Temp Range | −25 °C to +55 °C |
📞 Questions or bulk pricing? Contact Solar Cellz USA at info@solarcellzusa.com or visit solarcellzusa.com.
