SK Signet FC200K Dual-Port DC Fast Charger
-
Estimated Delivery:Jul 21 - Jul 25
-
Free Shipping & Returns: On all orders under $50
SK Signet FC200K Dual-Port DC Fast Charger

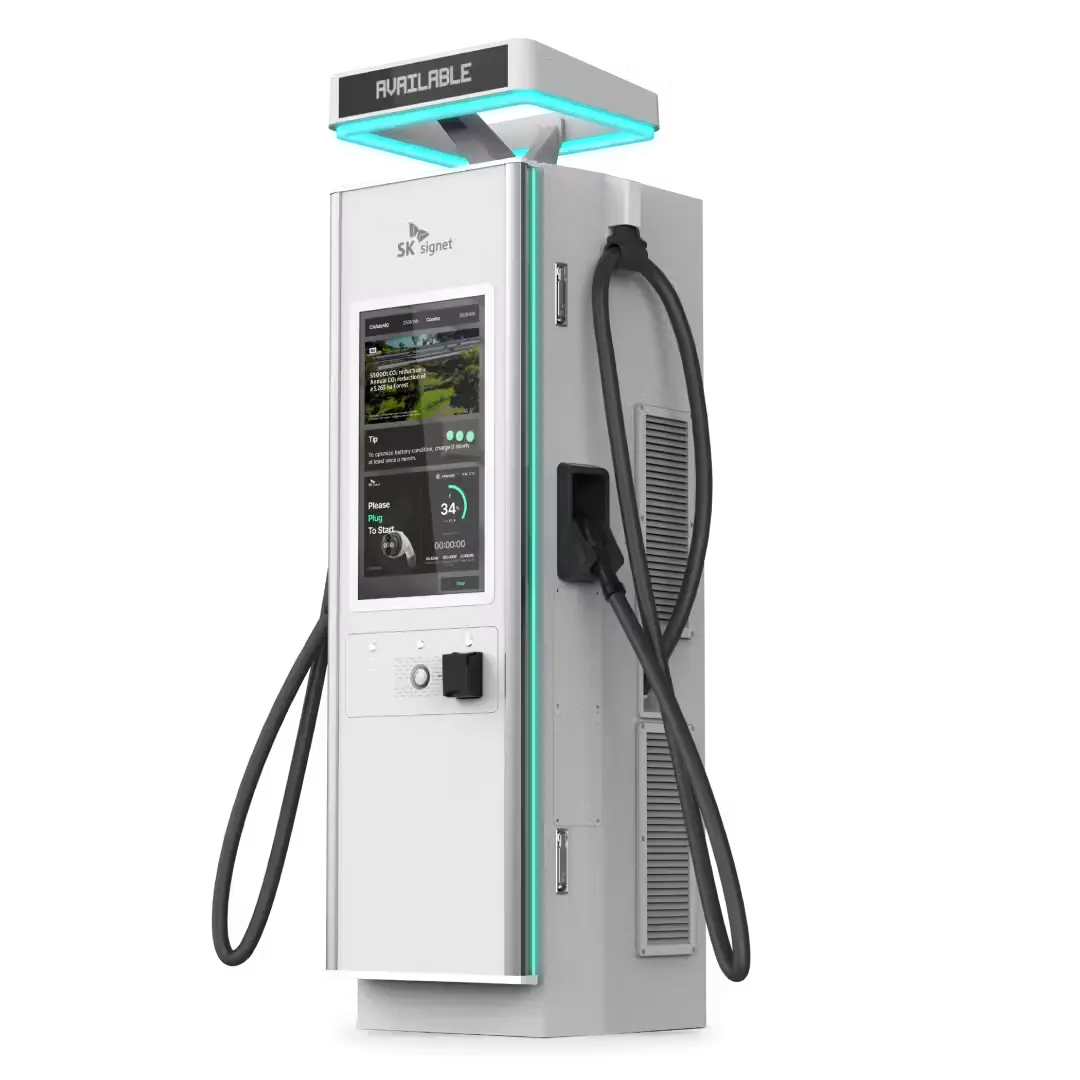

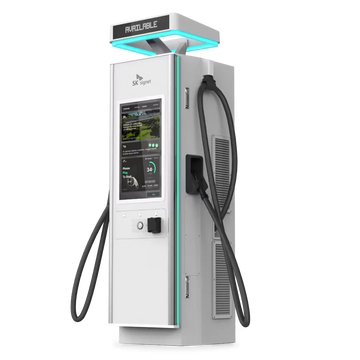

SK Signet V2 FC200K – All-in-One 200kW Dual-Port DC Fast Charger
Introducing the SK Signet FC200K, the latest innovation in commercial EV charging infrastructure. This All-in-One 200kW DC Fast Charger features a sleek, modern design and is engineered for high-performance, reliable charging at commercial and public locations. Trusted by leading charge point operators including Electrify America, EVgo, and Francis Energy.
Key Features
- All-in-One 200kW Solution – Integrated power electronics in a single compact unit
- Dual CCS1 Ports – Simultaneously charge two EVs at once with power sharing between cables
- 32" Wide Touchscreen Display – High-brightness, adaptable-position user interface for custom advertising and branding
- 17-Foot Charging Cables – Sufficient cable length for convenient EV connection
- Customizable LED Top Banner – Easy to locate, check availability and status (optional accessory)
- Modular Power Design – Swappable power modules for faster maintenance and improved uptime
- Emergency Safety Switch – Immediate stop charging capability
- ADA Compliant
- Made in USA or Korea
- Customizable LED Lights
Technical Specifications
| Specification | Details |
|---|---|
| Model | FC200K (CS20) |
| Charging Type | DC Fast Charging |
| Maximum Power Output | 200 kW (scalable: 100 / 150 / 200 kW) |
| Number of Ports | 2 (Dual Port) |
| Connector Type | CCS1 (Dual) |
| Cable Length | 17 feet (approx. 5.2 m) |
| Display | 32-inch LCD Touchscreen |
| Network Protocol | OCPP v1.6J (OCPP 2.0.1 ready) |
| Protection Rating | IP54, IK10 |
| Operating Temperature | -35°C to +55°C |
| Certifications | CSA, UL, FCC, CTEP compliant; ISO 15118-2 & ISO 15118-20 Plug & Charge |
| Installation | Outdoor, standalone |
Performance Highlights
- Large screen for custom advertisement, marketing, or branding
- Twin cables to simultaneously charge two EVs
- Built for outdoor environments and extreme temperatures (-35°C to +55°C)
- Engineered for safety with standard cable management for hazard reduction
- Access to real-time data and remote firmware management
- Power sharing between ports for maximum flexibility
- Consistently rated 9+ on PlugShare
Connectivity & Smart Features
- OCPP v1.6J compliant (OCPP 2.0.1 ready)
- ISO 15118-2 & ISO 15118-20 Plug & Charge support
- Load balancing capable
- Remote firmware updates
- Real-time monitoring and data access
- QR code display support
- Auto Start & Auto Charge support
Warranty
3-Year Manufacturer's Warranty included. SK Signet backs the FC200K with a comprehensive 3-year warranty covering parts and labor, reflecting their commitment to quality and reliability.
About SK Signet
SK Signet is the #1 DC Fast Charger Provider in the United States and the World's 2nd Largest EV Charger Manufacturer, backed by SK Group — the second-largest multi-industry corporation in South Korea. With 25+ years of charging technology innovation, 21,000+ chargers deployed globally, and 12 international patents, SK Signet delivers industry-leading performance and reliability.
