SK Signet FC200K 200kW Dual-Port DC Fast Charger (FC200K-B2-PS / FC200K-BH-PS)

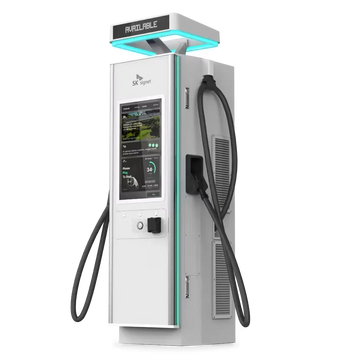

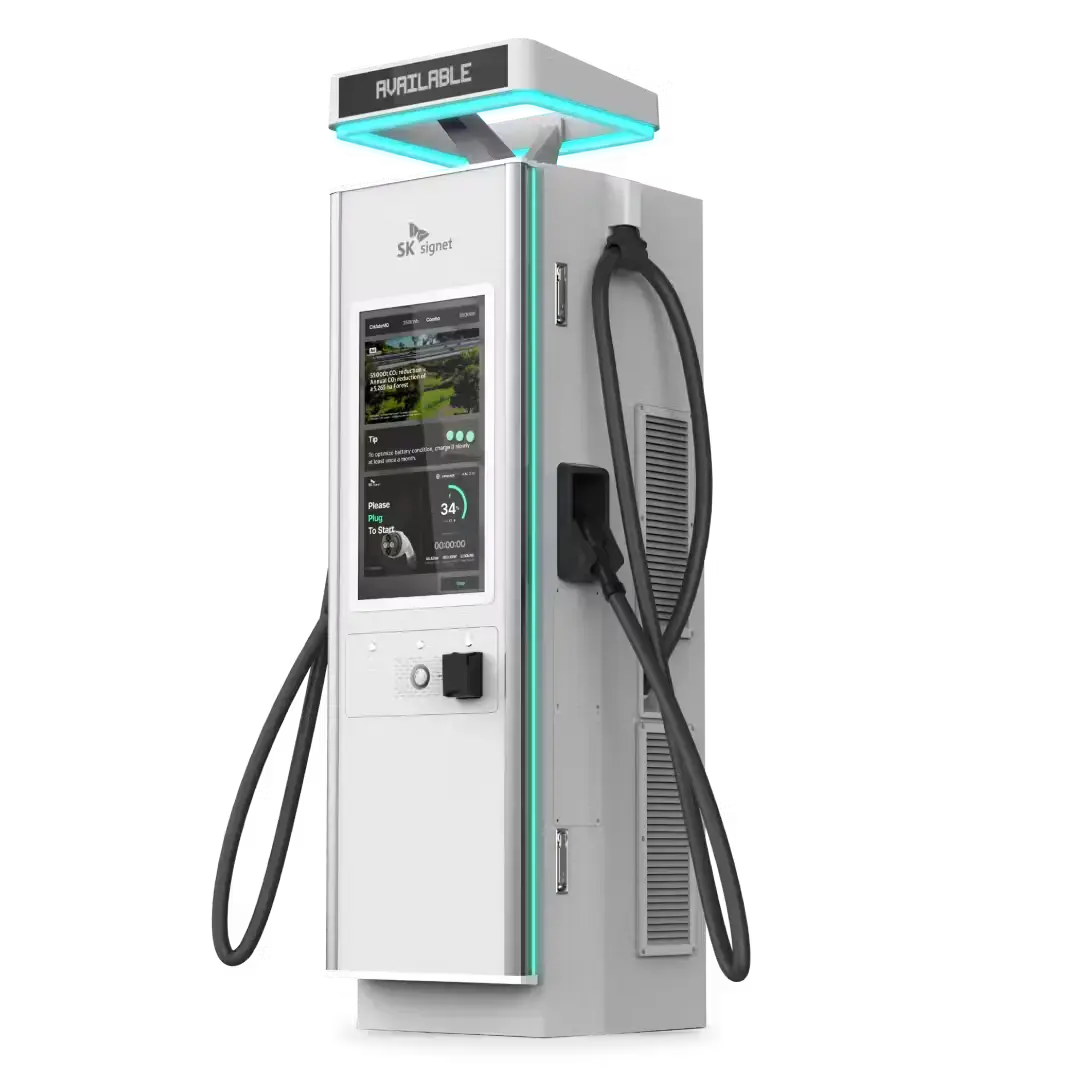

SK Signet V2 FC200K - All-in-One 200kW Dual-Port DC Fast Charger
Introducing the SK Signet FC200K, the latest innovation in commercial EV charging infrastructure. This All-in-One 200kW DC Fast Charger features a sleek, modern design and is engineered for high-performance, reliable charging at commercial and public locations. Trusted by leading charge point operators including Electrify America, EVgo, and Francis Energy.
Key Features
- All-in-One 200kW Solution - Integrated power electronics in a single compact unit
- Dual CCS1 / NACS+CCS1 Ports - Simultaneously charge two EVs at once with power sharing between cables
- 32-inch Wide Touchscreen Display - High-brightness, adaptable-position user interface for custom advertising and branding
- 17-Foot (5m) Charging Cables - Sufficient cable length for convenient EV connection
- Customizable LED Top Banner - Easy to locate, check availability and status (optional accessory)
- Modular Power Design - Swappable 25kW power modules for faster maintenance and improved uptime
- Emergency Safety Switch - Immediate stop charging capability
- ADA Compliant
- Made in USA or Korea
- Customizable LED Lights (Full RGB)
Technical Specifications
| Specification | Details |
|---|---|
| Models | FC200K-B2-PS / FC200K-BH-PS |
| Charging Type | DC Fast Charging |
| Maximum Power Output | 200 kW |
| Power Sharing | 200kW single EV or 100kW + 100kW dual charging |
| Number of Ports | 2 (Dual Port) |
| Connector Type (B2-PS) | Dual CCS1 (Air-cooled) |
| Connector Type (BH-PS) | NACS + CCS1 (Air-cooled) |
| Cable Length | 5 meters / ~17 feet |
| Input Voltage | 480 Vac +/-10%, 3P4W (R,S,T,N)+PE, TN-S |
| Input Frequency | 50/60 Hz |
| Input Power Factor | 0.99 or greater at Load 100% |
| Nominal Input Current | 254A or greater |
| Max Input Current | 284A |
| Output Voltage Range | 150-1,000 Vdc |
| Output Current Range | 350A (boost 500A, max 10 min at +25C) |
| Efficiency | Greater than 95% at Load 100% |
| Power Module Max Power | 25 kW per module |
| Display | 32-inch FHD (1920x1080) Touch Screen (English, Spanish) |
| Network Connection | Ethernet, 4G, LTE Modem |
| Network Protocol | OCPP v1.6J / OCPP 2.0.1 (Core: Supported) |
| User Authentication | RFID (ISO/IEC 14443A/B, ISO 15693), NFC, IC Reader, QR Code (Option) |
| Payment | Nayax VPOS: IC Reader; Payter P68: NFC (Mifare) |
| Protection Rating | NEMA 3R / IK10 (Touch screen IK08) |
| Operating Temperature | -35C to +55C (-31F to +131F) with derating |
| Storage Temperature | -40C to +70C (-40F to +158F) |
| Cooling Method | Forced Air-cooling |
| Humidity | 5-95% (Non-condensing) |
| Altitude | Up to 2,000m (6,561 ft) |
| Noise Level | Less than 70 dB at 1m |
| Mechanical Size with LED Banner (W x D x H) | 700mm x 830mm x 2,325mm |
| Mechanical Size without LED Banner (W x D x H) | 700mm x 830mm x 2,050mm |
| Weight with LED Banner | 503 kg (1,109 lbs) |
| Weight without LED Banner | 493 kg (1,087 lbs) |
| Metering Accuracy | Less than 1% |
| Installation | Outdoor, standalone |
Protective Functions
- Over Temperature Protection
- Over Voltage Protection
- Over Current Protection
- Proximity Loss Protection
- FG Disconnection Detect Protection
- AC/DC SPD (Surge Protection)
- IMD (Insulation Monitor Device)
Certifications and Standards
- Safety: NRTL (UL), Energy Star, UL2202, UL2231-1, UL2231-2, UL991, UL1998, ADA
- EMC: FCC Part 15 Class B
- Metering: CTEP/NTEP
- Charging Interface: DIN70121, ISO 15118-2 (Plug and Charge)
Connectivity and Smart Features
- OCPP v1.6J compliant (OCPP 2.0.1 ready)
- ISO 15118-2 Plug and Charge support
- Load balancing capable
- Remote firmware updates
- Real-time monitoring and data access
- QR code display support
- Auto Start and Auto Charge support
Warranty
3-Year Manufacturer Warranty - SK Signet backs the FC200K with a comprehensive 3-year warranty covering parts and labor.
Datasheet
Download the official FC200K-B2-PS / FC200K-BH-PS Datasheet (PDF) - provided by SK Signet.
About SK Signet
SK Signet is the #1 DC Fast Charger Provider in the United States and the World's 2nd Largest EV Charger Manufacturer, backed by SK Group - the second-largest multi-industry corporation in South Korea. With 25+ years of charging technology innovation, 21,000+ chargers deployed globally, and 12 international patents.
