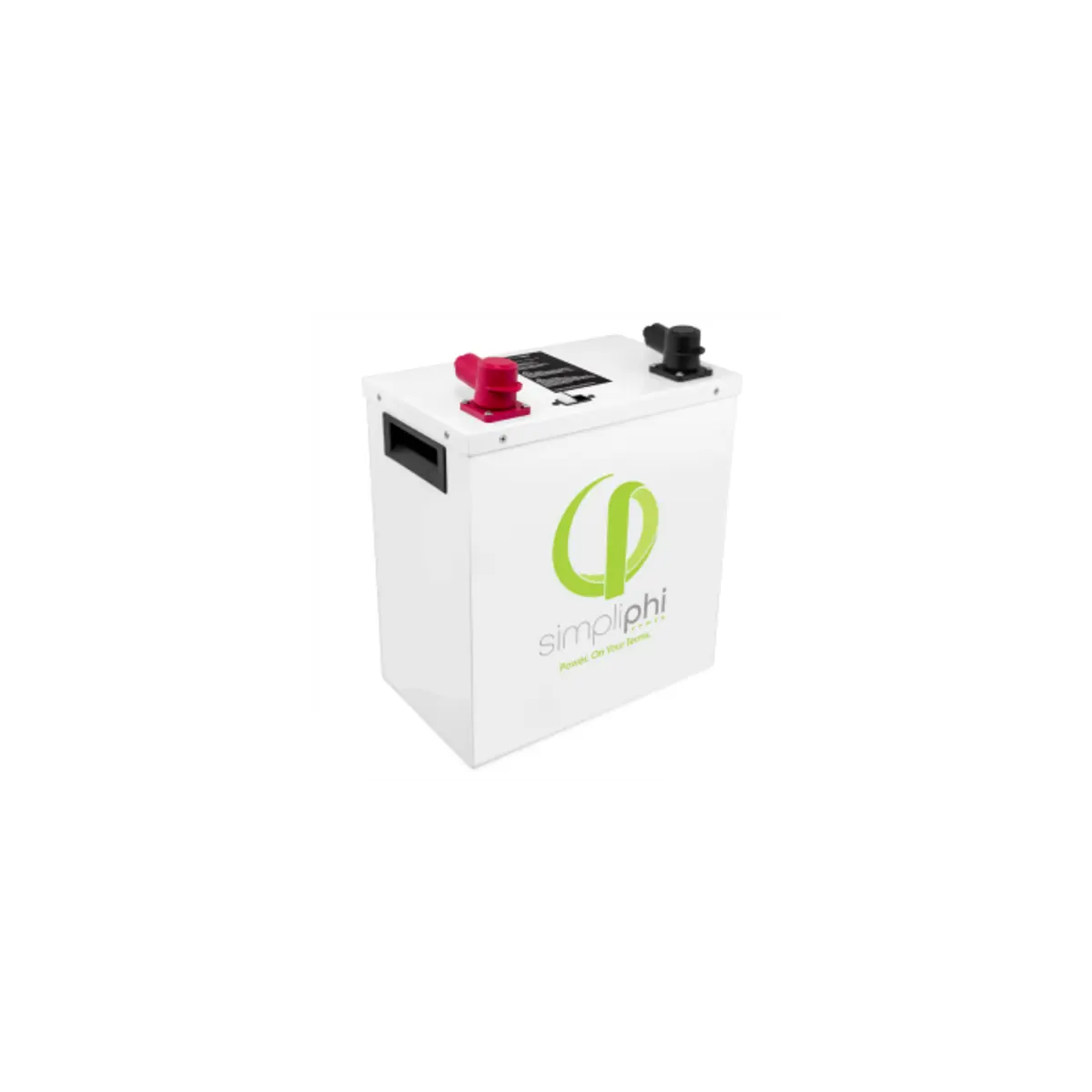

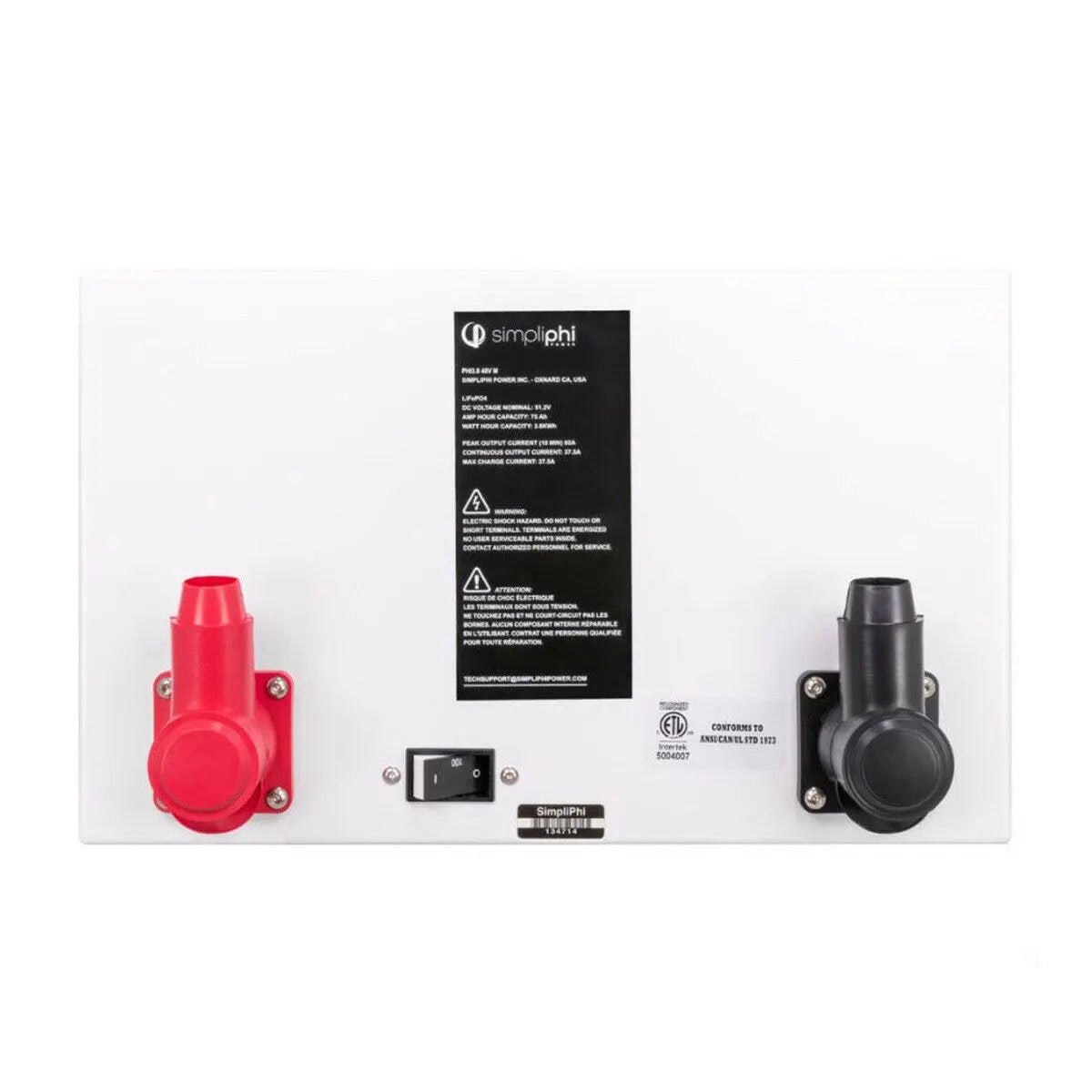

Simpliphi PHI 3.8 kWh LFP Battery, 24V

The PHI 3.8™ kWh 60 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, light- weight and scalable for installations that range from kWh to MWh. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.

Features

• Lithium Ferro Phosphate (LFP), The safest Lithium Ion chemistry available, No cobalt or risk of thermal runaway of fire
• Built-in, accessible 80 Amp DC breaker on/off switch
• Built-in Battery Management System
• Built-in SB50 Anderson Connector
• Compatible with all industry standard inverters and charge controllers
• Maintenance-free. No ventilation, cooling or thermal regulation required


Specifications

• Capacity: 3.8 kWh DC at 100% DOD, 3.04 kWh DC at 80% DOD
• Battery Chemistry: Lithium Iron Phosphate
• Battery Capacity: 151 Ah
• Nominal DC Voltage: 25.6 VDC
• DC Voltage Range: 24-28 V
• Maximum Discharge Rate (10 min): 60 A
• Maximum Charge Current: 45 A
• Maximum Discharge Current: 45 A
• Charge Temperature: 32-120°F
• Operating Temperature: -4 to 140°F
• Storage Temperature:
  • 6 Months: 14 to 77°F
  • 3 Months: -4 to 113°F
• Self-Discharge Rate: <1% per month

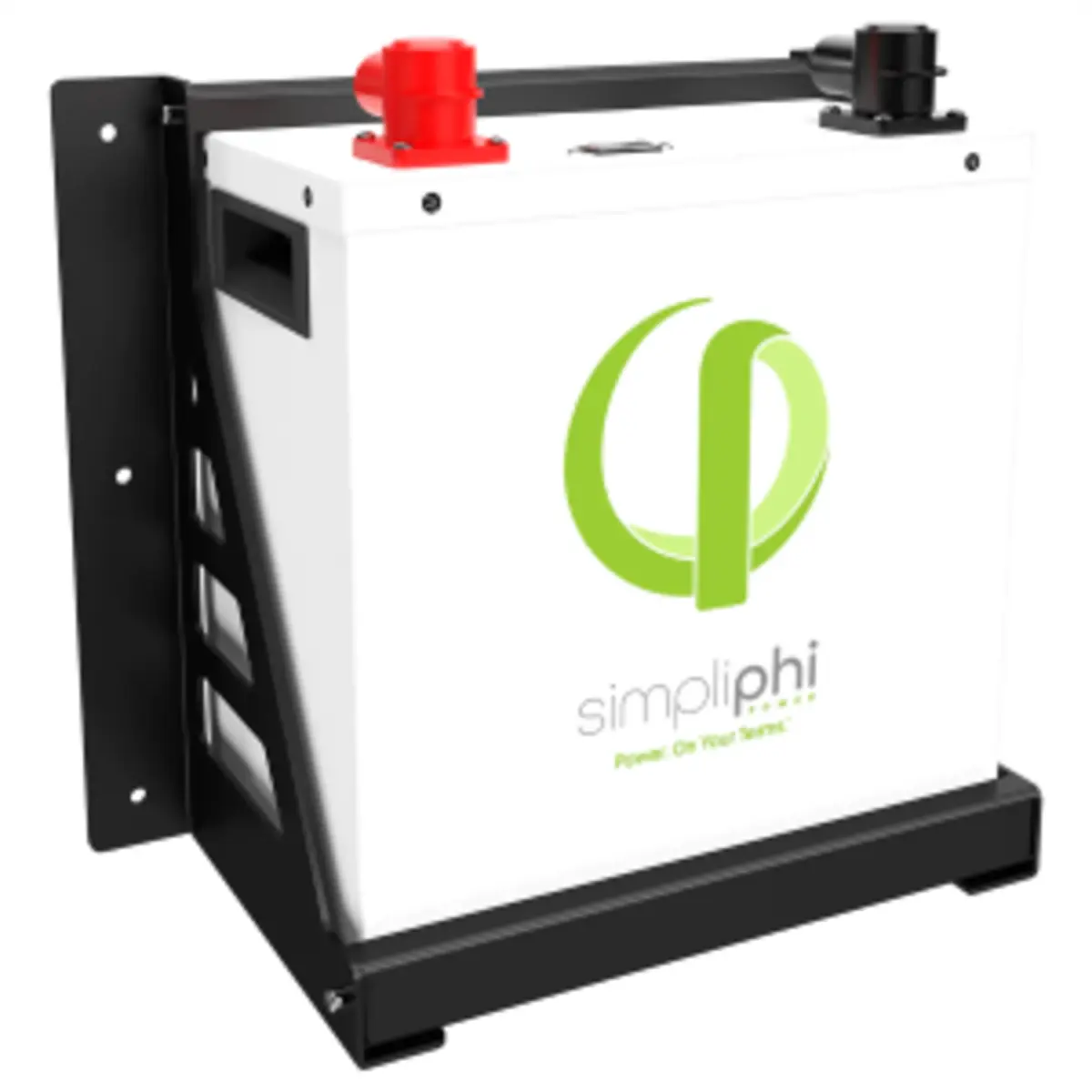

• Mounting Type: Wall
• Cycle Life: 10,000+ Cycles (at 80% DOD)
• Standards: UL Listed, CE Certified, RoHS Compliant
• Warranty: 10 Years
• Dimensions: 13.5 in x 14 in x 8 in
• Weight: 78.24 lb


Documents

• Specification Sheet
