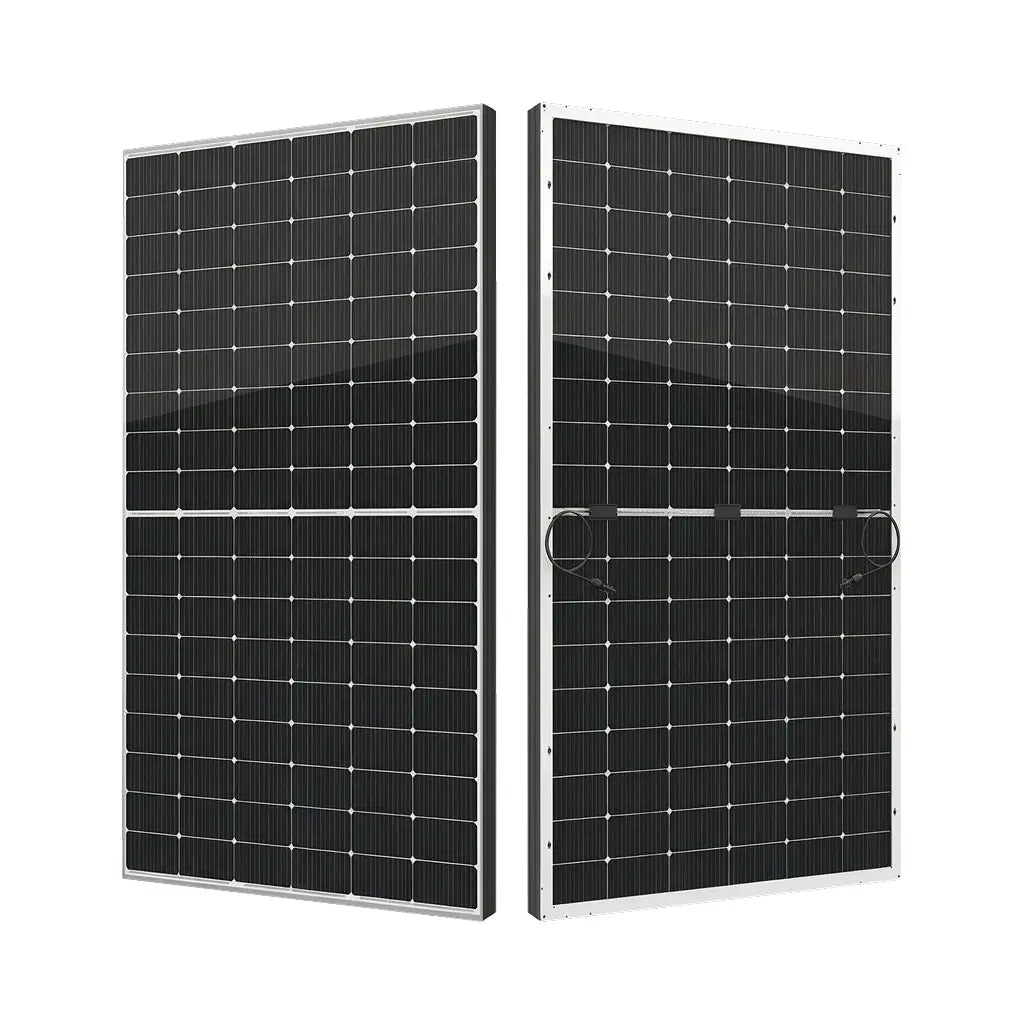

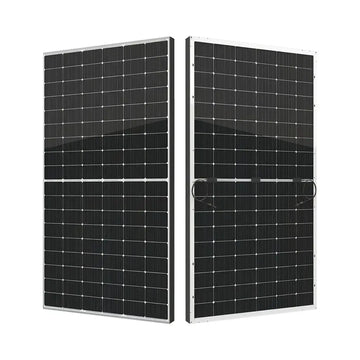

Seraphim 595W Sable TOPCon Bifacial Solar Panels | Pallet of 36 | SRP-595-BTA-BG

36-panel pallet for high-output solar projects

Build your next array with a pallet of 36 Seraphim Sable SRP-595-BTA-BG solar panels. Each module provides 595W of rated power, giving this pallet 21.42kW of combined nameplate capacity. N-type TOPCon cells, 23.03% module efficiency and bifacial dual-glass construction make this a practical option for commercial rooftops and ground-mounted systems.

Plan a consistent array around one module model, with the electrical ratings and module dimensions below available for string sizing and mounting layout. Bifacial modules also capture reflected light from the rear; additional energy yield depends on site reflectivity, mounting height, shading and installation design.

What is included

• 36 Seraphim SRP-595-BTA-BG modules per pallet
• 595W rated output per module
• 21,420W (21.42kW) combined rated module capacity, not a guarantee of actual energy production

Key features

• N-type TOPCon technology: 144 half-cut 182mm cells with multi-busbar construction.
• 23.03% module efficiency: high rated output for the module footprint.
• Bifacial dual-glass design: front- and rear-side light collection with listed bifaciality of 80% ±5%.
• Anodized aluminum alloy frame and MC4-compatible connectors.
• IP68 junction box with three diodes.

Electrical specifications per module

• Rated maximum power (Pmax): 595W
• Open-circuit voltage (Voc): 52.70V
• Short-circuit current (Isc): 14.25A
• Maximum power voltage (Vmp): 44.00V
• Maximum power current (Imp): 13.54A
• Power tolerance: 0 to +4.99W
• Listed bifacial power under BNPI conditions: 652W, distinct from the 595W nameplate rating
• Maximum system voltage: 1500V DC
• Maximum series fuse rating: 25A
• Temperature coefficients: Pmax -0.29%/°C; Voc -0.25%/°C; Isc +0.046%/°C
• Nominal operating cell temperature: 45 ±2°C

Dimensions and construction per module

• Dimensions: 89.69 × 44.65 × 1.18 inches
• Module weight: 70.5 lb
• Front and rear glass: 2.0mm AR-coating semi-tempered low-iron glass
• Output cable: 4.0mm²; 250mm positive / 350mm negative
• Mechanical load ratings: 5400 Pa front / 2400 Pa rear
• Operating temperature: -40°C to +85°C

Manufacturer warranty

Listed coverage includes a 15-year product warranty and a 30-year linear power warranty. Listed warranted output is 99% after the first year, with 0.40% annual degradation thereafter and 87.4% retained output at year 30. Refer to the manufacturer’s warranty terms for conditions and exclusions.

Before ordering

This listing is for a pallet of 36 panels. Confirm inverter compatibility, string design, mounting requirements and freight delivery arrangements for your project. Module dimensions and weight above describe an individual panel, not the packed pallet.

Product documentation

Download the linked SRP-595-BTA-BG datasheet (PDF)
