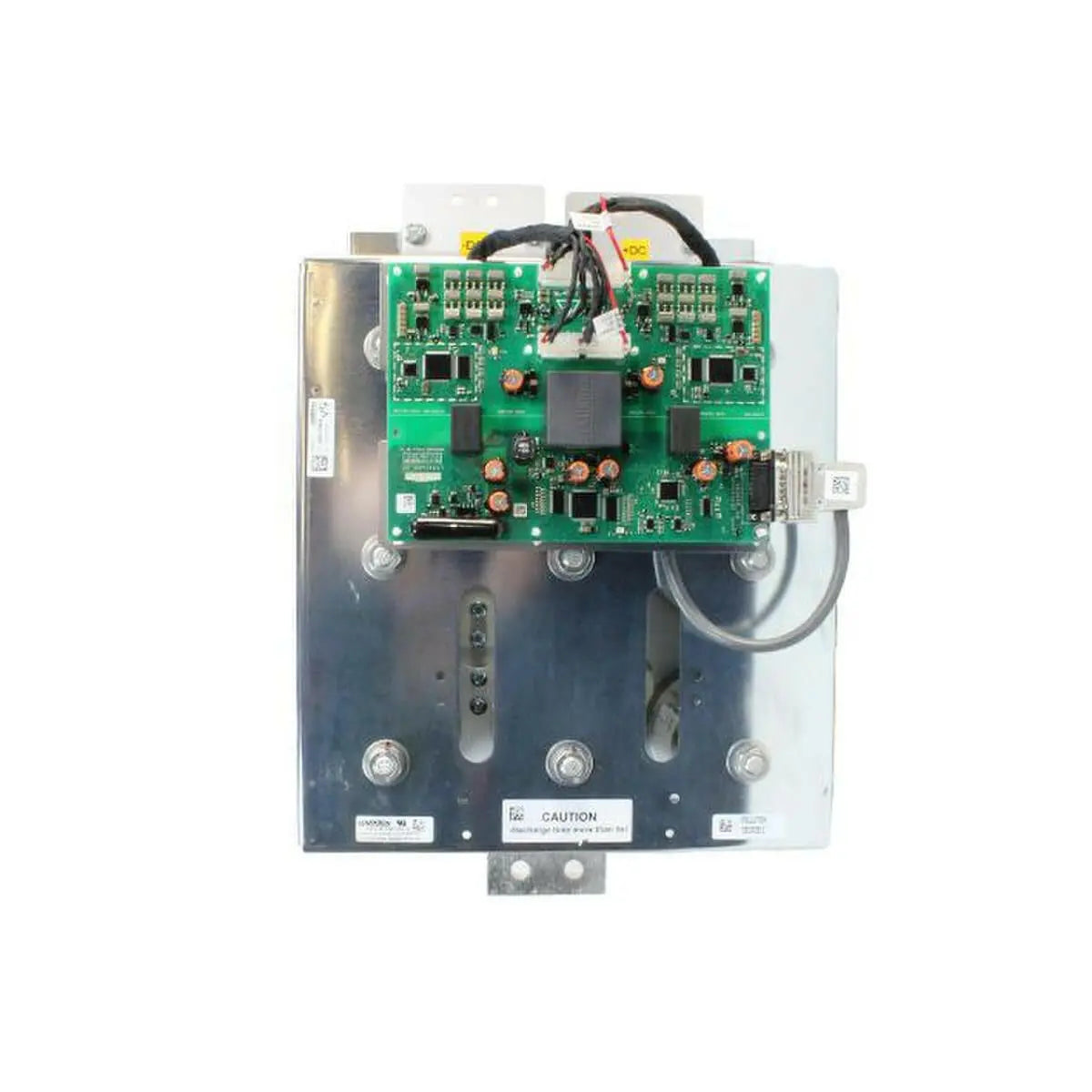

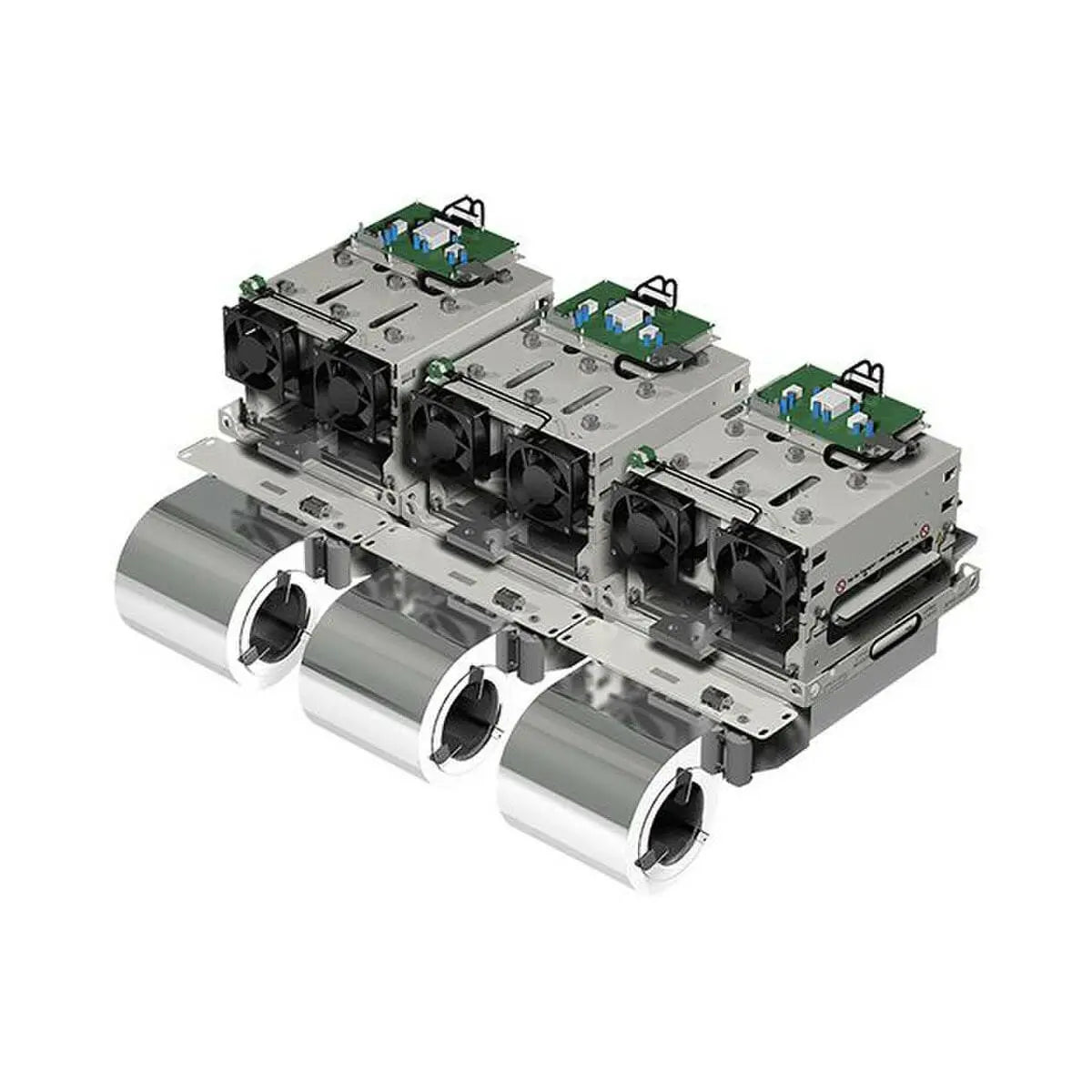

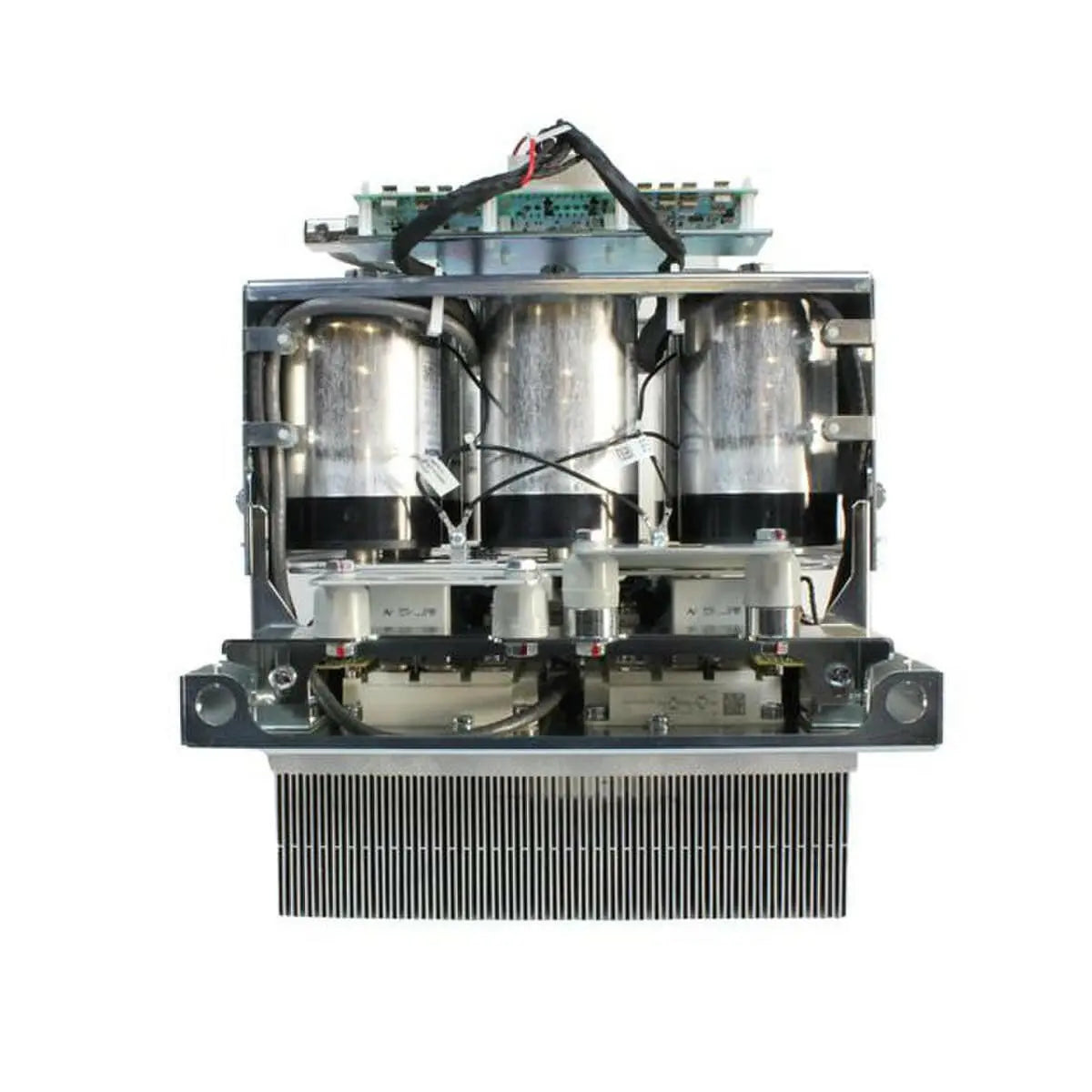

Semikron 75-1500 kVA 150-1470 A Semikube Set

Following the solar trend to increase DC voltage, SEMIKUBE extends its range with a 1300A, 2-level power electronic stack, able to operate up 1500VDC. Using state-of-the-art IntelliOff driving technology, the inverter provides safe operation under all conditions. The high robustness of the CAL diode against cosmic rays, gives a very low failure rate. Designed within the same footprint as standard SEMIKUBE size 3, the SEMIKUBE 1500V provides a fast, cost-effective alternative to 3-level solutions.

Features

• 75kVA up to 1500kVA
• Power density up to 5.7kVA/litre
• Size 3 with new ASIC chipset
• Increased SOA with multi switch modes
• Drivers and current sensors
• Forced air cooled platform
• DC bus capacitance both electrolytic and polypropylene
• Analogue measurement T, Vdc, Iout
• Brake chopper optional


Specifications

• Power Rating: 75-1500 kVA
• Output Amperage: 150-1470 A
• Frequency Rating: 20 kHz
• Output Voltage: 500 Vac


Documents;

Brochure
