SEG Solar 440W Yukon N-Series N-Type Bifacial All Black Solar Panel SEG-440-BTD-BG-T3
-
Estimated Delivery:Jul 26 - Jul 30
-
Free Shipping & Returns: On all orders under $50
SEG Solar 440W Yukon N-Series N-Type Bifacial All Black Solar Panel SEG-440-BTD-BG-T3

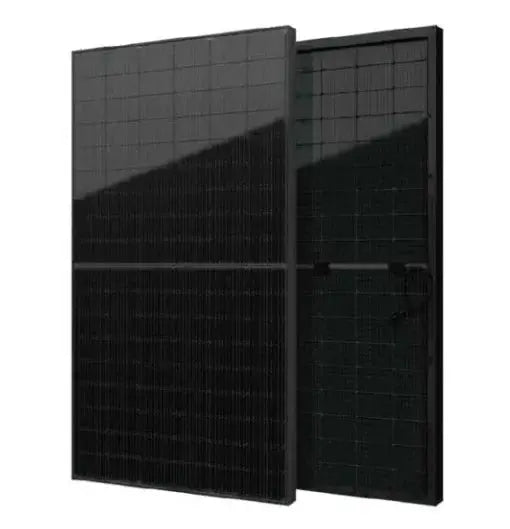

SEG Solar 440W Yukon N-Series N-Type Bifacial All Black Solar Panel
Model: SEG-440-BTD-BG-T3 | Brand: SEG Solar | Color: All Black | Designation: FEOC & Domestic Content Compliant (-T3)
The SEG Solar Yukon N Series is a high-performance N-Type TOPCon bifacial solar module manufactured in Houston, Texas, USA. The -T3 designation indicates FEOC (Foreign Entity of Concern) and Domestic Content compliance, making it eligible for enhanced IRA tax credits.
Key Features
- N-Type TOPCon bifacial technology
- Module efficiency up to 22.53%
- Super multi-busbar technology
- Superior load capacity: 5400 Pa front / 2400 Pa rear
- USA-based liability insurance, Houston, Texas based company
- FEOC & Domestic Content compliant (-T3)
- 30-year linear power warranty
- 30-year product material and workmanship warranty
- IP68 junction box
Electrical Specifications (STC)
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 440W |
| Open Circuit Voltage (Voc) | 39.30V |
| Short Circuit Current (Isc) | 14.15A |
| Max Power Voltage (Vmp) | 32.70V |
| Max Power Current (Imp) | 13.46A |
| Module Efficiency | 22.53% |
| Power Tolerance | 0~+4.99W |
| Max System Voltage | 1500V DC |
| Max Series Fuse Rating | 30A |
| Bifaciality | 80±10% |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1722×1134×30mm |
| Weight | 24.0 kg (52.9 lbs) |
| Solar Cells | N-Type Mono 108pcs (54×2) |
| Front Glass | 2.0mm AR coating semi-tempered glass |
| Back Glass | 2.0mm semi-tempered glass |
| Frame | Black anodized aluminium alloy |
| Connector | MC4 |
| Cable | 12AWG PV Wire (UL) |
| Operating Temperature | -40°C ~ +85°C |
| Per Pallet | 36 pieces |
Temperature Characteristics
| Parameter | Value |
|---|---|
| Pmax Temperature Coefficient | -0.30%/°C |
| Voc Temperature Coefficient | -0.25%/°C |
| Isc Temperature Coefficient | +0.046%/°C |
| NOCT | 45±2°C |
Warranty
- Product Warranty: 30 years on materials and workmanship
- Power Warranty: 30-year linear power performance warranty
- 1st year degradation ≤0.9%, subsequent years ≤0.4%/year
Certifications
IEC61215 | IEC61730 | UL61215 | UL61730 | IEC62804 (PID) | IEC61701 (Salt Mist) | ISO14001:2015 | ISO9001:2015 | ISO45001:2018
Datasheet: Download Official Datasheet (PDF)
