Seaward Solar Utility Pro Complete PV Test Kit, 1500V / 40A

Seaward Solar Utility Pro Complete PV Test Kit

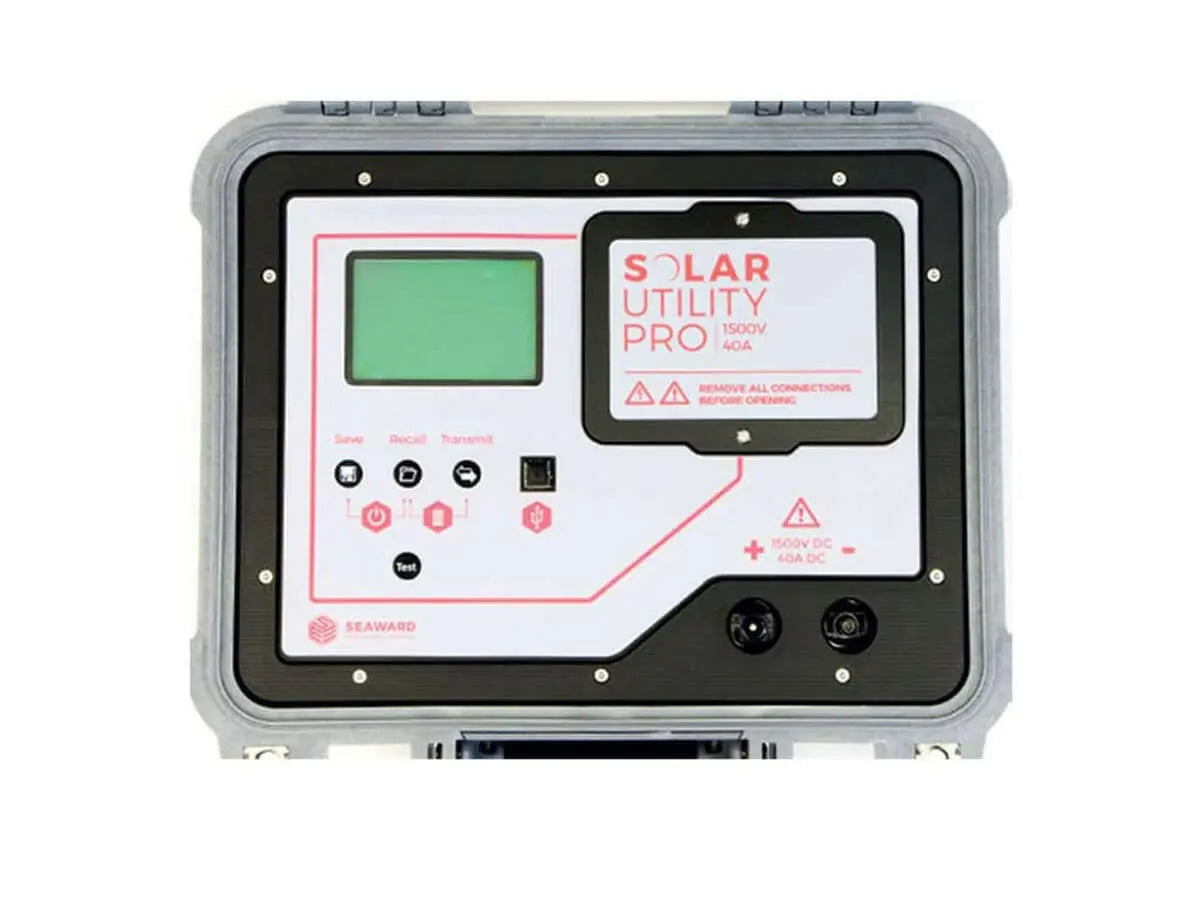

Test parallel-wired photovoltaic strings without separating them to stay within lower instrument limits. The Seaward Solar Utility Pro measures open-circuit voltage and short-circuit current for PV installations, with a clear display designed for viewing in direct sunlight.

Key benefits

• Tests parallel-wired strings up to 1500V DC and 40A DC.
• Displays open-circuit voltage and short-circuit current readings.
• Stores up to 999 complete data sets in internal memory, with readings downloadable to a PC as CSV files.
• Pair with the included SS200R irradiance meter to determine irradiance, module and ambient temperature readings.

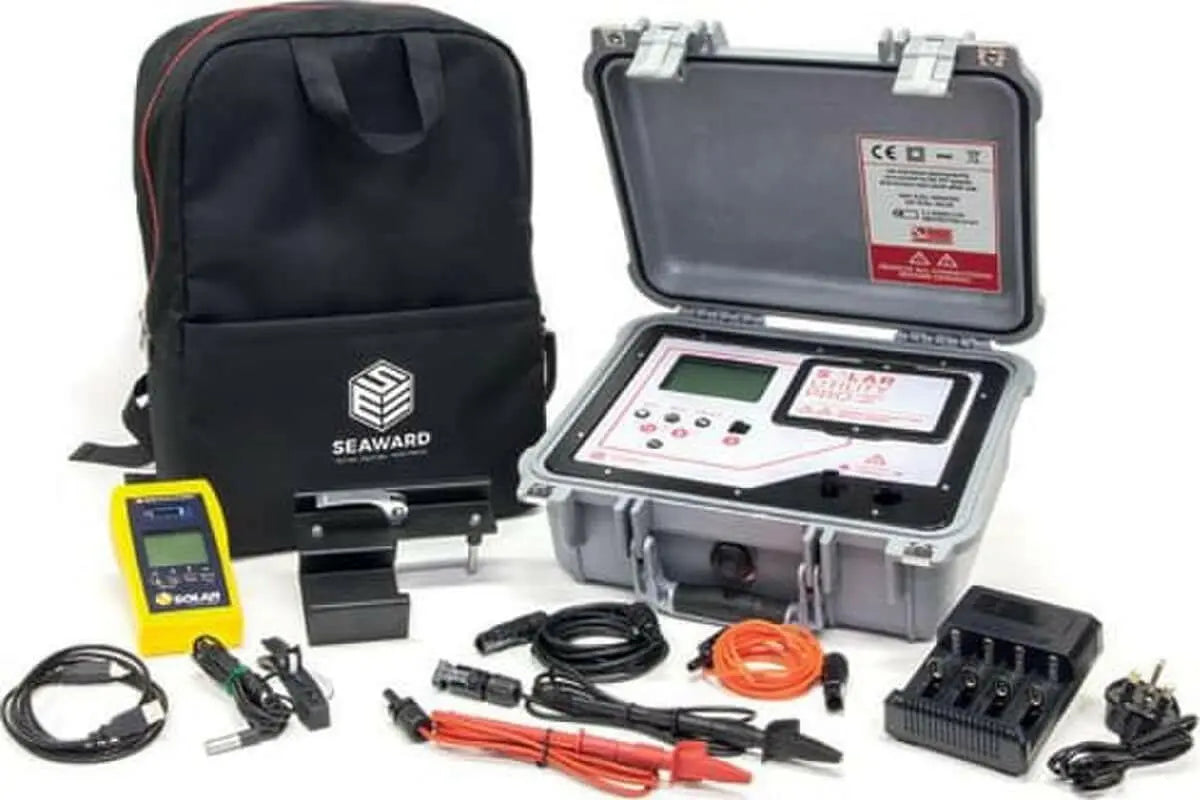

What’s included

• Seaward Solar Utility Pro unit
• Two 1.2m MC4 leads with test probe and alligator clip (red and black)
• Two 2m MC4 extension leads (red and black)
• Seaward Solar Survey SS200R irradiance meter and clamp
• PV hold-all bag
• Three protected 18650 lithium-ion batteries and battery charger

Specifications

• Display range: 0–1500V DC open circuit; 0–40A DC short circuit
• Measuring range: 5–1500V DC open circuit; 0.5–40A DC short circuit
• Resolution: 0.1V DC
• Display: LCD
• Operating temperature: 0–40°C
• Unit dimensions: 300 × 340 × 152mm (W × L × H)
• Power source: 3000mAh lithium-ion

View the product data sheet
