Schneider Electric JGA36250U31X PowerPacT J-Frame Circuit Breaker 250A 3P 600VAC 18kA I-Line MicroLogic 3.2
-
Estimated Delivery:Jul 16 - Jul 20
-
Free Shipping & Returns: On all orders under $50
Schneider Electric JGA36250U31X PowerPacT J-Frame Circuit Breaker 250A 3P 600VAC 18kA I-Line MicroLogic 3.2

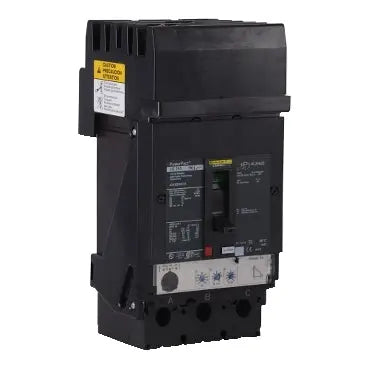

Schneider Electric JGA36250U31X – PowerPacT J-Frame Molded Case Circuit Breaker with MicroLogic 3.2
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. This PowerPacT J-Frame circuit breaker provides MicroLogic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker.
This PowerPacT J I-Line circuit breaker is available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This is an I-line breaker with lugs on OFF end only.
Key Features
- Available in 2 or 3 pole design
- Overcurrent protection and switching on AC systems
- MicroLogic 3.2 electronic trip unit with LI function
- LED indicators: Ready (green), Alarm 90% Ir (orange), Alarm 105% Ir (red)
- Common accessories across the range
- Easy to install, extremely versatile, a wide variety of terminal options
- UL 489 Listed, CSA, NOM, IEC CCC, UKCA, and CE marked
Specifications
| Attribute | Value |
|---|---|
| Line Rated Current | 250 A |
| Number of Poles | 3P |
| Trip Unit Technology | Electronic, Standard, MicroLogic 3.2, LI |
| Trip Unit Name | MicroLogic 3.2 |
| Breaking Capacity | 18 kA @ 600V AC | 35 kA @ 480V AC | 65 kA @ 240V AC |
| Rated Operational Voltage | 600 V AC 50/60 Hz |
| Continuous Current Rating | 80% |
| Mounting Mode | I-Line bracket |
| Electrical Connection | I-Line (line side), Lugs (load side) |
| AWG Gauge | 3/0 AWG...350 kcmil Al/Cu |
| Height | 7.5 in (191 mm) |
| Width | 4.09 in (104 mm) |
| Depth | 3.4 in (86 mm) |
| Product Weight | 5.3 lb (2.4 kg) |
| IP Degree of Protection | IP40 (front cover) |
| Operating Temperature | -13°F to 158°F (-25°C to 70°C) |
| Standards | UL 489, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2 |
| Country of Origin | Mexico |
| GTIN | 785901965749 |
Warranty
18 months contractual warranty.
