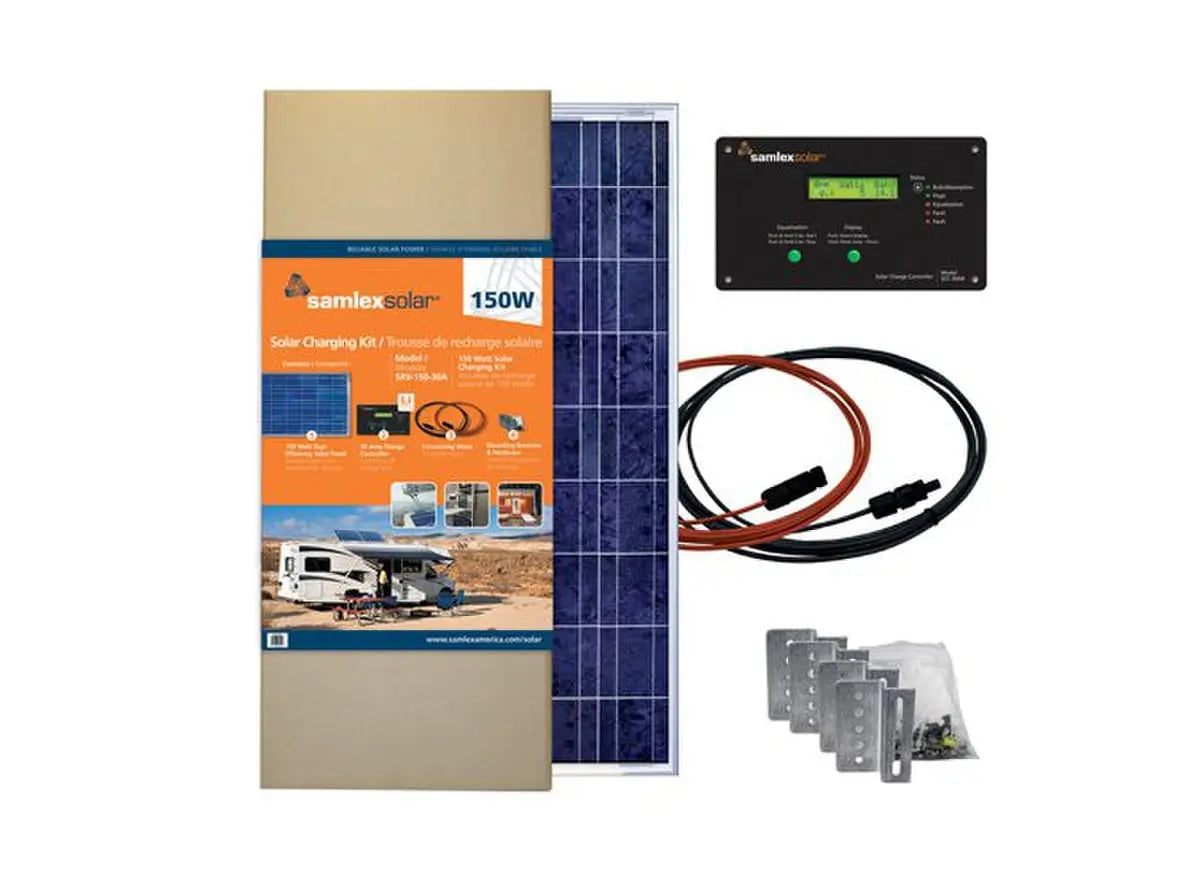

Samlex America SRV Series 150 W 30 A Solar Charging Kit

Use a Samlex solar charging kit to keep the batteries in your RV or utility vehicle charged and healthy. Add a DC-AC power inverter to your system and you can run all of your favorite household devices from anywhere! The Samlex SRV-150-30A solar charging kit comes with a high efficiency 150 watt solar panel, a 30 Amp charge controller, connecting wires and aluminum mounting brackets and hardware that can be used to secure the solar panel to the roof of your remote structure or vehicle, or any other flat surface.

Features

• High efficiency crystalline solar cells
• Low profile panel design
• All weather anodized aluminum and tempered glass construction
• Top quality cable & mounting hardware


Specifications

• Series: SRV
• Power Rating: 150 W
• Amperage Rating: 30 A
• Dimensions: 26 in x 58.03 in x 1.39 in
• Includes: SCC-30AB Charge Controller
• Voltage Rating: 18.38 V
• Short Circuit Current: 8.82 A
• Efficiency: 0.1542%
• Cell Type: Polycrystalline
• Number of Cells: 36
• Fuse Rating: 15 A
• Operating Temperature: -40 to 85 deg C
• Frame Material: Aluminum


Documents

• Owners/User Manual
• Specification Sheet
