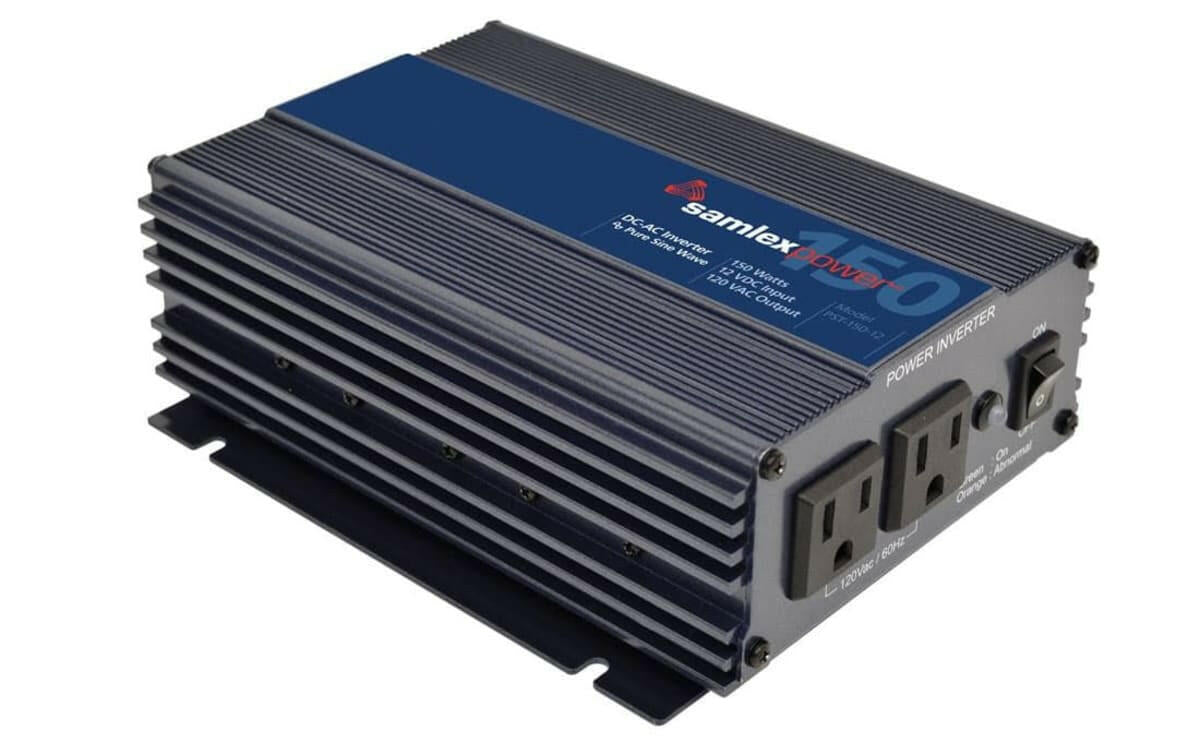

Samlex 150 W Off-Grid Pure Sine Wave Inverter

This high efficiency DC-AC inverter converts 12 Volts DC to 150 Watts of pure sine-wave AC power at 120 V, 60 Hz. The unit comes with detachable cable with 12V plug adaptor and cable with battery clamps. Features include overload protection, low battery alarm/shut down, low idle power draw. AC power is available from two NEMA-15R GFCI outlets on the front panel. The PST series provides clean, pure sine wave power with a commercial grade design suitable for heavy duty loads, long periods of continuous operation, and for emergency back-up, giving you peace of mind when it comes to safe and reliable AC power.

Features

• High efficiency
• 2x surge
• Temperature controlled cooling fan - reduces energy consumption
• Low RF emissions
• Wide operating DC input range: 10.5 - 16.5 VDC/21.0 - 33.0 VDC
• LED indicators for power and protections
• Low idle power draw
• Two AC outlets
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC - Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Detachable cable with 12V plug adapter
• Detachable cable with battery clamps
• Quiet Operation - temperature controlled fan reduces energy consumption
• Extremely low interference with other devices
• GFCI protected outlets
• 1000-12HD, 1500, 2000 and 3000W models come with additional hard-wired connection
• Low idle power draw
• 1000-12HD has selectable low voltage shutdown, and an alarm buzzer disable switch
• Wide operating DC input range
• Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit

Specifications

• Type: Off-Grid
• Dimensions: 6.1 in (W) x 2.58 in (H) x 8.31 in (D)
• DC Input Voltage: 12 V
• DC Input Voltage Range: 10.5-16.5 V
• Maximum Input Current: 20 A

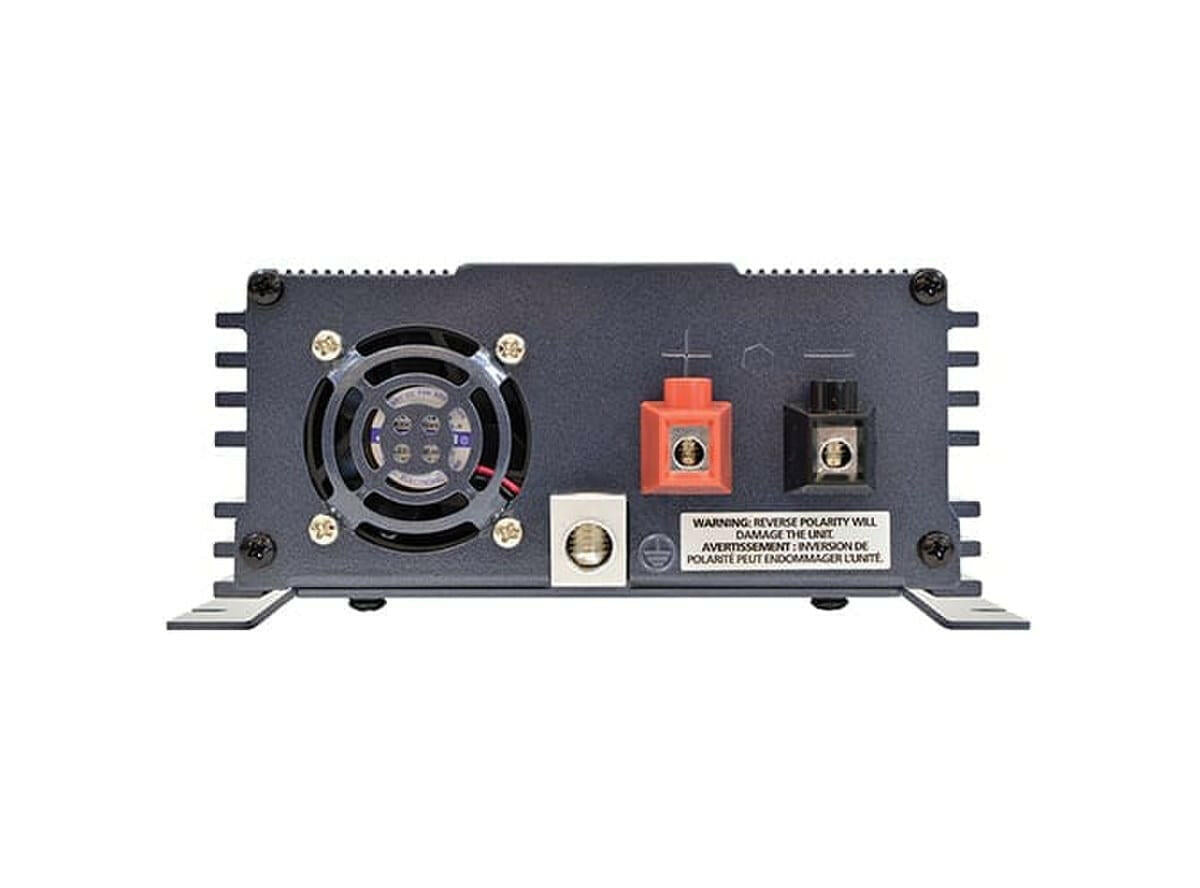

• DC Input Connections: Tubular Type Screw Down Terminals
• Output Power: 150 W (at Power Factor = 1)
• Power Surge: 300 W (<8 ms)
• Output AC Voltage: 120 VAC ±3%
• Output AC Frequency: 60 Hz ±1%
• Maximum Output Current: 1.25 A
• Total Harmonic Distortion (THD): <3%
• Cooling: Temperature-Controlled Fan (ON at ≥48°C, OFF at 42°C)
• Display Type: LED - Power, Abnormal
• Low DC Input Voltage Alarm: 10.5 V
• Low DC Input Voltage Shutdown: 10 V, Auto Reset at 11.5 V
• High DC Input Voltage Shutdown: 16.5 V, Auto Reset at <16.5 V
• Short-Circuit Shutdown: When Output Voltage Drops to 80 VAC for 5 sec
• Overload Shutdown: At Overload of 110%-115% for 2-2.5 sec
• Ground Fault Shutdown: Yes (Load Should be Powered using Power Cord with NEMA5-15P Plug)
• Over Temperature Shutdown: At 95°C, Auto Reset at 70°C
• Reverse Polarity on DC Input Side: Internal DC Fuse Will Blow
• Peak Efficiency: 87% (Input)

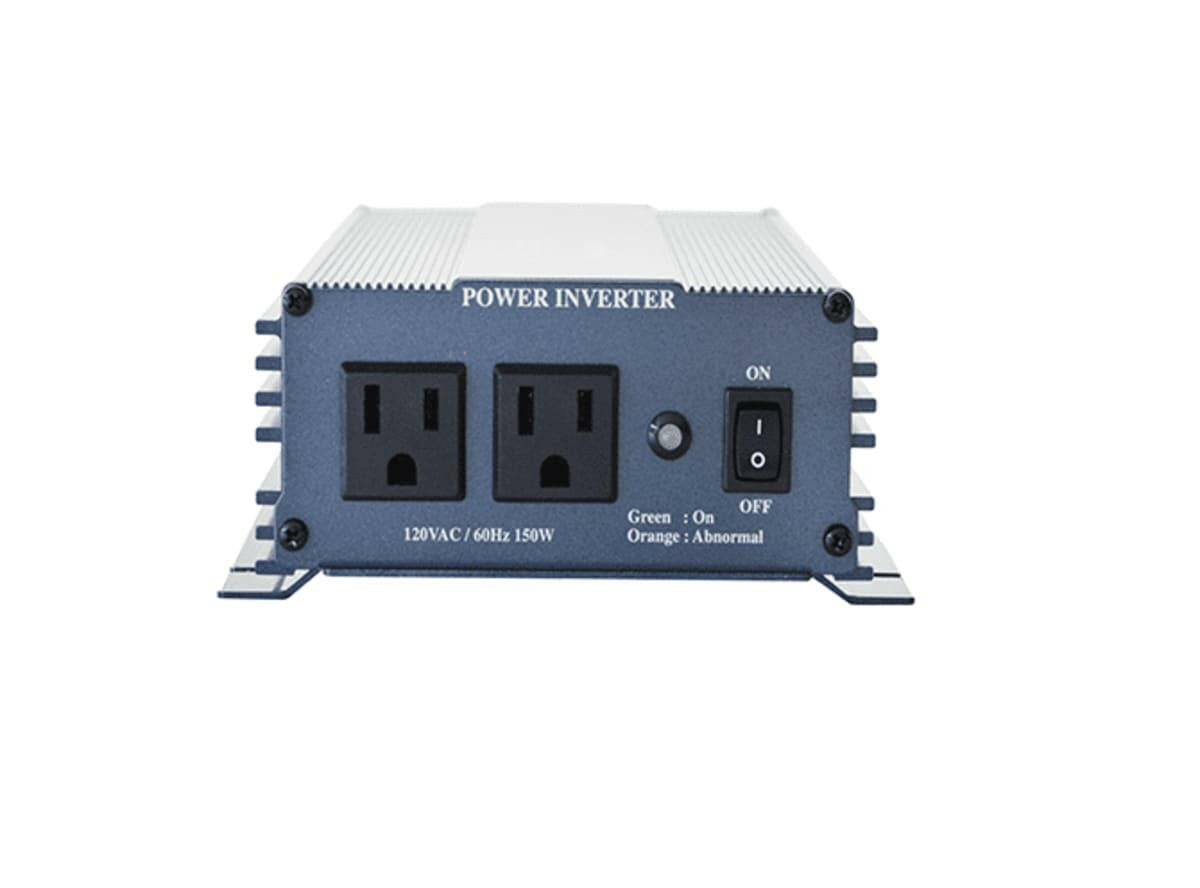

• Output AC Connection: 2 x NEMA5-15R Outlets
• Operating Temperature: -20 to 40°C
• Storage Temperature: -30 to 70°C
• Relative Humidity: 90% Non-Condensing

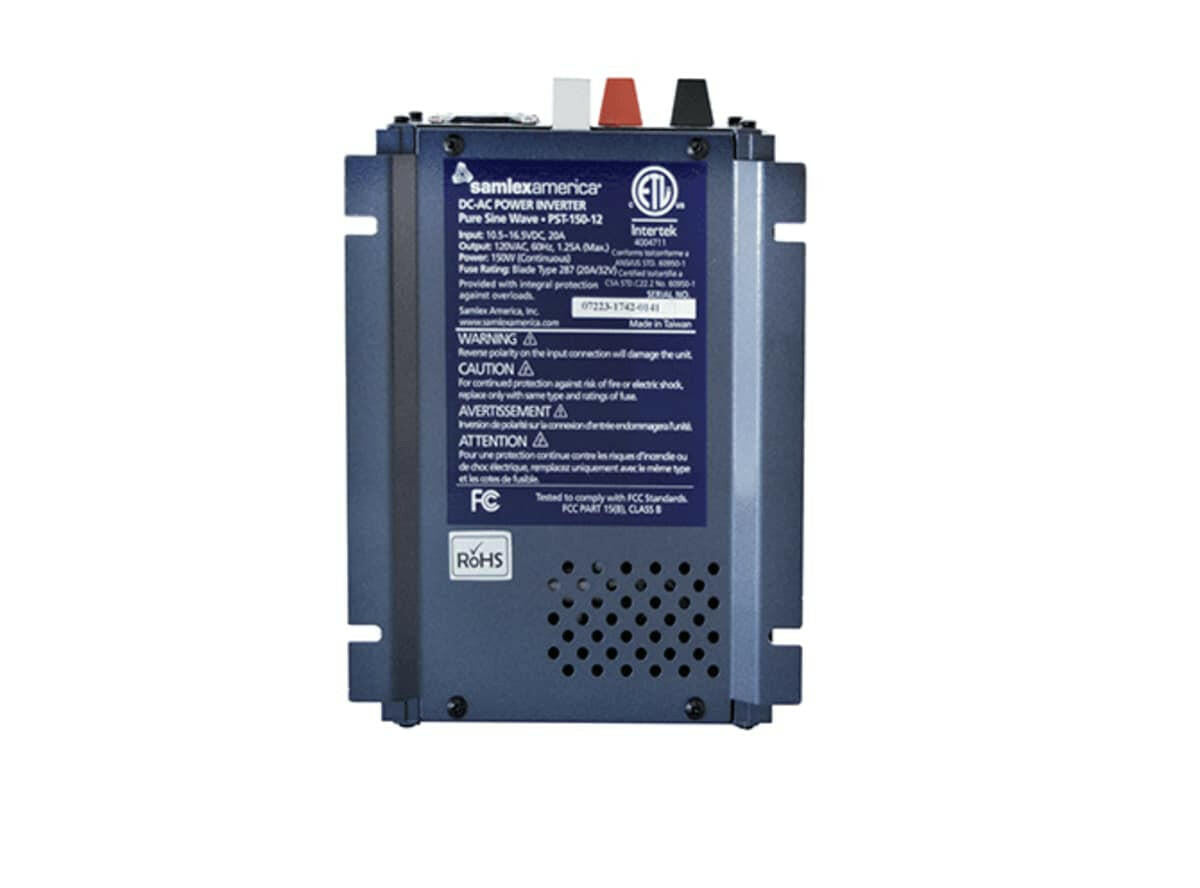

• Standards:
  • Safety: Intertek - ETL Listed
  • Conforms to UL Standard 458
  • Certified to CSA Std. C22.2 No. 107.1
  • EMI/EMC: FCC Part 15 (B), cETLus Listed B, IEEE, FCC
• Warranty: 3 Years Limited
• Weight: 2.8 lb
• Application:
  • Service Vehicles, Mobile Offices, Boats, RVs, Camping
  • Telecommunication, Field Work, Construction Sites
  • Solar Power Systems, Emergency Backup Power
  • Home Electronics (TV, VCR, Video Games, Computers, Printers)
