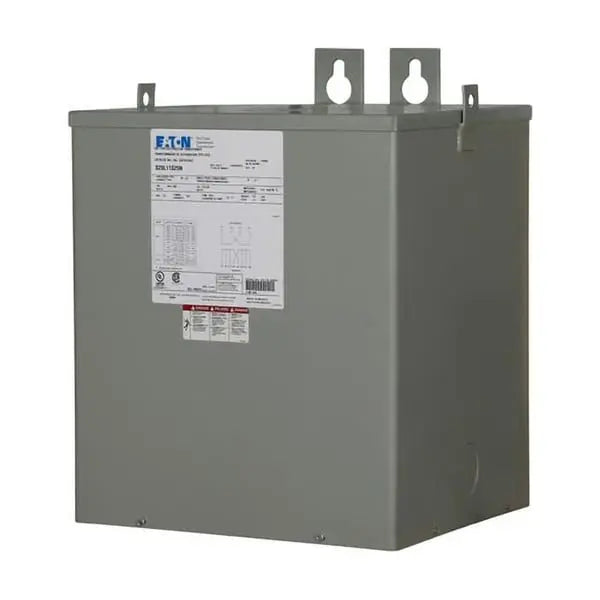

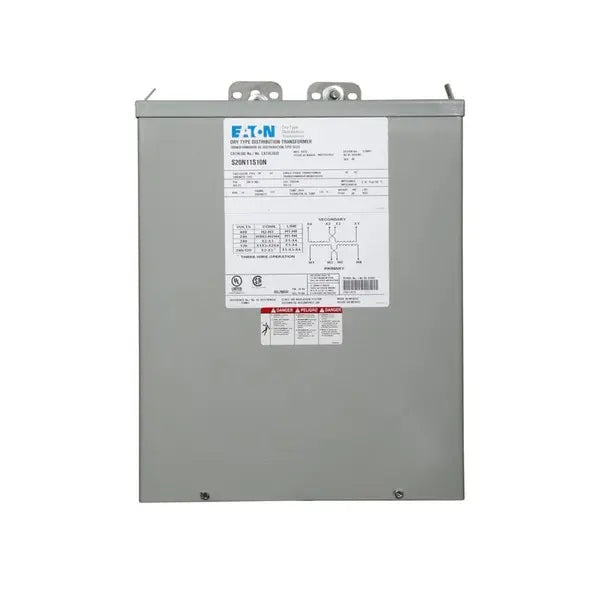

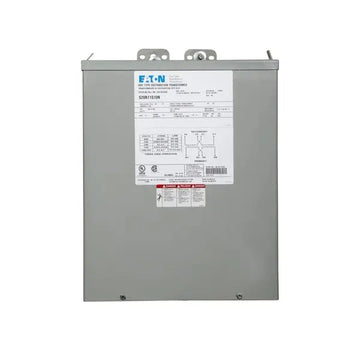

S20N11S15N - Dry Type Transformer

The Dry Type Transformer is engineered for efficient and dependable voltage conversion in both industrial and commercial settings. With a 15 kVA power rating, this encapsulated transformer steps down 240 x 480 V to 120/240 V, making it ideal for various heavy-duty applications. It operates at 60 Hz and features a 115 °C temperature rise rating, offering safe, quiet, and maintenance-free performance in a compact and durable design.

Key Features:

• 15 kVA power rating for high-capacity voltage conversion
• Primary voltage: 240 x 480 V | Secondary voltage: 120/240 V
• Encapsulated dry type design for quiet, low-maintenance operation
• Dimensions: 10.52 in overall length, 13.38 in overall width, 19 in overall height
• 115 °C temperature rise rating | 60 Hz frequency | Weight: 210 lb

This Dry Type Transformer provides reliable and consistent power transformation, making it a trusted choice for long-term electrical performance.

Documents:

Catalogs

Commercial Distribution, Transformers, Volume 2, Tab 2
Specifications and datasheets

Eaton Specification Sheet - S20N11S15N
Warranty guides

Selling Policy 25-000 - Distribution and Control Products and Services
