S-5 Solarfoot Clamp

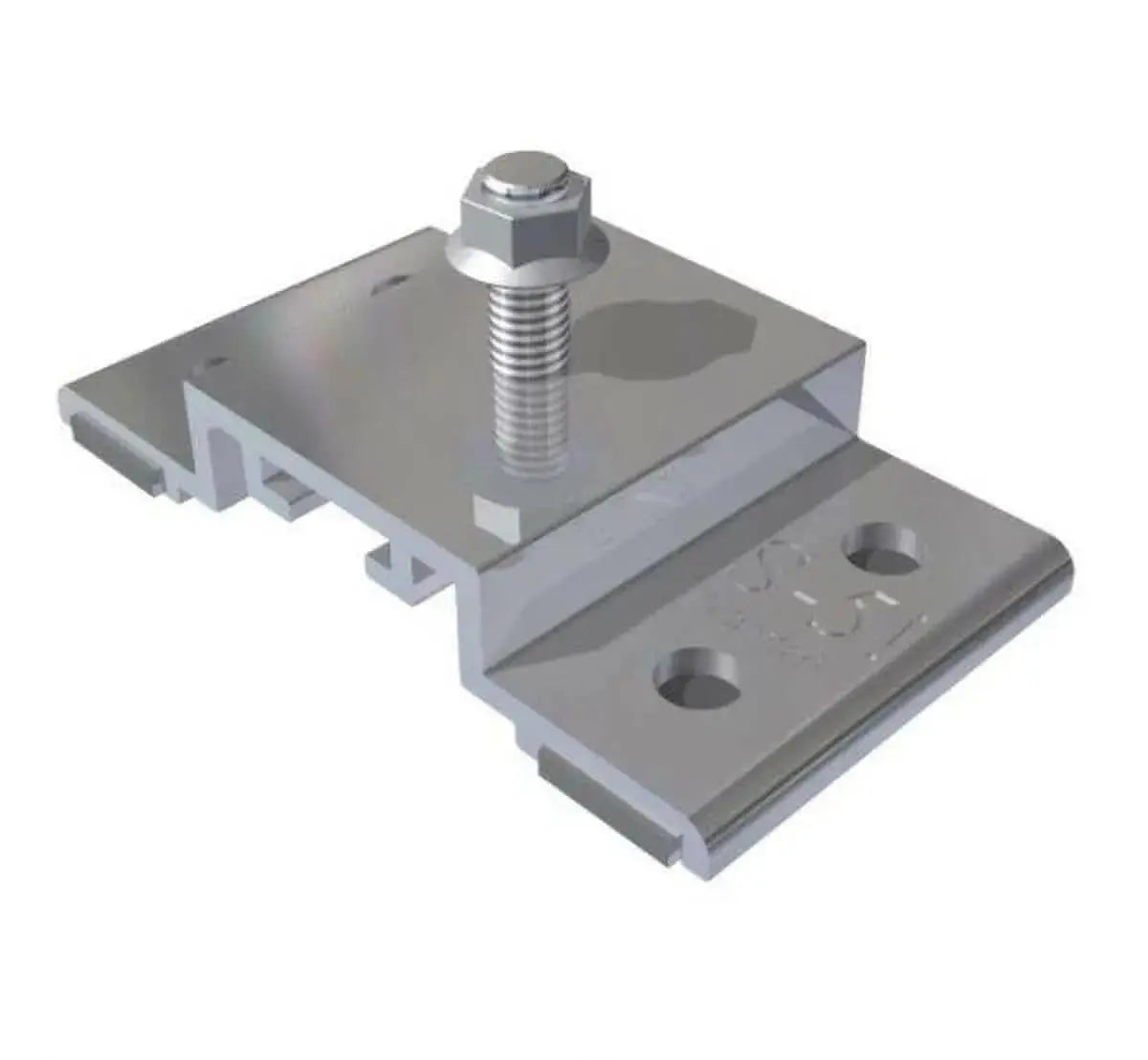

The SolarFoot is a simple, cost-effective pedestal for L-Foot (not included) attachment of rail-mounted solar PV. The unique design is compatible with all rail producer L-Foot components. The new SolarFoot assembly ensures a durable weather-tight solution for the life of the roof. Special factory applied butyl co polymeric sealant contained in a reservoir is The Right Way, allowing a water-tested seal. Stainless integrated stud and hex flange lock-nut secure the L-Foot into position. A low center of gravity reduces the moment arm commonly associated with L-Foot attachments. Direct attachment of the SolarFoot to the structural member or deck provides unparalleled holding strength.Introducing the new SolarFoot™for exposed fastener metal roofing with the strength, testing, quality, and time-proven integrity you expect from S-5!.The SolarFoot provides an ideal mounting platform to attach the L-Foot of a rail-mounted PV system to the roof. This solution is The Right Way to secure rail-mounted solar systems to exposed fastener metal such as AG-Panel or R-Panel.

Features

• Manufactured in the U.S.A. from certified raw material
• Fabricated in our own ISO 9001:2015 Certified factory
• All aluminum and stainless components
• Compatible with all commercial L-Foot products on the market
• Factory applied 40-year isobutylene/isoprene crosslink polymer sealant for reliable weathertightness
• Sealant reservoir to prevent over-compression of sealant
• Load tested normal to seam
• Four points of attachment into structure or deck with tested holding strength for engineered applications
• Integrated with M8-1.25x17mm stud and M8-1.25 stainless steel hex flange nut included
• Exposed faster mounting platform for solar arrays attached via L-Foot and rails
• Weatherproof attachment to exposed fastener roofing
• Butyl sealant reservoir provides long-term waterproof seal
• M8-1.25 x 17 mm stud with M8 hex flange nut for attachment of all popular L-Foot/rail combinations
• Tool: 13 mm hex socket or 1/2 in hex socket
• Tool Required: Electric screw gun with hex drive socket for self tapping screws
• Low center of gravity reduces moment arm commonly associated with L-Foot/Rail solar mounting scenarios
• S-5! Recommended substrate specific e.g. steel purlin, wood 2×4, osb, etc fasteners provide excellent waterproofing and pull out strength
• Fastener through-hole locations comply with NDS (National Design Specification)


Specifications

• Suitable For Use With: Trapezoidal Metal Roof
• Material: Aluminum & Stainless Steel

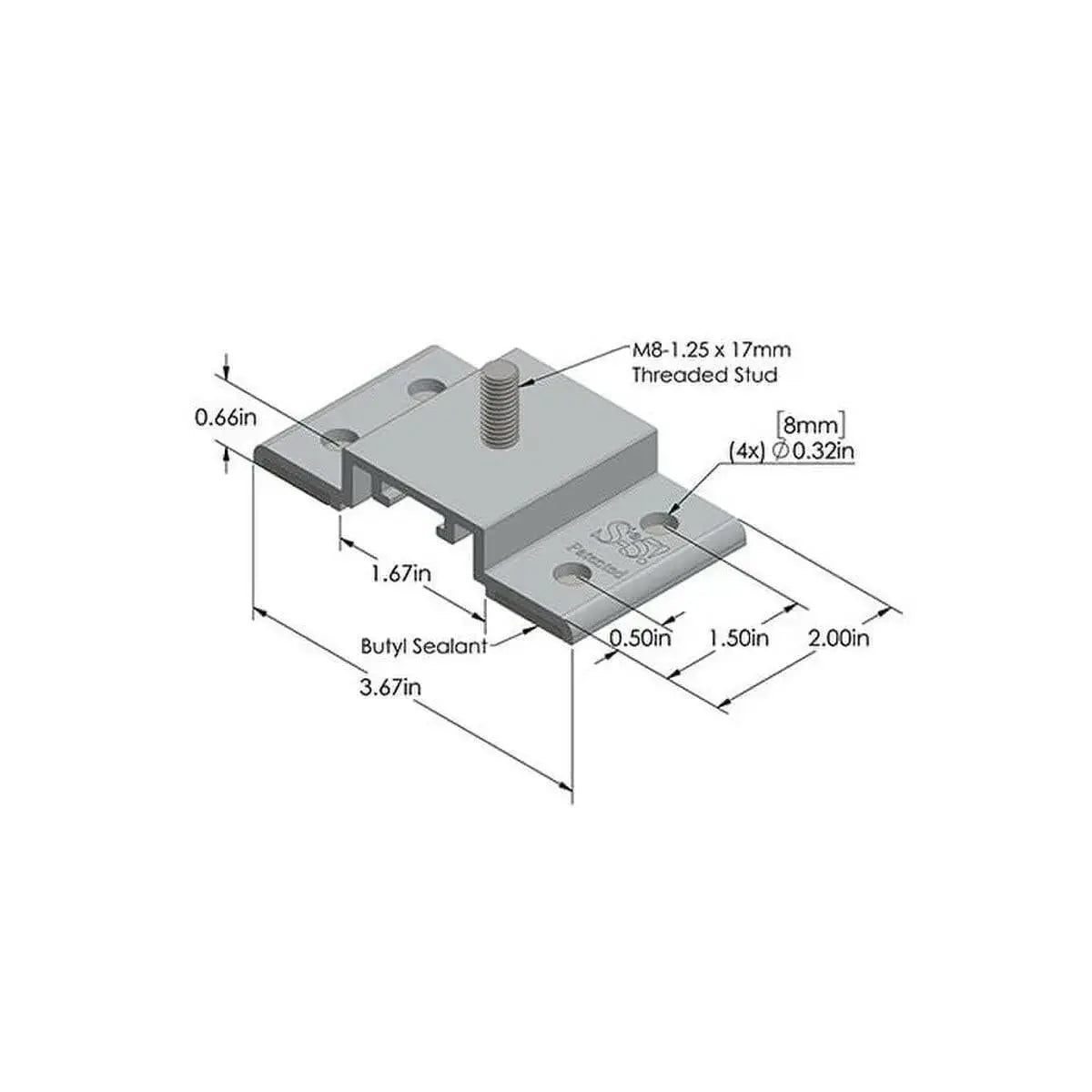

• Includes: Butyl Pads, (4) 8 mm Mounting Holes & (1) M8-1.25 X 17 mm Threaded Stud with Flange Nut
• Standards: UL Listed
• Warranty: 25 Years Limited
