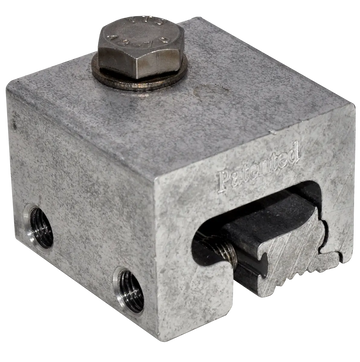

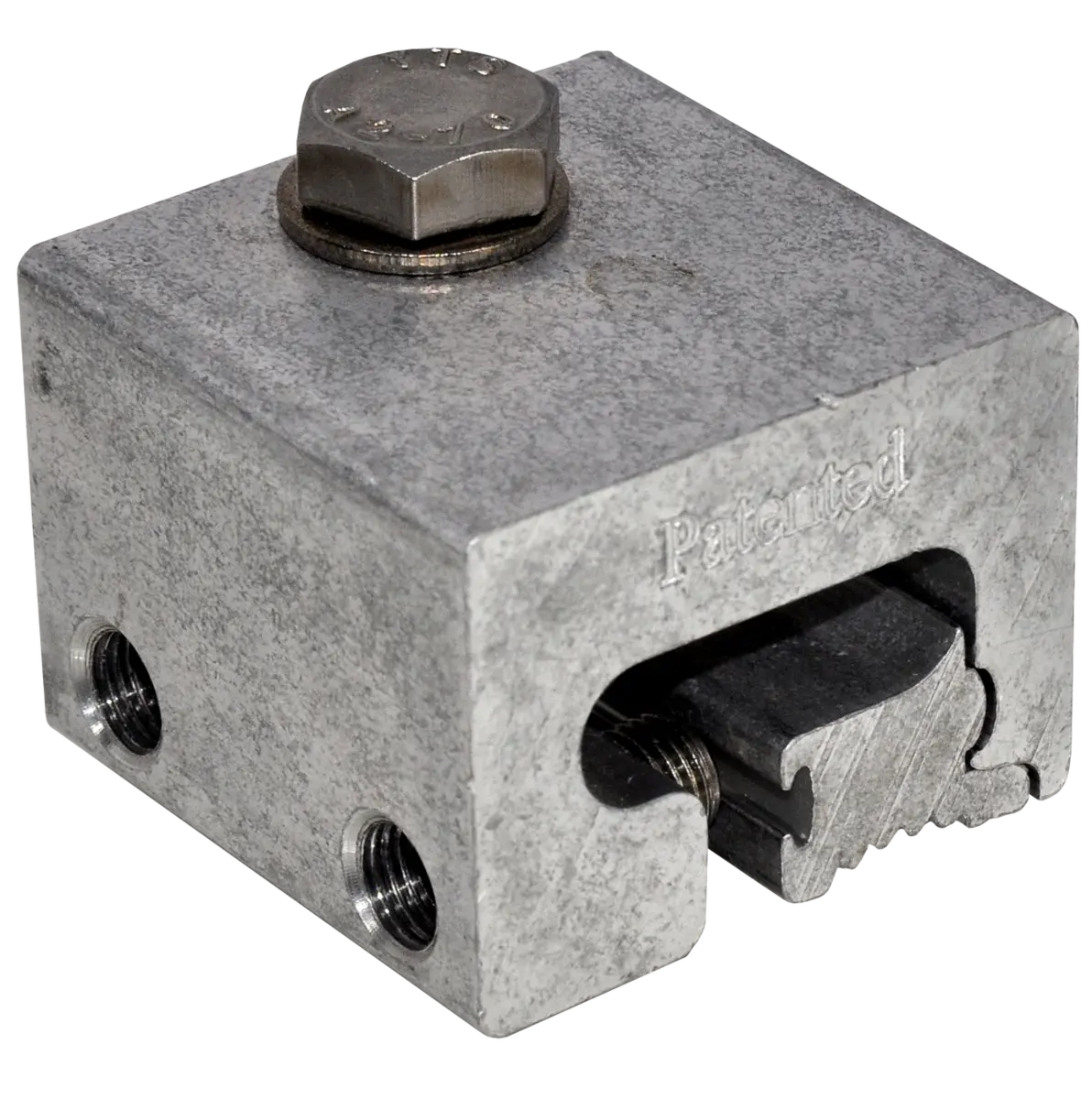

S-5! S-5-T Metal Roof Mounting Clamp

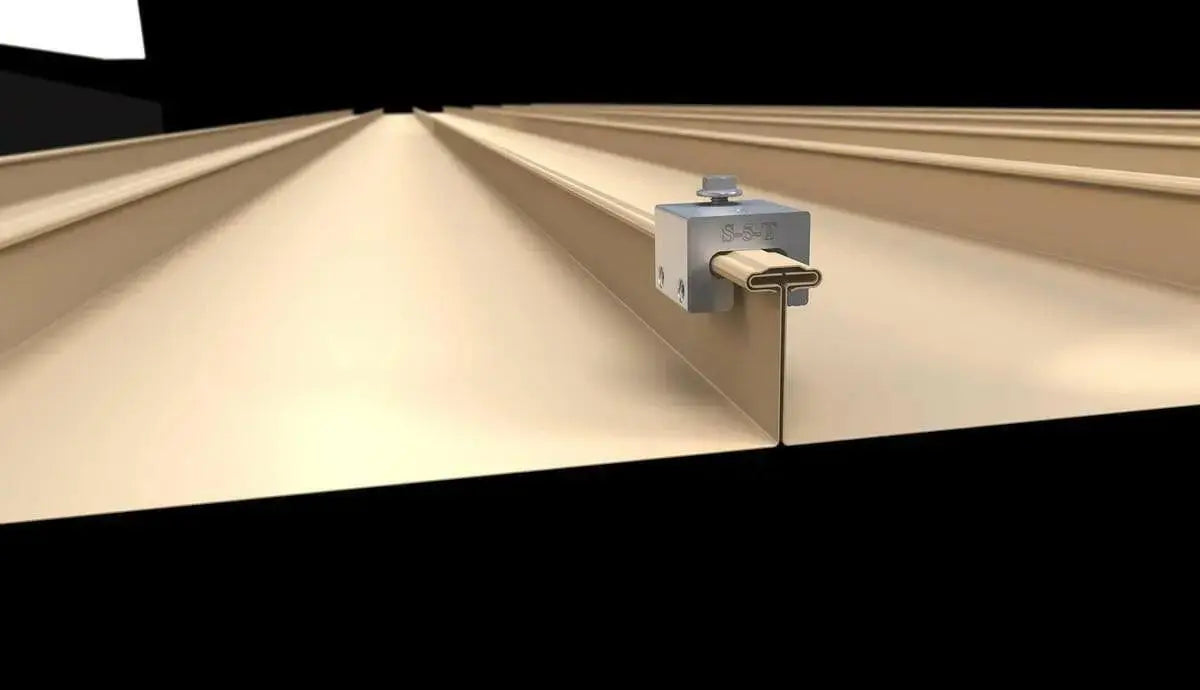

The S-5-T clamp is specially developed to fit profiles having a "T" shaped seam configuration. It will also work on architectural "single-fold," or "angle-seam" profiles having a horizontal projection of 5/8" or less. Its two-piece design allows it to be easily installed anywhere along the length of the panel seam. The S-5-T Mini is a bit shorter than the S-5-T and has one setscrew rather than two. The mini (illustrated in the rendering to the right) is the right choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment-just about anything.

Features

• Easy installation, and high compatibility
• Thanks to S-5!'s patented round-point setscrews, S-5! clamps do not pierce metal roof paneling, thereby protecting roof coatings and weather-tightness warranties


Specifications

• Size: T
• Suitable For Use With: Utility Roof with T-shaped Seam
• Material: Aluminum
• Standards: UL Listed
• Includes:
  • M8-1.25 x 16 mm Hex Flange Bolt
  • (2) M8-1.25 Threaded Holes
  • Two 3/8-24 x 0.8 in Round-Point Setscrews
• Dimensions: 2 in Height x 2 in Width x 1.5 in Depth
• Warranty: 25 Years Limited


Documents

• Instruction/Installation Manual

• Brochure
