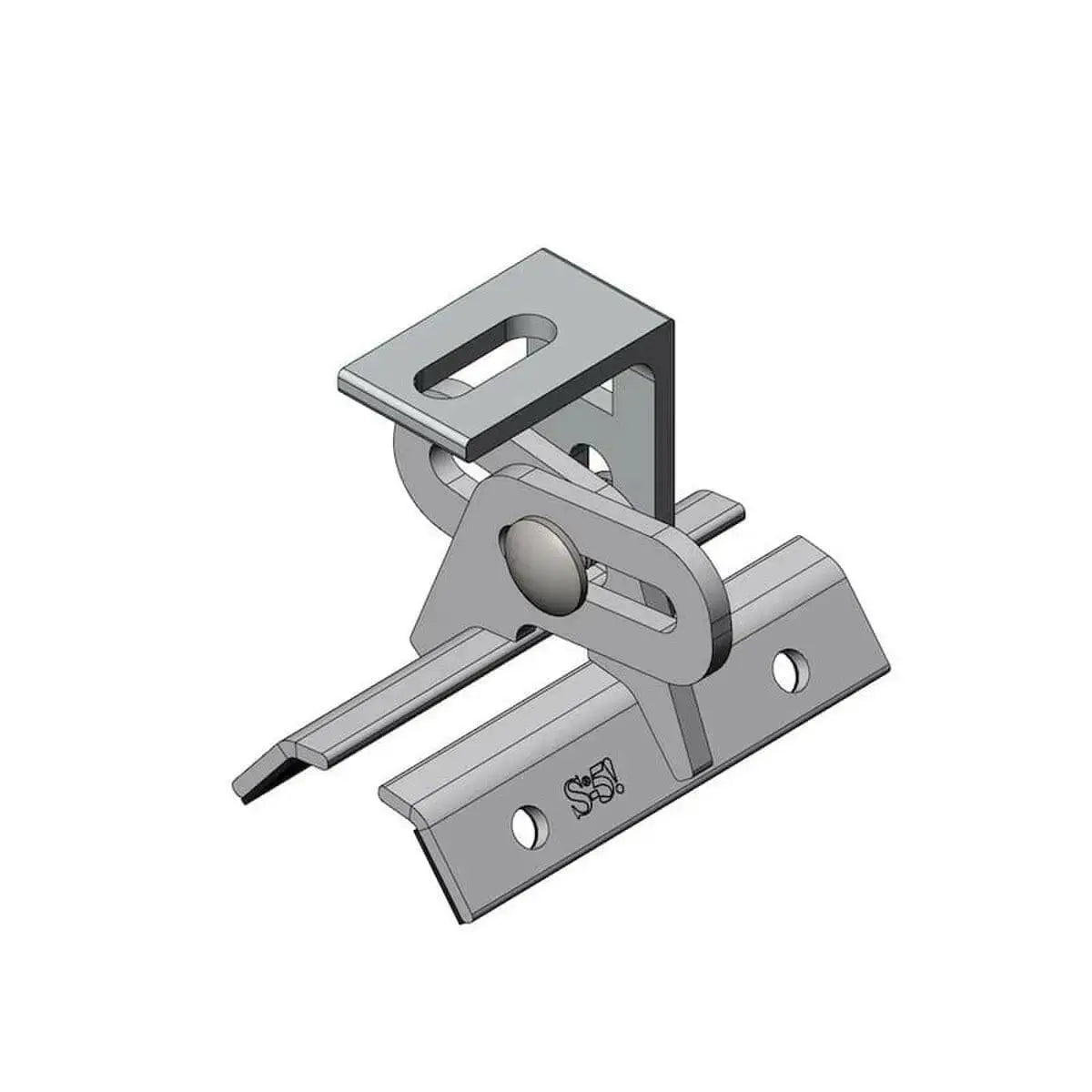

S-5! Metal Roof Attachment Aluminum Mounting Solar PV to Trapezoidal Roof Profiles ProteaBracket

ProteaBracket™ is the perfect solar attachment solution for most trapezoidal exposed-fastened metal roof profiles. No messy sealants to apply: the factory-applied adhesive rubber sealant weather-proofs and makes installation easy.

Features

• Adjustable attachment base to accommodate varying rib widths, heights, and angles with multiple module mounting options
• Attached to the sheeting only, no messy sealants and comes with a factory-applied, EPDM pad to ensure quick installation and a weather-proof fit
• ProteaBracket is mounted directly onto the crown of the trapezoidal sheet using stainless-capped screws (provided) or Bulb-Tite rivets (sold separately). It has been rigorously tested for load-to-failure results in sheeting only
• Pair with the PVKIT® for a rail-less solution - also ideal for both side-bolted and bottom-bolted rail mounting
• 34% lighter than similar stainless steel alternatives - saves on shipping
• L-Foot allows for side-mount rails in its vertical orientation OR bottom-mount rails or PVKIT in its horizontal orientation
• Corrosion-resistant materials
• Adjustable fits rib profiles up to 3 in
• Peel-and-Stick prevents accidental shifting during installation
• Fully pre-assembled
• ProteaBracket* can be used for rail mounting or "direct-attach" with S-5! PVKIT™


Specifications

• Material: Aluminum
• Suitable For Use With: Mounting Solar PV to Trapezoidal Roof Profiles
• Warranty: 25 Years


Documents

• Brochure
• Instruction/Installation Manual
