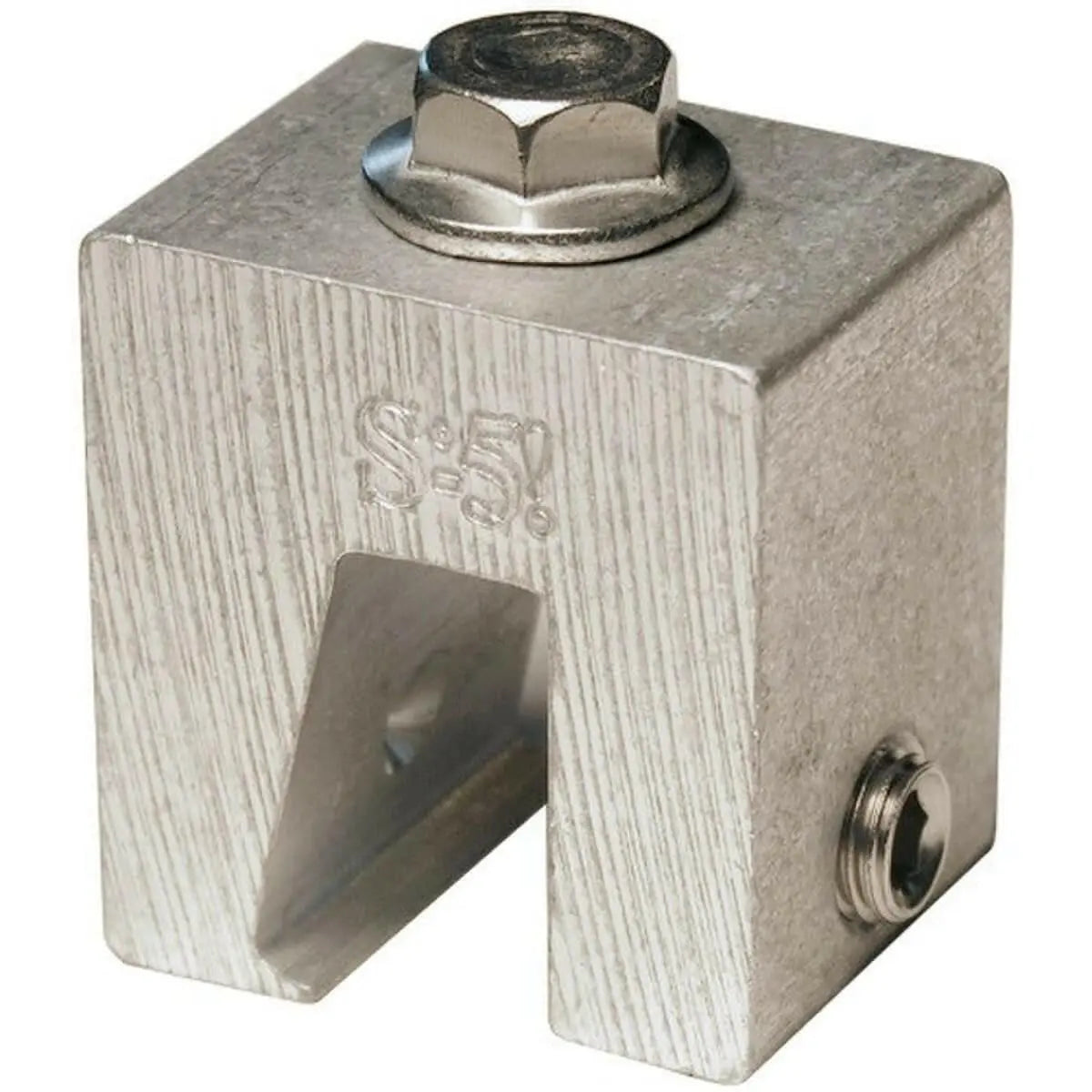

S-5! E Mini Metal Roof Mounting Clamp

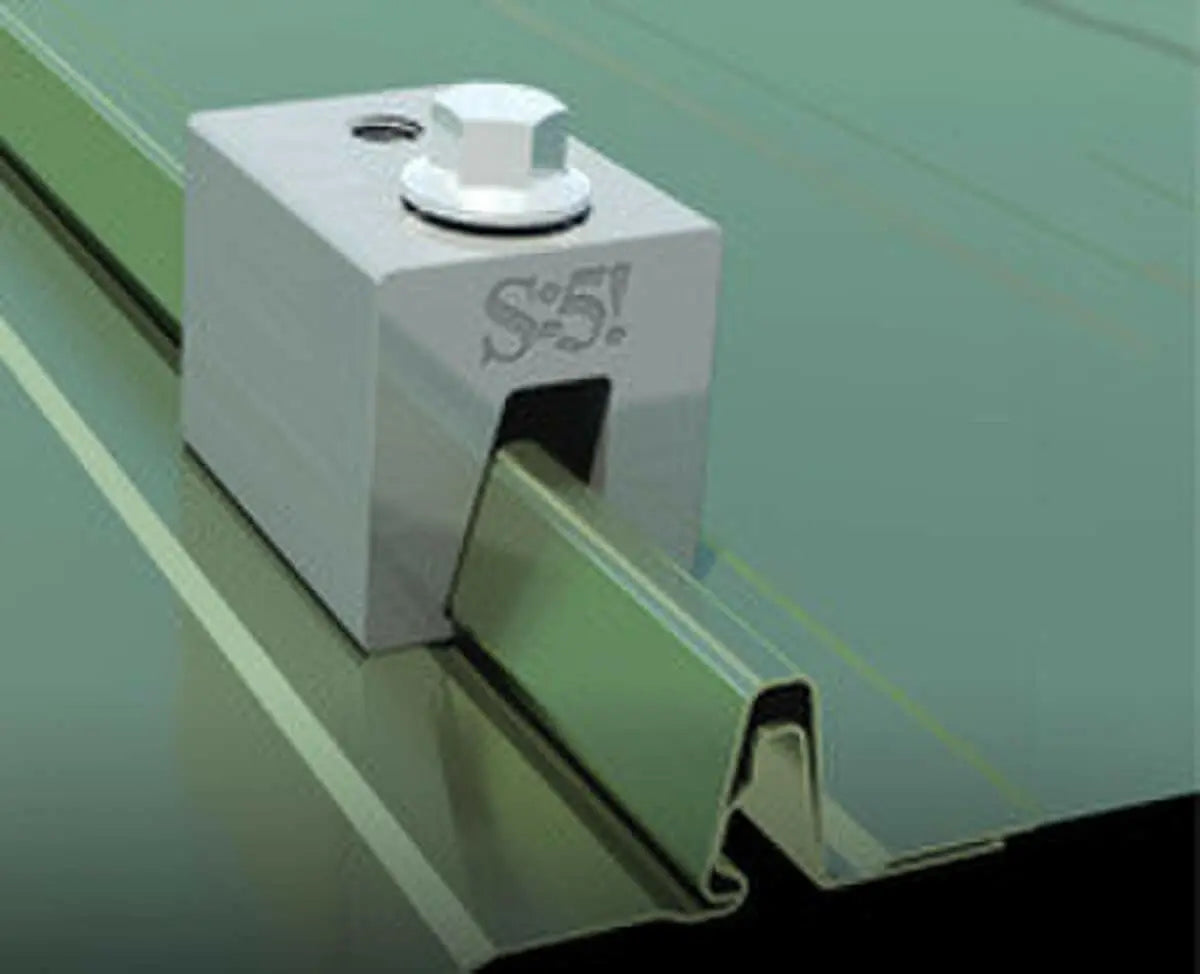

S-5-N and S-5-N Mini clamps were designed with patented S-5! zero-penetration technology for application on the popular 1" nail strip metal roof profiles: Taylor Metals' Easy Lock, ASC Building Products' Skyline Roofing, McElroy Metals' Meridian, and New Tech Machinery's FF100, and roofing types with similar profiles. The clamp boasts a wider throat that accommodates most nail strip profiles, minimizing the need to field crimp. An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process-there is no longer a need to hold the clamp in place while setscrews are tensioned. The combination of these two features allows the clamp to sit straighter on the seam. Nail strip profiles just got a whole lot simpler. The S-5-N Mini is a bit shorter than the S-5-N and has one setscrew rather than two. The Mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment-just about anything.

Features

• Easy installation, and high compatibility. An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process-there is no longer a need to hold the clamp in place while setscrews are tensioned. The combination of these two features allows the clamp to sit straighter on the seam
• Angled setscrews for easy installation; no special tools required
• Special design for "nail-flange" SSR profiles ≤ 1 in (25 mm) in height and with a base of rib dimension < 0.82 in (20 mm)
• Clamp insert facilitates best-fit without damage to panel seam
• New design ensures straighter clamp position on seam
• Structural aluminum (6061-T6) clamp body and 300 series SS fasteners offer superior corrosion resistance & strength


Specifications

• Size: E Mini
• Suitable For Use With: 1 in Nail Strip Metal Roofs
• Material: Aluminum
• Standards: UL Listed
• Includes: (2) T-30 Torx Round-Point Setscrews, (1) M8 Bolt
• Dimensions: 2.4 in Height x 1.9 in Width x 1.9 in Height
• Warranty: 25 Years Limited
