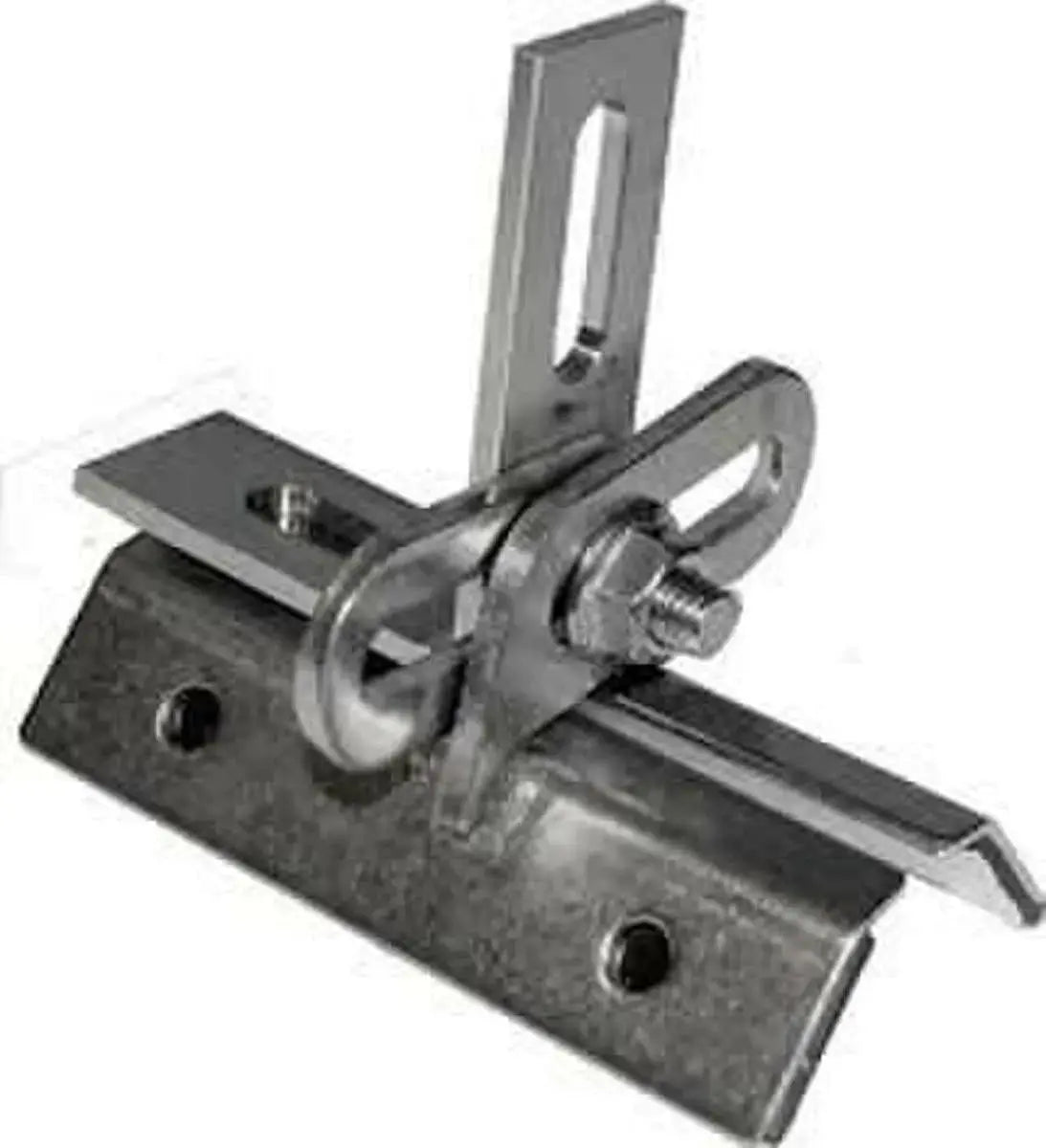

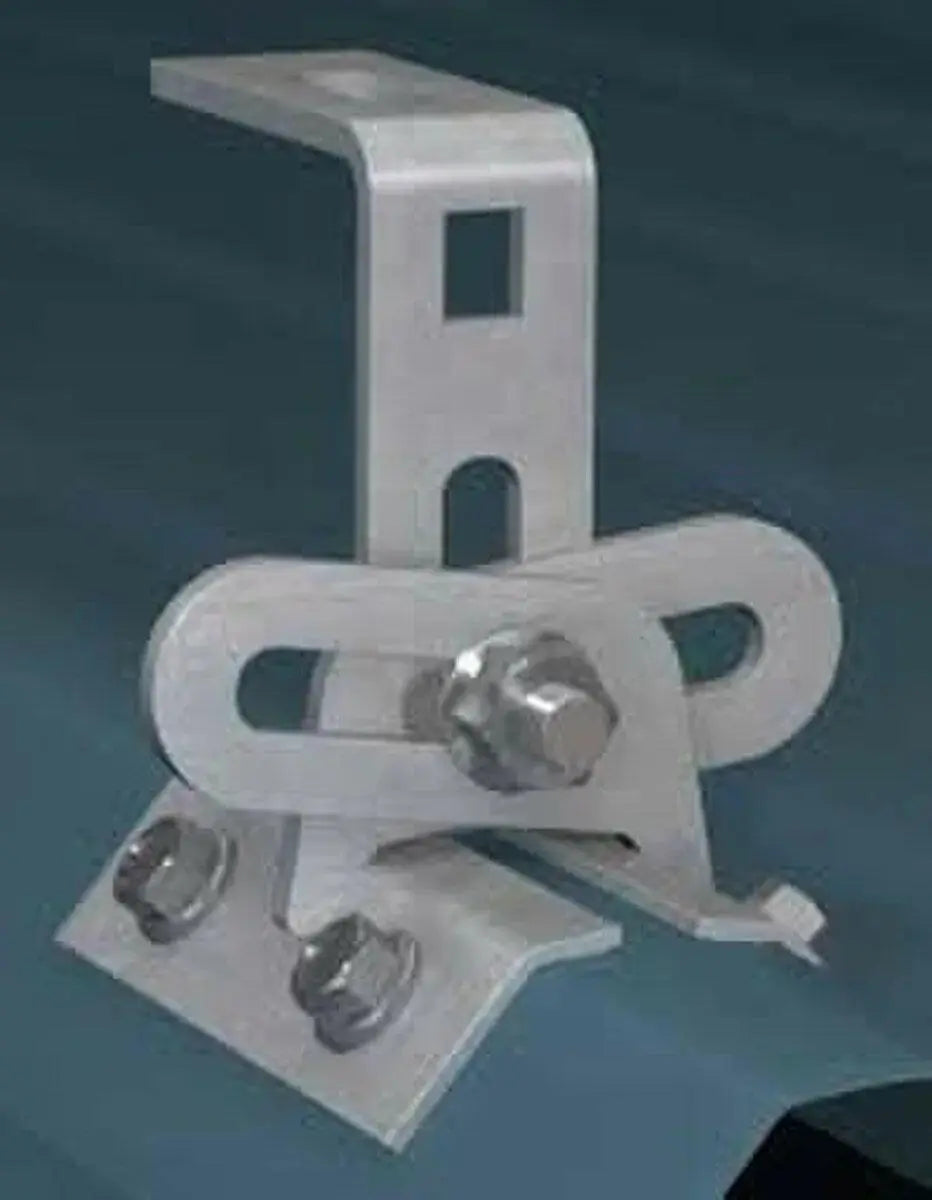

S-5! Aluminum ProteaBracket Clamp

ProteaBracket is the most versatile exposed-fastened metal roof attachment solution on the market, fitting most trapezoidal sheet profiles with and without intermediate insulation. It features an adjustable attachment base and multiple solar module attachment options to accommodate varying widths and heights. There are no messy sealants to apply and no chance for leaks; the ProteaBracket comes with factory applied, adhesive rubber sealant to ensure quick installation and a weather-proof fit. Installation is simple! The ProteaBracket is mounted directly onto the crown of the panel, straddling the profile. No surface preparation is necessary; simply wipe away excess oil and debris, align, and apply. Secure ProteaBracket through its pre-punched holes, using the hardened drill point S-5! screws. ProteaBracket is the perfect match for our S-5-PV Kit and spares you the hassle of cold-bridging! For a solar attachment solution that is both economical and easy to use, choose ProteaBracket.

Features

• Structural A2 stainless steel bimetal attachment bracket that is compatible with most common metal roofing materials. Comes with a factory-applied EPDM adhesive rubber sealant on the base that ensures quick weather-proof installation. All four pre-punched holes must be used to achieve tested strength. Mounting hardware is furnished with the ProteaBracket


Specifications

• Suitable For Use With: Trapezoidal Exposed-Fastened Metal Roof Profiles
• Material: Aluminum
• Standards: UL Listed
• Includes: L-Flange, Bolt, Washer, and 4 x Self-Tap SS Screws

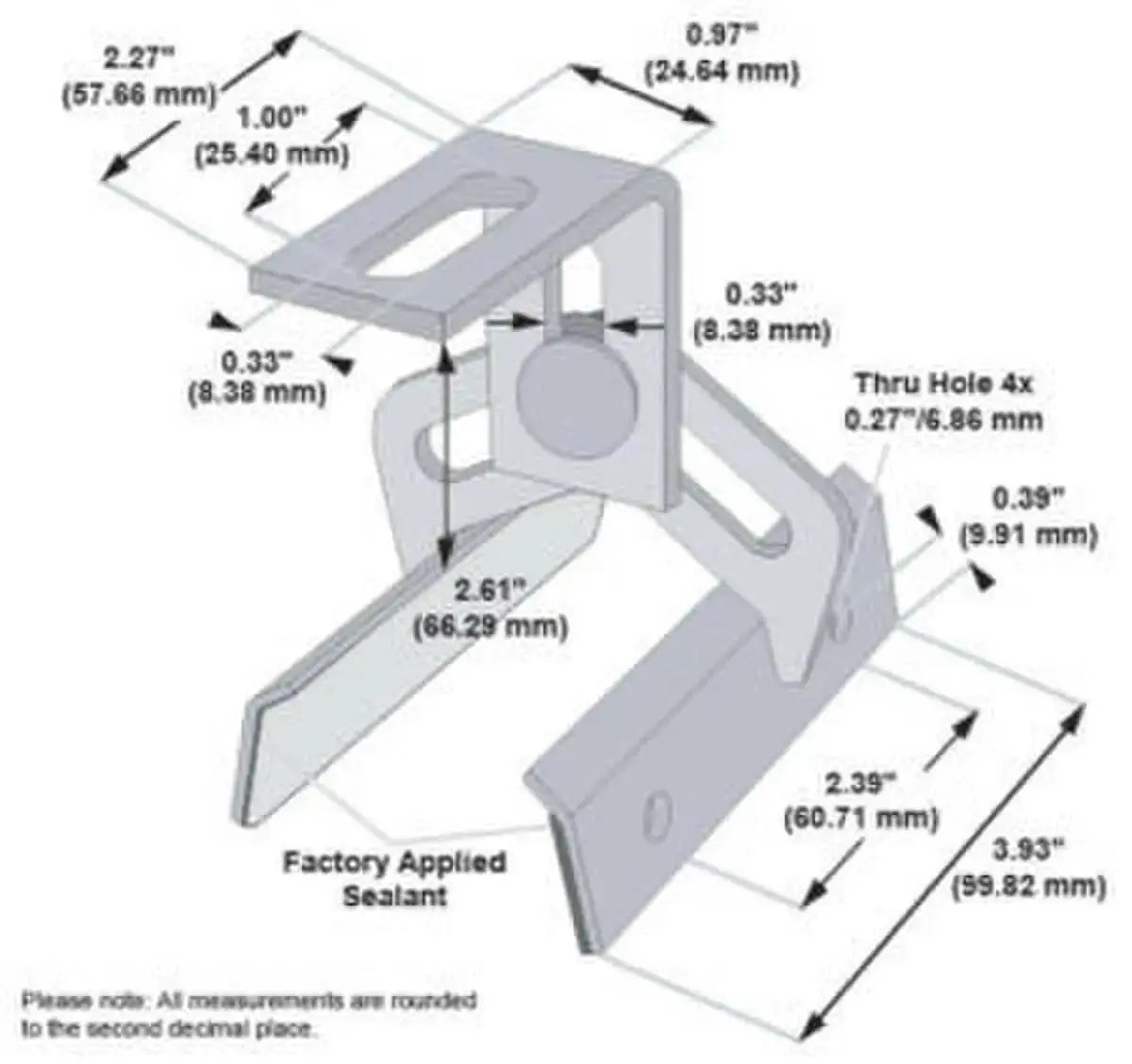

• Dimensions: 2 in Height x 3 in Width x 2.5 in Depth
• Warranty: 25 Years Limited


Documents

• Instruction/Installation Manual
•  Brochure
