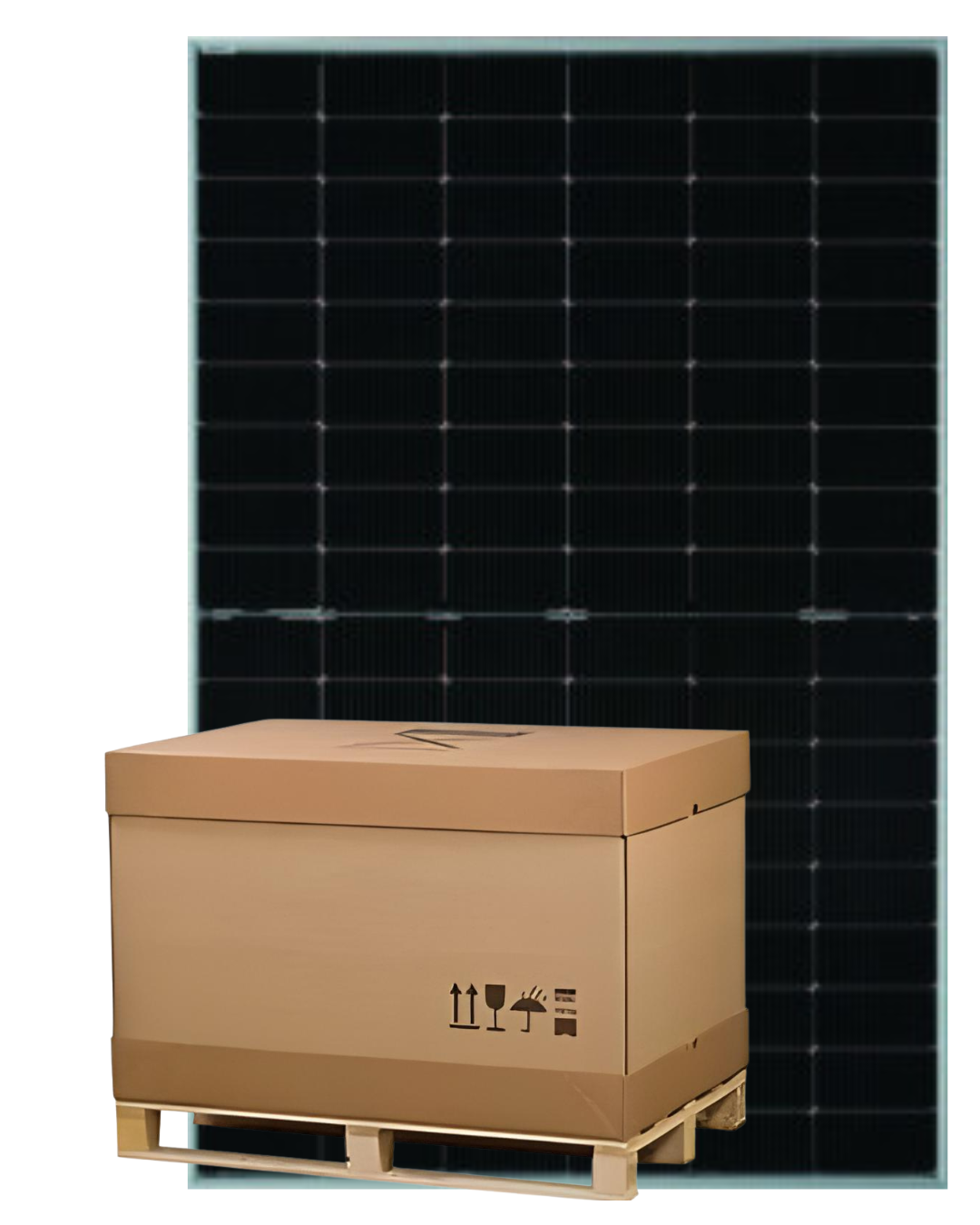

Runergy HY-DH108N8B 450W All-Black Solar Panel( 36 panels per pallet )

The Runergy HY-DH108N8B 450W All-Black Solar Panel is a premium high-performance module designed for maximum energy production and long-term reliability. Using advanced N-type monocrystalline half-cell technology, this panel provides up to 450W of rated power with module efficiency up to 22.5%, minimizing energy loss and delivering consistent performance even in challenging conditions.

Engineered for both aesthetics and durability, the all-black design blends seamlessly with modern rooftops. Its high resistance to Potential Induced Degradation (PID), micro-cracks, and hot spots ensures long-term stability, while robust mechanical design withstands 5400Pa front and 2400Pa rear loads, making it suitable for extreme weather conditions. Optional bifacial and double-glass versions further enhance energy yield and longevity.

Technical Highlights:

• Maximum Power (Pmax): 450W

• Voltage at Maximum Power (Vmp): 40.8V

• Current at Maximum Power (Imp): 11.03A

• Open Circuit Voltage (Voc): 48.9V

• Short Circuit Current (Isc): 11.6A

• Module Efficiency: Up to 22.5%

• Temperature Coefficient (Pmax): -0.34%/°C

• Operating Temperature: -40°C to +85°C

• Dimensions: 1722 × 1134 × 30 mm

• Weight: 24.2 kg

• Cell Type: 108 N-type monocrystalline half-cells

• Frame Material: Anodized aluminum alloy

Durability & Reliability:

• Mechanical Load Capacity: 5400Pa front, 2400Pa rear

• Weather Resistance: Certified for harsh climates, snow, and wind

• PID Resistance: Ensures minimal degradation over time

• Warranty: 25-year materials & workmanship, 30-year linear performance guarantee

Applications:

• Residential rooftops

• Commercial rooftop installations

• Utility-scale solar farms

• Off-grid solar systems

• High-performance projects where aesthetics and maximum 450W output are required

Why Choose Runergy HY-DH108N8B:

• Consistently high energy yield with superior N-type cells

• Sleek all-black panel design for modern installations

• Strong mechanical durability and resistance to extreme weather

• Long-term investment with 30-year linear performance guarantee

Document: Specification Sheet
