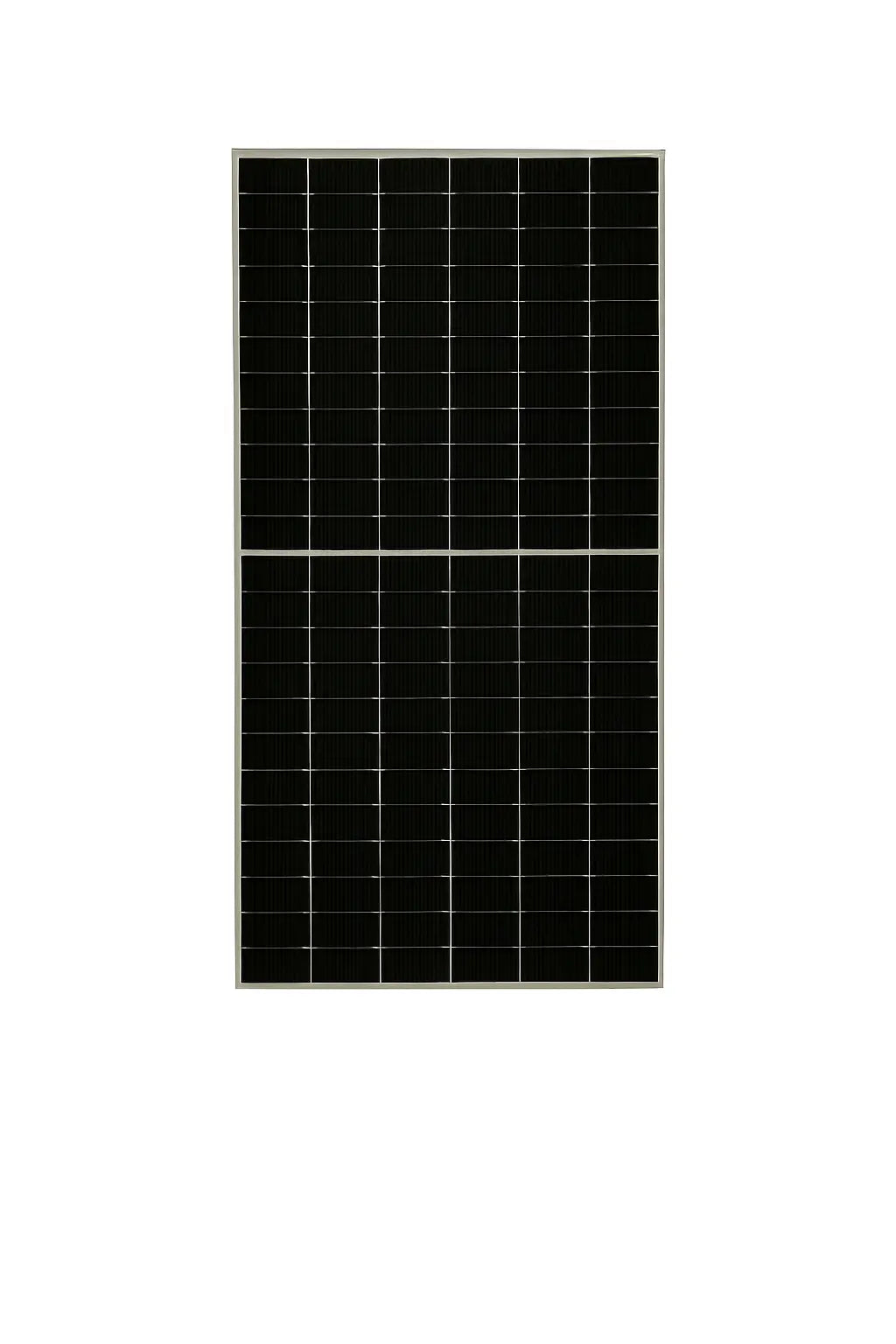

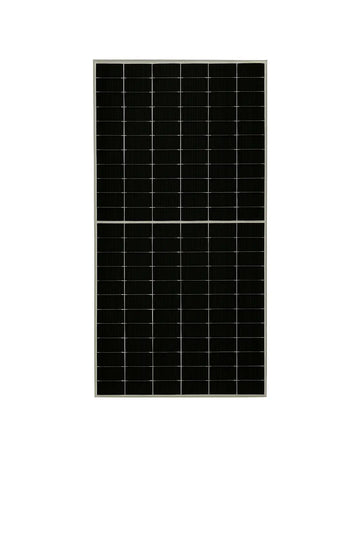

Runergy 545W Monocrystalline Solar Panel
-
Estimated Delivery:Nov 30 - Dec 04
-
Free Shipping & Returns: On all orders over $75
Runergy 545W Monocrystalline Solar Panel
Power your solar project with first-rate performance and reliability. The Runergy 545 W bifacial module combines advanced half‑cell PERC technology with a dual‑glass structure for increased energy capture—up to 21.1% module efficiency and significant rear‑side gain. Designed for both aesthetics and endurance, it features slim silver framing, superior PID resistance, and robust ratings for 2400 Pa wind and 5400 Pa snow load. With 12‑year product assurance and up to 30 years of linear power output guarantee, it's an excellent choice for commercial, utility-scale, or high-efficiency residential installations.
Specifications
| Feature | Description |
|---|---|
| Module Power (STC) | 545 W |
| Efficiency | ≈ 21.1% |
| Cell Configuration | 144 half-cut mono‑PERC cells |
| Dimensions | 2278 × 1134 × 35 mm (~89.7 × 44.6 × 1.38 in) |
| Weight | Approx. 32 kg (~70.6 lb) |
| Operating Voltage & Current | Vmp ≈ 41.8 V, Imp ≈ 13.04 A; Voc ≈ 49.75 V, Isc ≈ 13.93 A |
| Power Tolerance | 0 to +5 W |
| Temperature Coefficient (Pmax) | −0.35 %/°C |
| Max System Voltage | 1000 / 1500 V DC |
| Wind & Snow Rating | Wind: 2400 Pa; Snow: 5400 Pa |
| Warranty | 12‑year product; 30‑year linear power warranty (~84.95% output after 30 years) |
| Connector | RY01 (or equivalent) |
| Frame | 30 mm anodized aluminium, silver finish |
| Front/Back Glass | 2 mm semi-tempered AR glass each side |
| Junction Box Rating | IP68, 3 bypass diodes |
| Operating Temp Range | −40 °C to +85 °C |
| Rear‑side Gain | Bifacial design can yield up to ~30% additional energy |
Technology Highlights
-
Half‑Cell Mono‑PERC Architecture: Reduces resistive losses and enables stronger shade tolerance.
-
Bifacial Double‑Glass Design: Enables dual‑sided energy capture for up to ~30% greater yield depending on conditions.
-
High Mechanical Durability: Certified to withstand extreme weather loads, with robust PID resistance and corrosion protection.
-
Outstanding Weak‑Light Performance: Optimised module design for early morning, evening, and cloudy conditions
Documents: Specification Sheet
