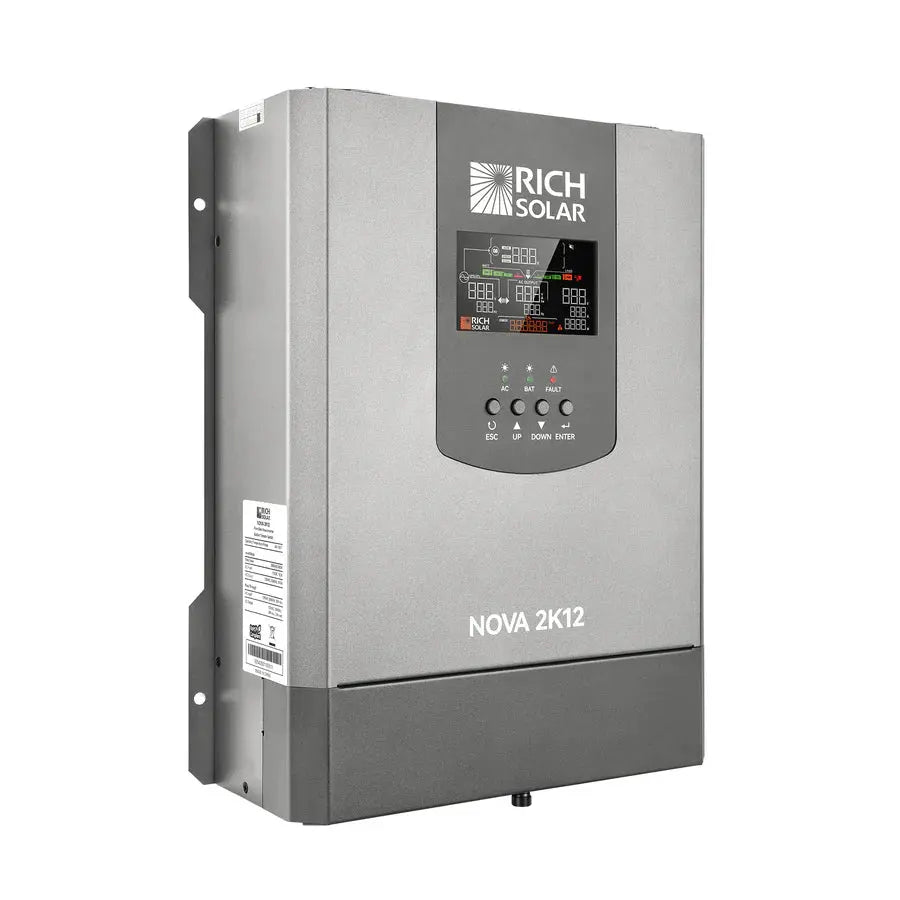

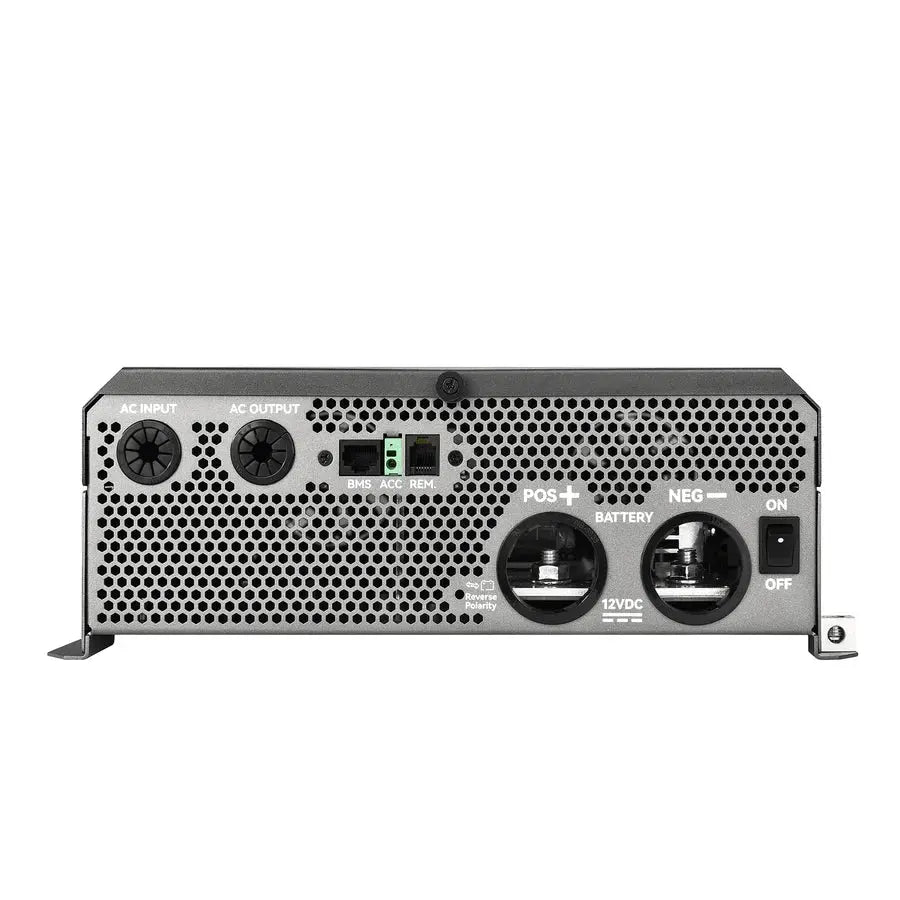

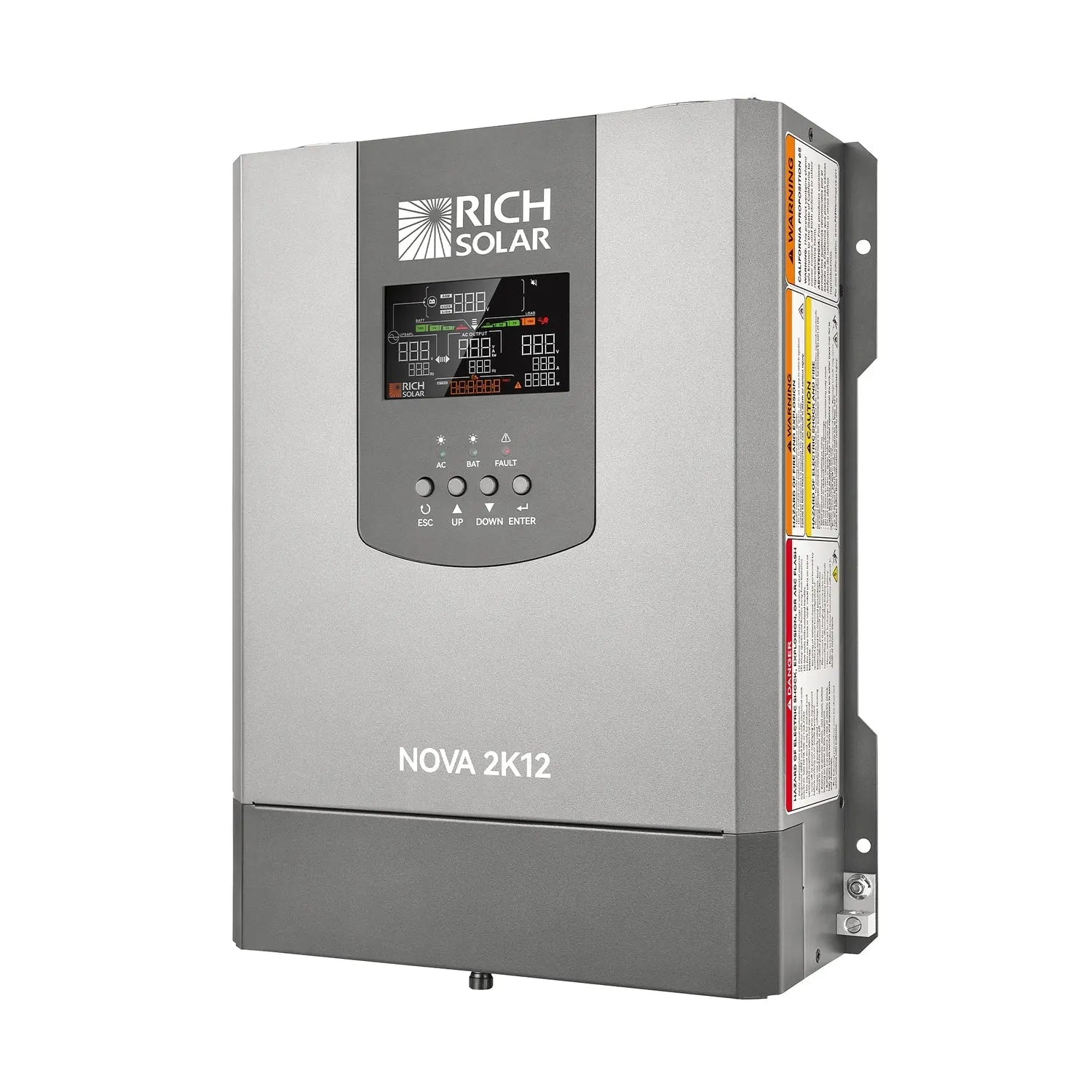

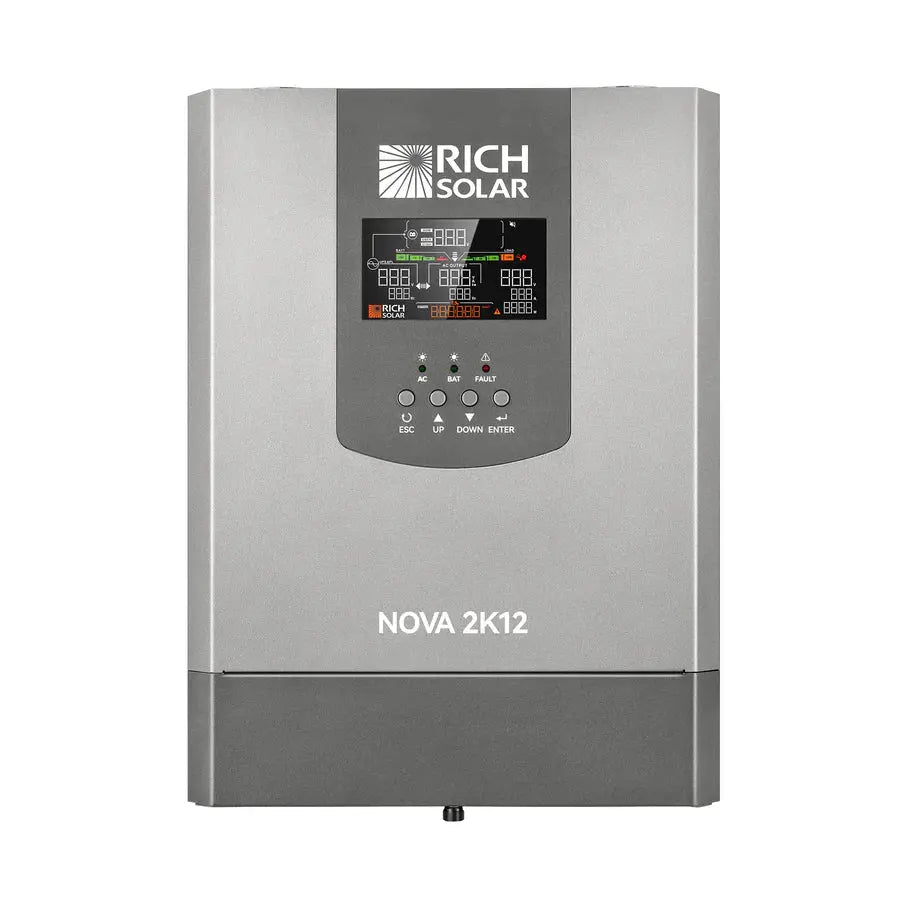

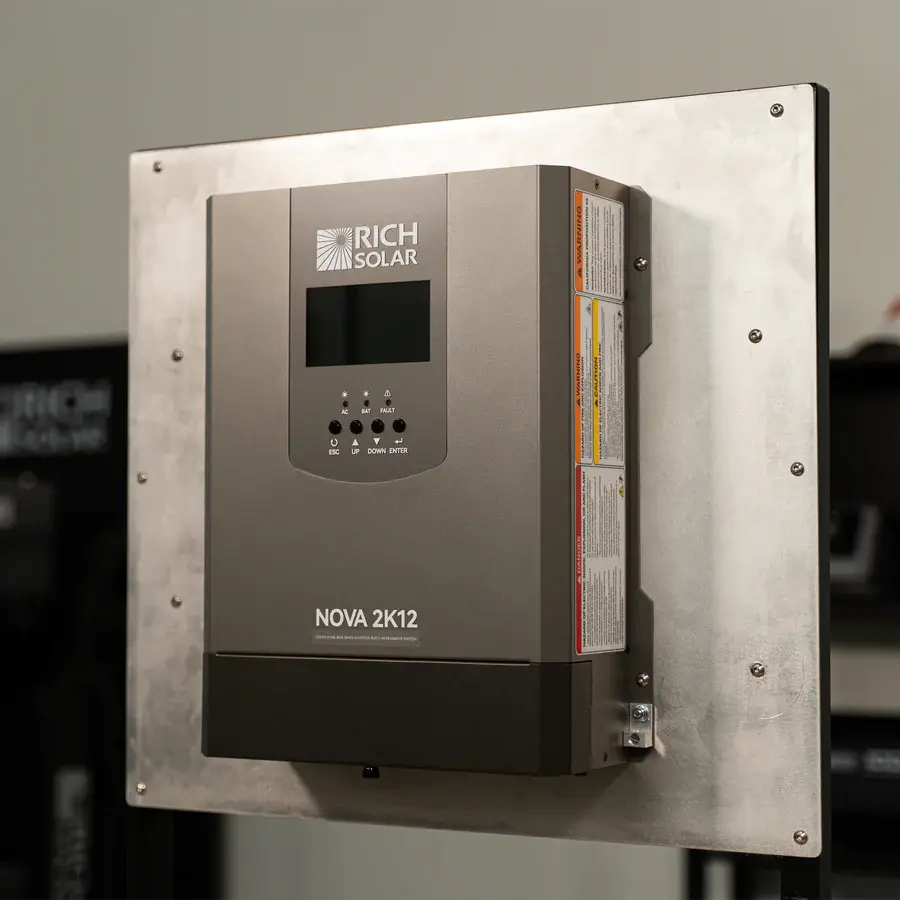

RICH SOLAR NOVA 2K12 | 2000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch
-
Estimated Delivery:Jul 07 - Jul 11
-
Free Shipping & Returns: On all orders under $50
RICH SOLAR NOVA 2K12 | 2000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch
The NOVA 2K12 is a 2000W 12V pure sine wave inverter with a built-in transfer switch, designed for RVs, trailers, campers, and vans. UL458 certified, it delivers stable 120V AC power from a 12V battery system. With <5% THD, 91% efficiency, and RS232/RS485 communication, it's ideal for sensitive electronics. Compact, lightweight, and built to perform in extreme temperatures, it's perfect for mobile and off-grid applications.
Features
- Pure Sine Wave Output (<5% THD): Delivers clean, stable power for sensitive electronics, including medical equipment and servers.
- 91% High Efficiency: Maximizes battery life with minimal energy loss and low standby consumption.
- Seamless Automatic Transfer Switch: <20ms transfer time for uninterrupted power during outages; Dual transfer modes: Normal (fridges, tools) / Fast (computers, servers).
- Advanced Protection System: Adjustable low voltage shutdown (10.5V-12.8V) with overload/short-circuit/overheat protection.

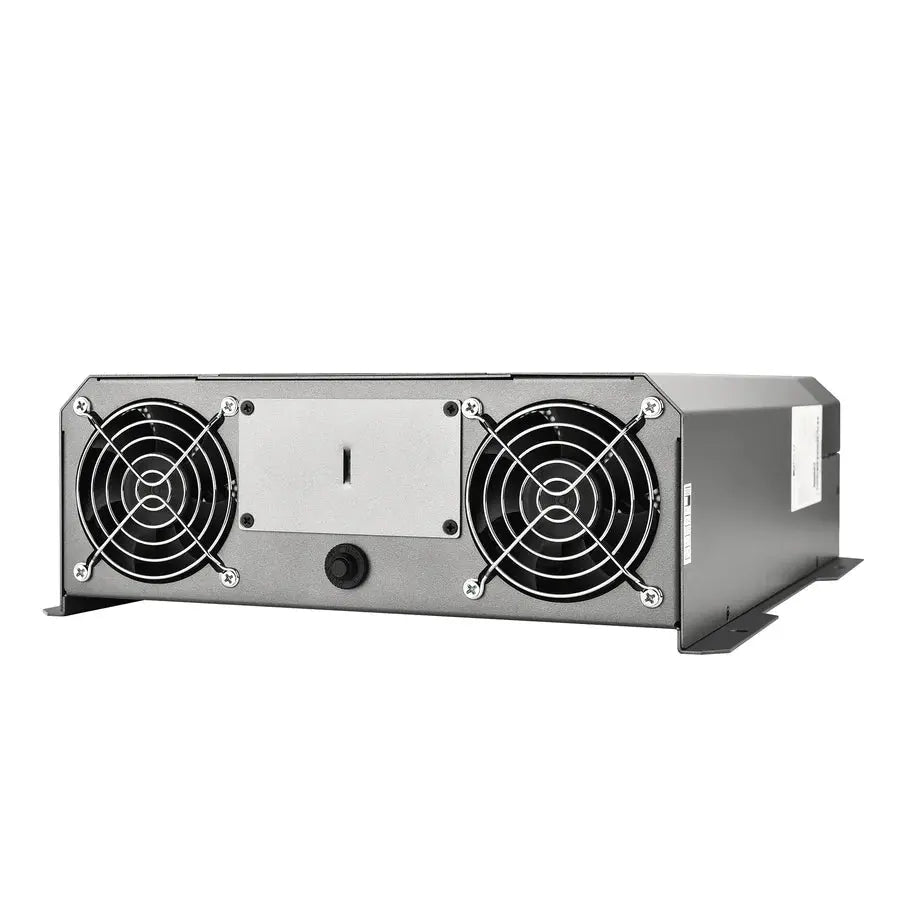

- Marine-Grade Durability: Optional drip shield and temperature-regulated cooling fan for harsh environments.
- Smart LCD Display: Shows real-time voltage, load, and system status.
- Safety Certified: Complies with UL standards, compatible with 12V deep-cycle and lithium (BMS) batteries.
Specifications
| Model | NOVA 2K12 |
| SKU | RS-V2P12TS |
| Rated Output Power | 2000W |
| Peak Power | 4000W (5s) |
| DC Input Voltage | 12VDC (Max 18V) |
| Nominal Voltage (AC INPUT) | 120VAC |
| Operation Range | 80-140 VAC full power |
| AC Input Frequency | 50/60 Hz selectable |
| Frequency Range | 45 ~ 70 Hz |
| Nominal Voltage (AC OUTPUT) | 120VAC |
| Voltage Regulation (Batt. Mode) | 120VAC ± 5% |
| Output Frequency | 50Hz or 60Hz selectable ± 1% |
| THD (Batt. Mode) | <5% |
| Peak Efficiency | 91% |
| Waveform | Pure sine wave |
| Transfer Time | ≤ 20ms |
| Transfer Modes | Normal / Fast |
| Nominal DC Voltage (BATTERY) | 12VDC |
| DC Input Power Operating Voltage Range | 10-17VDC |
| Battery Compatibility | 12V deep-cycle (min. 100Ah), LiFePO4 (with BMS) |
| Communication | RS232 / RS485 |

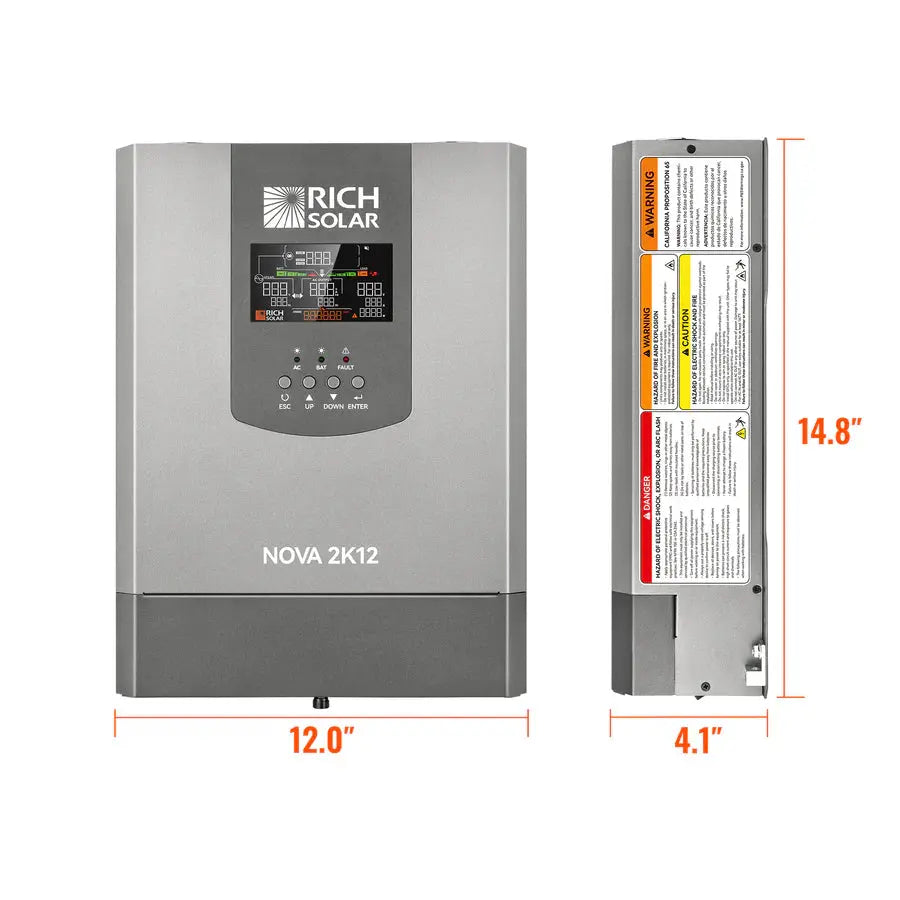

| Dimension (LxWxH) | 14.8 x 12.0 x 4.1 in |
| Net Weight | 15.9 lb |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -40°F ~ 160°F (-4°F ~ 122°F with full power) |
| EMC Compliance | UL458 complies with FCC Part 15 |
Downloads
Warranty
RICH SOLAR provides a manufacturer's warranty on this product. For full warranty details, visit richsolar.com/pages/warranty.
