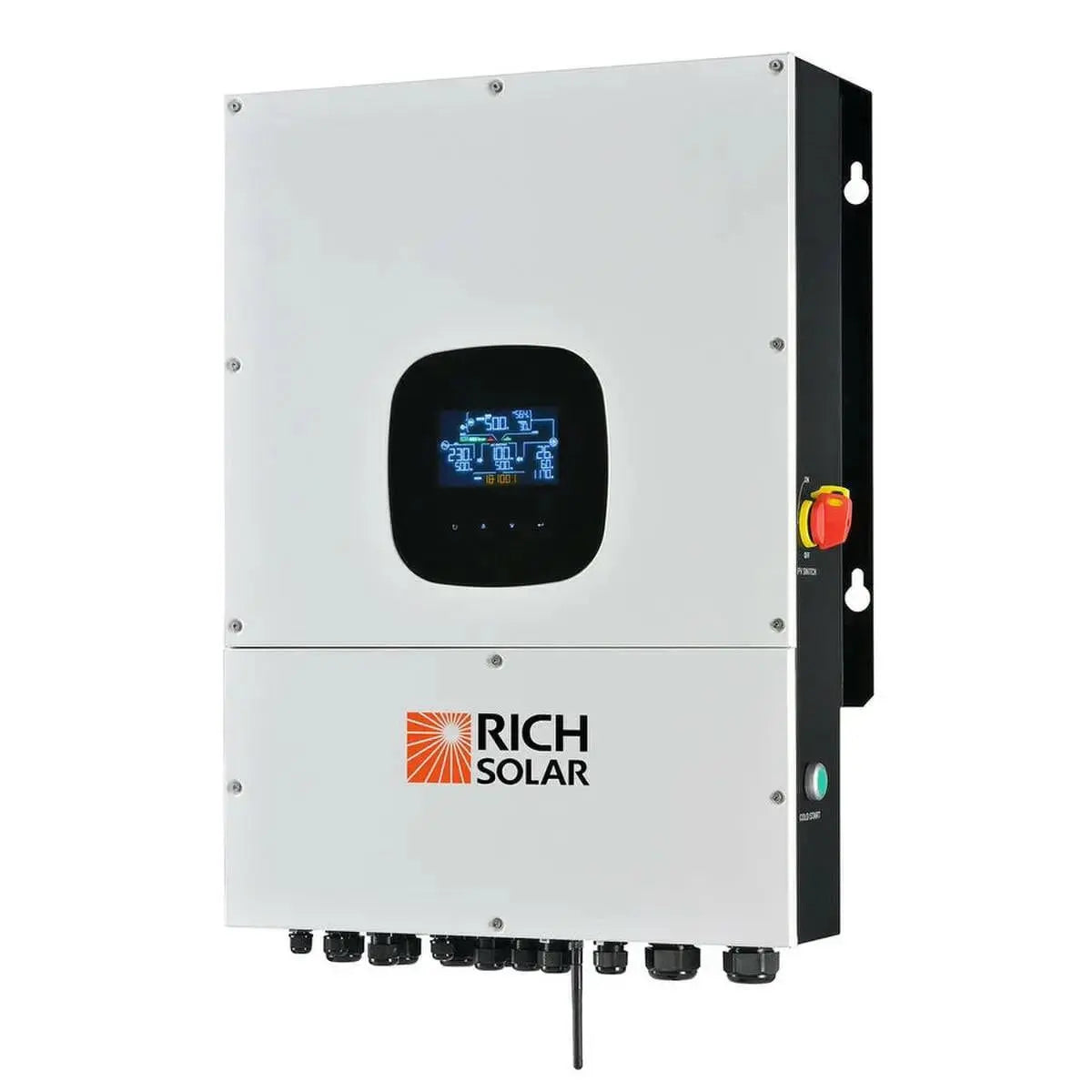

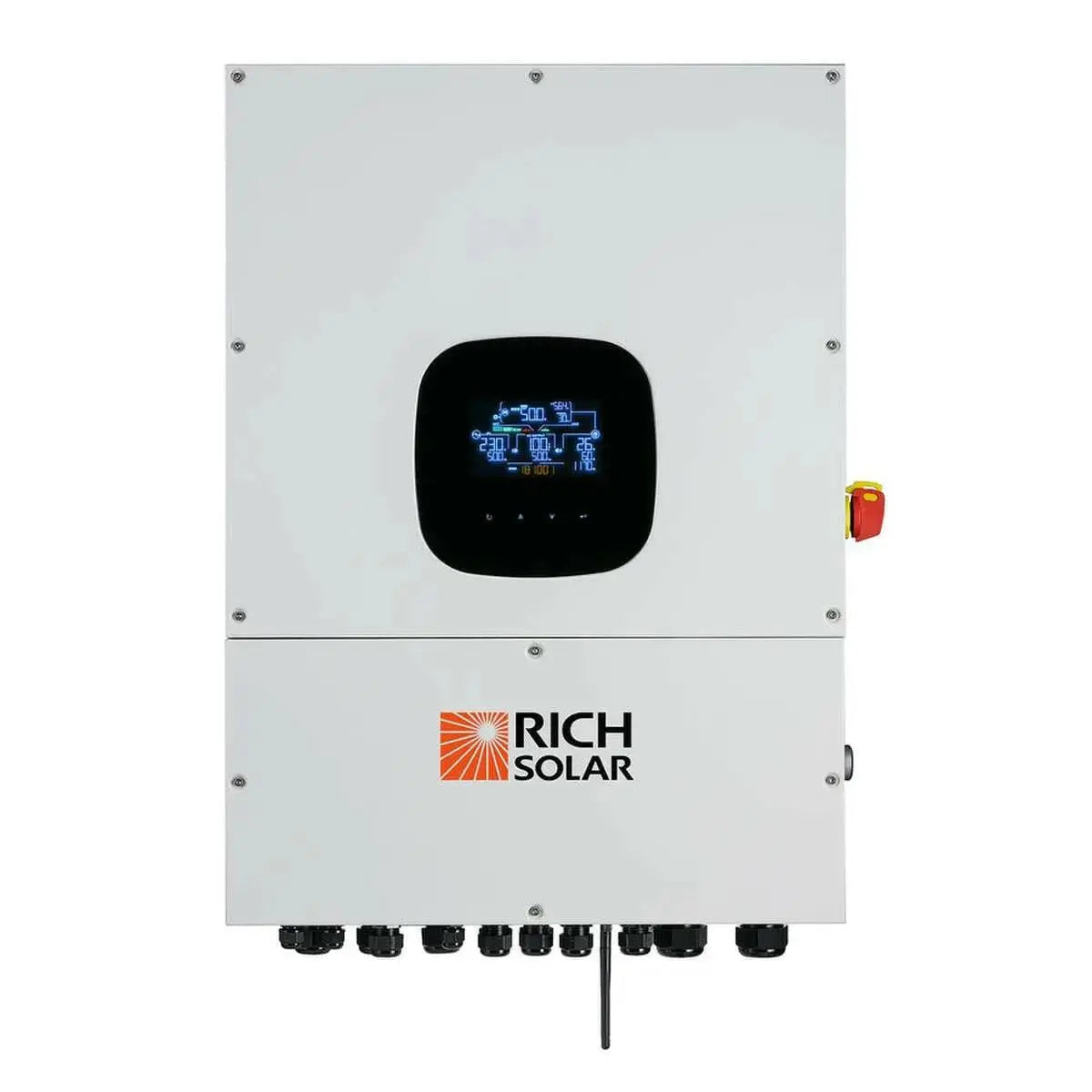

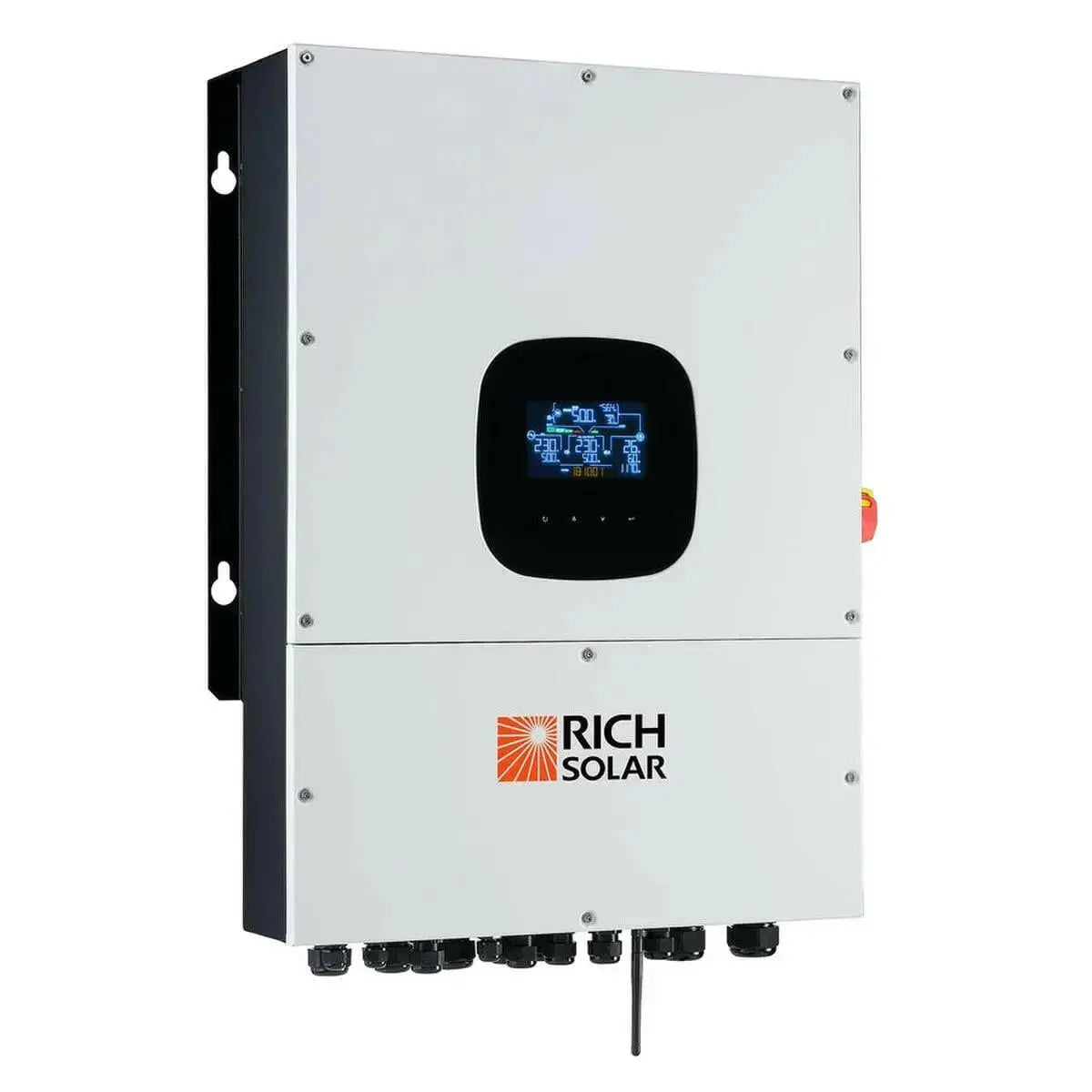

Rich Solar NOVA 12K PV Hybrid Inverter | All-In-One Solar Inverter | 12000W PV Input | 10000W Output | 48V 120/240V Split Phase

Explore the Features and Benefits of the Rich Solar NOVA 12K PV Hybrid Inverter

Features

• Built-in Arc Fault detection (AFD) and Rapid Shutdown (RSD)
• P65 waterproof and dustproof for various working conditions
• Support multiple input & output-Split phase 208/240Vac or single phase 230Vac
• Built-in AC coupled function
• Built-in Wi-Fi for mobile monitoring (APP is available)
• Accepts second input power source, generator input compatible
• Optional external CT sensor to guarantee 100% self-consumption
• Built-in communication port for BMS (RS485)
• User-adjustable charging current and voltage
• Parallel operation up to 6 units


Specifications

• Type: All-In-One Solar
• Dimensions:
  • Width: 515 mm
  • Height: 715 mm
  • Depth: 215.5 mm
• Phase:
  • 120/240 V Split Phase
  • 120/208 V Two-Third Phase
• Maximum PV Input Power: 1200 W
• Maximum DC Voltage: 600 VDC
• Start-Up Voltage/Initial Feeding Voltage: 125 VDC/160 VDC
• MPP Voltage Range: 120-550 VDC
• Number of MPPT Trackers/Maximum Input Current: 2/18 A
• Rated Output Power: 10000 VA/10000 W
• Nominal Output Voltage:
  • 120 VAC (P-N)
  • 208 VAC (P-P)
  • 240 VAC (P-P)
• Output Voltage Range: 105.5-132 VAC Per Phase
• Nominal Output Current: 41.5 A Per Phase
• Battery DC Voltage Range: 40 - 62 VDC
• Maximum Solar Charge Current: 200 A
• Maximum AC Charging Current: 200 A
• Maximum Charging Current: 200 A
• Maximum Charging Power: 10000 W
• Power Factor: 0.9 Lag to 0.9 Lead - Grid Output (AC)
• Maximum Conversion Efficiency (DC/AC): 96% (Grid-Tie Operation)
• AC Input Start-Up Voltage/Auto Restart Voltage: 85 VAC Per Phase/90 VAC Per Phase (Off-Grid Operation)
• Acceptable AC Input Voltage Range: 85-140 VAC (P-N) (Per Phase) (Off-Grid Operation)
• AC Input Frequency Rating: 50/60 Hz (Auto Sensing) (Off-Grid Operation)
• Maximum AC Input Current: 40 A Per Phase
• Efficiency (DC to AC): 91% (Battery Mode Output)
• Output Waveform: Pure Sine Wave (Battery Mode Output)
• Parallel Function: Yes, Up to 6 Units
• Communication Port: RS232, RS485, WI-FI, USB
• Operating Temperature: -25 to 60°C (>45°C Derating)
• Enclosure Rating: IP65
• Standards:
  • UL 1741SA
  • CSA 22.2.1071
  • CEC (List Pending)
  • IEEE 1547:2020, IEEE 1547:2018
  • California Rule 21
  • FCC Part 15 Class B
  • TUV, ETL Listed, PV Cycle, MCS, IEC
• Warranty: 2 Years
• Weight: 45 kg


Documents

• Specification Sheet
• Owners/User Manual
• Certificate of Compliance

Robust All-In-One Hybrid Inverter Design

The Rich Solar NOVA 12K PV Hybrid Inverter combines advanced technology in a compact, all-in-one design that integrates solar inverter, charger, and battery management functionalities. Supporting up to 12000W PV input and delivering a steady 10000W output, this inverter ensures optimal efficiency for residential or commercial solar systems. Its 48V battery compatibility paired with a 120/240V split-phase output makes it adaptable to various electrical setups, enhancing power stability and grid independence.

Enhanced Energy Management and Reliability

Designed for superior performance, the Rich Solar NOVA 12K PV Hybrid Inverter features smart energy management capabilities that optimize solar power usage and battery charging. Its hybrid inverter technology seamlessly switches between solar energy, battery power, and grid electricity to maintain energy flow without interruption. Durable build quality and advanced safety protections deliver reliable operation even in demanding environments, making it a trusted choice for long-term solar energy management.

Easy Installation and User-Friendly Controls

Installation of the Rich Solar NOVA 12K PV Hybrid Inverter is straightforward due to its integrated all-in-one design and versatile connectivity options. The inverter supports 48V batteries and offers 120/240V split-phase output for flexible deployment. Users benefit from an intuitive interface and remote monitoring capabilities, allowing simple system setup and real-time performance tracking. This convenience helps homeowners and installers manage solar power systems efficiently and effectively.
