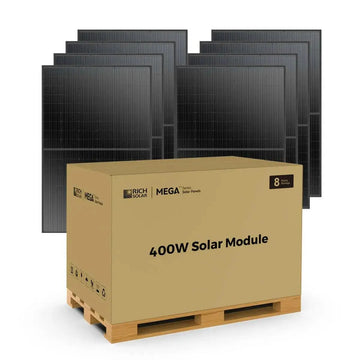

Rich Solar MEGA 400 Watt Monocrystalline Solar Panel | High Efficiency | Best Panel for Grid-Tie and Off-Grid

Been looking for the off-grid solar system for you? This MEGA 400W solar panel is one of the most best solar panels for grid-tie and off-grid system. Get this to start your solar adventure today.

Features

• 10 Buss bar solar cell configuration
• Mono PERC Technology
• Lightweight anodized aluminum frame
• High Transmission, AR (anti-reflective) Coated Tempered Glass
• Plug and play junction box
• Industry standard quick connect cables work in series or in parallel
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings
• Easy installation and handling for various applications (high-end off-grid and mobile applications)
• Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters
• Excellent Cells Efficiency: MBB technology reduce the distance between busbars and finper prid line which is benefit to power increase
• Better Weak Illumination Response: More power output in weak light condition, such as haze, cloudy, and early morning
• Anti PID: Ensured PID resistance through the quality control of cell manufacturing process and raw materials
• Adapt to Harsh Outdoor Environment: Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity environment
• Tier 1: Global, Tier l bankable brand, with independently certi- fied advanced automated manufacturing
• Excellent Quality Management System: Warranted reliability and stringent quality assurances well beyond certified requirements
• Improved Aesthetic: Compared to conventional modules, this full black modules have a more uniform appearance and superior aesthetics


Specifications

• Type: High Efficiency Half-Cell
• Series/Model: Mega™
• Dimensions: 67.9 in (L) x 44.6 in (W) x 1.2 in (H)
• Cells Technology: Monocrystalline (Mono) PERC
• Number of Half Cells: 108 (6 x 18)
• Maximum Power (Pmax): 400 W (STC) / 306.3 W (NOCT)
• Maximum Power Voltage (Vmp): 30.9 V (STC) / 29.1 V (NOCT)
• Maximum Power Current (Imp): 12.9 A (STC) / 10.53 A (NOCT)
• Open-Circuit Voltage (VOC): 37.1 V (STC) / 35 V (NOCT)
• Short-Circuit Current (Isc): 13.7 A (STC) / 11.18 A (NOCT)
• Maximum System Voltage: 1500 VDC
• Maximum Series Fuse Rating: 25 A
• Module Efficiency: 20.97%
• Frame Material: Anodized Aluminum Alloy
• Front Glass: 3.2 mm, High Transmission, Anti-Reflection Coated Tempered Glass
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m² (STC) / 800 W/m² (NOCT)
• Output Cables: 4 mm², 350 mm (With Connectors)
• Connector Type: MC4 Compatible
• Front Side Maximum Static Loading: Up to 5400 Pa
• Rear Side Maximum Static Loading: Up to 2400 Pa
• Operating Temperature: -40 to 85 °C
• Cell Temperature: 25 °C (STC)
• Ambient Temperature: 20 °C (NOCT)
• Temperature Coefficients of Pmax: -0.35%/°C (STC)
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29%/°C (STC)
• Temperature Coefficients of Isc: 0.05%/°C (STC)
• Nominal Operating Cell Temperature: 44 °C ±2%/°C
• Air Mass (AM): 1.5 (STC)
• Junction Box: IP68 Rated, 3 Diodes
• Standards:
  • IEC61215, IEC61730, IEC61701, IEC62716, UL61730
  • ISO 9001: Quality Management System
  • ISO 14001: Environmental Management System
  • ISO 45001: Occupational Health & Safety Management System
  • TUV, ETL, PV Cycle, MCS, IEC, UL, CE
• Warranty: 25 Years Limited Power Output
• Weight: 49.4 lb


Documents

• Specification Sheet
• Certificate of Compliance
