RICH SOLAR MEGA 200 PRO FLEX | 200W 24V Flexible Solar Panel | 360° Bendable, IP68 Waterproof, for RV Roofs, Marine, Off-Grid & Overland

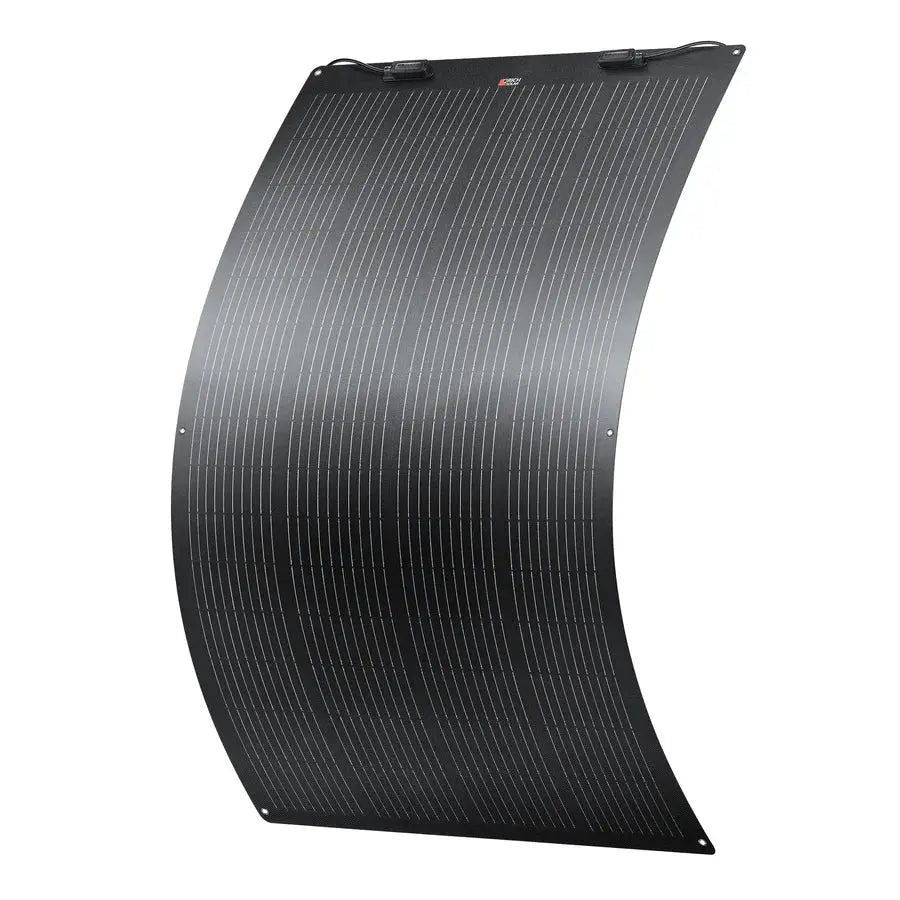

RICH SOLAR MEGA 200 PRO FLEX – 200W 24V Flexible Solar Panel

Discover the 200W flexible solar panel with 360° bendable design, ultra-thin 0.1" profile, and lightweight 8.6 lb build. Walkable, IP68 waterproof, and ideal for RVs, vans, boats, camping, and off-grid power systems with reliable efficiency. 22.8% maximum cell efficiency.

Features

Flexible Design & Portability

• 360° Bendable Panel: Conforms to curved surfaces like RV roofs and boat decks.
• Ultra-Thin & Lightweight: Just 0.1" thick and only 8.6 lb, easy to handle and transport.
• Walkable Surface: Strong enough to withstand foot traffic without damage.

Technology & Performance

• High-Efficiency PERC Cells: Converts sunlight into electricity at up to 22.8% efficiency.
• Reliable Weak-Light Performance: Continues generating power even on cloudy or overcast days.
• Low Temperature Coefficient (-0.35%/°C): Maintains strong output even in hot conditions.

Outdoor Durability

• IP68 Waterproof Rating: Provides reliable, all-weather protection against rain, dust, and moisture.
• Strong Load Resistance: Withstands up to 5,400 Pa front load and 2,400 Pa back load for wind and snow.
• Wide Temperature Range (-40°F to +185°F): Performs reliably in extreme heat or cold conditions.

Easy Installation

• Pre-Attached MC4 Connectors: Plug-and-play design ensures quick and secure setup.
• Flexible Mounting Options: Mount on flat or curved surfaces with adhesive, Velcro, or pre-drilled holes; can also be hung.
• System-Friendly Design: Compatible with 12V and 24V solar power systems.

Specifications

• Maximum Power (Pmax): 200W
• Maximum Power Voltage (Vmp): 34.2V
• Maximum Power Current (Imp): 5.85A
• Open Circuit Voltage (Voc): 40.8V
• Short Circuit Current (Isc): 6.23A
• Maximum System Voltage (Vmax): 1500V DC
• Maximum Series Fuse Rating: 15A
• Temperature Range: -40~+185°F
• Weight: 8.6 lb
• Dimensions: 57.8 x 31.3 x 0.1 in
• Maximum Cell Efficiency: 22.8%
• Material and Workmanship Warranty: 1 year

Warranty

1-Year Material and Workmanship Warranty. View full warranty details.

Datasheet

Download RS-F200PB Datasheet (PDF)
