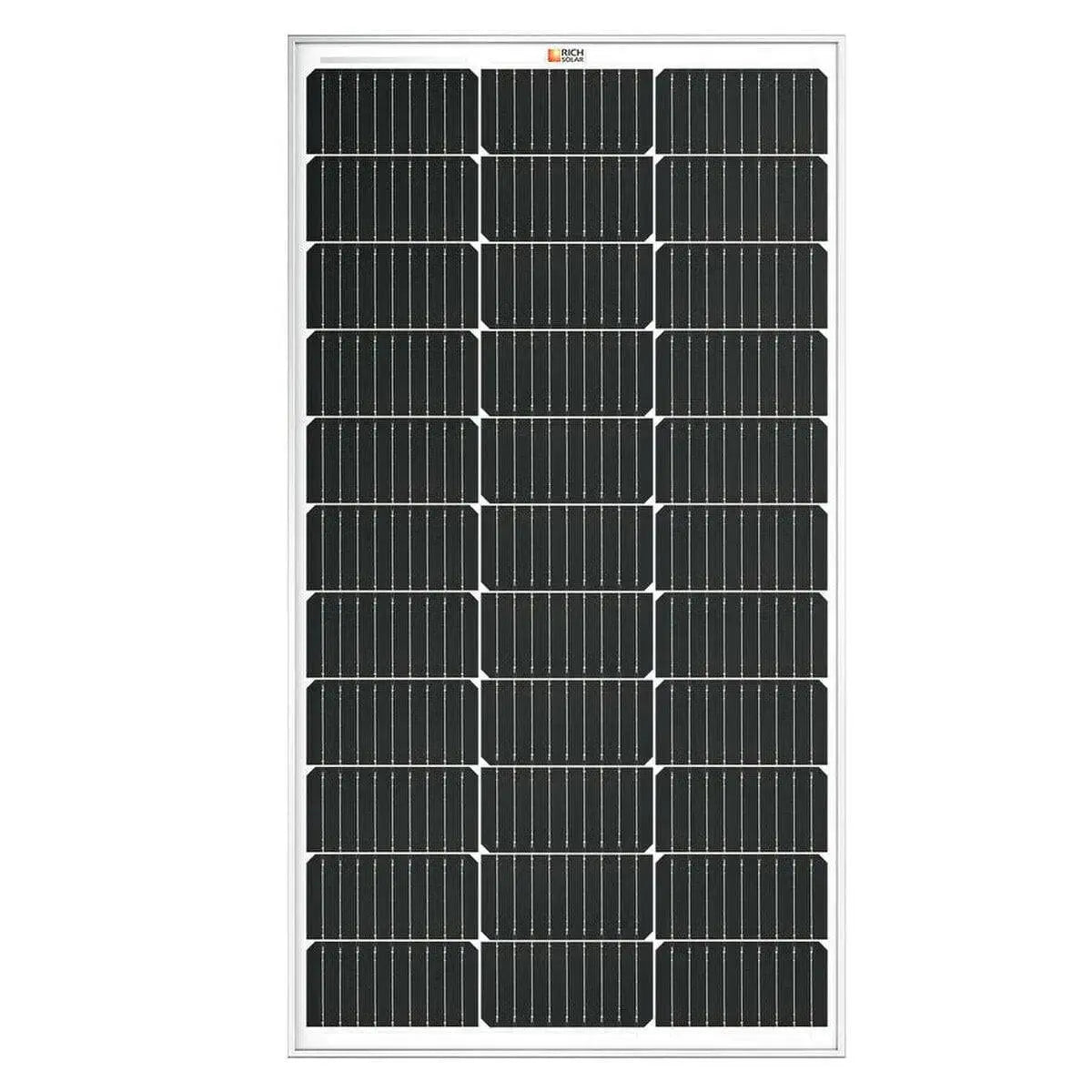

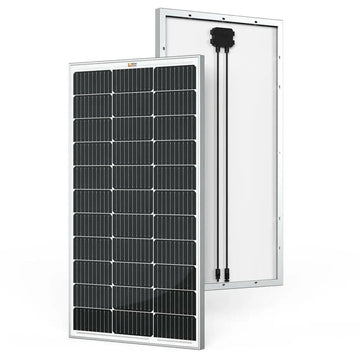

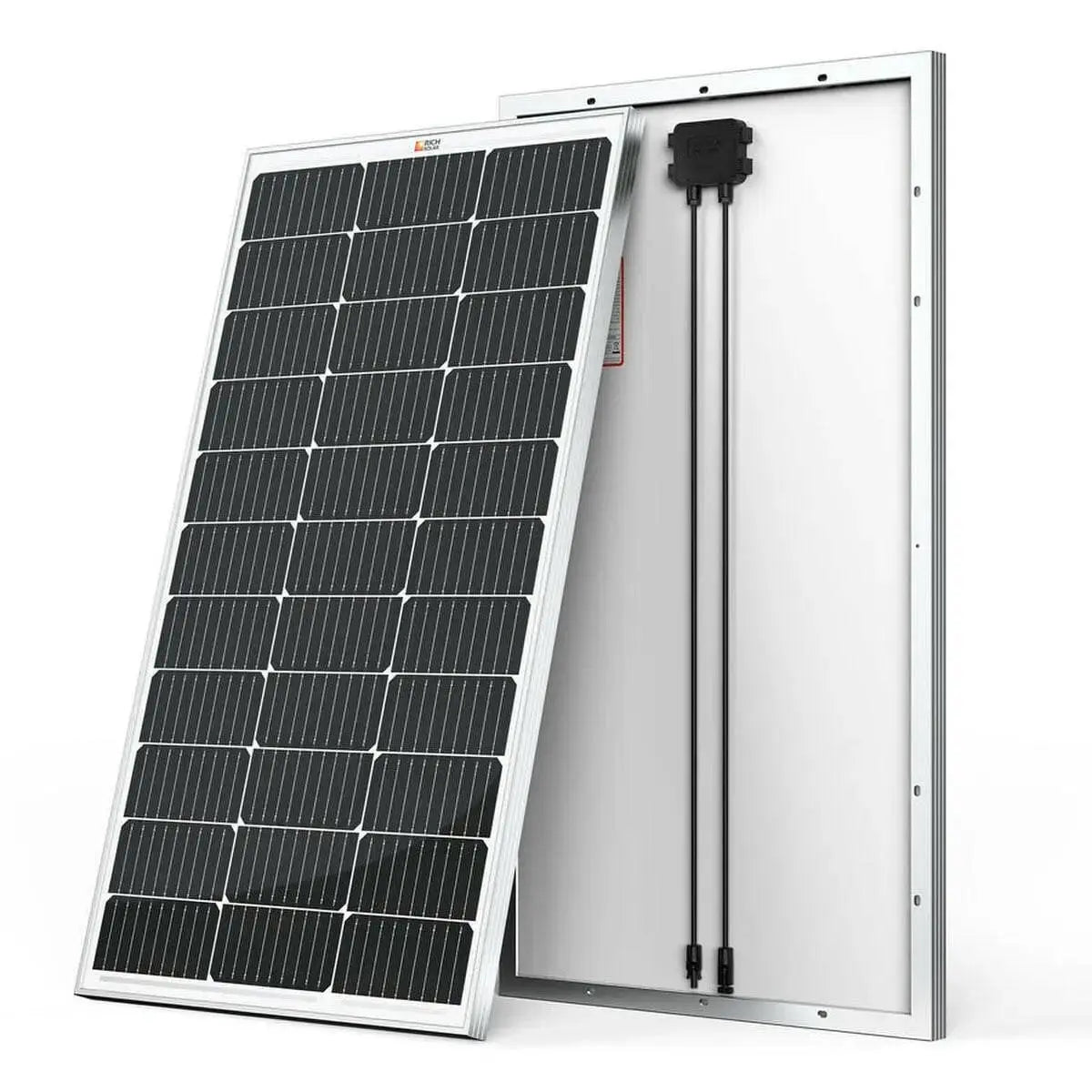

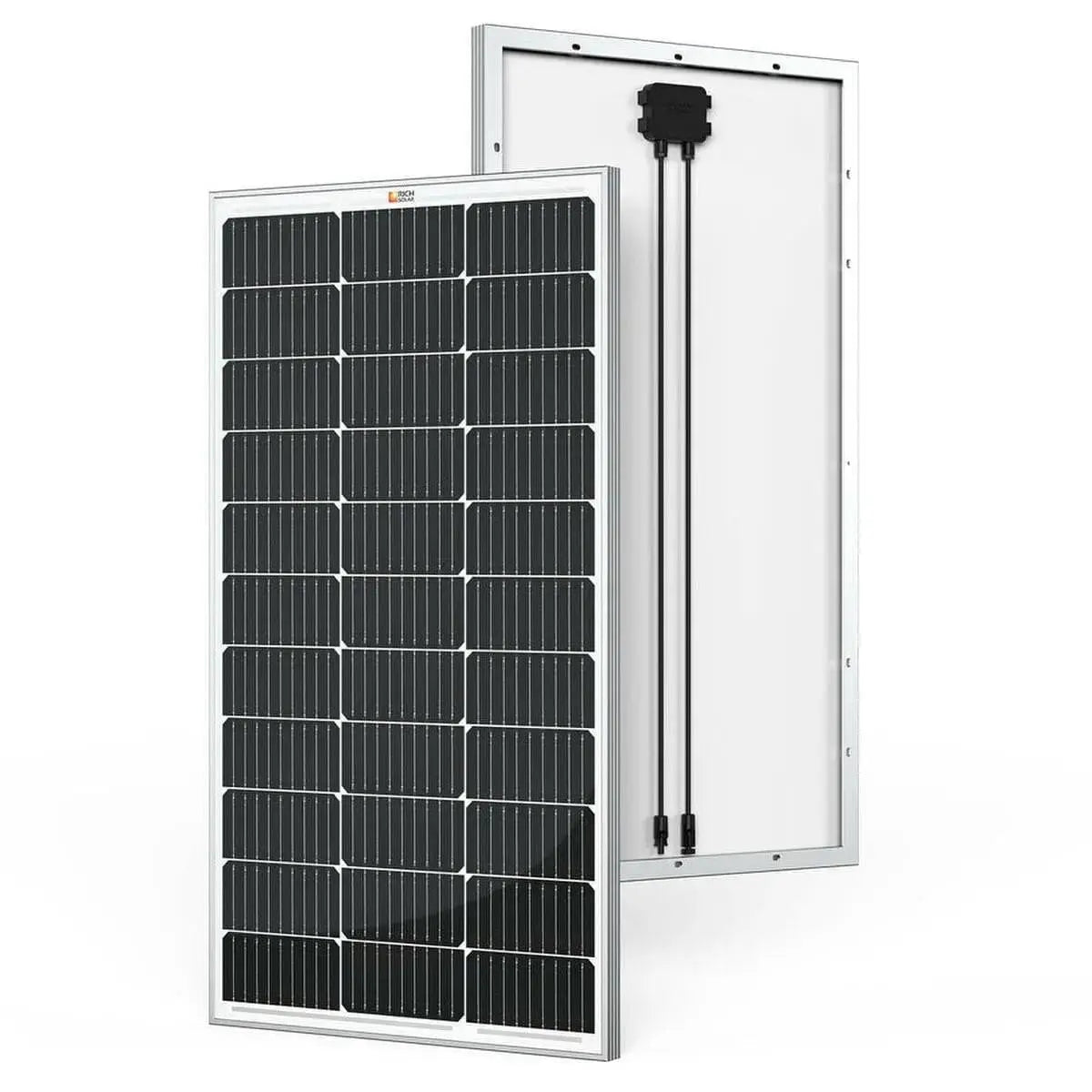

Rich Solar Mega 100 Watt Solar Panel

Reliable and Efficient 100 Watt Solar Panel for RV Use

Been looking for the best RV off grid solar system for you? This MEGA 100W 12V solar panel will help start your camper solar setup. Get this to start your solar adventure today.

Features

• 12V Off-grid solar panel
• 0~+5W Guaranteed positive power output
• IP 65 or IP 67 Rated

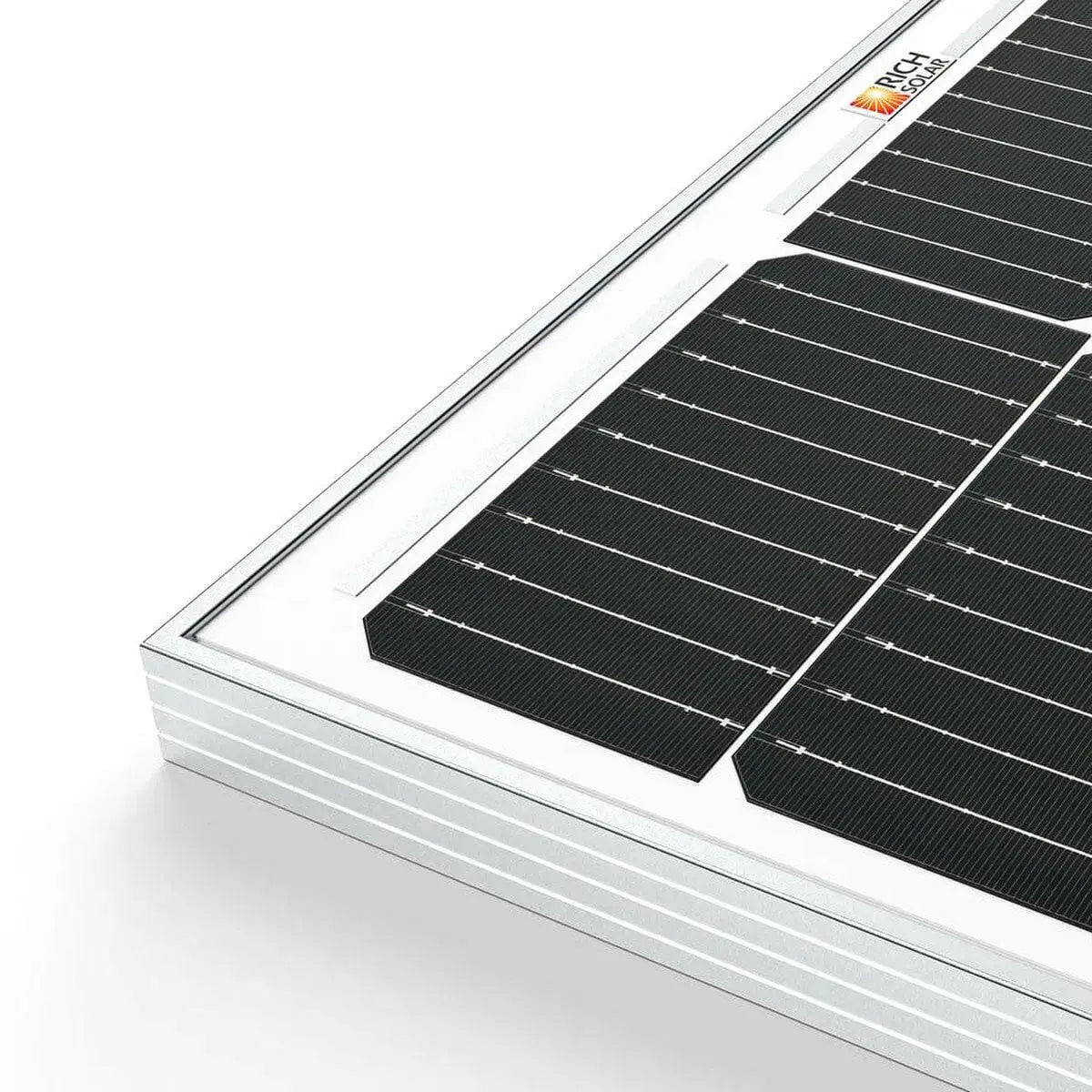

• Built with strong tempered glass and aluminum frame
• Certified to withstand challenging environmental conditions
• Excellent low light performance on cloudy days, mornings and evenings
• Easy installation and handling for various applications
• Pre-drilled holes compatible with ground mounts, Z-brackets, pole mounts and tilt mounts
• Compatible with on-grid and off-grid inverters
• Best 12V panel for VAN RVs and off-grid
• 9 Busbar solar cell configuration
• Anti-reflective tempered glass
• Excellent low light performance on cloudy days, mornings and evenings

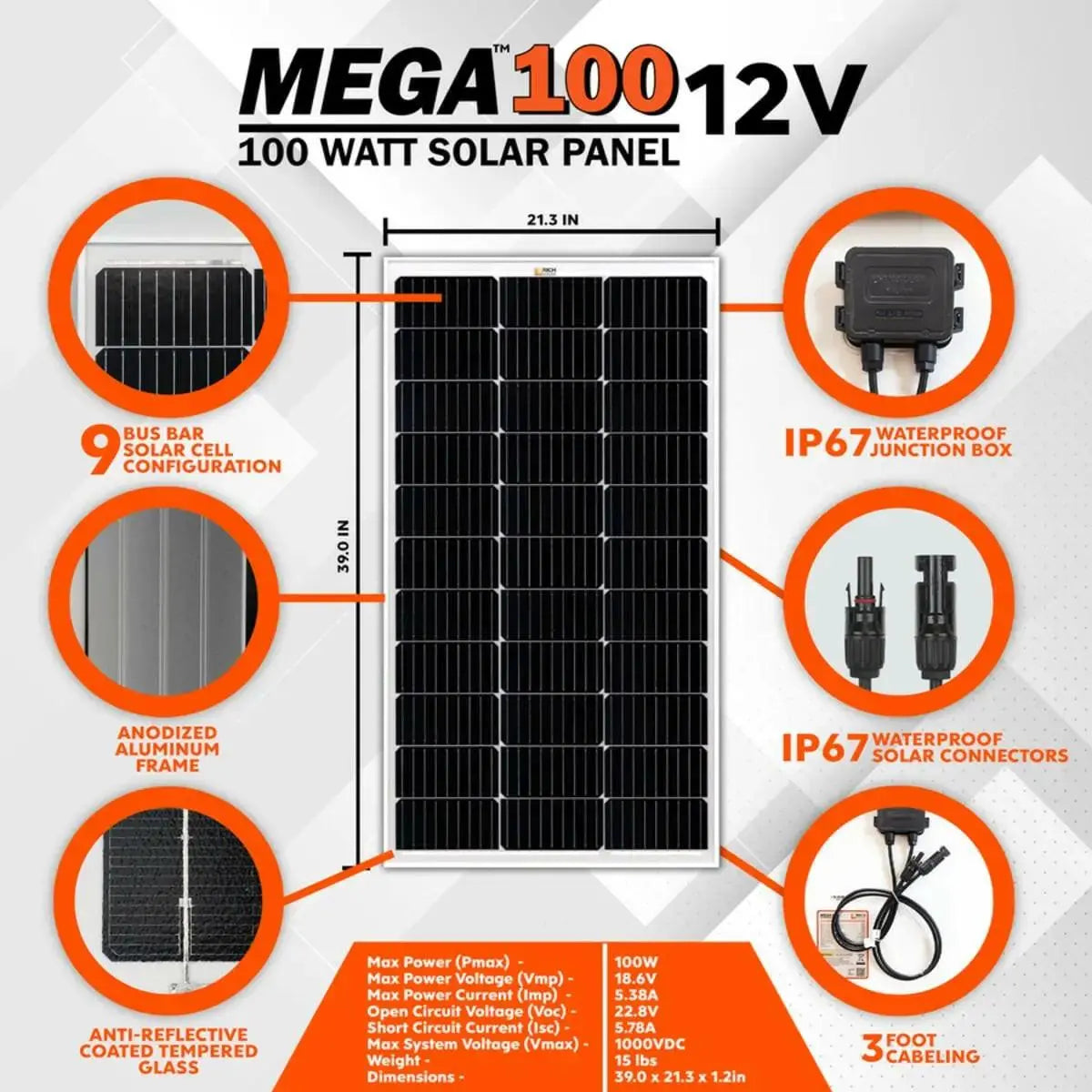

Specifications

• Series/Model: Mega™

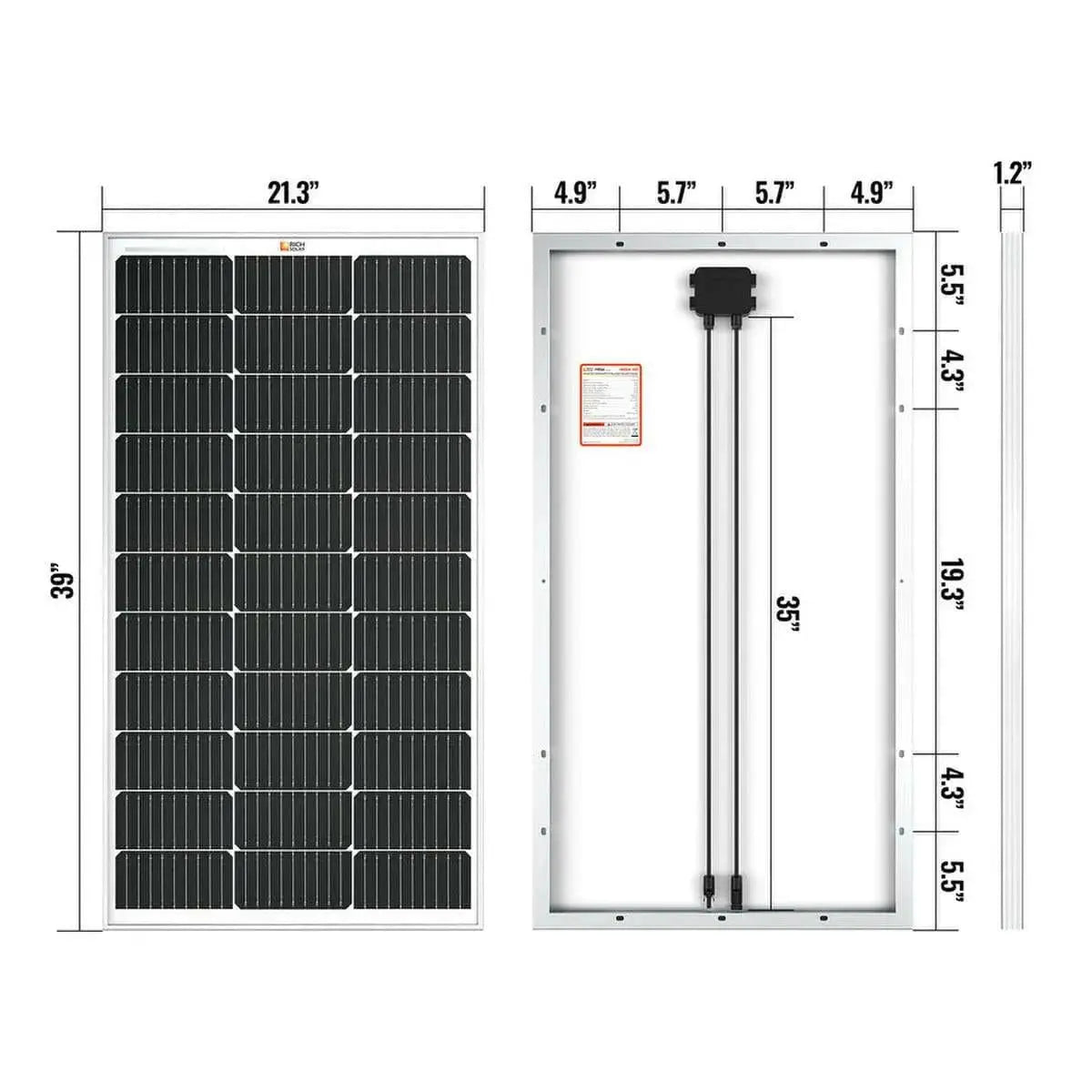

• Length: 39 in
• Width: 21.3 in
• Height: 1.2 in
• Cells Technology: Monocrystalline (Mono)
• Cell Dimensions: 166 mm x 83 mm
• Number of Half Cells: 33 (3 x 11)

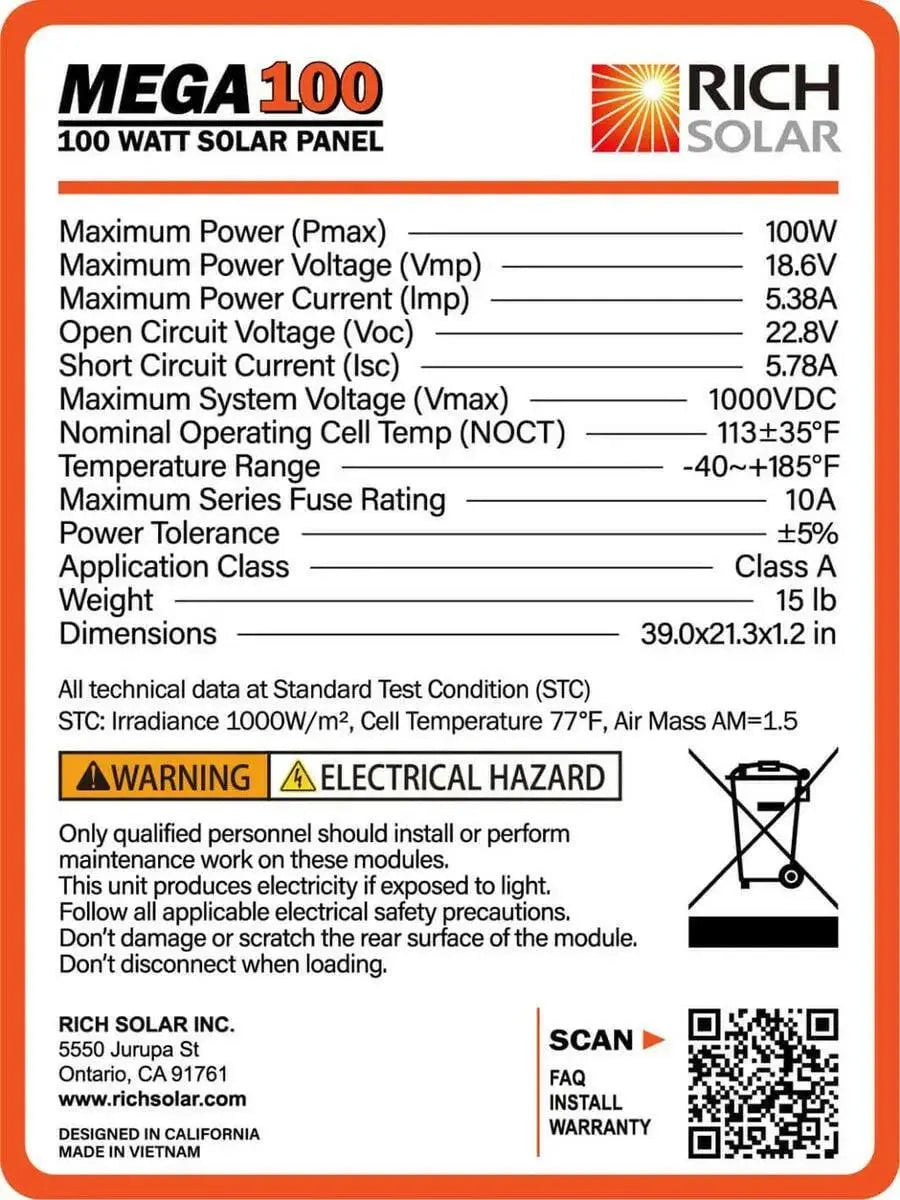

• Maximum Power (Pmax): 100 W STC
• Maximum Power Voltage (Vmp): 18.6 V STC
• Maximum Power Current (Imp): 5.38 A STC
• Open-Circuit Voltage (VOC): 22.8 V STC
• Short-Circuit Current (Isc): 5.78 A STC
• Maximum System Voltage: 1000 VDC
• Maximum Series Fuse Rating: 10 A
• Module Efficiency: 19.8%
• Frame Material: Anodized Aluminum Alloy
• Front Glass: 3.2 mm, High Transmission, Anti-Reflection Coated Tempered Glass
• Frame Color: Silver
• Backsheet Color: White
• Irradiance: 1000 W/m² STC
• Output Cables: Photovoltaic Technology Cable 4 mm² (#12 gauge), 35 in Length
• Connector Type: MC4
• Hailstone Test: Steel Ball Falls Down from 1 m Height
• Operating Temperature: -40 to 85°C
• Cell Temperature: 25°C STC
• Temperature Coefficients of Pmax: -0.39%/°F STC
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.29%/°F STC
• Temperature Coefficients of Isc: 0.05%/°F STC
• Nominal Operating Cell Temperature: 113°F +/-35%
• Air Mass (AM): 1.5 STC

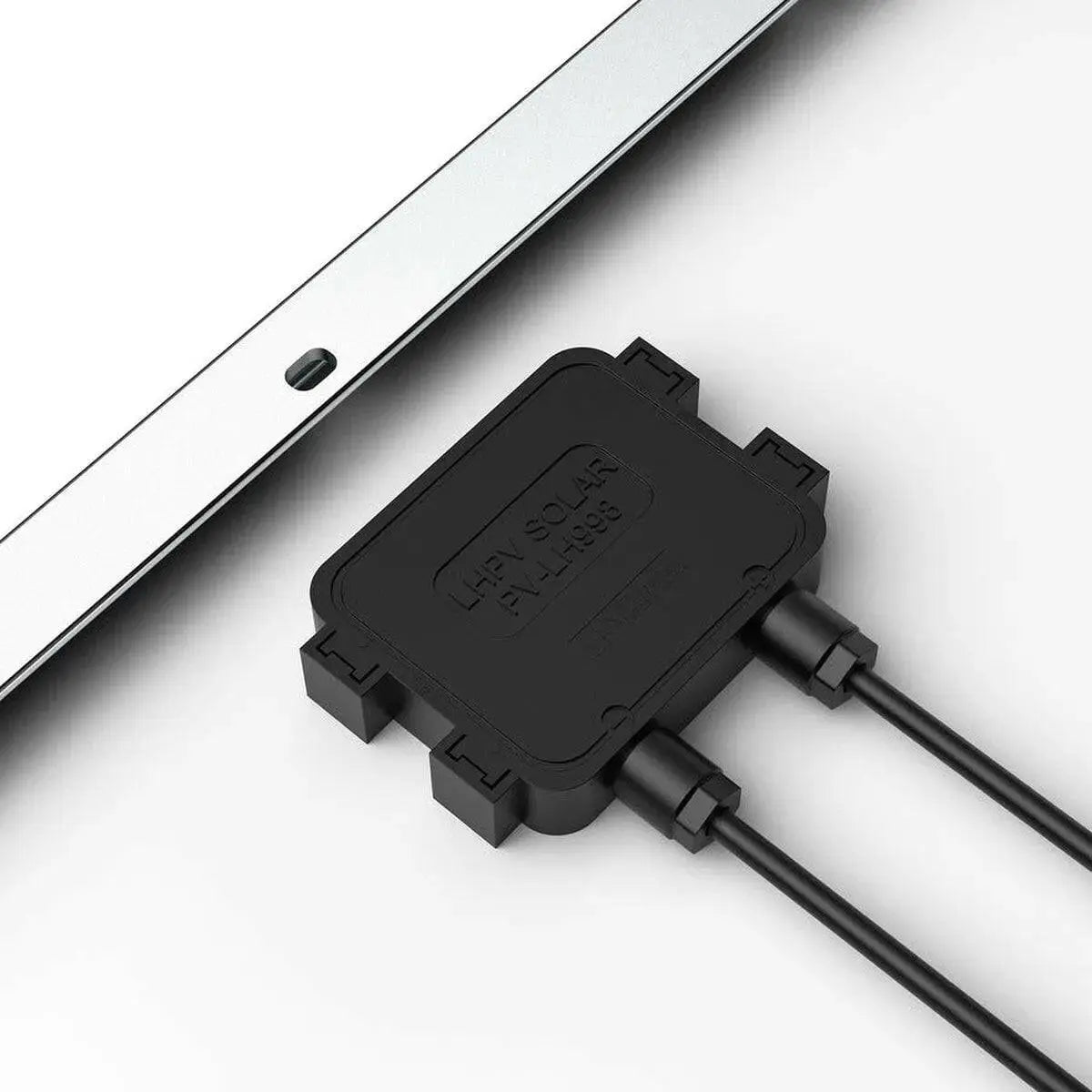

• Junction Box: IP65 or IP67 Rated
• Power Output Tolerance: 0-5 W
• Surface Maximum Load Capacity: 60 m/s (200 kg/m²)
• Solar Controller: 12 A/12 V, CE Certified
• Includes: Rich Solar 100 W Flexible Monocrystalline Solar Panel, Panel Leads (Pair): 12 AWG, 2 ft Each, IP65 Rated Waterproof Junction Box, IP67 Rated Waterproof Solar Connectors
• Standards: TUV, ETL, PV Cycle, MCS, IEC, UL, CE
• Warranty: 25 Years 80% Output Power, 5 Years Materials & Workmanship
• Weight: 15 lb
• Application: Best 12V Panel for VAN RVs and Off-Grid


Documents

• Specification Sheet


Powerful Performance for Your RV Adventures

The Rich Solar Mega 100 watt solar panel for RV delivers reliable, high-efficiency energy to keep your appliances running on the road. Designed specifically for recreational vehicles, this panel converts sunlight into clean power, allowing you to extend your trips without worrying about battery drainage. Its compact design fits easily on your RV’s roof while offering enough wattage to support essential electrical devices, making your travels eco-friendly and cost-effective.

Durable Build Quality for Longevity

Constructed with premium materials, the Rich Solar Mega 100 watt solar panel for RV is built to withstand harsh outdoor conditions. The tempered glass surface ensures resistance to impacts and scratches, while the sturdy aluminum frame protects against wind and rain. This durability guarantees consistent performance over years of use, making it a trustworthy investment for RV owners who seek dependable renewable energy solutions.

Easy Installation and Versatile Use

Installing the Rich Solar Mega 100 watt solar panel for RV is straightforward, even for beginners. It comes with pre-drilled holes and compatible mounting brackets to simplify the setup on your vehicle. This panel can be used not only on RVs but also for boats, camping setups, or small cabins. Its versatility makes it an excellent choice for anyone looking to harness solar power in a variety of outdoor scenarios.
