RICH SOLAR MEGA 100 FLEX | 100W 12V Flexible Solar Panel | Ultra-Lightweight for RV, Marine, Off-Grid & Overland

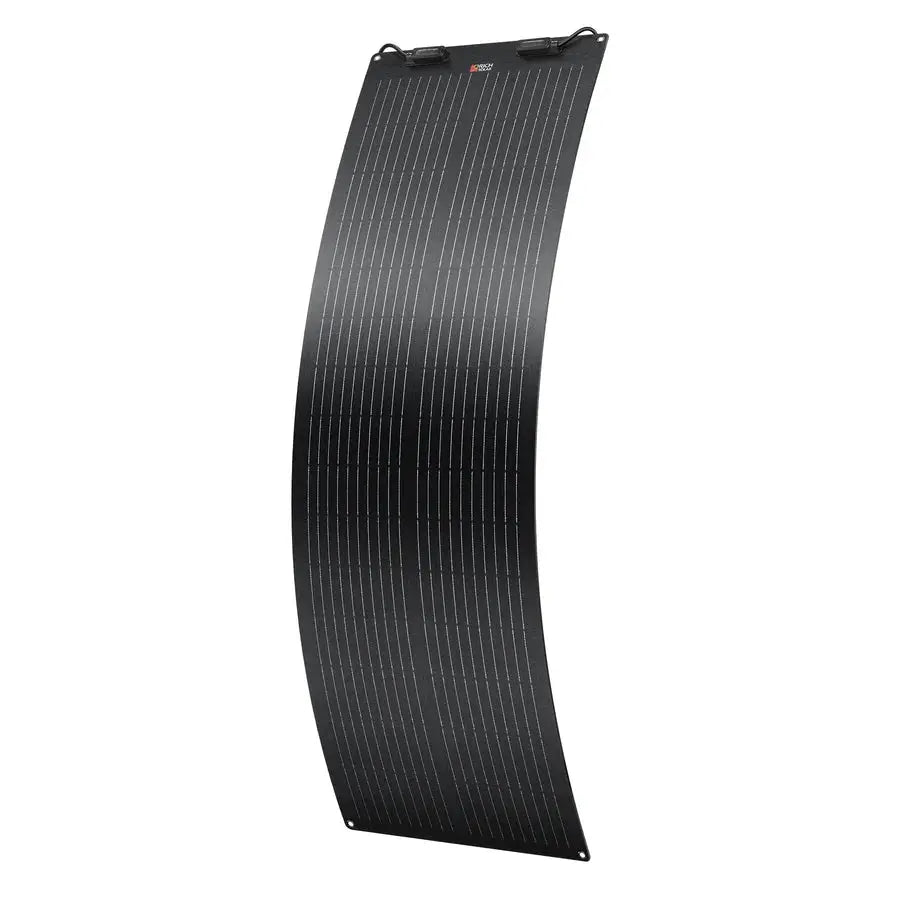

RICH SOLAR MEGA 100 FLEX – 100W 12V Flexible Solar Panel

100W flexible solar panel with 10-busbar technology, ultra-thin 0.1 in design, IP68 waterproof protection, and reliable low-light performance for RVs, boats, and off-grid power systems.

Features

Flexible Design & Portability

• Bendable panel conforms to curved surfaces such as RV roofs or boats.
• Ultra-thin 0.1 in profile delivers a sleek, space-saving appearance.
• Ultra-lightweight at just 4.8 lb for easy handling and transport.

Technology & Performance

• Advanced 10-busbar cell technology improves light capture, reduces resistance, and boosts power output.
• Excellent low-light performance delivers reliable power in cloudy weather, at dawn, and at dusk.
• Low temperature coefficient helps maintain stable performance in high-temperature environments.
• Non-destructive cell cutting technology minimizes micro-cracks for enhanced long-term durability.

Outdoor Durability

• IP68-rated junction box provides protection against water and dust in outdoor environments.
• Engineered to withstand up to 5,400 Pa front load (snow) and 2,400 Pa back load (wind).
• Wide temperature range from -40°F to +185°F for extreme environments.

Easy Installation

• MC4-compatible connectors enable easy series or parallel connections.
• Pre-drilled mounting holes and adhesive backing for flexible and hassle-free installation.

Specifications

• Maximum Power (Pmax): 100W
• Maximum Power Voltage (Vmp): 17.1V
• Maximum Power Current (Imp): 5.85A
• Open Circuit Voltage (Voc): 20.4V
• Short Circuit Current (Isc): 6.13A
• Maximum System Voltage (Vmax): 1500V DC
• Maximum Series Fuse Rating: 15A
• Temperature Range: -40~+185°F
• Weight: 4.8 lb
• Dimensions: 57.8 x 15.7 x 0.1 in
• Material and Workmanship Warranty: 1 year

Warranty

1-Year Material and Workmanship Warranty. View full warranty details.

Datasheet

Download RS-F100B Datasheet (PDF)
