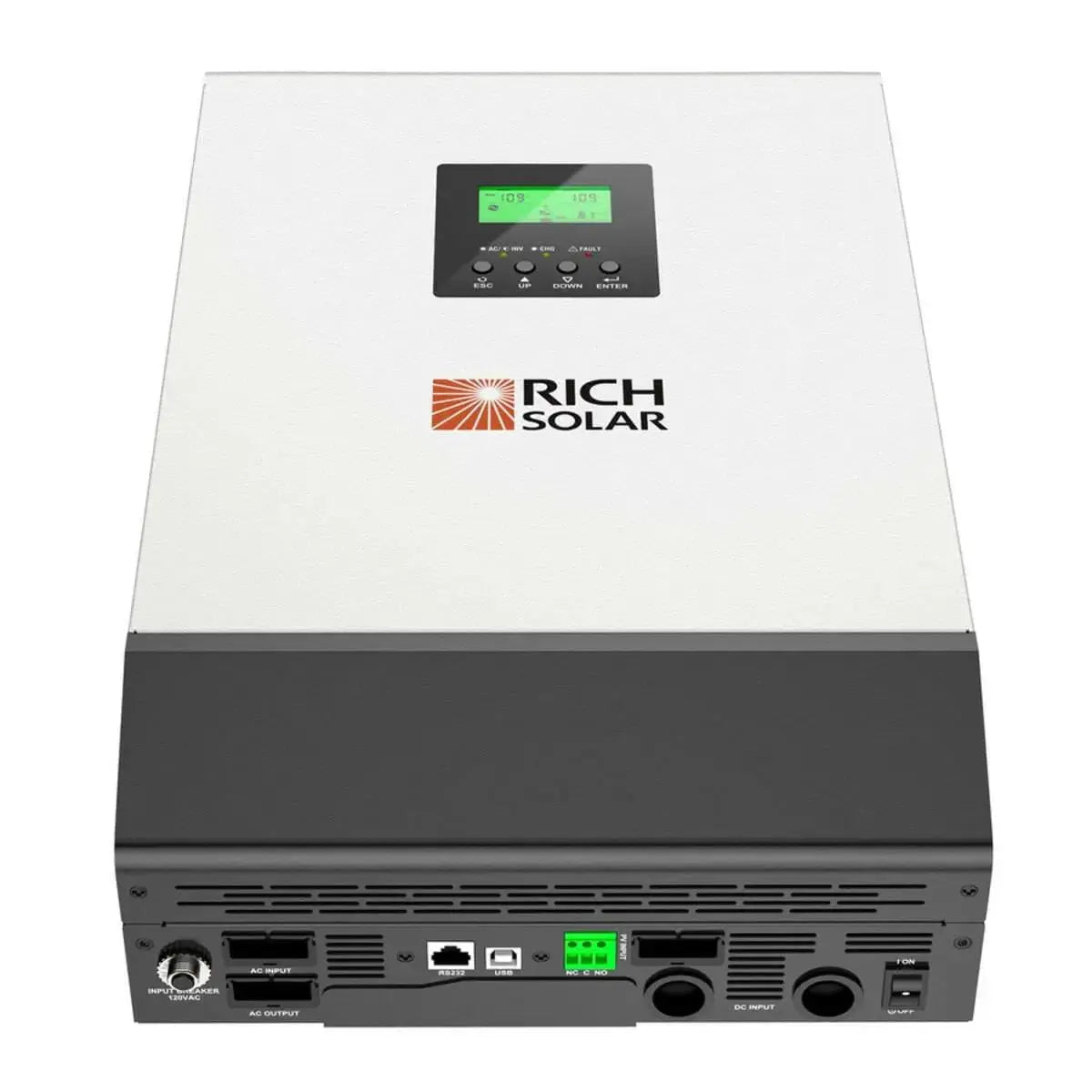

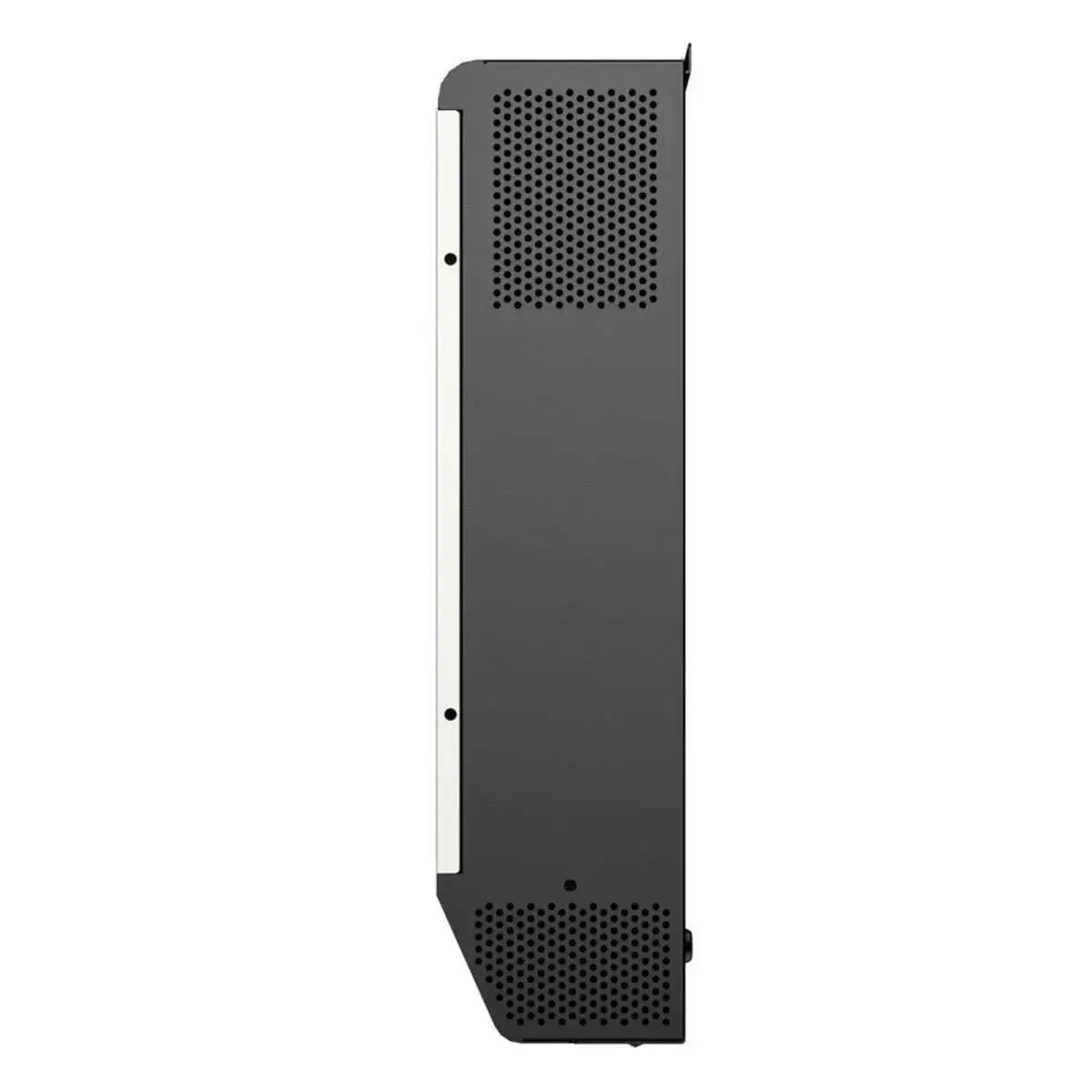

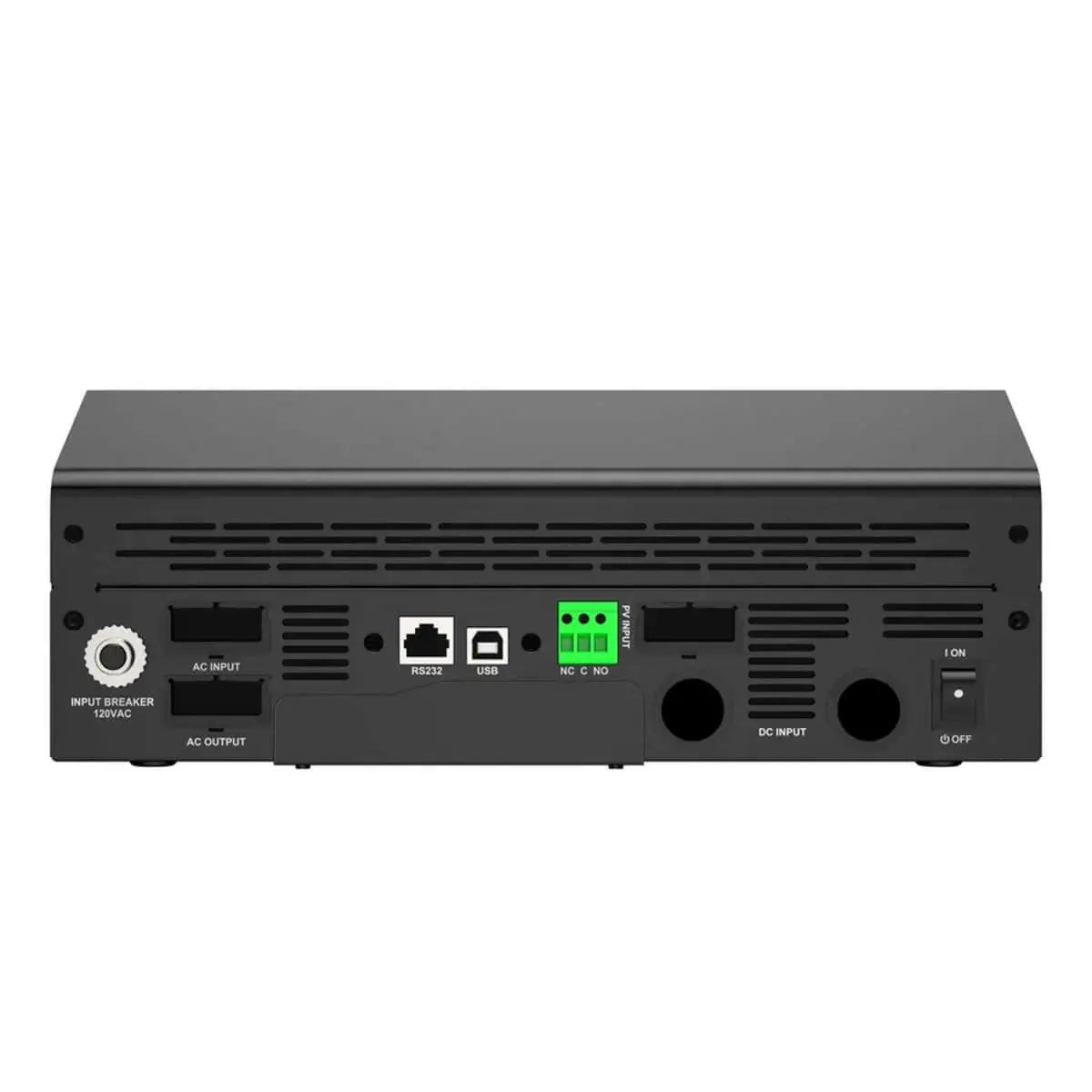

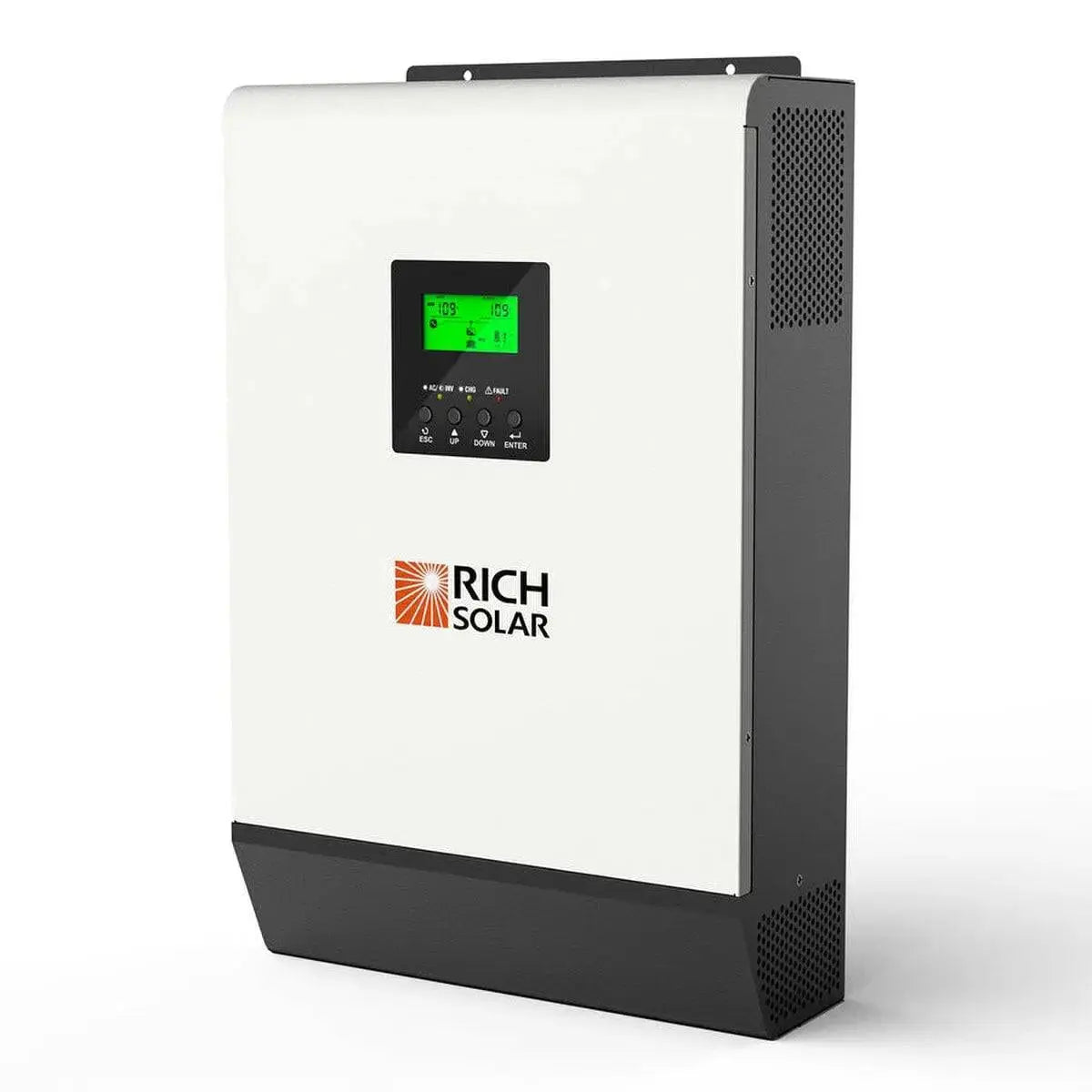

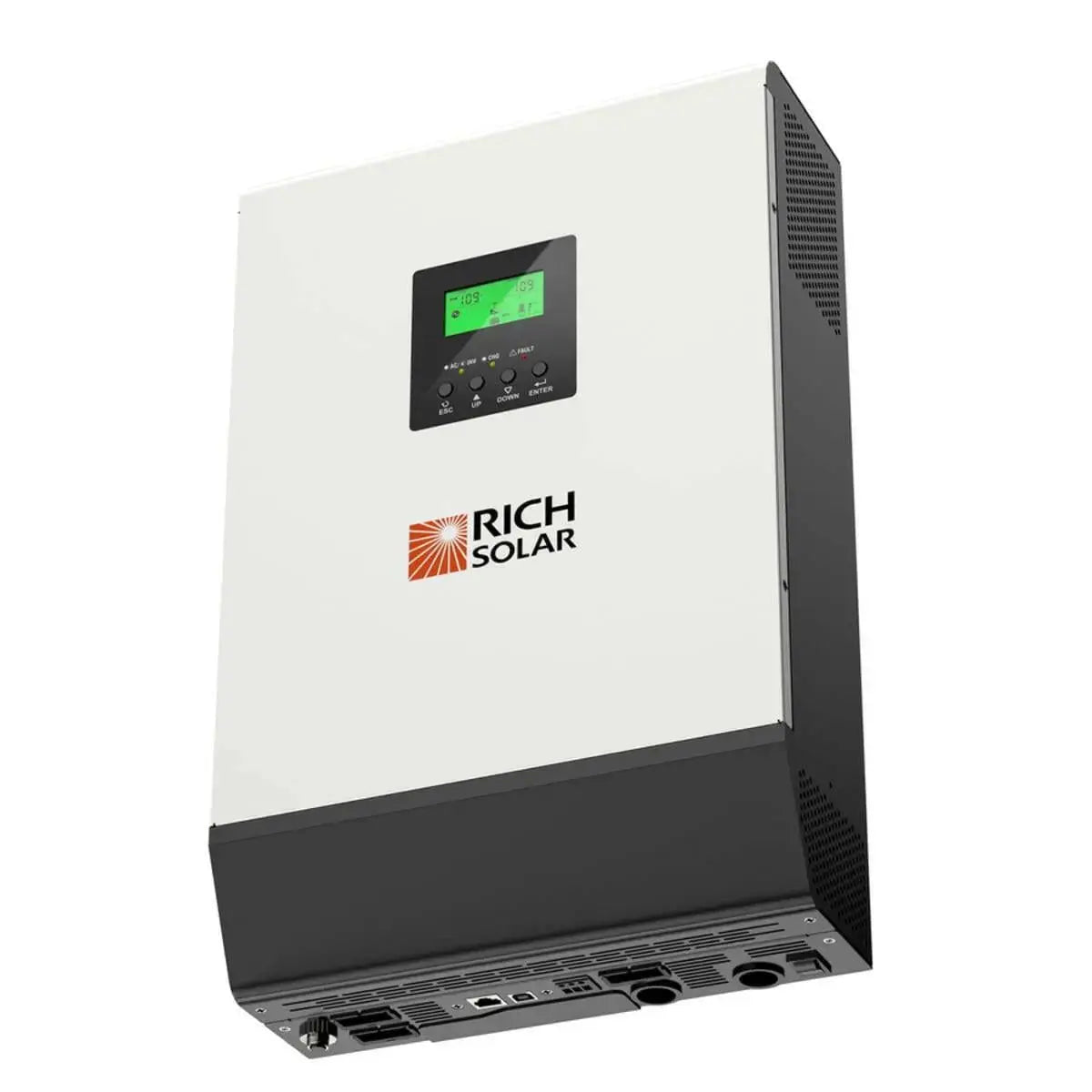

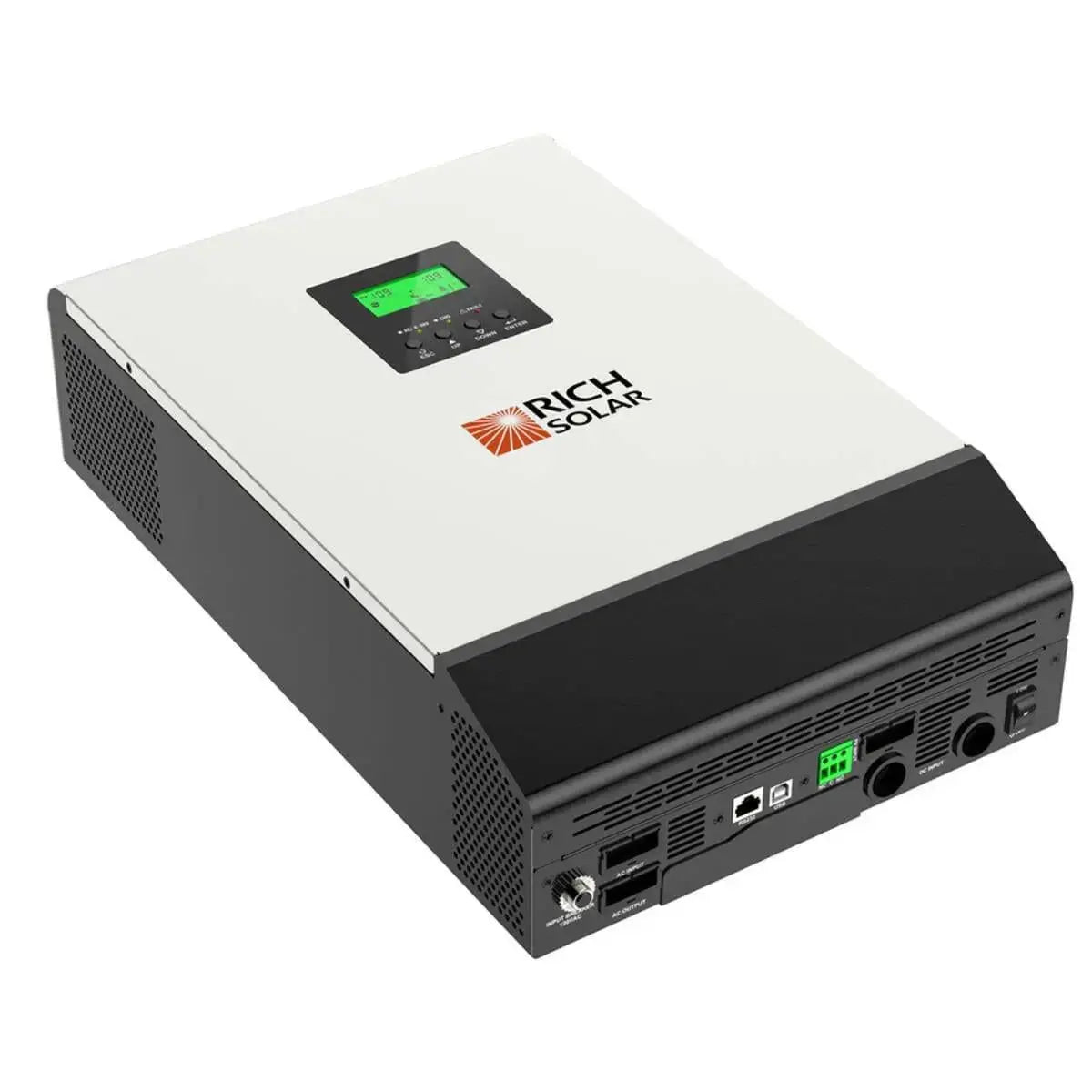

Rich Solar Hybrid Off-Grid Inverter | 2400W 24V 120A Output + 2.4kW Solar Input | 80A MPPT Charge Controller (Grid Feedback Optional)

Why Choose the Rich Solar Hybrid Inverter for Your Off-Grid Energy Needs

Features

• Pure sine wave output
• Self-consumption and Feed-in to the grid
• Programmable supply priority for PV, Battery or Grid
• User-adjustable charging current and voltage
• Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
• Monitoring software for real-time status display and control
• Parallel-able up to 9 units

Specifications

• Grid Nominal Output Voltage: 101/110/120 VAC
• Grid Output Power Rating: 2400 W
• Grid Output Voltage Range:
  • 89-111 VAC at 101 VAC Output
  • 97-121 VAC at 110 VAC Output
  • 106-132 VAC at 120 VAC Output
• Grid Output Frequency Range: 47.5-51.5/57.5-61.5 Hz at 50/60 Hz
• Grid Nominal Output Current:
  • 29.7 A at 101 VAC
  • 27.2 A at 110 VAC
  • 25 A at 120 VAC
• Grid Power Factor: >0.99
• Maximum Conversion Efficiency (DC/AC): 85%
• Off-Grid AC Start-Up Voltage/Auto Restart Voltage: 60-70 VAC/90 VAC
• Off-Grid Acceptable Input Voltage Range: 65-140 VAC or 85-140 VAC
• Off-Grid Maximum AC Input Current: 40 A
• Battery Nominal Output Voltage: 101/110/120 VAC
• Battery Output Power Rating: 2400 W/3000 VA
• Battery Output Waveform: Pure Sine Wave
• Battery Efficiency (DC to AC): 90%
• Battery & Charger Nominal DC Voltage: 24 VDC
• Battery & Charger Maximum Charging Current (From Grid): 60 A
• Battery & Charger Maximum Charging Current (From PV): 80 A
• Battery & Charger Maximum Charging Current: 140 A
• Communication Method: USB or RS-232/Dry contact
• Humidity: 0-90% RH
• Operating Temperature: 0-50°C
• Dimensions: 468 mm (H) x 295 mm (W) x 120 mm (D)
• Standards: UL Listed, FCC, cCSAus Listed
• Weight: 11 kg
• Warranty: 2 Years

User Manual

Powerful and Reliable Performance

The Rich Solar Hybrid Inverter is designed to deliver robust power output for off-grid solar setups. With a 2400W continuous output at 24V and a maximum current of 120A, it provides a steady energy flow to your appliances and devices. Its hybrid design enables seamless integration of solar input and battery power, ensuring efficiency and durability even in harsh off-grid environments. This inverter supports up to 2.4kW solar input, which maximizes energy harvesting and reduces dependence on traditional power sources.

Advanced 80A MPPT Charge Controller

This inverter features an advanced 80A Maximum Power Point Tracking (MPPT) charge controller. The MPPT technology enhances solar charging efficiency by continuously optimizing the solar panel’s power output under varying sunlight conditions. This results in faster battery charging times and improved overall system performance. The MPPT controller is especially beneficial for off-grid users who want to maximize solar energy use while protecting their battery bank from overcharging and overheating risks.

Grid Feedback Optional for Versatile Applications

One of the most notable features of the Rich Solar Hybrid Inverter is the optional grid feedback functionality. This enables users to feed excess solar power back into the grid where regulations allow, potentially earning credits or reducing electricity bills. For off-grid enthusiasts or hybrid system installers, this offers flexibility to balance power generation and consumption effectively. The inverter also supports various protection features, including overload, short circuit, and low voltage protection, assuring safe and reliable operation.
