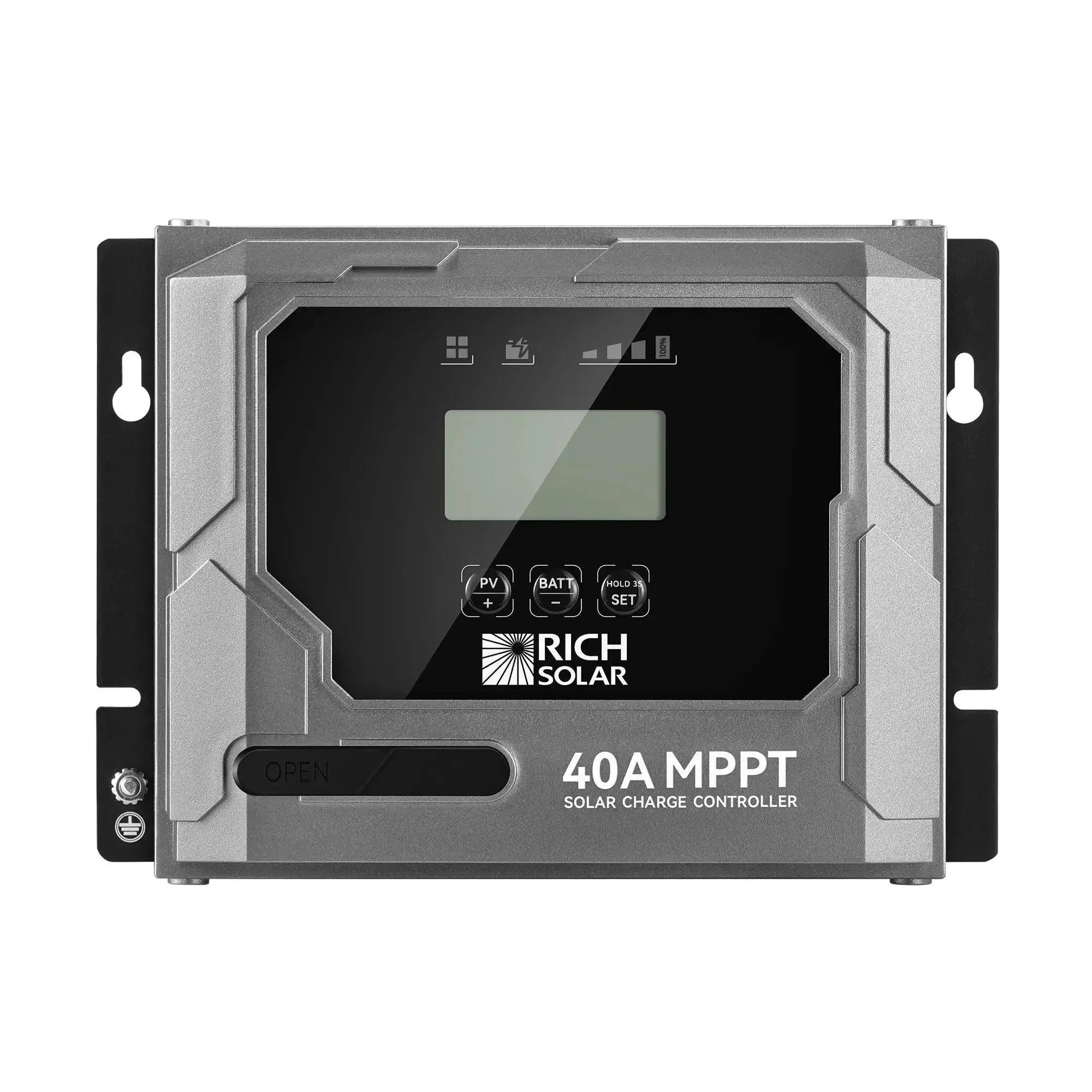

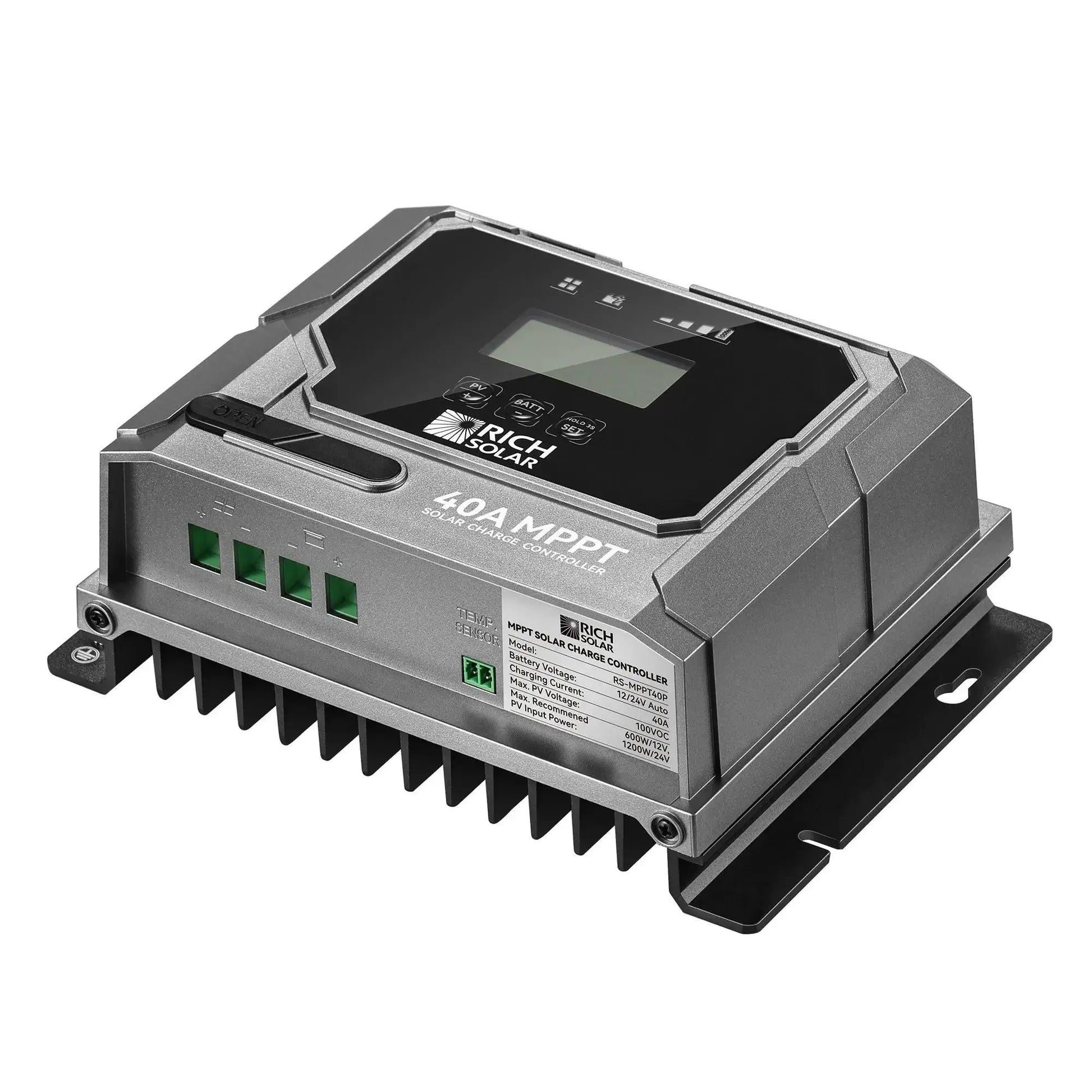

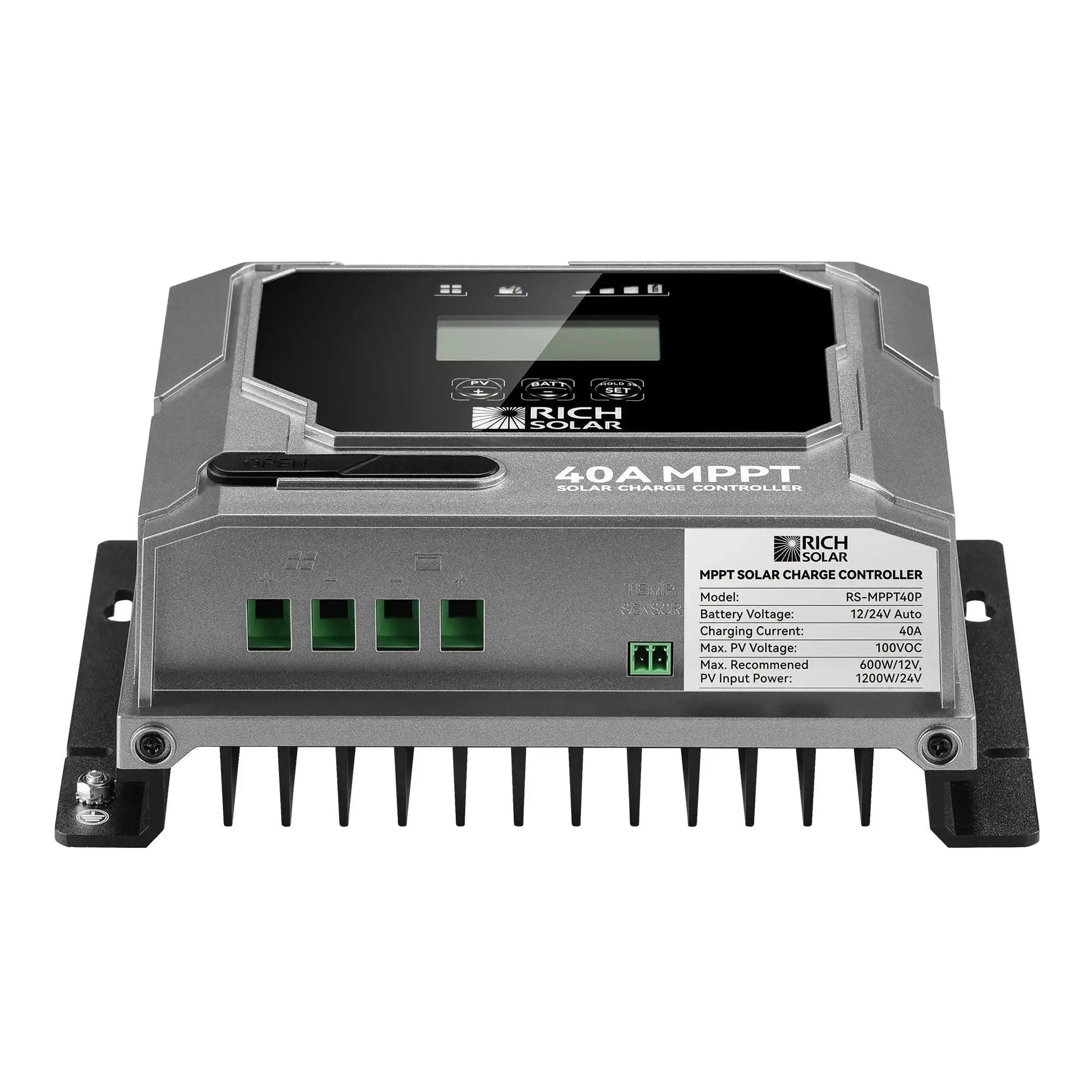

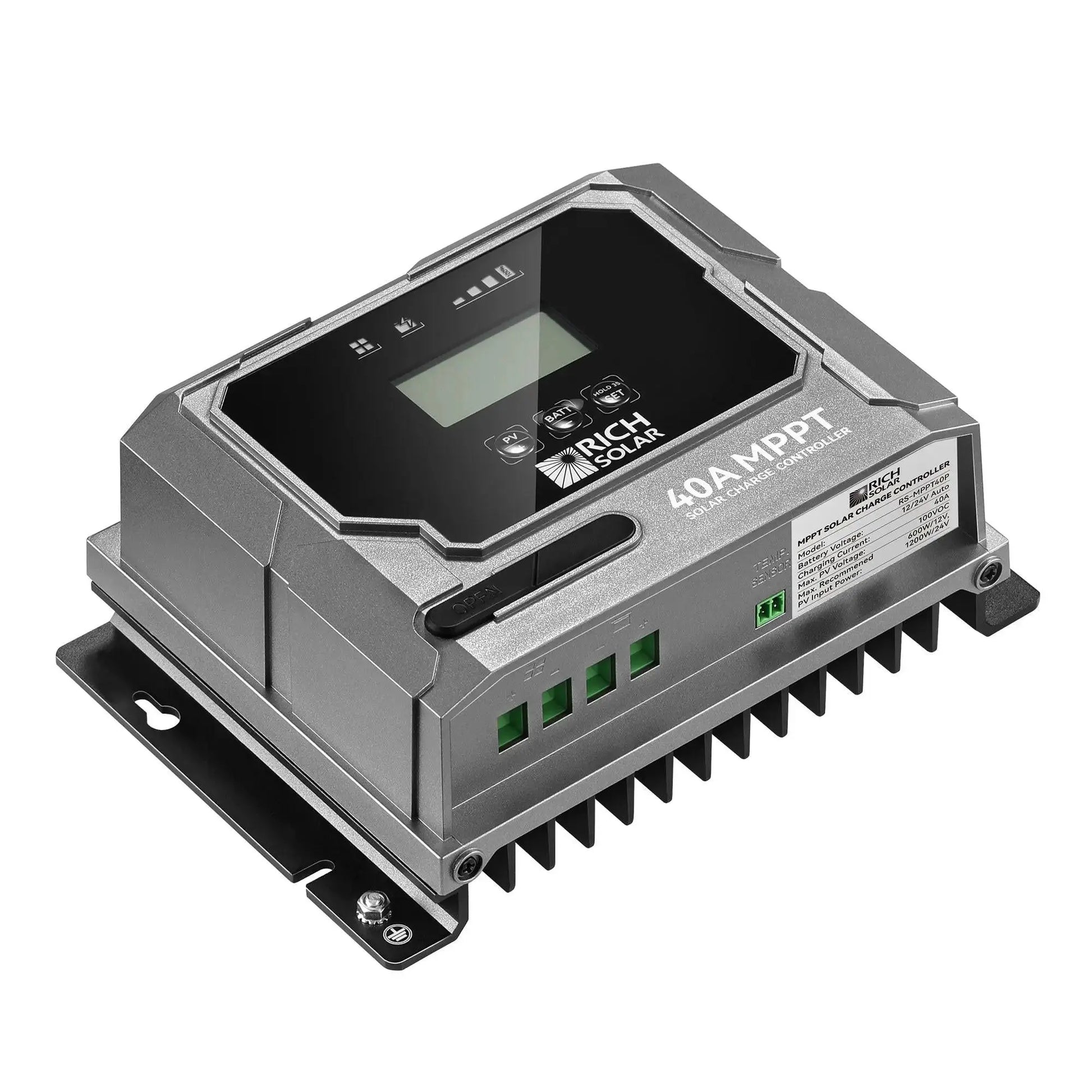

RICH SOLAR BRAVO 40 | 40 Amp MPPT Solar Charge Controller | 40A 12V/24V MPPT Solar Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid

RICH SOLAR BRAVO 40: The Ideal MPPT Solar Controller for RV Power Management

SKU: RS-MPPT40P | Awarded #1 Solar Controller 2025

The RICH SOLAR BRAVO 40 is a premium 40A 12V/24V MPPT Solar Charge Controller designed for RVs, trailers, campers, vans, boats, and off-grid applications. It features industry-leading MPPT tracking efficiency above 99.5% and charge conversion efficiency as high as 98%.

Key Features

• MPPT Charging Technology with Tracking Efficiency Above 99.5%
• Charge Conversion Efficiency up to 98%
• 12V/24V DC System Self-Adaptation (Auto)
• Reverse Discharge Protection
• Overvoltage Protection
• Common Negative Connection
• Charging Data Storage
• Conformal Coating for Inside Board
• In-house Design and Manufacture
• Extensive Internal Electronics, In-Circuit Protections, and Safety Protections
• Supports Lead Acid Batteries: Gel, AGM, WET, Crystal, Calcium
• Supports Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO

Specifications

• System Nominal Voltage: 12/24V Auto
• Max. PV Open Circuit Voltage: 100V DC
• Charging Technology: MPPT
• Max PV Charging Current: 40A
• Max. Recommended PV Input Power: 600W (12V) / 1200W (24V)
• Charge Conversion Efficiency: up to 98%
• MPPT Tracking Efficiency: >99.5%
• Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
• Housing Case Color: Black / Grey
• IP Grade: IP43 (Inside PCBA), IP22 (Connection Area)
• Net Weight: 1.17 kg / 2.58 lbs
• Dimensions (L x W x H): 195 x 142 x 74 mm / 7.7 x 5.5 x 2.9 in

Documents & Downloads

• 📄 Specifications Sheet (PDF)
• 📄 User Manual (PDF)
• 📄 Certificate of Conformity (PDF)

Warranty

RICH SOLAR provides a limited warranty on this product. For full warranty details, visit: richsolar.com/pages/warranty

⚠️ Warning: Cancer risk and reproductive harm. www.P65Warnings.ca.gov

Advanced MPPT Technology for Maximum Efficiency

The RICH SOLAR BRAVO 40 is expertly designed as an mppt solar controller for rv systems, utilizing cutting-edge Maximum Power Point Tracking (MPPT) technology. This allows it to extract up to 30% more energy from your solar panels compared to traditional controllers. It automatically adjusts to varying lighting conditions, ensuring optimal power conversion and improved battery charging efficiency. Whether you're camping off-grid or on the road, this controller optimizes power utilization for your RV, trailer, or camper, providing a reliable and efficient solar power solution that reduces reliance on shore power or generators.

Robust Compatibility with 12V and 24V Battery Systems

Designed to accommodate both 12V and 24V battery setups, the RICH SOLAR BRAVO 40 offers versatile compatibility for various RV configurations. Its 40 amp capacity safely manages power inputs from solar arrays without risking overload, making it suitable for small to medium-sized recreational vehicles, campers, vans, and boats. This flexibility ensures an easy installation process and dependable performance regardless of your system voltage. The controller’s intelligent charging profile extends battery life by preventing overcharging, balancing battery health with power demands for extended off-grid excursions.

Durable and User-Friendly Design for Outdoor Use

Built for rugged outdoor environments, the RICH SOLAR BRAVO 40 features durable housing and advanced thermal management to withstand harsh conditions encountered during outdoor adventures. Its intuitive LCD interface clearly displays real-time operational data such as battery voltage, charging current, and fault alerts, enabling users to monitor system health effortlessly. Compact and lightweight, it fits conveniently into tight spaces typical in RV electrical compartments. With responsive protection features including short circuit, over-temperature, and reverse polarity safeguards, this MPPT solar controller guarantees safe and reliable power management wherever your travels take you.
