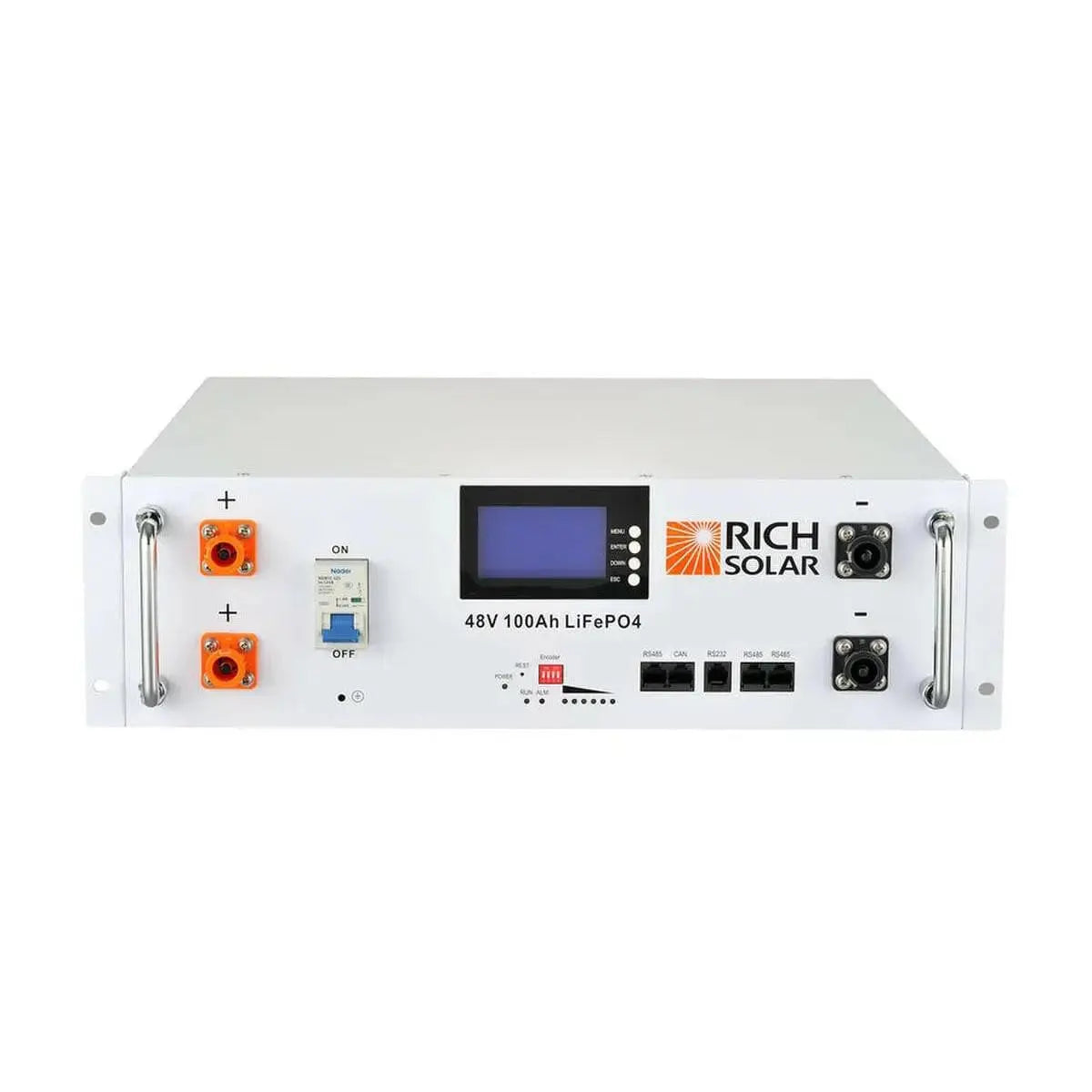

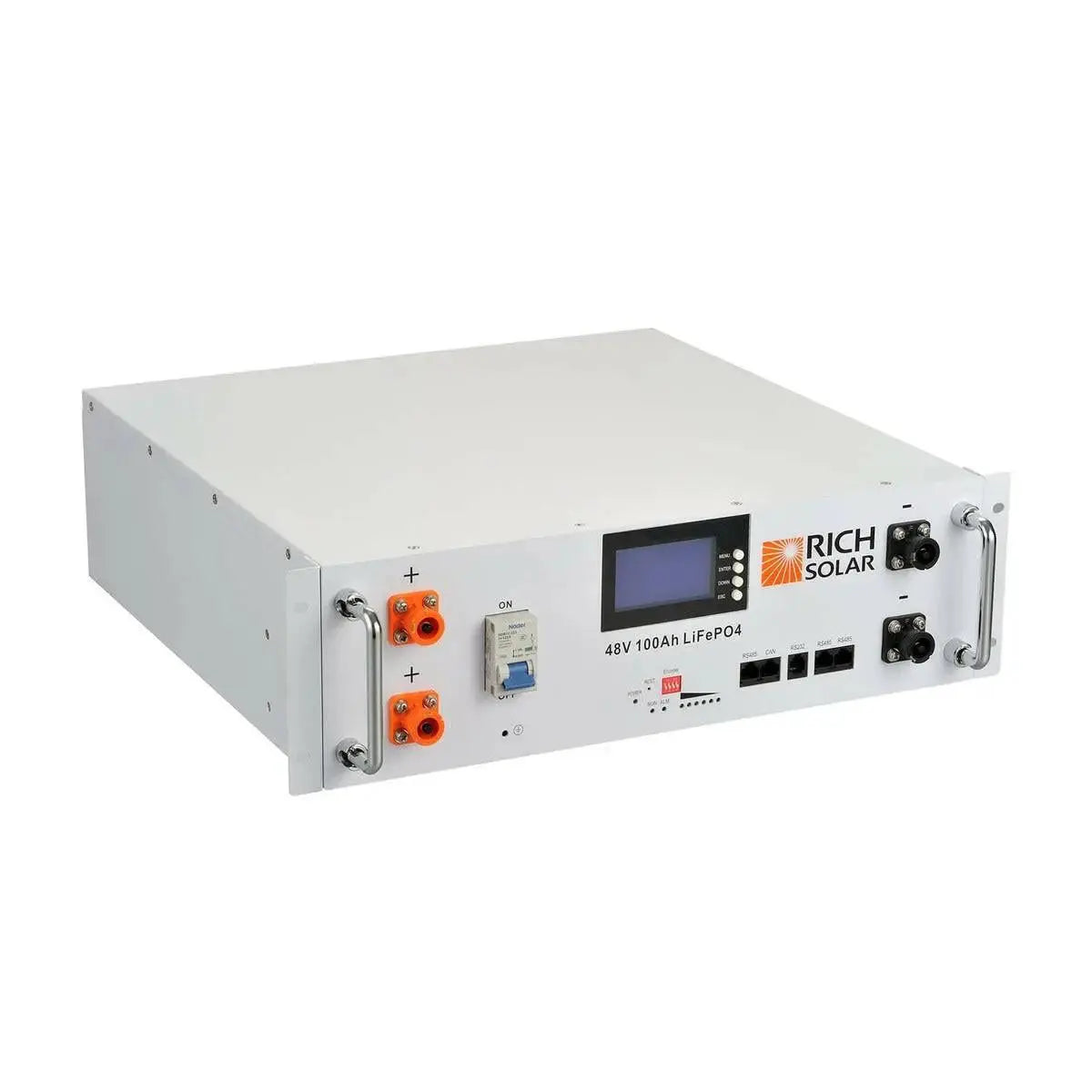

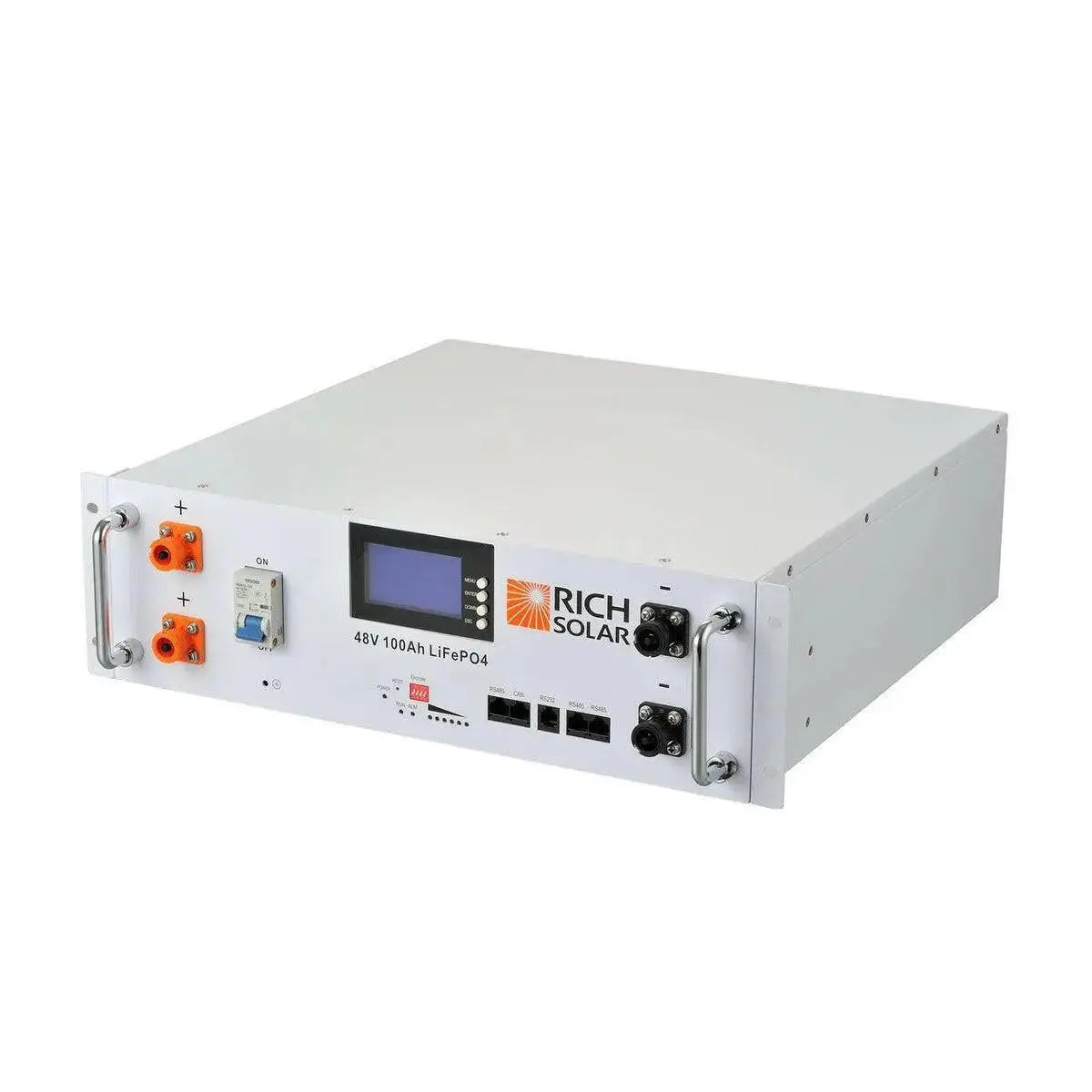

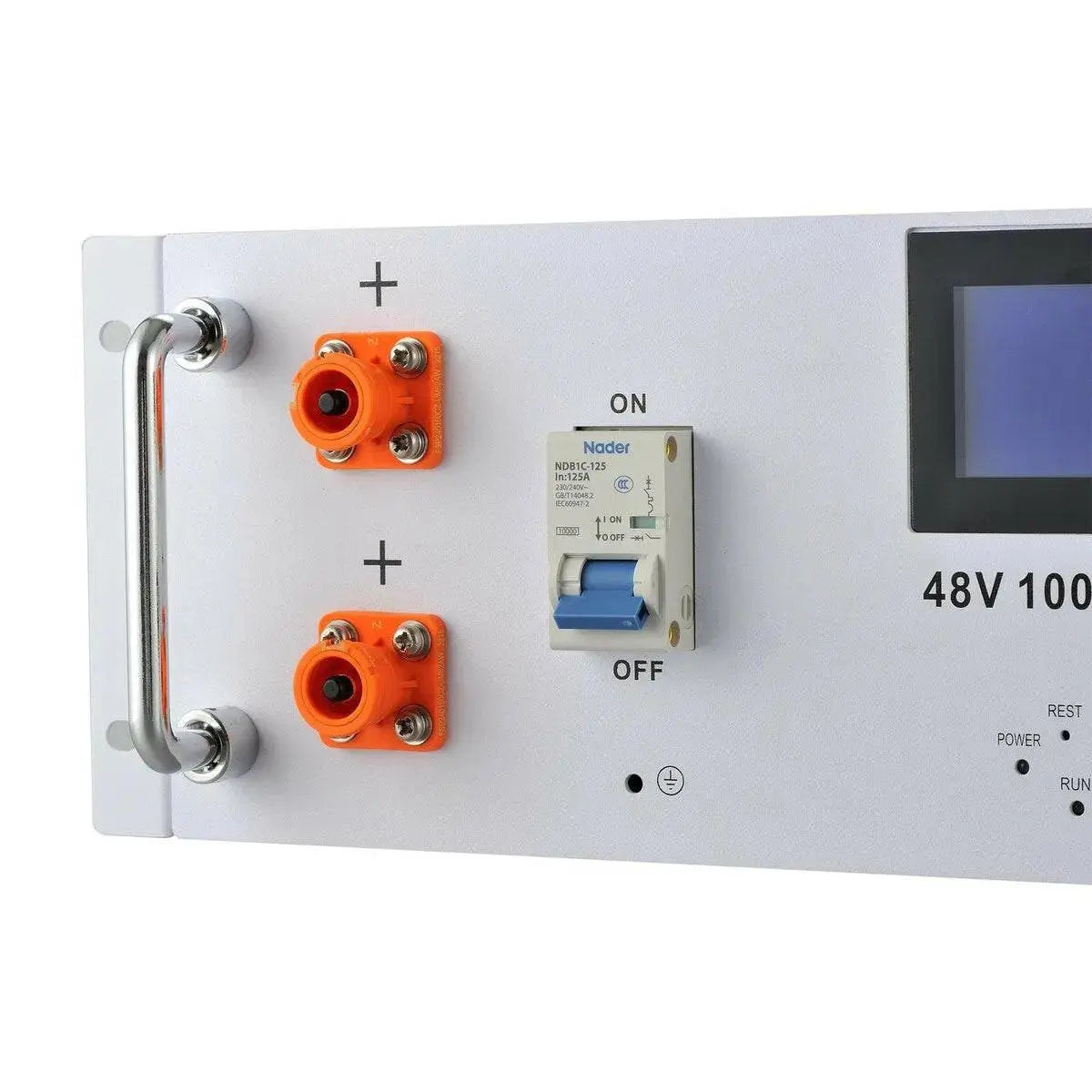

Rich Solar Alpha 5 48 V 100 Ah Server Lithium Iron Phosphate Battery

Rich Solar Alpha 5 Lithium Iron Phosphate Battery Overview

Rich solar 48 V 100 Ah lithium iron phosphate battery (alpha 5 server) has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The lifepo4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint.

Features

• Extremely high number of charge/discharge cycles
• 20 Year lifespan with proper maintenance
• Built-in smart battery management system
• Wide operating temperature range
• Unsurpassed high temperature performance
• Green energy without metal contaminant
• Low maintenance
• High amp capacity
• Stable output voltage
• Little self-discharge
• Lifetime customer support
• Over charging or discharging protection
• Over current & short circuit protection
• High & low temperature disconnects
• Each cell is fused and if for some unlikely situation a cell fails, this design will isolate the cell stopping any other damage and allows the battery to function safely
• Convenient removable carry handle
• Lightweight
• Short circuit protected
• Physical damage to battery case will not cause fire
• Excessive thermal exposure will not cause a fire
• Able to withstand over-charge/over-discharge without damage to the battery
• Sophisticated battery management system (BMS)


Specifications

• Series/Model: Alpha 5
• Voltage Rating: 48 V
• Nominal Capacity: 100 Ah
• Dimensions: 19 in (L) x 17.7 in (W) x 5.2 in (H)
• Discharge Current: 100 A
• Battery Group Size: 15
• Operating Temperature:
  • Storage: -4 to 122°F
  • Charge: 32-113°F
  • Discharge: -4 to 122°F
• Self-Discharge Rate: <3%/Month
• Enclosure Rating: IP65
• Charge Voltage Rating: 3.65 ±0.05 V
• Cycle Life: >7000 Cycles (1C Charge & Discharge Rate, 77°F, 80% DOD)
• Includes:
  • 1 ft RS485 Communication Cable
  • Set of Parallel Cables per Battery
  • 4.8 kWh (48V 100Ah) Lithium Iron Phosphate (LFP) Battery
• Charge Method: Smart Charger, Constant Current, Constant Voltage
• Energy: 4800 Wh
• Over Voltage Shutdown: 52.5 ±0.2 V
• Discharge Cut-off Voltage: 42 ±0.5 V
• Cell Chemistry: LiFePO4
• BMS Temperature Cut-off:
  • 32°F (Low)
  • 149°F (High)
• Over Charge Protection:
  • Detection Voltage: 3.9 ±0.05 V
  • Detection Delay Time: 0.96-1.4 sec
  • Release Voltage: 3.80 ±0.05 V
  • Maximum Charge Voltage: 3.65 ±0.05 V
• Over Discharge Protection:
  • Detection Voltage: 2 ±0.05 V
  • Detection Delay Time: 115-173 ms
  • Release Voltage: 2.3 ±0.1 V
• Over Current Protection:
  • Detection Delay Time: 9 ±2 ms
  • Release Condition: Cut Load
• Polarity Reverse Protection: Yes
• Short-Circuit Protection: Yes
• Standards: UL Listed, FCC, IEEE, cCSAus Certified
• Weight: 92.6 lb
• Warranty: 10 Years


Documents

• Specification Sheet
• Owners/User Manual

Advanced Performance and Reliability

The Rich Solar Alpha 5 48 V 100 Ah Lithium Iron Phosphate Battery delivers superior performance tailored for server and high-demand energy storage applications. Utilizing the latest Lithium Iron Phosphate technology, this battery ensures longer life cycles, enhanced safety, and stable output power. Its robust design minimizes capacity loss over time, making it a reliable choice for critical systems requiring consistent power. Users benefit from lower maintenance needs and improved operational efficiency, ensuring that their servers run uninterrupted and energy storage is optimized for peak performance.

Superior Safety and Thermal Stability

This Lithium Iron Phosphate Battery from Rich Solar integrates advanced chemistry that significantly improves safety compared to traditional battery types. The Alpha 5 model features excellent thermal stability, reducing the risk of overheating or fire hazards under heavy loads or extreme conditions. Its built-in protection systems guard against overcharge, over-discharge, and short circuits, providing peace of mind for users managing sensitive electronic equipment. The safe operation characteristics make it ideal for server environments that demand consistent and secure power sources.

Efficient Energy Storage and Eco-Friendly Design

The 48V 100Ah Rich Solar Alpha 5 battery offers efficient energy storage solutions adaptable to various applications, from server farms to residential solar setups. Its lightweight and compact architecture simplify installation, while the battery’s chemistry supports rapid charging and discharging cycles without degrading capacity. Additionally, this Lithium Iron Phosphate battery is environmentally friendly, containing non-toxic materials and offering recyclability. This sustainable design aligns with modern energy goals, making it a smart investment for those seeking dependable performance with reduced ecological impact.
