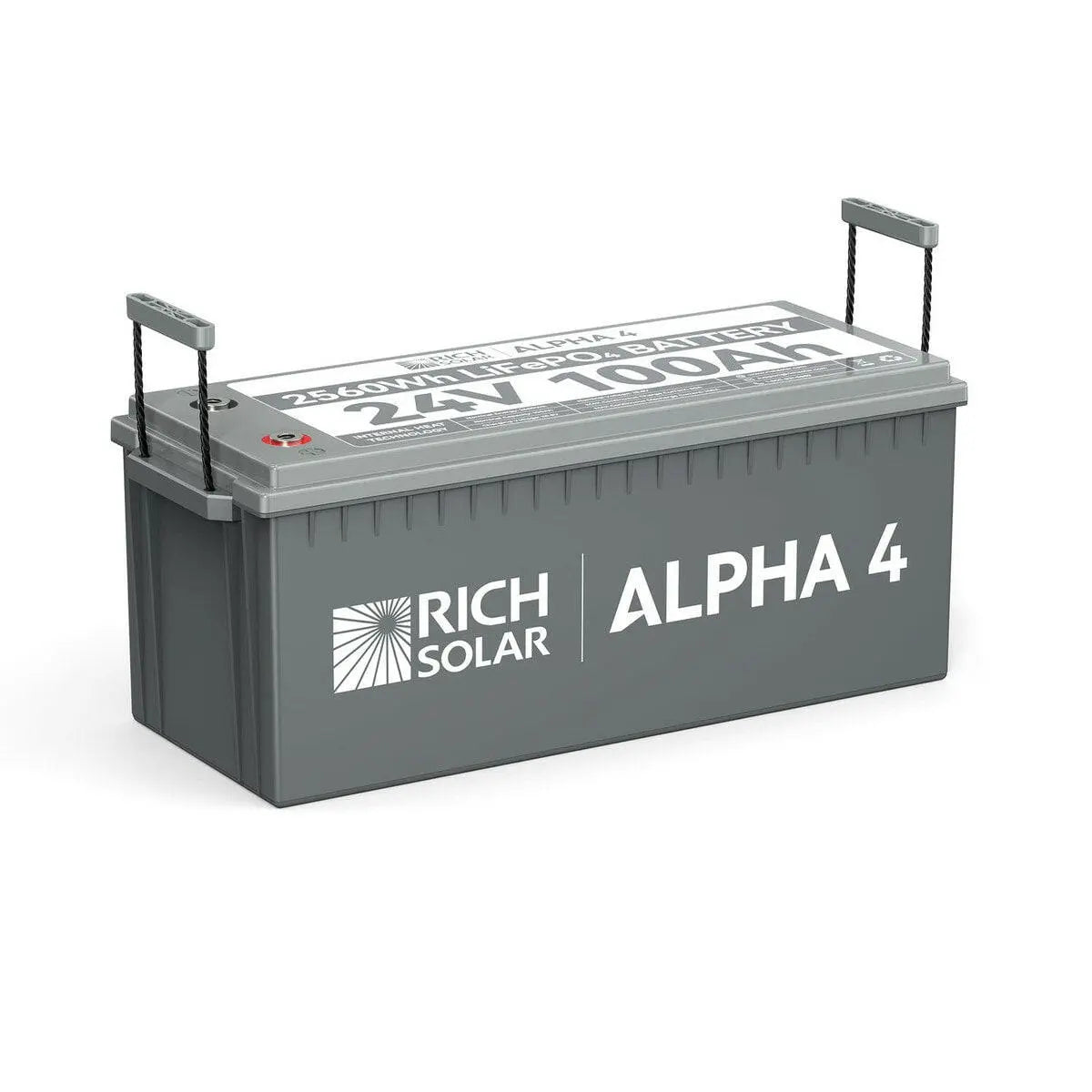

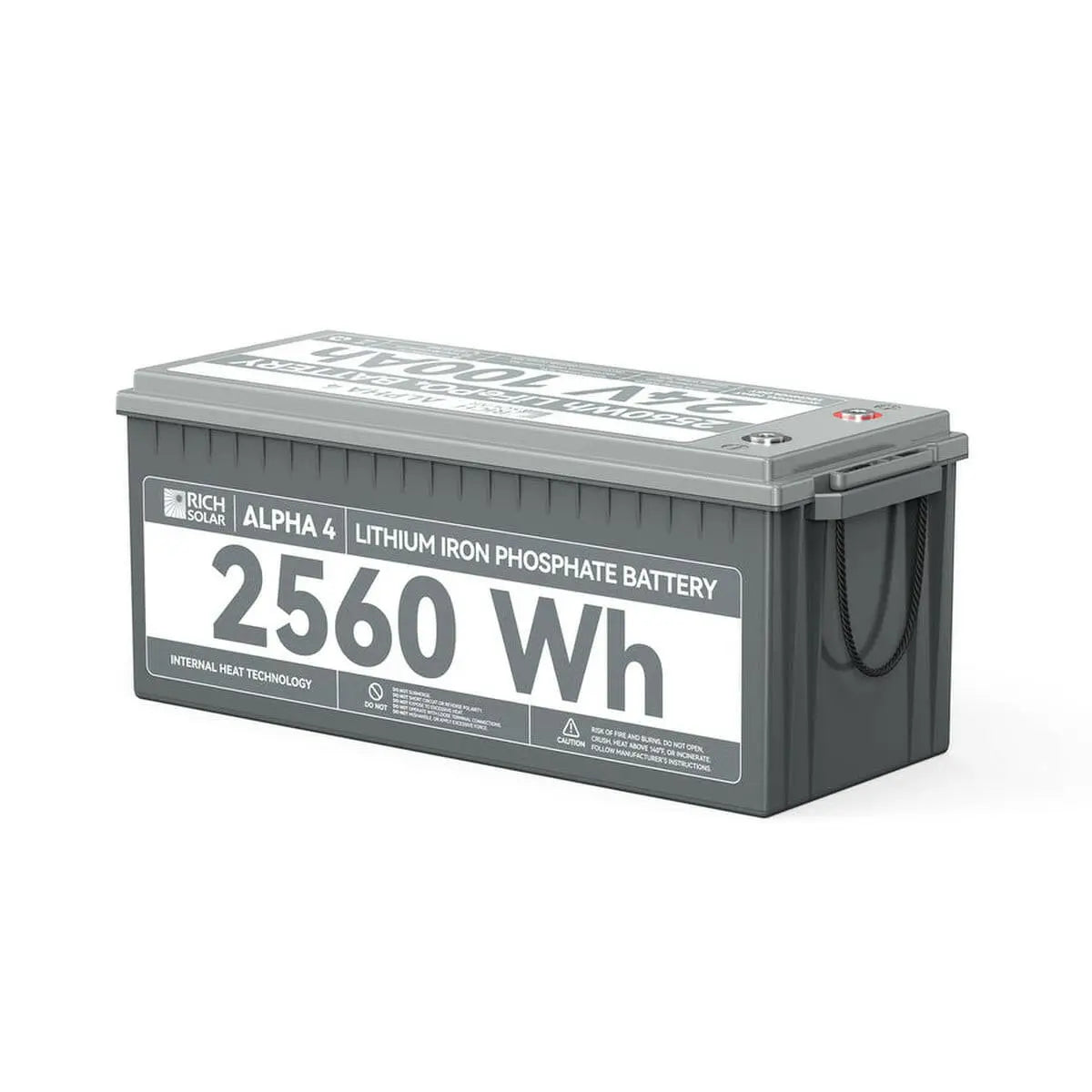

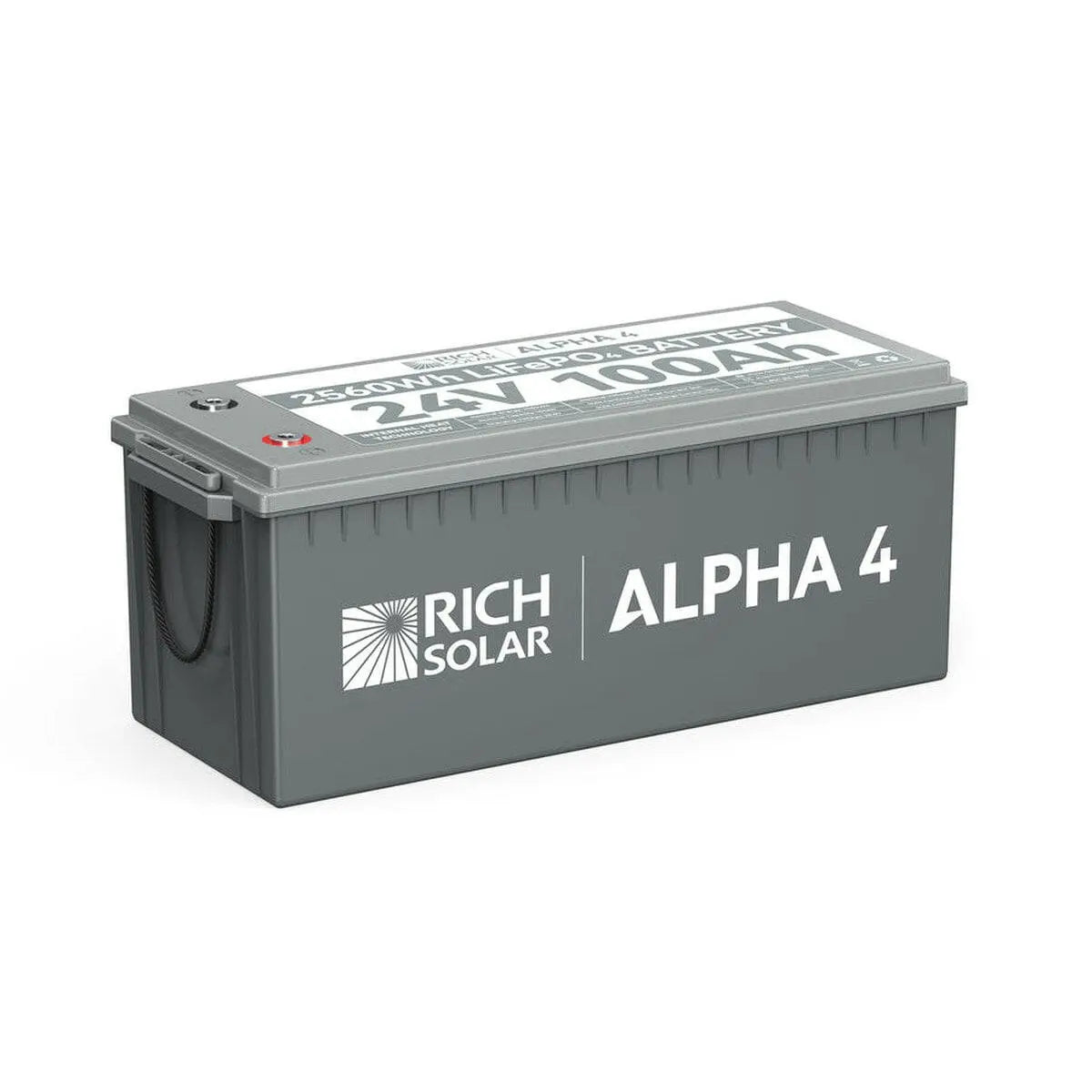

Rich Solar Alpha 4 25.6 V 100 Ah Lithium Iron Phosphate Battery

Rich solar 24V 100 Ah (alpha4) lithium iron phosphate battery has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies.

Features

• With internal heating and bluetooth function


Specifications

• Series/Model: Alpha 4
• Voltage Rating: 25.6 V
• Nominal Capacity: 100 Ah
• Dimensions: 20.9 in (L) x 8.1 in (W) x 8.5 in (H)
• Discharge Current: 100 A
• Material: ABS
• Battery Group Size: 31
• Operating Temperature:
  • Storage: -4 to 140°F
  • Charge: 32-131°F
  • Discharge: -4 to 140°F
• Self-Discharge Rate: <5%/Month
• Enclosure Rating: IP65
• Charge Voltage Rating: 28.8 V
• Cycle Life: 7000 Cycles at 80% DOD
• Charge Method: CC/CV
• Energy: 2560 Wh
• Continuous Charge Current: 50 A
• Discharge Cut-off Voltage: 22.4 V
• Cell Chemistry: LiFePO4
• Heating Function: 200 W
• Over Charge Protection:
  • Detection Voltage: 3.65 ±0.05 V
  • Detection Delay Time: 2000 ±1000 ms
  • Release Voltage: 2.50 ±0.1 V
• Over Discharge Protection:
  • Detection Voltage: 3 ±0.1 V
  • Detection Delay Time: 2000 ±1000 ms
  • Release Voltage: 3 ±0.1 V
• Over Current Protection:
  • Detection Delay Time: 10 ±3 ms
  • Release Condition: Automatic Recovery After 32 sec Delay
• Standards: UL1973, FCC, UN38.3
• Weight: 48.5 lb
• Warranty: 10 Years


Documents

• Specification Sheet
