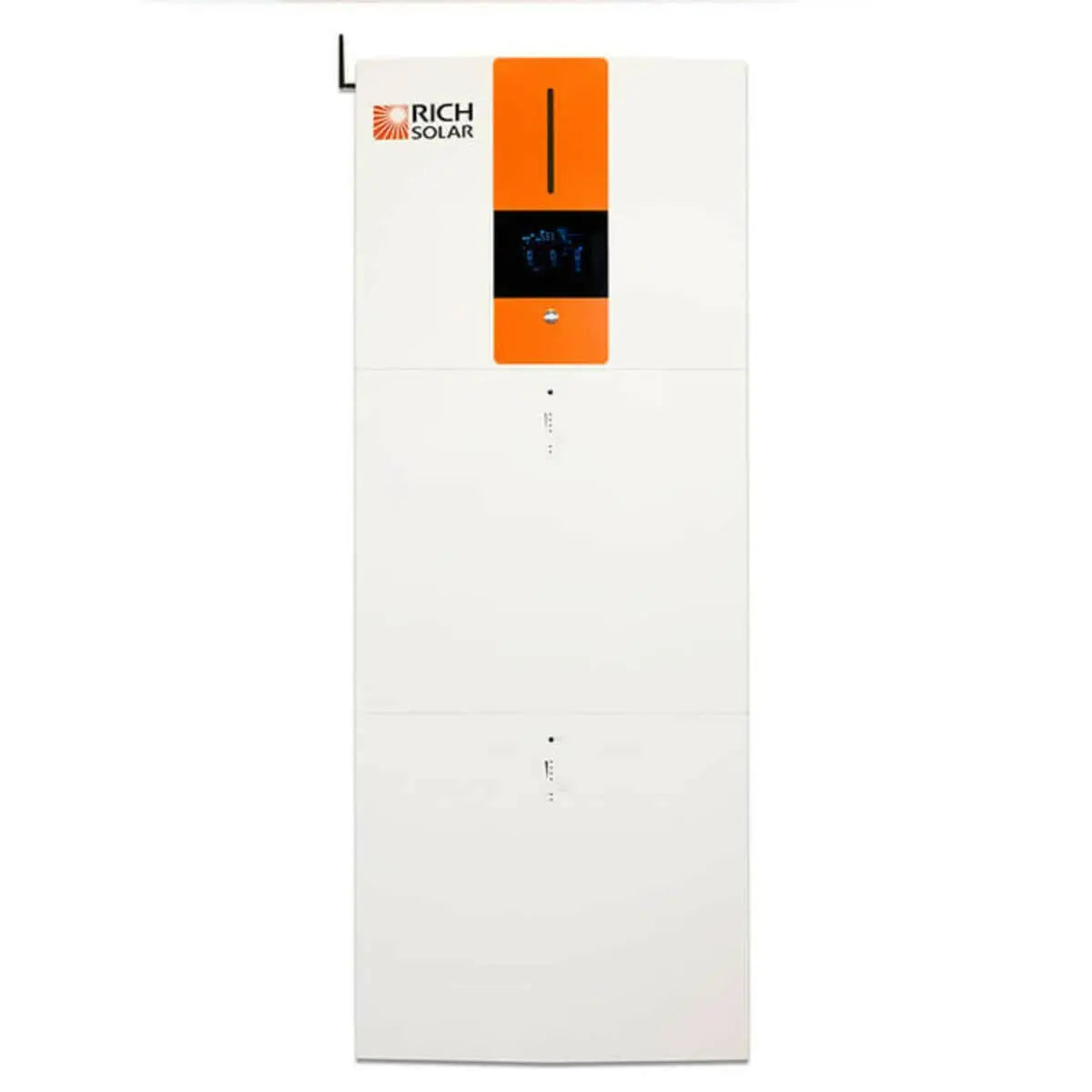

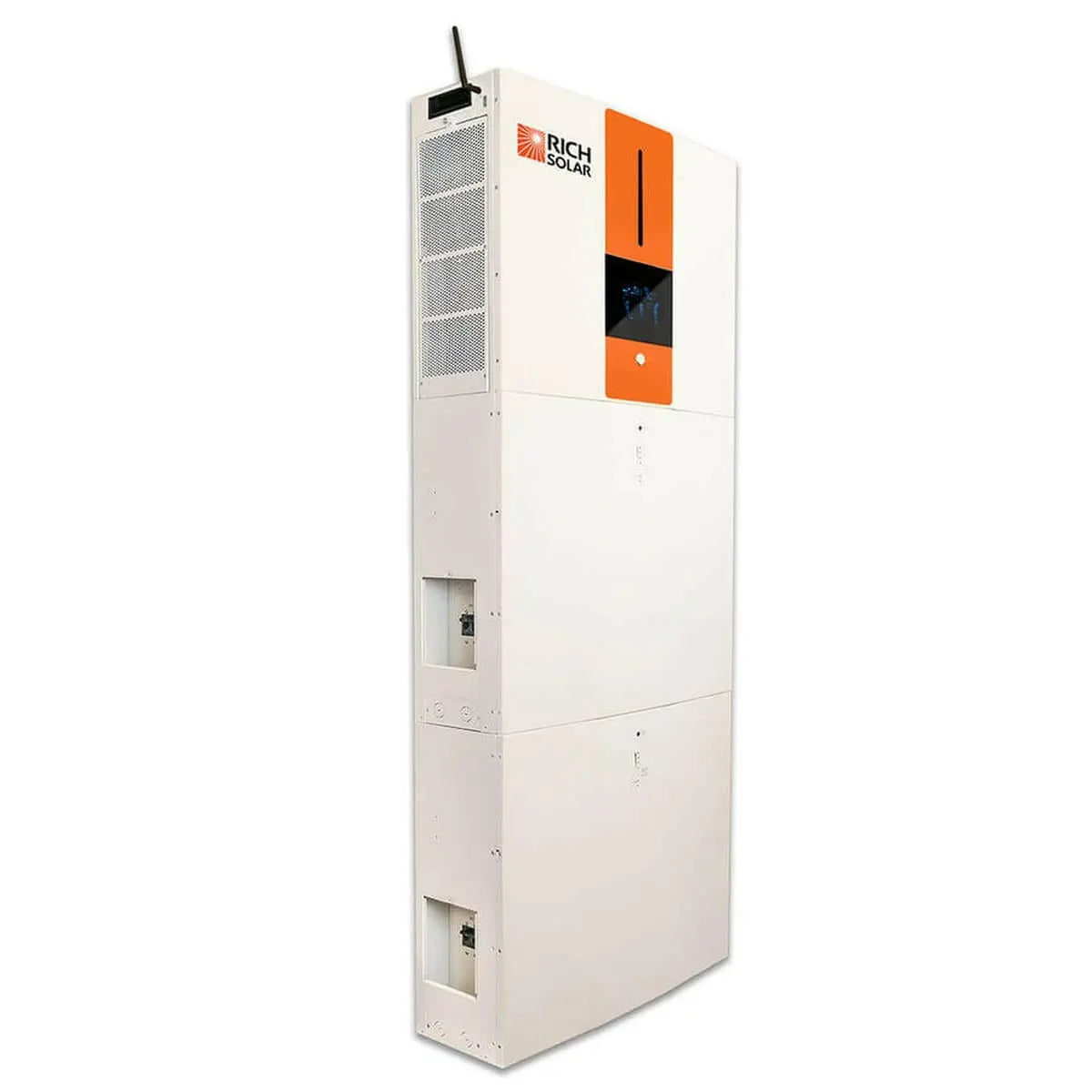

Rich Solar All-in-One Energy Storage System

The RICH SOLAR All-in-One Energy Storage System is a powerful and efficient solar energy system designed to provide clean and reliable electricity. This innovative system integrates all the components required for solar power generation into a single, compact unit, including an inverter, batteries, and a charge controller.

Features

• Pure sine wave output
• Off-Grid application
• Programmable supply priority for PV, Battery, or Grid
• User-adjustable battery charging current
• Battery independent design
• Multiple communication for USB, RS232, SNMP, Modbus, GPRS and Wi-Fi

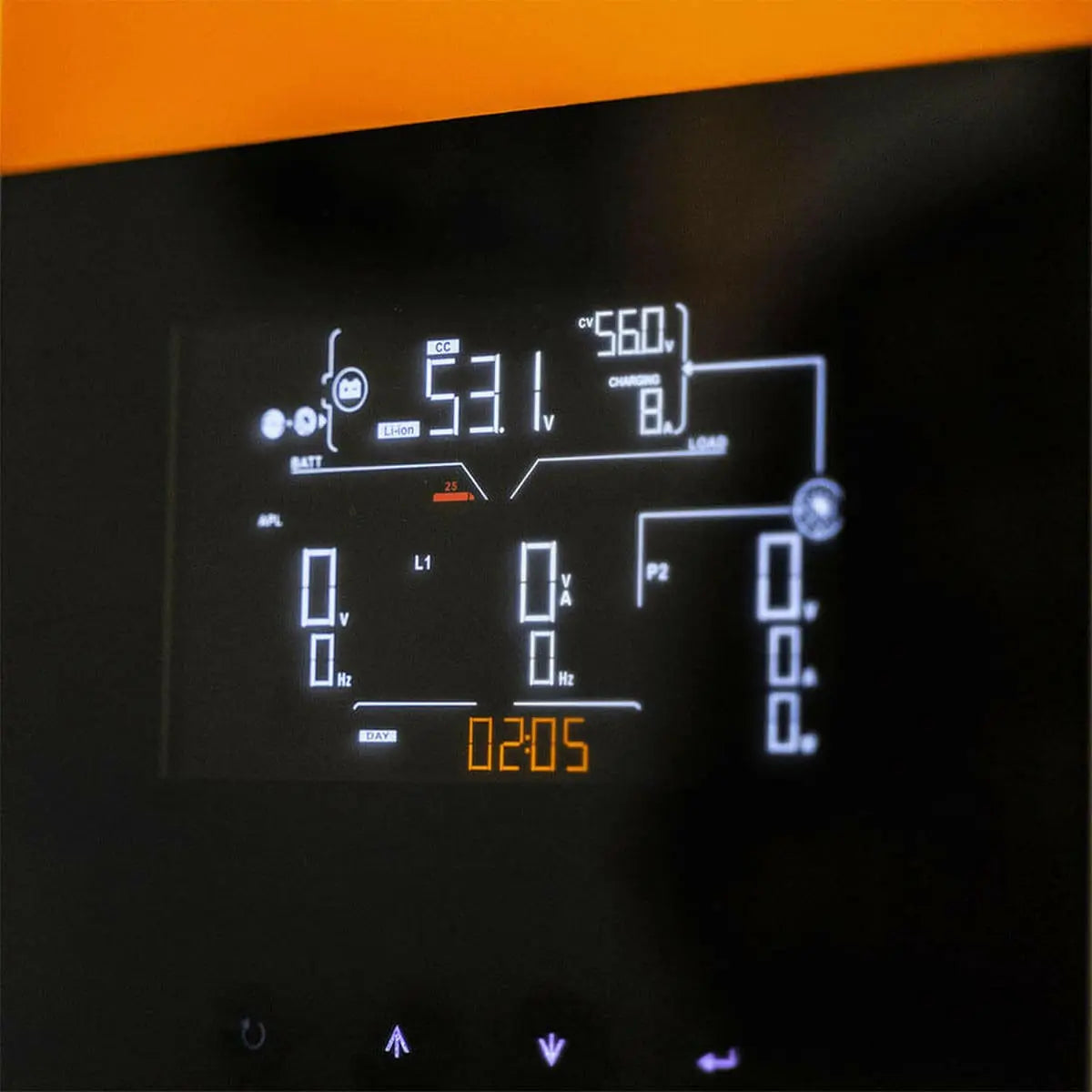

• Monitoring APP (Android and iOS) for real-time status display and parameter control
• Built-in 2 MPPT trackers and AC/Solar charger up to 120A
• Compatible with utility and generator
• Scalable Li-Ion battery expansion


Specifications

• • Type: All-in-One
  • Maximum PV Input Power: 8000 W
  • Rated Output Power: 6500 W
  • Maximum Charging Power: 6500 W
  • PV Input MPPT Range at Operating Voltage: 90-230 V
  • Maximum PV Array Open-Circuit Voltage: 250 VDC
  • Maximum Solar Charge Current: 120 A
  • Number of MPPT Trackers / Maximum Input Current: 2 / 2 x 18 A
  • Acceptable Input Voltage Range:
    • 90-140 VAC (For Computers)
    • 80-140 VAC (For Home Appliances)
  • Maximum AC Input Current: 60 A
  • Battery Nominal Output Voltage: 120 VAC
  • Maximum Conversion Efficiency (DC/AC): 93%
  • Battery Nominal DC Voltage: 48 VDC
  • Maximum Charging Current: 120 A
  • Capacity: 5120 WH
  • Battery Nominal Voltage: 51.2 VDC
  • Full Charge Voltage (FC): 56 V
  • Full Discharge Voltage (FD): 42 V
  • Typical Capacity: 100 Ah
  • Maximum Continuous Discharging Current: 120 A
  • Maximum Discharging Current: 192 A at 1 min
  • Protection: BMS, Breaker
  • Float Charge Voltage: 52.5 V
  • Charge Current Rating: 20 A
  • Maximum Charge Current: 50 A
  • Standard Charge Method:
    • 0.2C CC (Constant Current) Charge to FC
    • CV (Constant Voltage FC) Charge Till Charge Current Declines to <0.05 C
  • Inner Resistance: ≤ 20 mohm

  Standards: UL Listed, IEEE, FCC, cCSAus Certified

Documents

• Owners/User Manual
