Rich Solar 3000 VA/3000 W Off-Grid Hybrid Solar Inverter

Explore the Features and Benefits of the Rich Solar 3000VA Inverter

Features

• Pure sine wave inverter
• LED Display
• Integrated MPPT charge controller
• Configurable grid or solar input priority
• Optional WIFI/ GPRS remote monitoring
• Parallel for scalability
• With CAN/RS485 for BMS communication
• Configurable grid or solar input priority
• Compatible to mains voltage or generator power
• 48V Battery system
• High frequency inverter with small size and light weight
• Overload, short circuit and deep discharge protection
• Parallel operation up to 6 unit


Specifications

• Dimensions: 13.8 in (L) x 5.1 in (W) x 18 in (H)
• Input Voltage Waveform:
  • Sinusoidal (Utility or Generator) - Line Mode
  • Pure Sine Wave - Solar Charger Input
• Nominal Input Voltage: 120 VAC - Line Mode
• Voltage Limits:
  • Low Loss Voltage: 95 VAC +/-5 V (UPS), 65 VAC +/-5 V (Appliances)
  • High Loss Voltage: 140 VAC +/-5 V
• Maximum AC Input Voltage: 150 VAC - Line Mode
• Input Frequency: 50/60 Hz (Auto Detection) - Line Mode
• Efficiency:

  • 95% (Rated Load, Battery Full Charged) - Line Mode

  • 98% - Solar Charger Input Mode
• Transfer Time: 10 ms Typical, 20 ms Max at Single, <30ms at Parallel - Line Mode
• Rated Output Power: 3000 VA/3000 W - Inverter Output Mode
• Output Voltage: 120 VAC +/-5% - Inverter Output Mode
• Output Frequency: 50/60 Hz (Default) - Inverter Output Mode
• Peak Efficiency: 93% - Inverter Output Mode, 93% Solar Input Charger Mode
• Overload Protection:
  • 5 s at >/=150% Load
  • 10 s at 110% Approx. 150% Load - Inverter Output Mode
• Surge Capacity: 2 Rated Power for 5 Seconds - Inverter Output Mode
• Nominal DC Input Voltage: 48 VDC - Inverter Output Mode
• Cold Start Voltage: 46 VDC - Inverter Output Mode
• Low DC Warning Voltage:
  • 44 VDC at Load <20%
  • 42.8 VDC at 20%-50% - Inverter Output Mode
• Low DC Cut-off Voltage:
  • 42 VDC at Load <20%
  • 40.8 VDC at 20%-50% - Inverter Output Mode
• High DC Recovery Voltage: 56.4 VDC - Inverter Output Mode
• High DC Cut-Off Voltage: 60.8 VDC - Inverter Output Mode
• No Load Power Consumption: <50 W - Inverter Output Mode
• Charging Current (UPS): 30 A Default, Maximum 40 A - AC Outlet Charger Mode
• AC Input Voltage: 120 VAC - AC Outlet Charger Mode
• Selectable Voltage Range:
  • 95-140 VAC (For Personal Computers)
  • 65-140 VAC (For Home Appliances) - AC Outlet Charger Mode
• Battery Charging Voltage:
  • Flooded Battery: 58.4 VDC
  • AGM/Gel Battery: 56.4 VDC - AC Outlet Charger Mode
• Overcharge Protection: 60 VDC - AC Outlet Charger Mode
• Charging Algorithm: 3-Step - AC Outlet Charger Mode
• Maximum PV Array Power: 4500 W - Solar Charge Input
• Maximum PV Array Open-Circuit Voltage: 145 VDC - Solar Charge Input
• PV Array MPPT Voltage Range: 60-115 VDC - Solar Charge Input
• Maximum PV Charging Current: 34 VDC - Solar Charge Input
• Default Charging Current: 80 A - Solar Charge Input
• Maximum Charging Current: 120 A - Solar Charge Input
• Solar Charge Controller Type: MPPT
• Standby Power Consumption: 2 W - Solar Charge Input
• Operating Temperature: 0-55°C
• Storage Temperature: -15 to 60°C
• Humidity: 5-95% Relative Humidity (Non-Condensing)
• Standards: CE, TUV, ETL Listed, PV Cycle, MCS, IEC, UL
• Warranty: 2 Years
• Weight: 25.4 lb

Documents

• Specification Sheet
• Owners/User Manual

Powerful and Reliable Off-Grid Hybrid Solar Inverter

The Rich Solar 3000VA inverter is engineered to deliver 3000 watts of continuous power, making it ideal for off-grid solar systems. This inverter seamlessly combines solar energy usage with battery backup and grid power, ensuring you have electricity under any condition. Its durable construction and advanced technology provide high efficiency and reliability, which are crucial for remote or off-grid locations. For households and small businesses relying on alternative energy, the Rich Solar 3000VA inverter offers a stable and powerful energy source optimized for solar integration.

Advanced Hybrid Technology for Energy Optimization

Equipped with hybrid inverter technology, the Rich Solar 3000VA inverter intelligently manages energy flows between solar panels, batteries, and the utility grid. This feature optimizes energy use by prioritizing solar power during daylight and switching to battery or grid energy when needed. The advanced hybrid design helps maximize solar self-consumption and reduces dependency on expensive grid electricity. Users benefit from lower electricity bills and increased energy autonomy, making this inverter a sustainable and smart choice for eco-conscious energy solutions.

User-Friendly Design and Installation

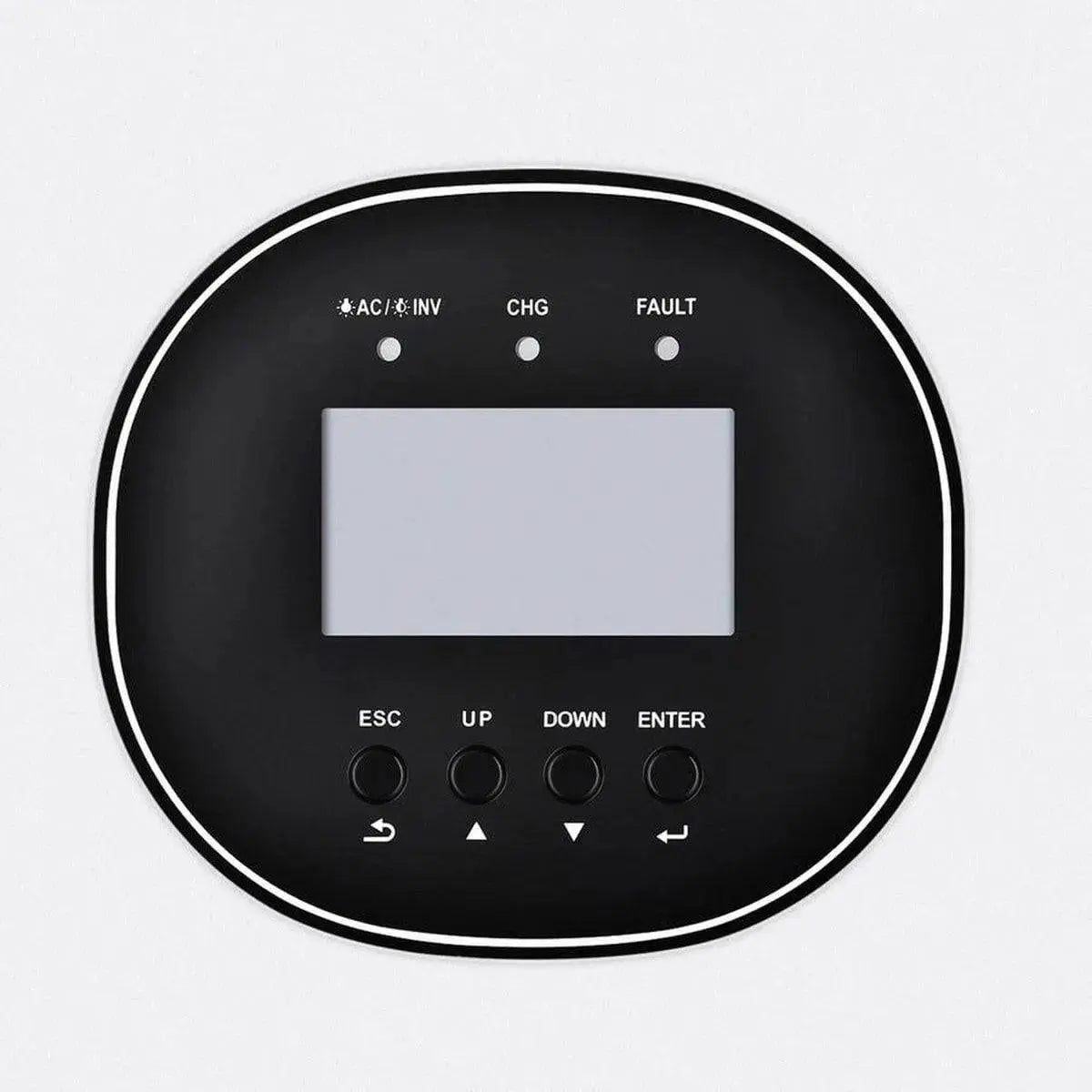

Rich Solar designed the 3000VA inverter with simplicity and user convenience in mind. The inverter features a clear LCD display for real-time monitoring of power generation, consumption, and system status. Installation is straightforward with comprehensive manuals and adaptable compatibility with various solar panel types and battery banks. Its compact and lightweight design allows easy mounting in different environments without sacrificing performance. Whether you are upgrading your current solar setup or building a new off-grid system, this Rich Solar 3000VA inverter provides seamless integration and hassle-free operation.
