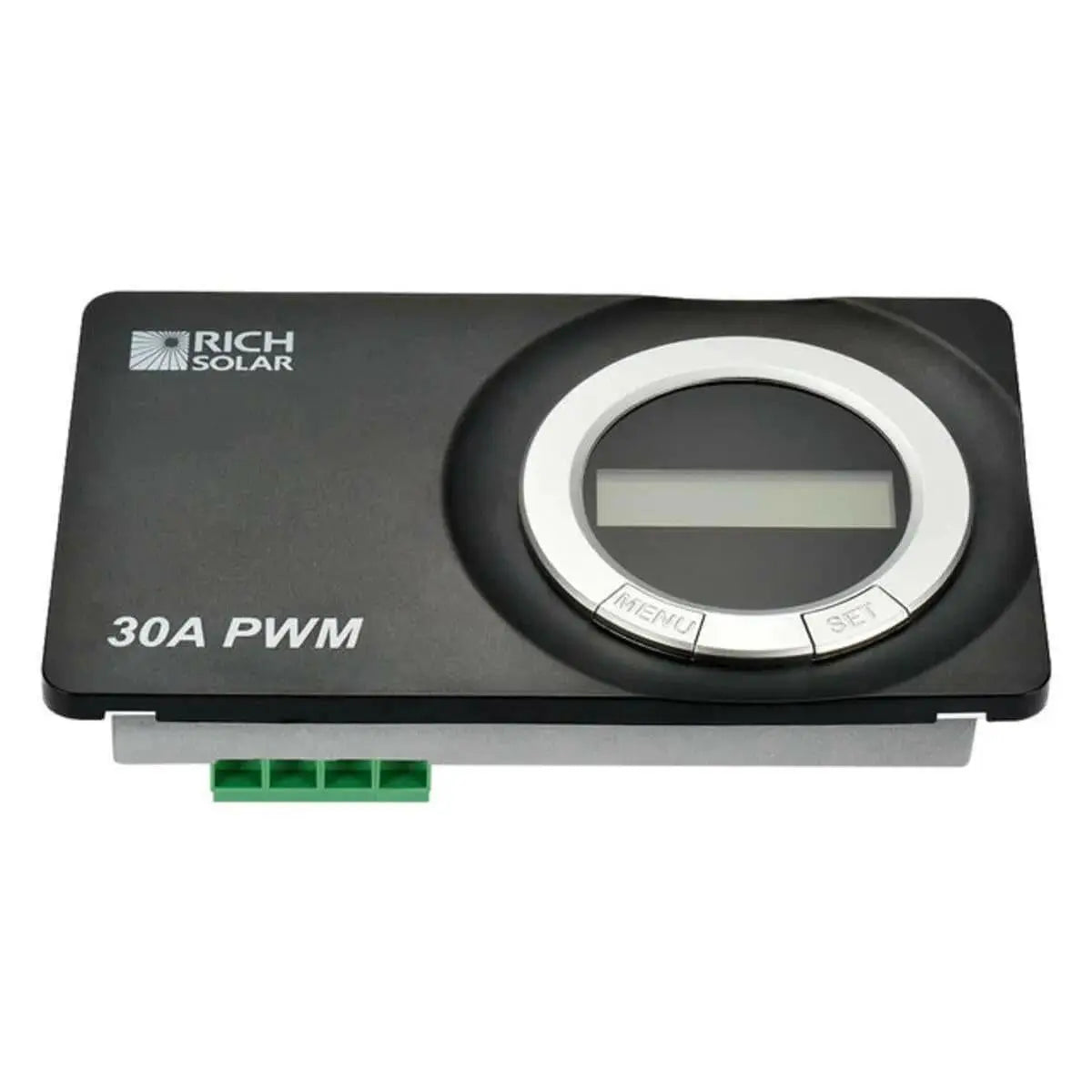

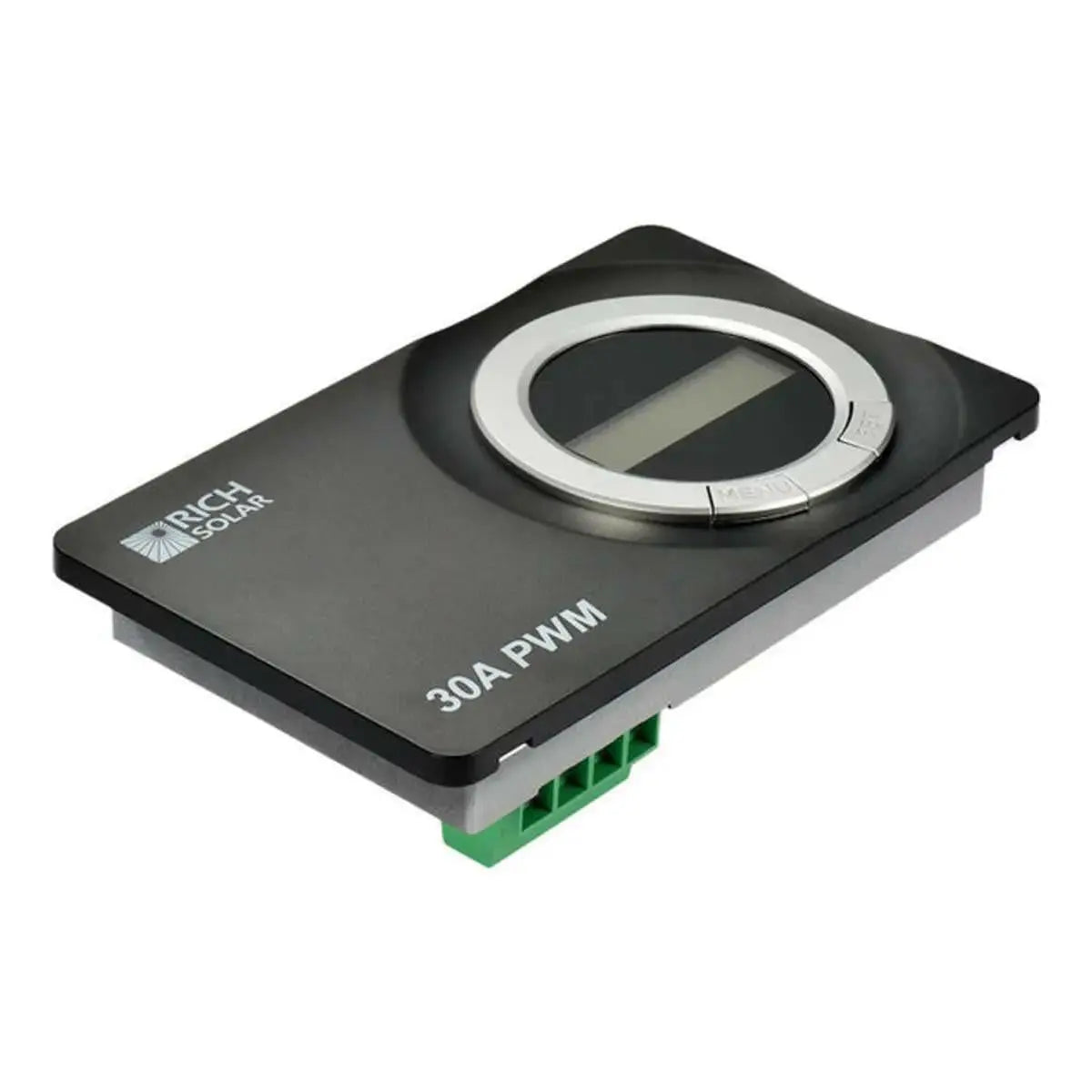

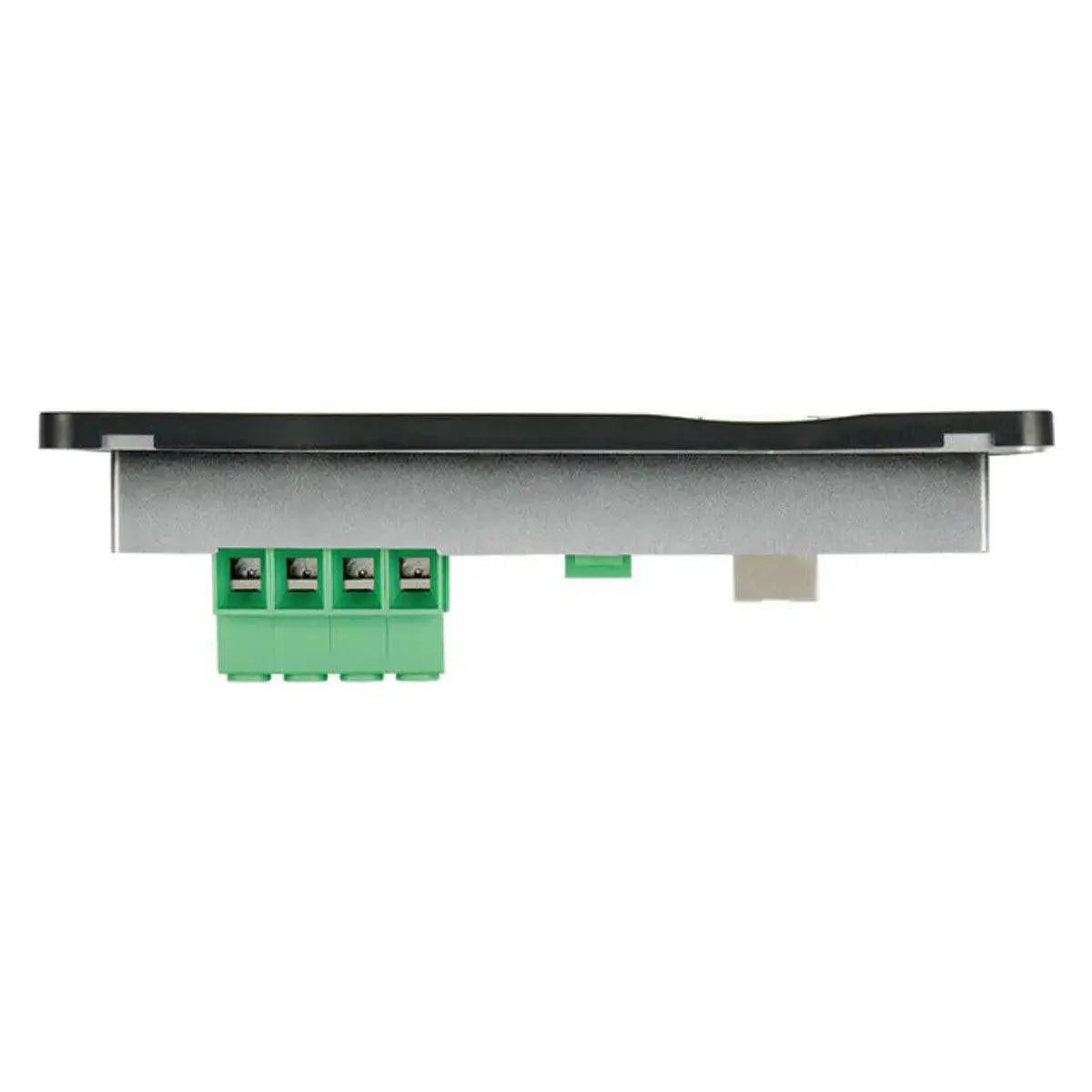

Rich Solar 30 Amp Solar Charge Controller Flush Mount

The 30 A Solar Charge Controller Flush Mount is a high-quality and efficient device designed to regulate and manage the charging process of your solar panels. It is specifically designed for solar systems with a maximum current capacity of 30 amps, making it suitable for small to medium-sized solar installations.

Features

• Flush mounted and embedded installation design
• High quality and low failure rate components (ST/IR) to ensure the product lifetime
• 3-Stage intelligent PWM charging: Bulk, boost/equalize and float
• Battery type: Sealed, gel, flooded
• Real-time energy statistics feature

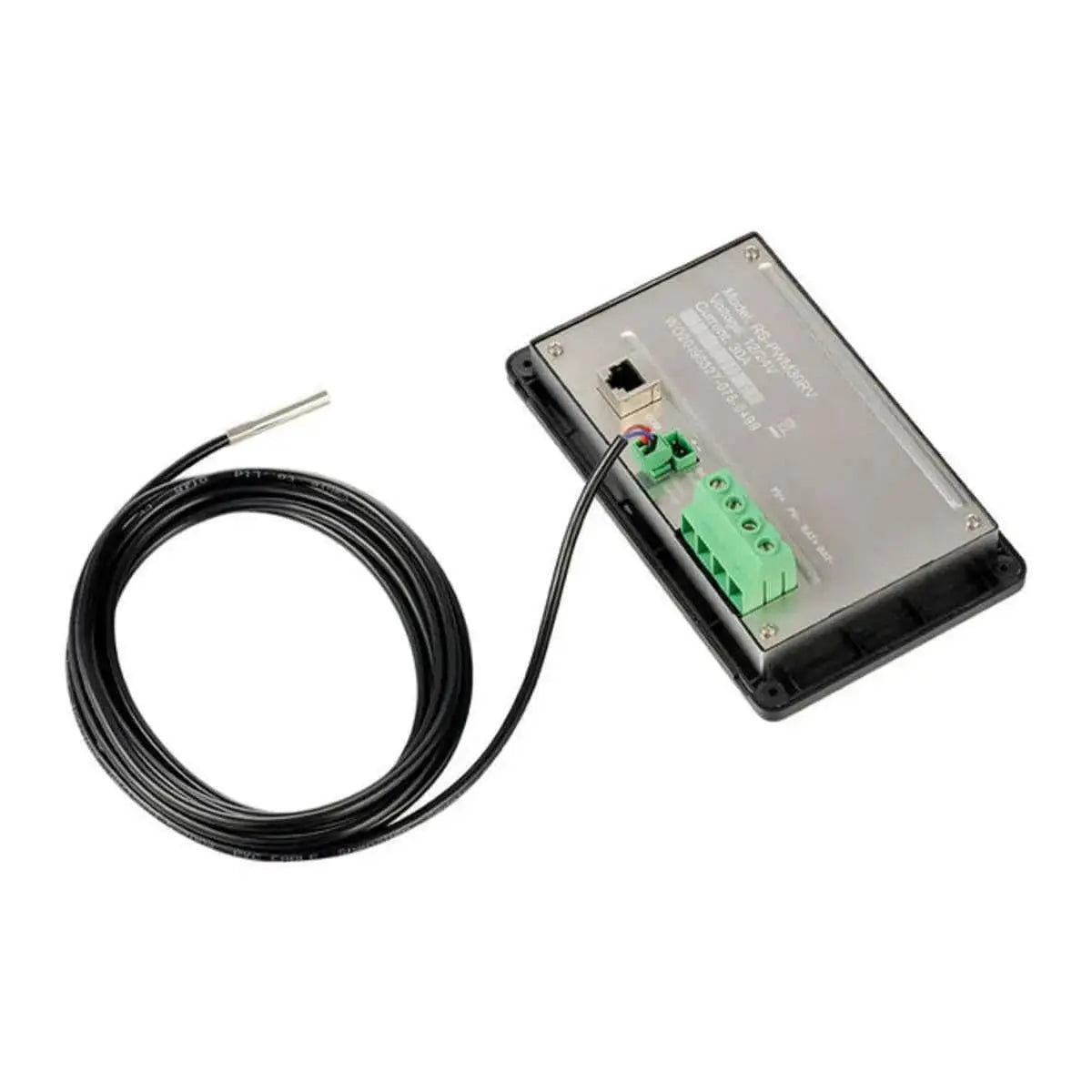

• Battery temperature compensation feature

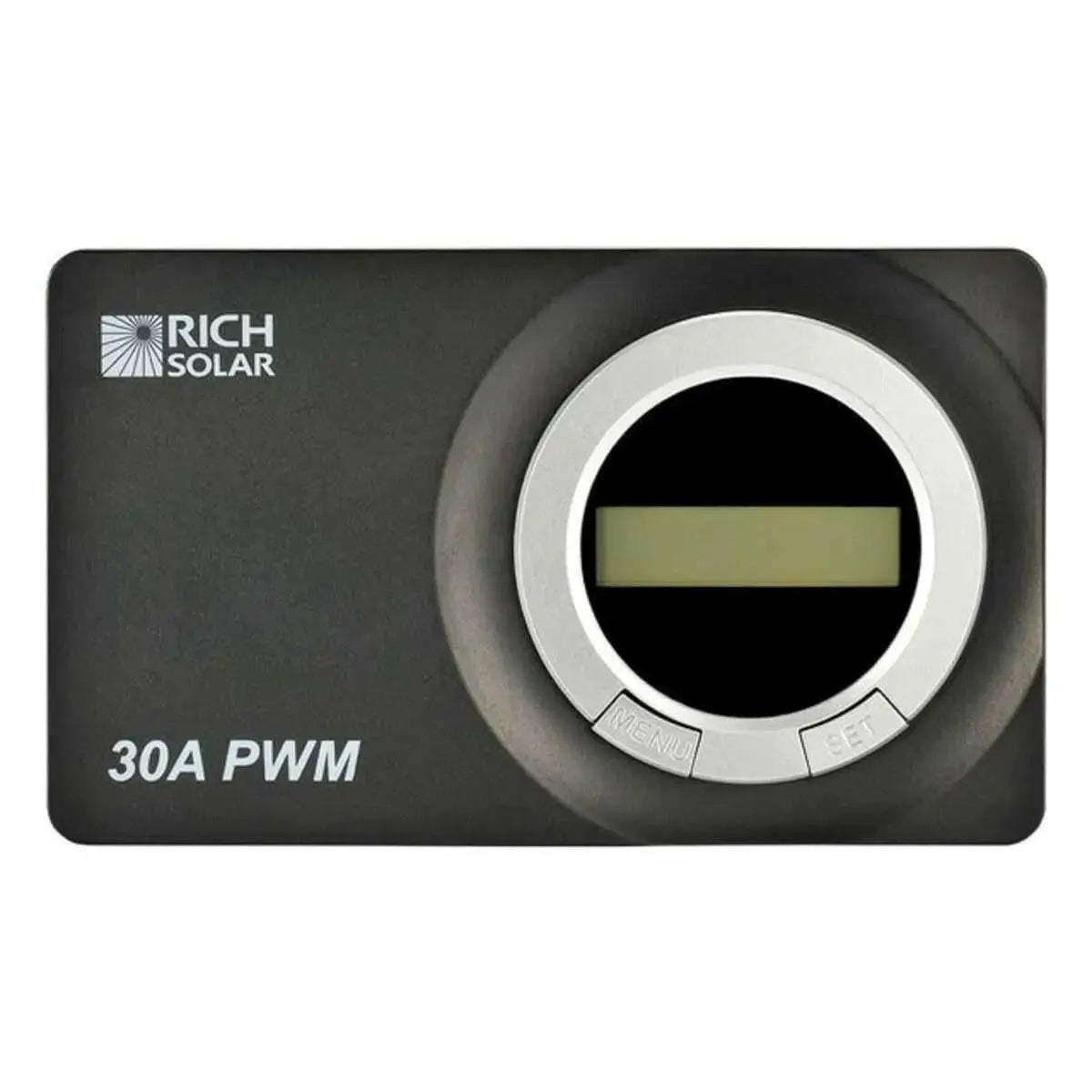

• Digital LCD monitor for informative display of operational parameters and fault messages
• Voltage drop and temperature compensation sampling interface design

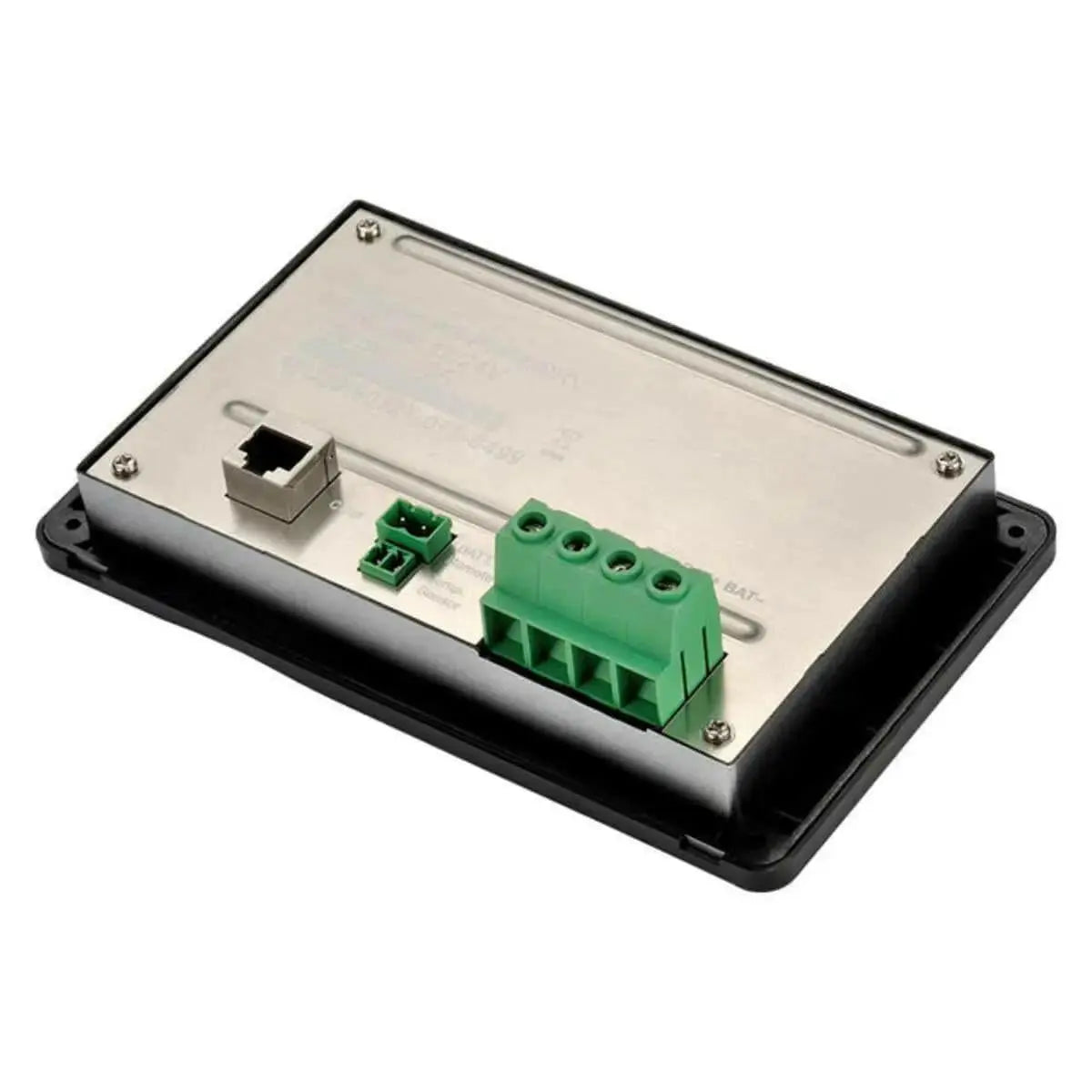

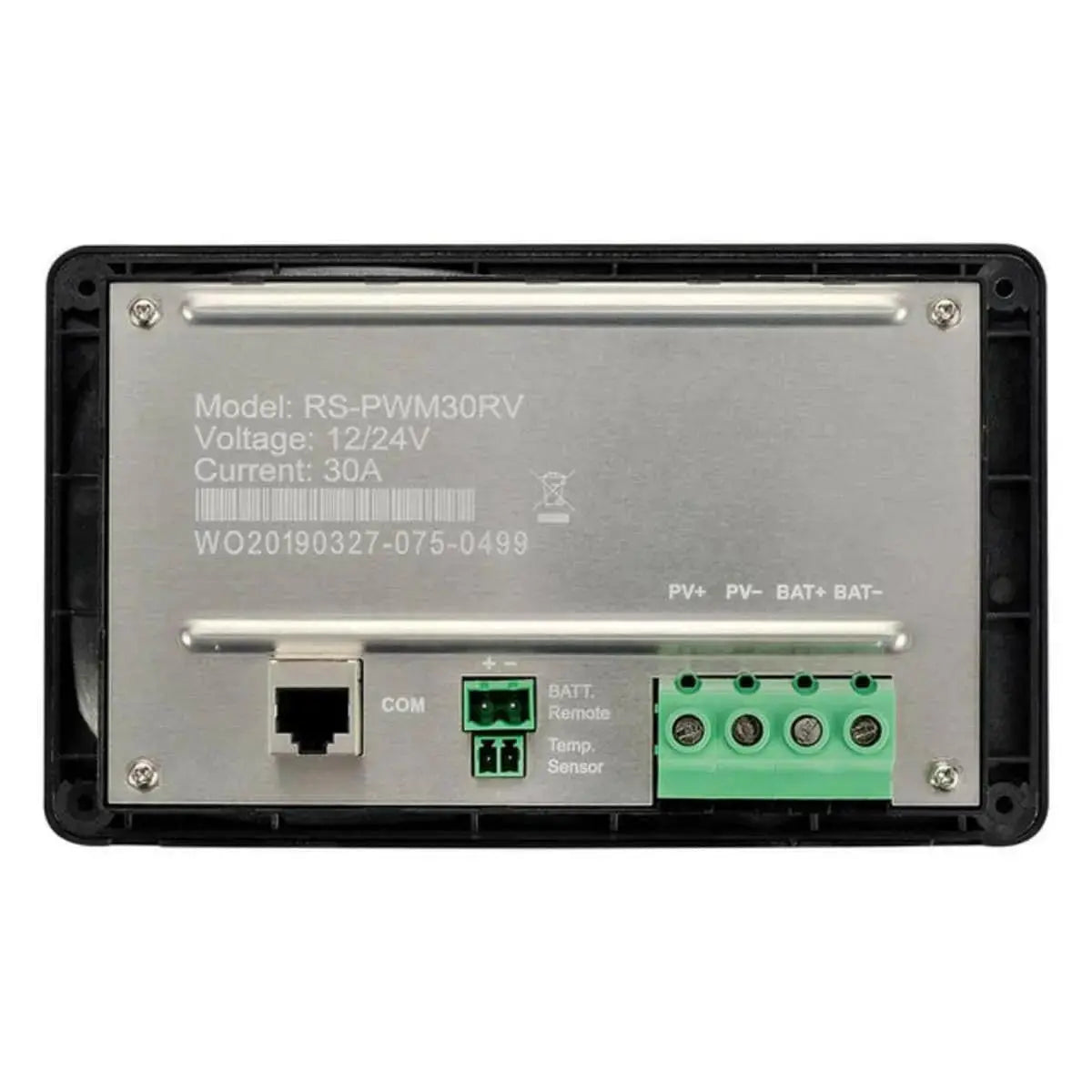

• RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
• Multiple communication peripherals
• Rated charging current at working temperature without de-rating
• Extensive electronic protections
• Monitor and set the parameters via PC software or app


Specifications

• Nominal Voltage Rating: 12/24 VDC
• Battery Input Voltage Range: 8-32 V
• Charge Current Rating: 30 A
• Maximum PV Short Circuit Current: 30 A
• Battery Type: Sealed (default) / Gel / Flooded
• Self Consumption: Temperature Compensation Coefficient: -3 mV/deg C/2 V (Default)
• Charge Circuit Voltage Drop: 0.21 V
• Storage Temperature: -30 to 80 deg C
• Environment Temperature: -20 to 55 deg C
• Humidity: Enclosure Rating: IP30
• Grounding: Common Negative
• Altitude: 5000 m
• Pollution Degree: PD2
• Dimensions: 178.5 mm Length x 105.5 mm Width x 48.3 mm Height
• Mounting Dimensions: 166.5 x 93.5 mm
• Hole Size: 5 mm
• Standards: IEEE, ICC, cCSAus, UL Listed
• Suitable For Use With: Small to Medium Sized Solar Installations
• Warranty: 25 Years Power Output Rigid Solar Panels, 5 Years Power Output Portable Briefcase Solar Panels, 2 Years Portable Power Stations, 2 Years (MPPT) & 6 Months (PWM) Solar Charge Controllers, 2 Years Inverters, 1 Year Workmanship & Materials Flexible Solar Panel, 1 Year Workmanship & Materials CIGS Flexible Solar Panel, 3 Years Manufacturer Defect LiFePO4 Lithium Battery
