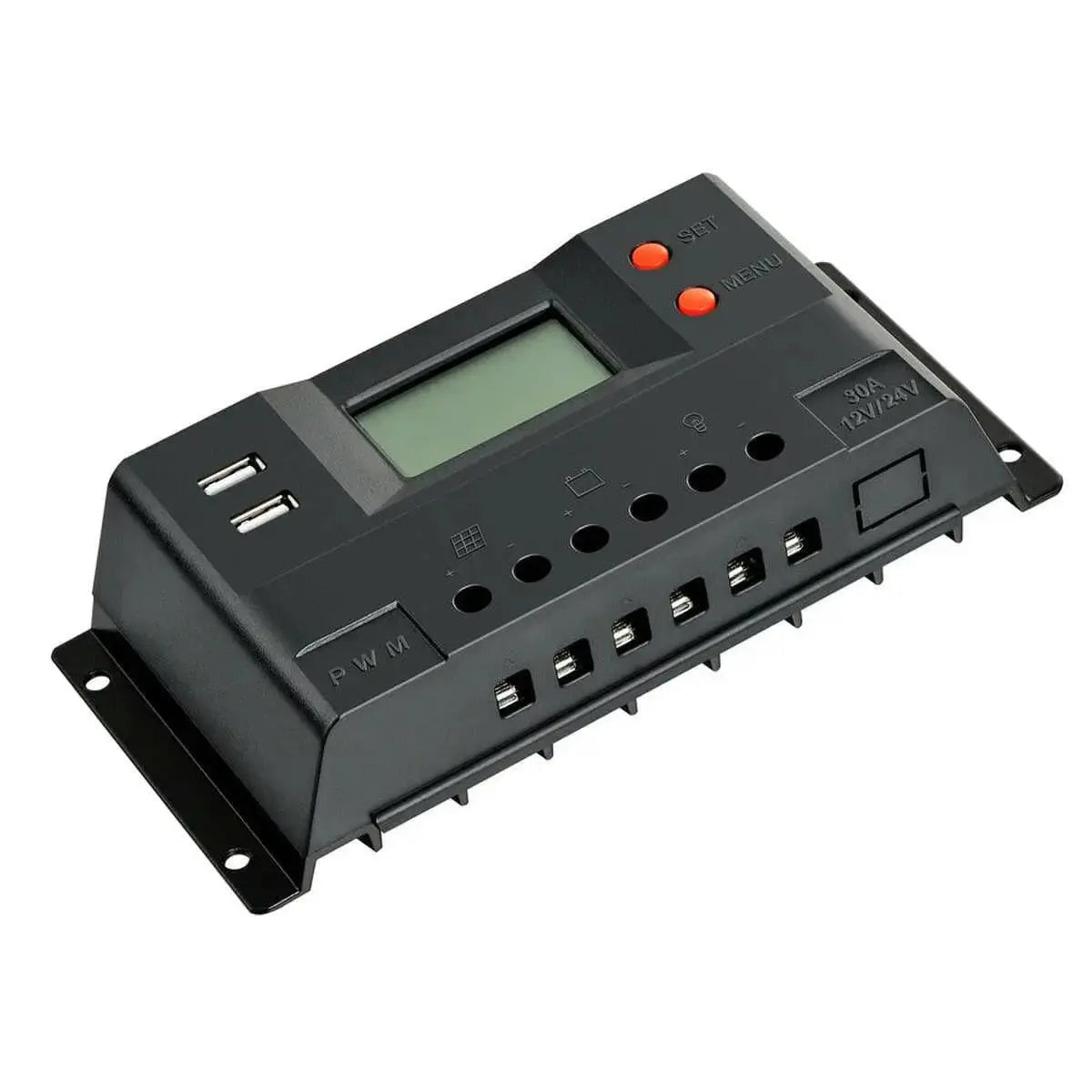

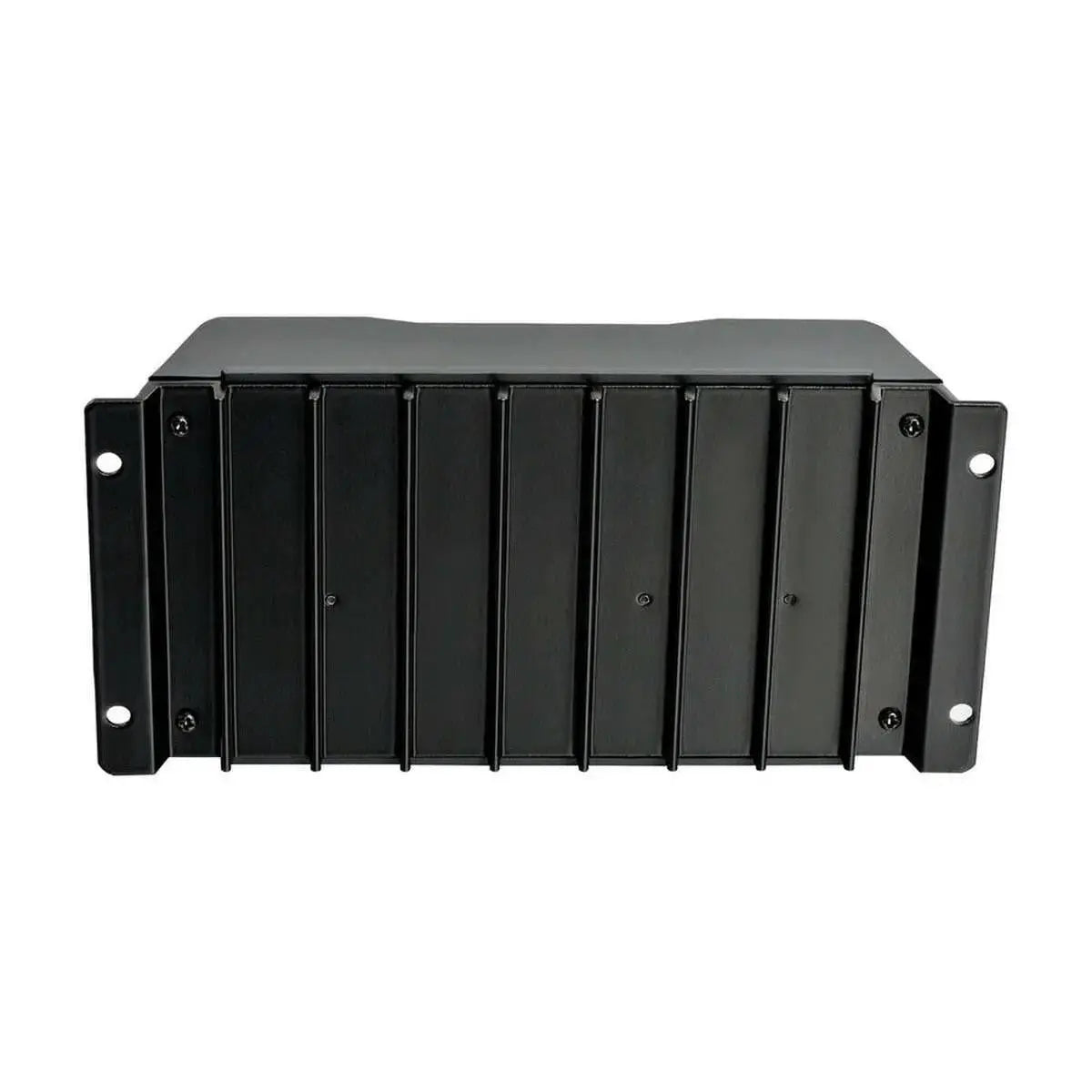

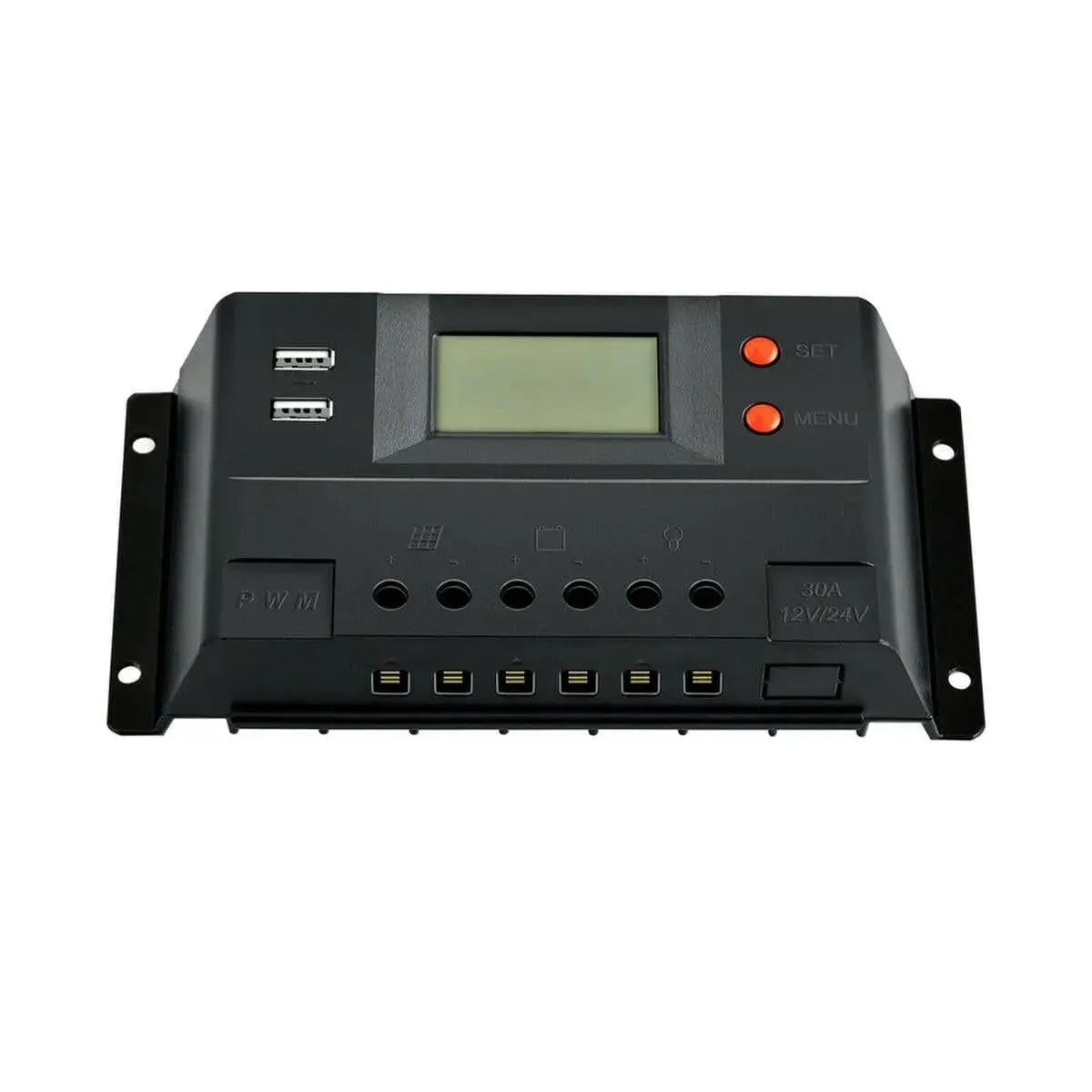

Rich Solar 30 Amp PWM Solar Charge Controller

The Rich Solar 30 Amp PWM Solar Charge Controller RS-PWM30K is designed to regulate and protect your solar system, ensuring efficient and reliable energy transfer to your battery. It is designed for 24V, 30A off-grid solar systems with advanced pulse width modulation (PWM) technology, helping to maximize your solar system performance while protecting your battery from overcharging.

Specifications

• Type: PWM
• Operating Temperature: -20 to 55°C
• Current Rating: 30 A

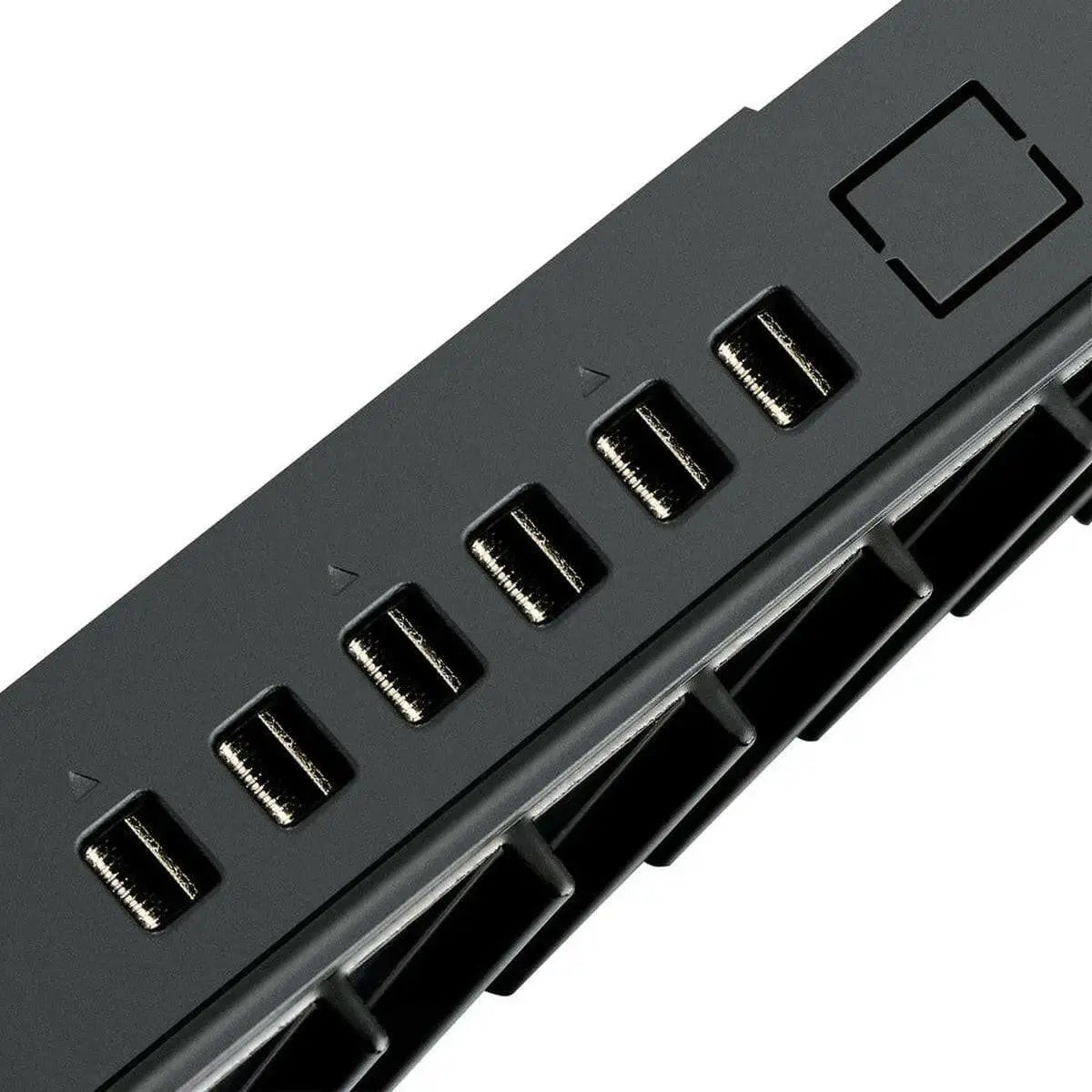

• Wire Terminations: PCB Terminal, ≤16 mm²
• No-Load Loss: 13 mA
• PV Voltage: 50 V
• System Voltage: 12/24 V Auto
• HVD: 16 V x1/x2/x3/x4 (0.5 V)
• Discharging Current Rating: 30 A
• Charge Loop Voltage Drop: 0.24 V
• Discharge Loop Voltage Drop: 0.1 V
• Charging Mode: PWM 4-stage (Bulk, Absorption, Float, Equalized)
• Voltage of Float Charging: 13.8 V (13-15 V) x1/x2
• Voltage of Absorption Charging: 14.4 V (13-15 V) x1/x2
• Voltage of Equalized Charging: 14.6 V (13-15.5 V) x1/x2
• Duration of Equalized Charging: 2 hr
• LVD: 10.7 V (10-14 V) x1/x2
• LVR: 12.6 V (10-14 V) x1/x2
• Load Working Mode: Regular Control Mode, Light Control with Switch-Off Point at Night and Switch-On Point before Dawn, Light Control Mode
• Light Control Voltage: 5 V (1-10 V) x1/x2
• Battery Type: Gel, Sealed, Flooded, and USR (Default)
• USB Voltage: 5 V
