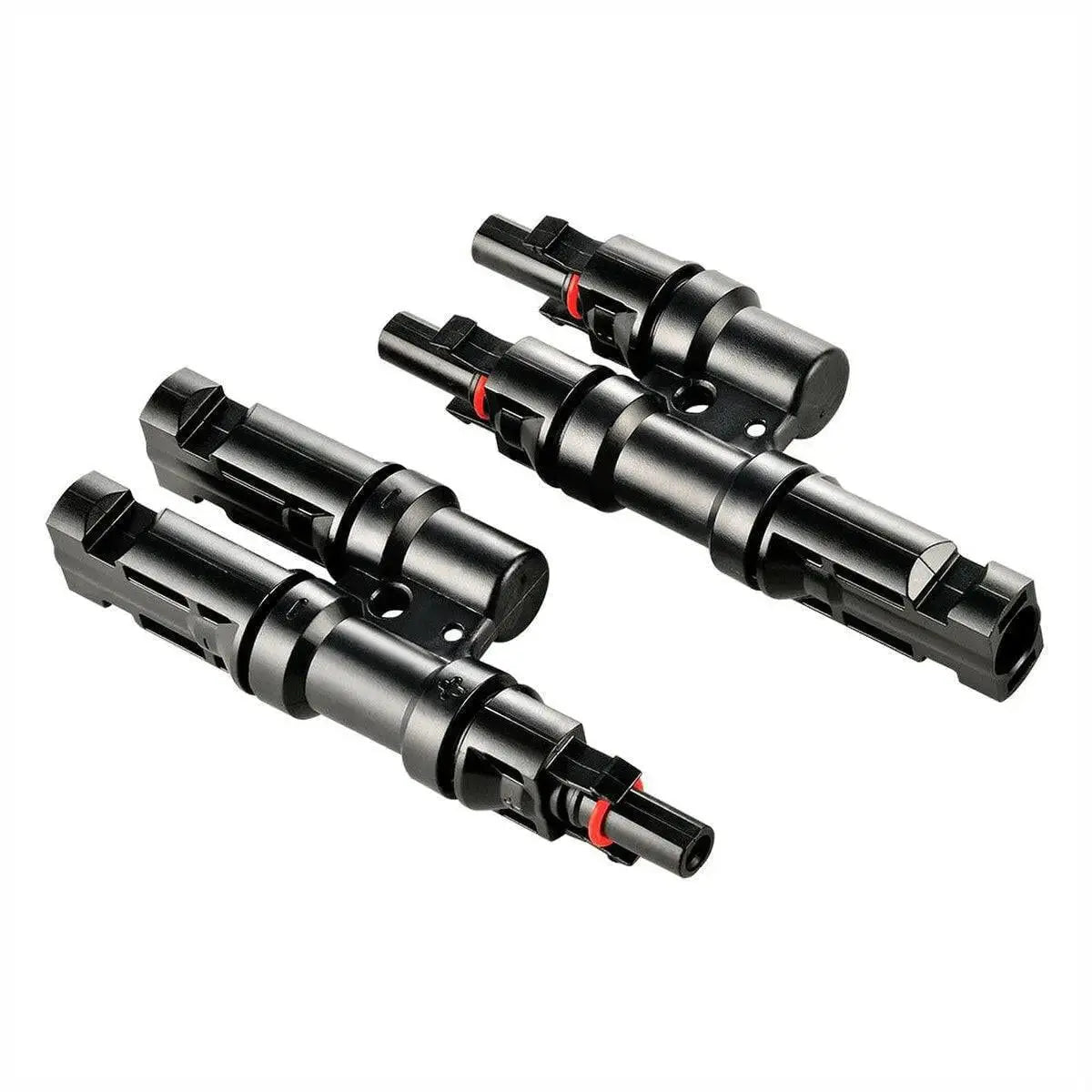

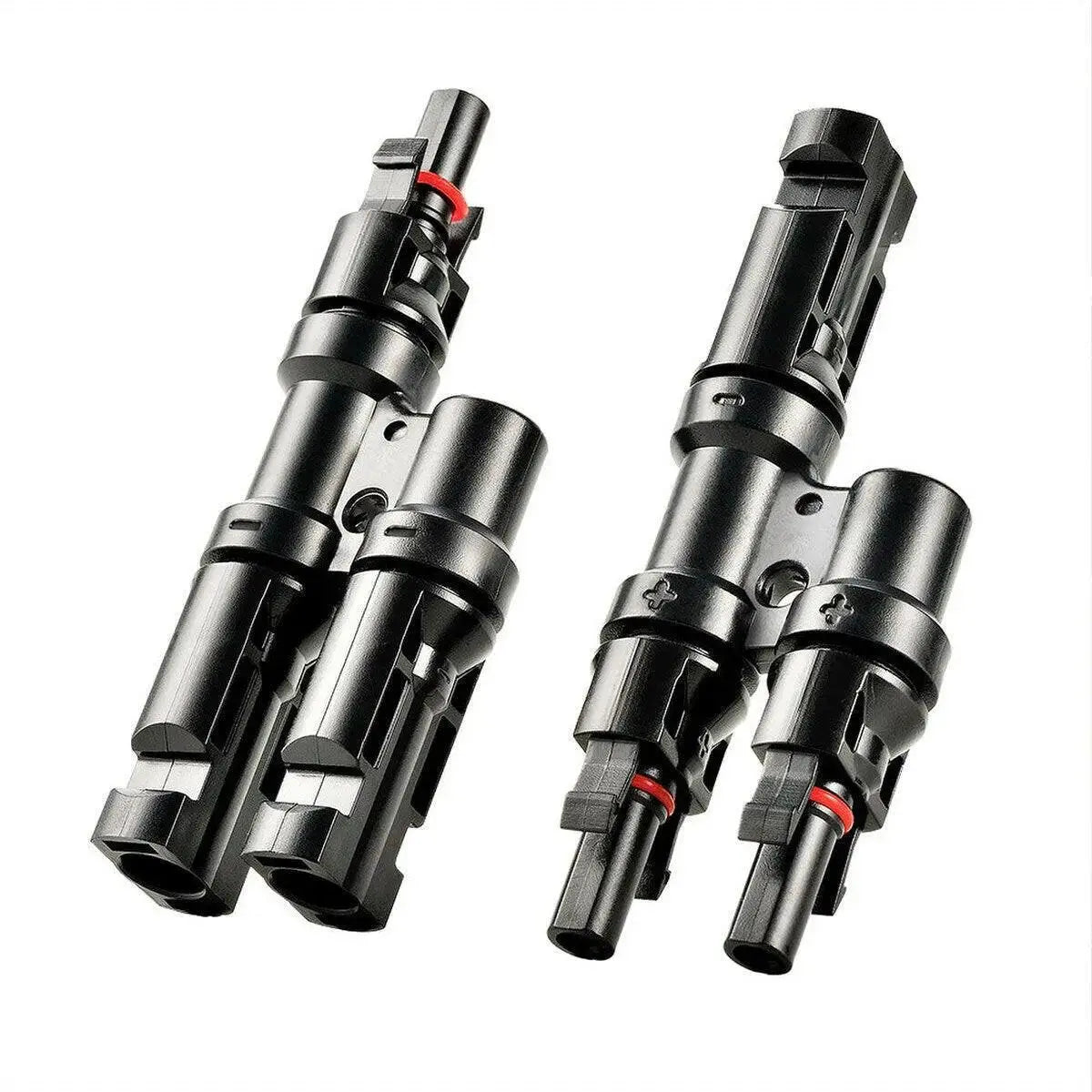

Rich Solar 30 A 2 to 1 Y-Branch Parallel Connector

Features

• Provides a quick and easy parallel wiring solution for solar panels
• Compatible with all solar connectors
• Designed for photovoltaic solar systems with high mechanical requirements and extreme weather conditions
• Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
• Lower contact resistance
• Waterproof and dustproof


Specifications

• Type: 2 to 1
• Rated Current: 30 A
• Maximum Voltage: 1000 VAC
• Enclosure Rating: IP67
• Wire Range: 10 AWG, 12 AWG
• Insulation Material: PPO + PA
• Contact Material: Tinned Copper
• Safety Class: Class II
• Operating Temperature: -40 to 90 deg C
• Standards: UL Listed, CSAus Certified, FCC Compliant, IEEE Standard
• Warranty: 1 Year
