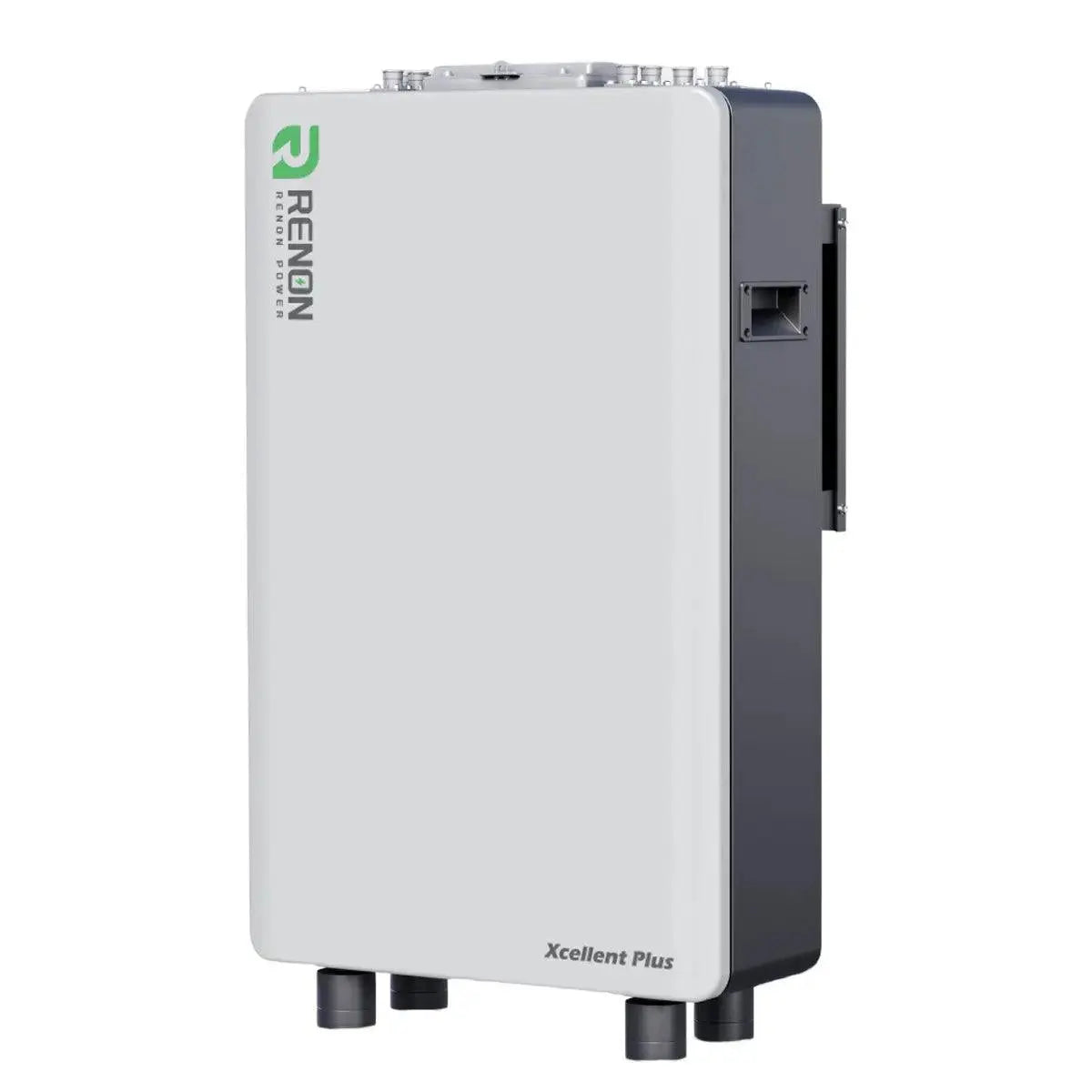

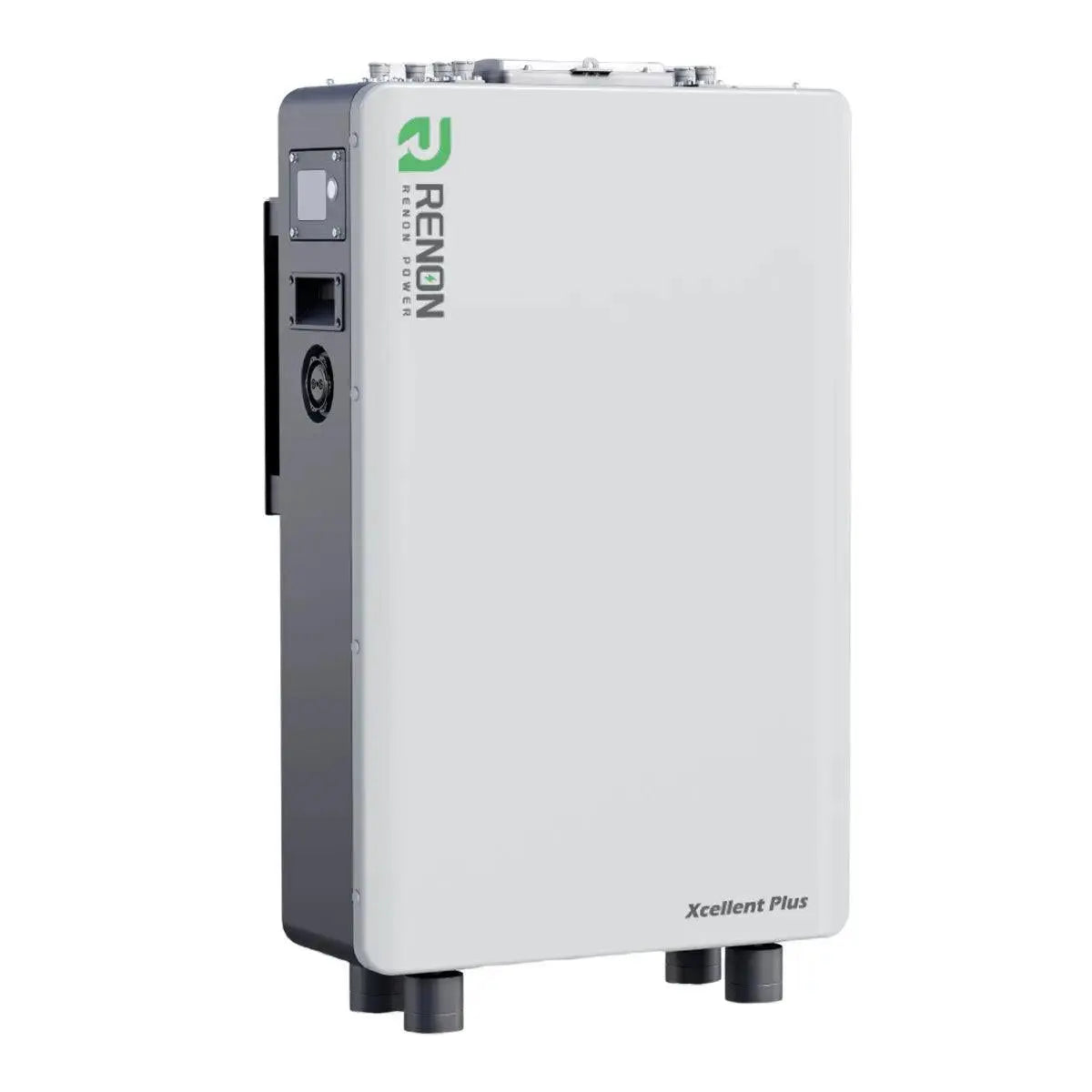

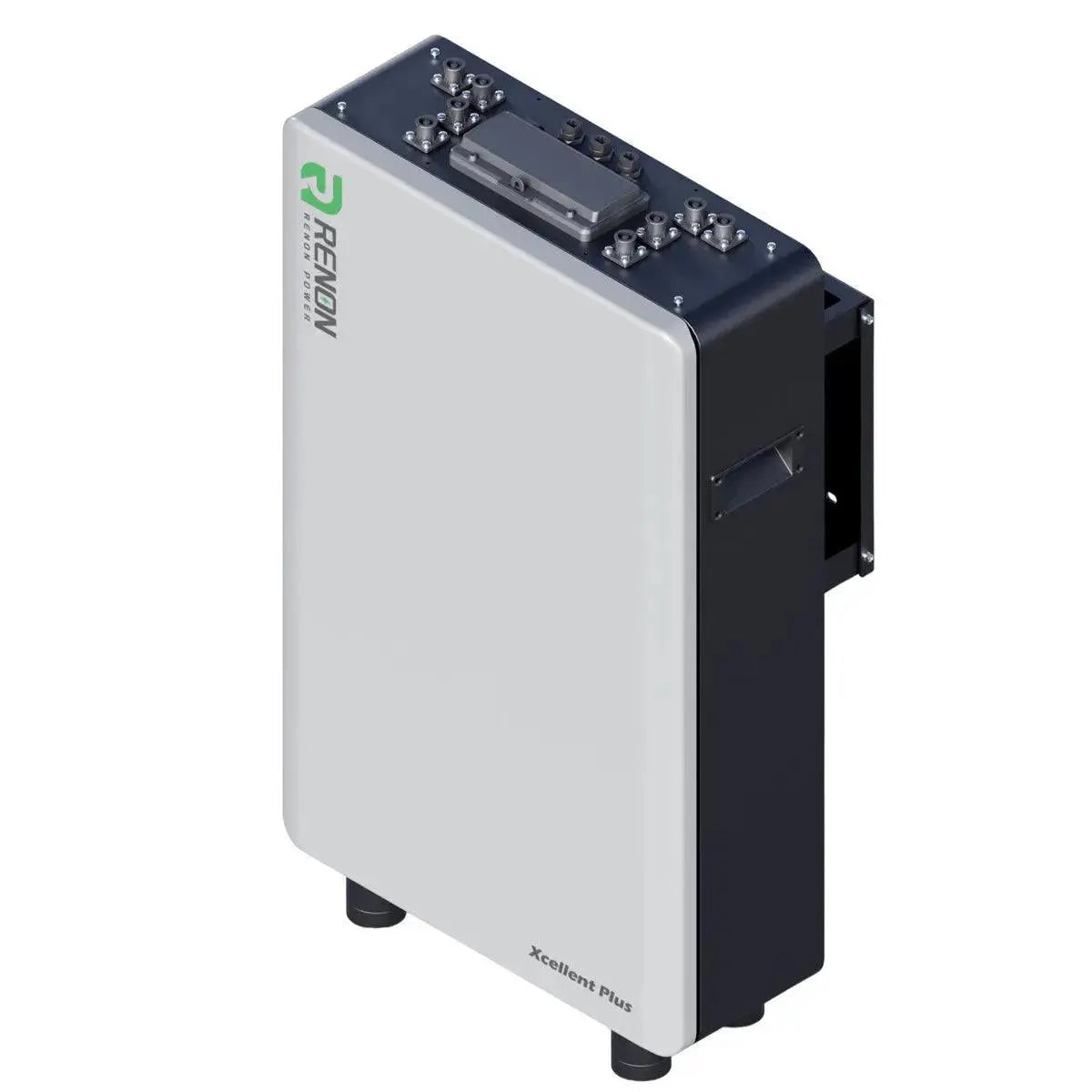

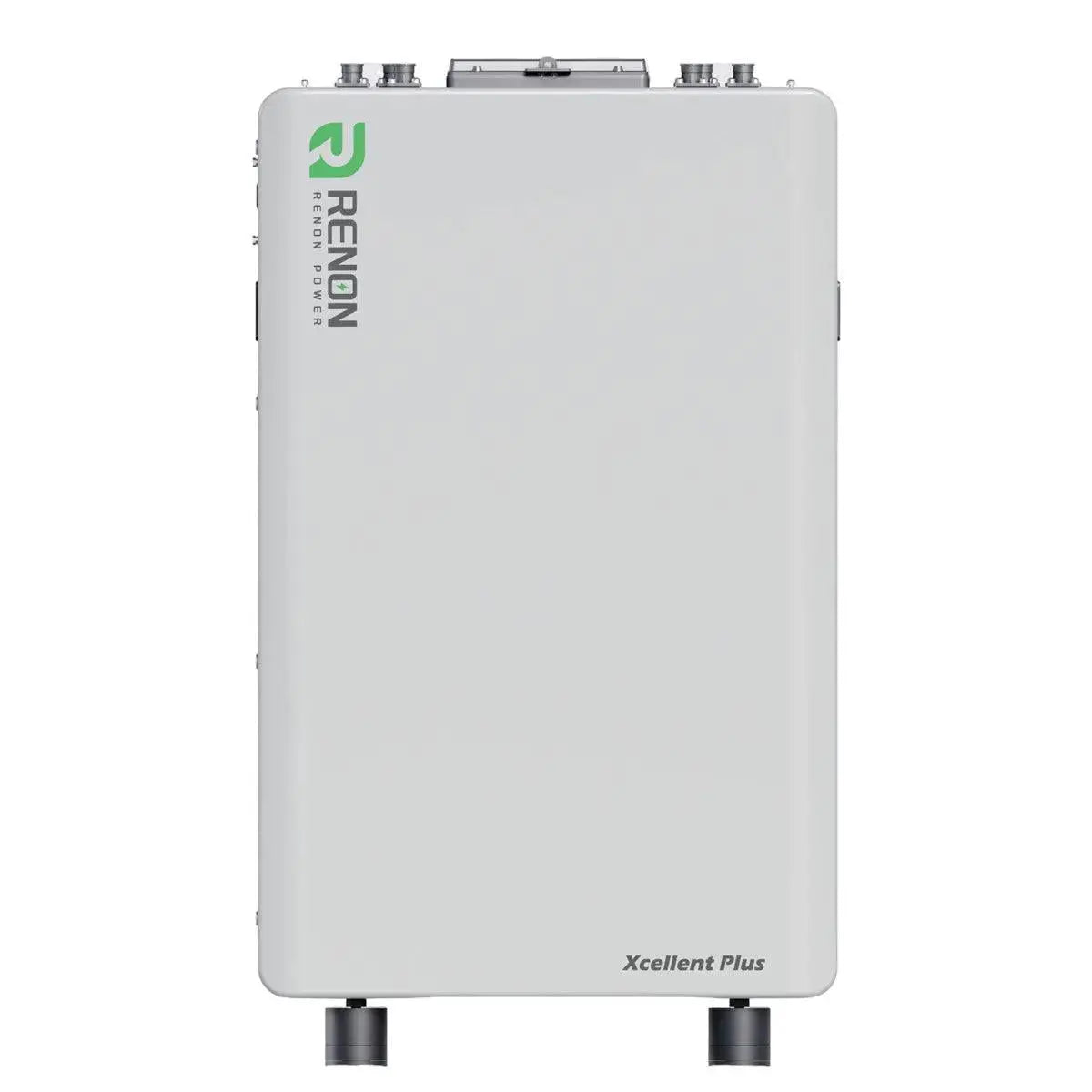

Renon Xcellent Plus LV 16kWh Battery
Renon Xcellent Plus LV: The Ultimate 16kWh Home Battery Solution
The Renon Xcellent Plus LV is a high-capacity 16kWh lithium iron phosphate (LiFePO4) battery system designed for residential energy storage. It can be wall-mounted or floor-standing, making it versatile for a variety of installation environments — indoors or outdoors.
Key Features
- Dependable Safety: Built with LiFePO4 technology for safe and stable operation.
- Sleek Aesthetics: Modern design that integrates seamlessly into residential environments.
- Whisper-Quiet Operation: Natural cooling with no fan noise — ideal for home settings.
- Versatile Compatibility: Compatible with various inverters and energy systems, including Sol-Ark inverters.
- Long Cycle Life: Up to 8,000 cycles for long-term reliability and cost-effectiveness.
- Scalable: Up to 31 units can be connected in parallel.
Battery Energy Storage Specifications
| Battery Chemistry | LiFePO4 |
| Cell Capacity | 314 Ah |
| Nominal Energy | 16 kWh |
| Output Power | 10.2 kW |
| Default Voltage | 51.2 V |
| Voltage Range | 43.2 ~ 59.2 V |
| Max. Operation Current | 200 A |
| Primary Overcurrent Protection | 210A @ 5S |
| Secondary Overcurrent Protection | 240A @ 3S |
| Max. Charging Voltage | 58.4 V |
| Discharge Cut-off Voltage | 43.2 V |
| Recommended Charging Voltage | 56.8 V |
| Dimensions (W × D × H) | 560 × 210 × 880 mm / 22 × 8.3 × 34.6 in |
| Net Weight | 159 kg / 351 lbs |
General Parameters
| Scalability | Max. 31 systems in parallel |
| Storage Conditions | -4°F ~ 131°F (-20°C ~ 55°C); 32°F ~ 95°F recommended; Up to 90% RH, non-condensing; Initial SoC: 50% |
| Operating Temperature (Charge) | 32°F ~ 122°F (0°C ~ 50°C) |
| Operating Temperature (Discharge) | -4°F ~ 122°F (-20°C ~ 50°C) |
| Cooling | Natural Cooling |
| Max. Altitude | 4,000 m / 13,123 ft |
| Cycle Life | 8,000 Cycles |
| Communication | RS485, CAN, RS232 |
System Characteristics
| Battery Model | R-XC016161-US |
| SKU | R-XC016161 |
| Battery Compliances | UN38.3, UL9540, UL9540A, UL1973 |
| Installation Method | Wall-Mounting or Floor Mounting |
| Installation Scene | Indoor or Outdoor |
| IP Rating | IP65 |
| Warranty | 10 Years |
Technical Datasheet
📄 Download Technical Datasheet (PDF)
Warranty
This product is backed by a 10-year warranty. Please refer to the Renon warranty letter for full details and terms.
High-Capacity Energy Storage for Your Home
The Renon Xcellent Plus LV 16kWh home battery provides ample energy storage capacity, making it ideal for residential use. With 16kWh of usable energy, it effectively supports your household’s power needs during peak hours or outages. This reliable energy reserve helps reduce dependence on the grid and maximizes the use of solar power systems, if installed. Its robust design ensures consistent performance, delivering long-lasting energy reliability that meets modern home demands.
Advanced Battery Technology for Enhanced Efficiency
The Renon Xcellent Plus LV boasts advanced lithium-ion battery technology, which ensures high efficiency and extended lifecycle performance. This 16kWh home battery supports fast charging and discharging cycles with minimal energy loss, optimizing your home’s energy consumption. Its intelligent battery management system monitors and protects against overcharge, over-discharge, and overheating, ensuring peak safety and longevity. This makes it a smart investment for sustainable energy management.
Easy Installation and Integration with Solar Systems
The Renon Xcellent Plus LV 16kWh home battery is designed for seamless installation and integration with existing solar power setups. Its compact, modular build allows flexible placement inside or outside your home. Compatible with leading solar inverters and energy management systems, it simplifies the upgrade path for homeowners aiming to increase their energy independence. User-friendly monitoring features let homeowners track energy usage and battery status in real-time, empowering smarter energy decisions.
