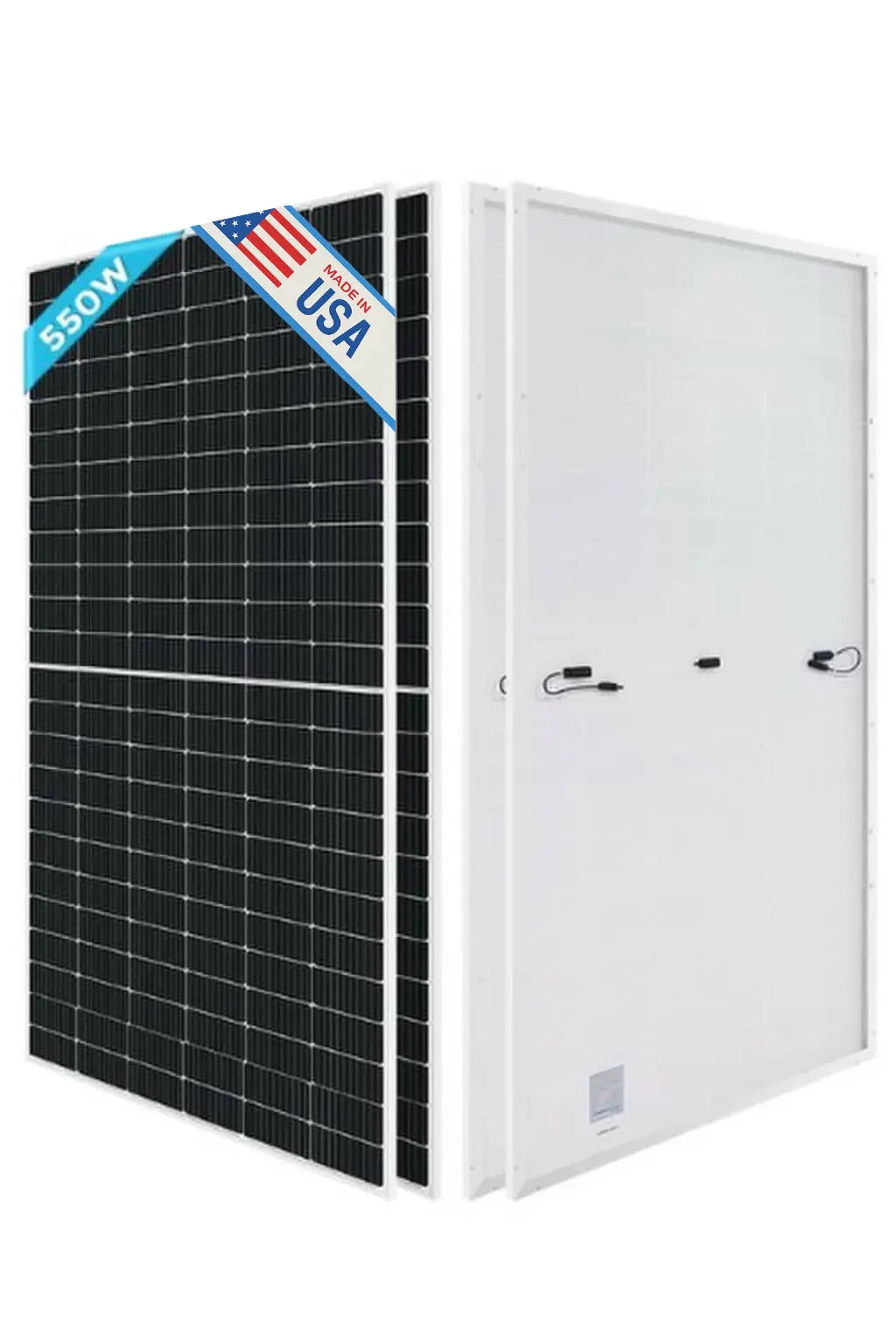

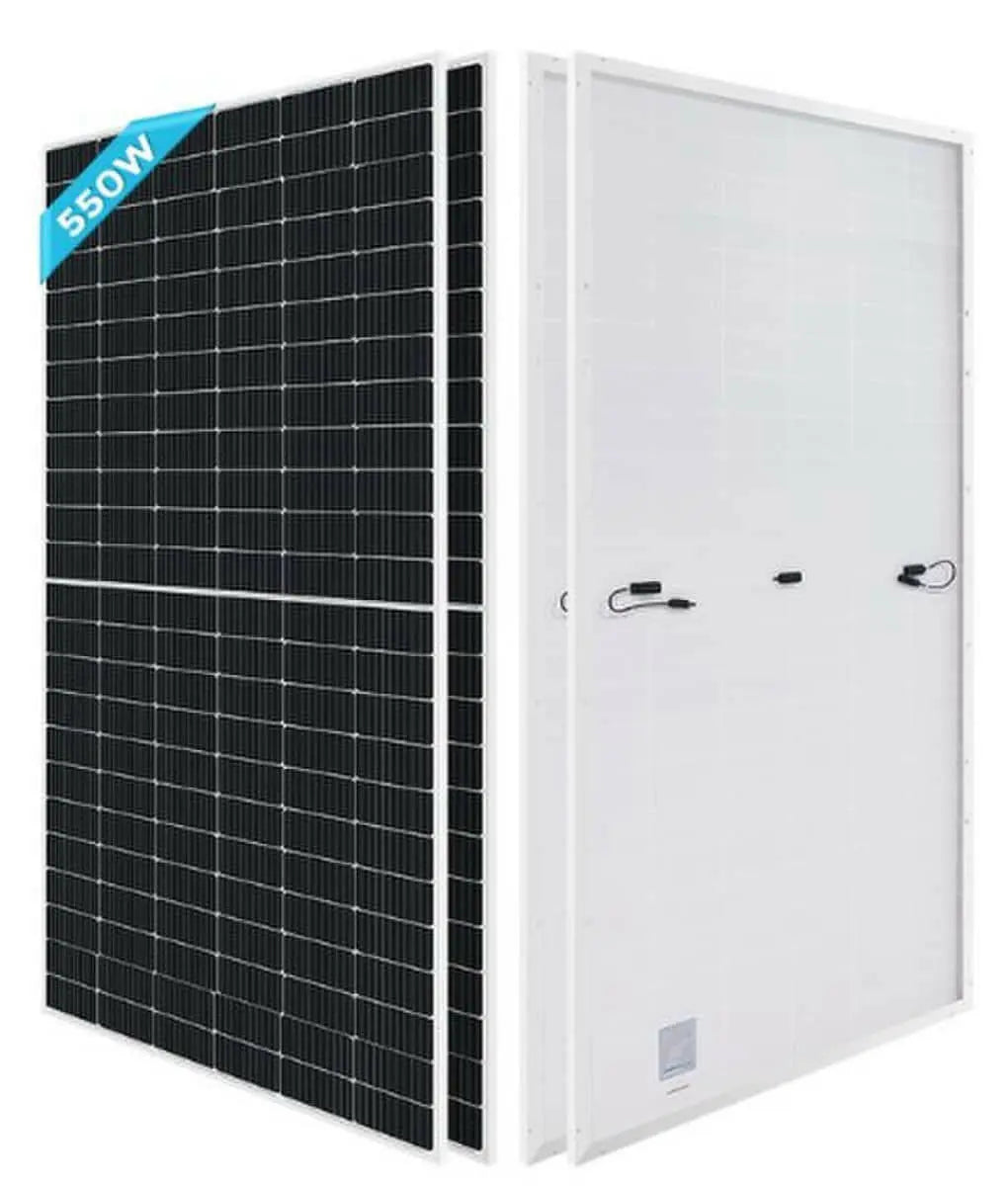

Renogy RSP Series 550 W Monocrystalline Solar Panel

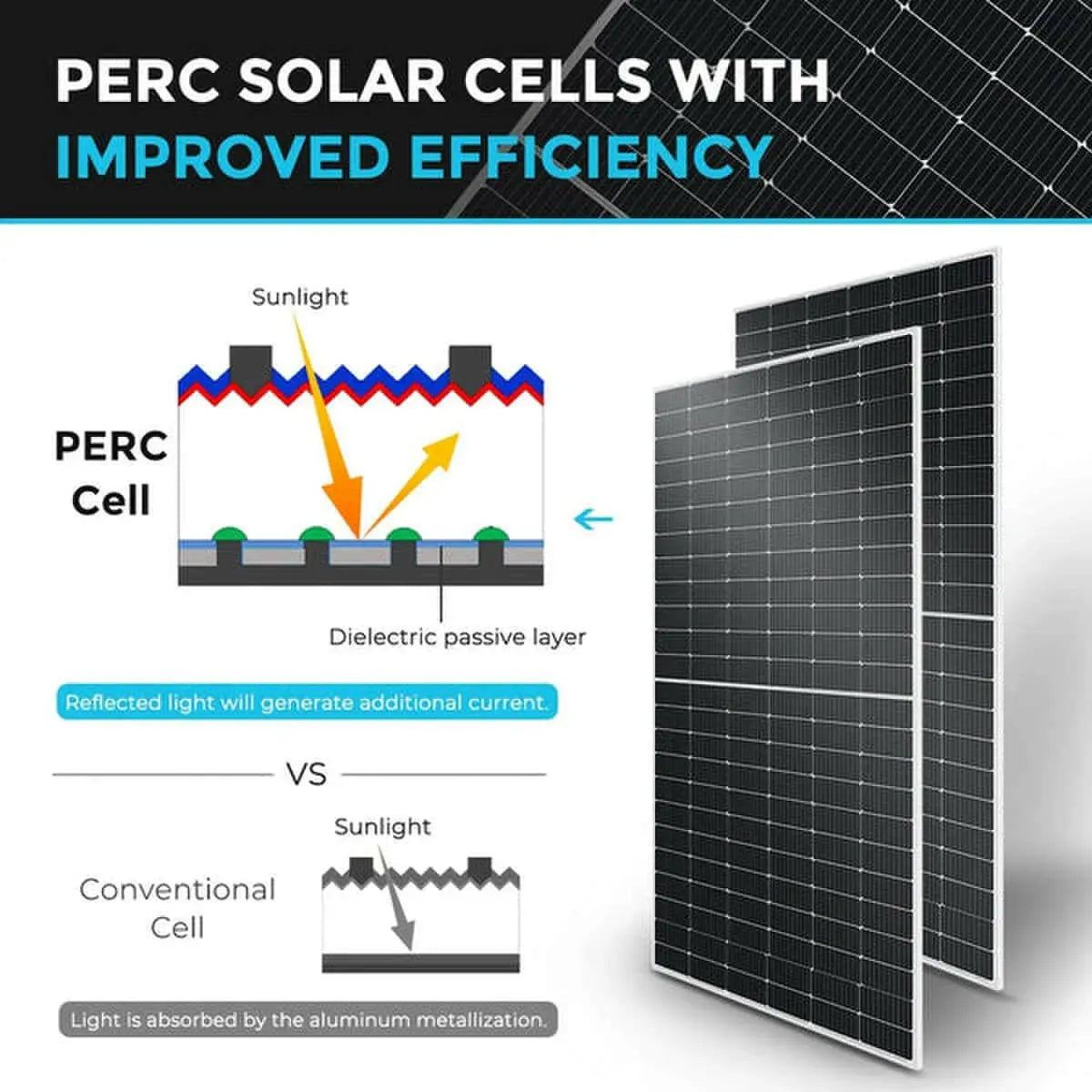

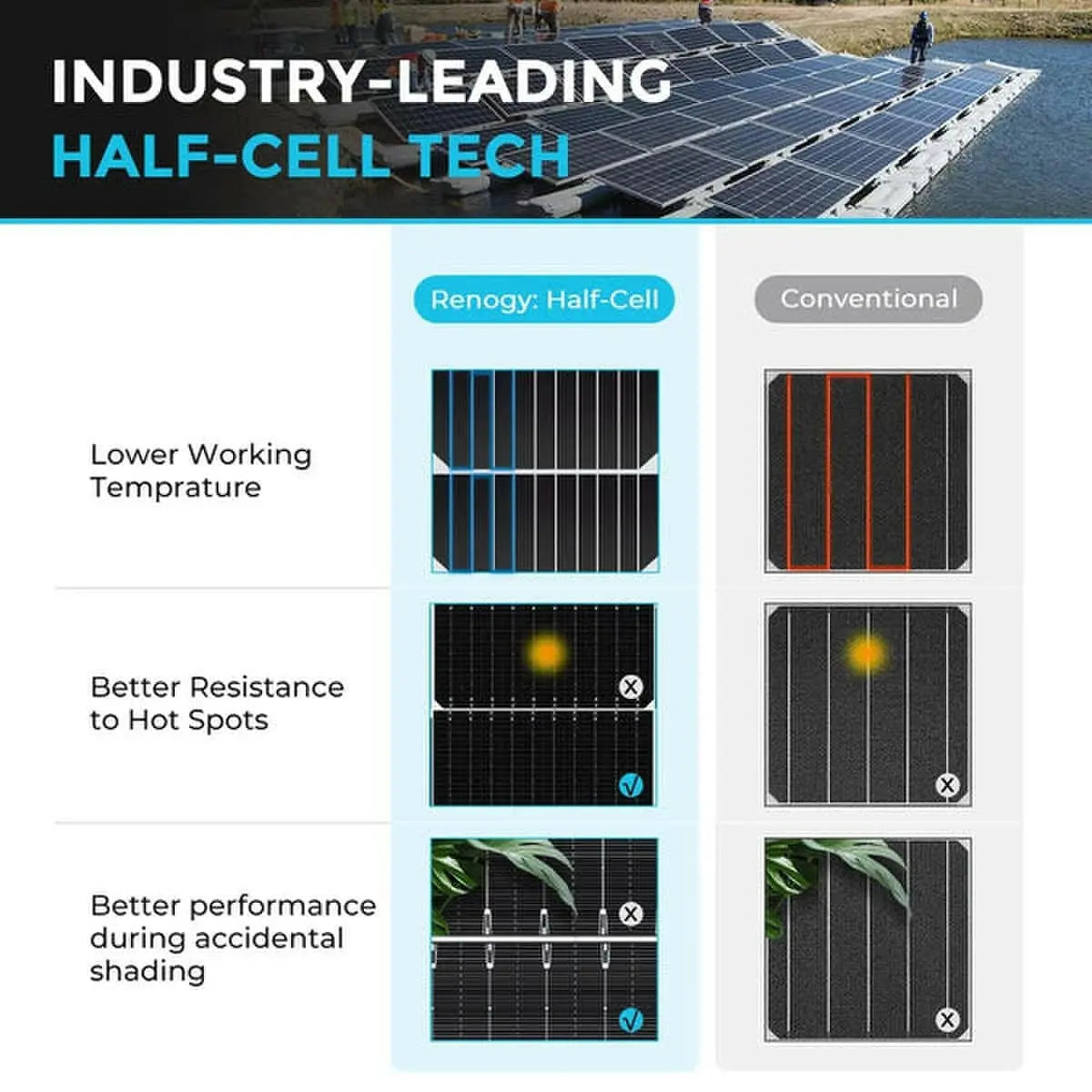

This Renogy High-powered 550 W Monocrystalline Solar Panel maximizes power output while minimizing installation space and system equipment costs, primarily used for utility-scale systems, solar power plants, residential and commercial applications. This solar panel combines high efficiency mono PERC cells with Half-Cell and 10-Busbar technologies to improve the electrical performance and power output of your solar array system. Generate renewable energy, reduce electricity bills and carbon footprint.

Features

• Renogy's high-powered 550W monocrystalline solar panel provides an average of 1650 Watt-hours (Wh) power per day (depending on sun availability)
• It has passed the electroluminescence (EL) test for quality assurance. No hot spots
• Engineered with industry-leading technologies, this high-powered 550W solar panel provides maximum power generation for your limited roof space
• It's an economical long-term investment for utility-scale systems, solar power plants, residential and commercial applications
• Corrosion-resistant aluminum frame design ensures the solar panel survives in harsh outdoor environments, including the burning sun and heavy rain
• Provides an extended period of work time without damage or loss of performance
• Renogy solar panels are equipped with back frame and ground mounting holes, ready for installation
• They are easy to mount and secure, ideal for off-grid, on-grid, and hybrid solar systems
• Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind
• Provide excellent durability in a harsh environment


Specifications

• Series: RSP
• Length: 89.7 in
• Width: 44.6 in
• Depth: 1.4 in
• Material: Anodized Aluminum Frame
• Color: Black
• Power Voltage: 41.97 V
• Power Current: 13.11 A
• Power Rating: 550 W
• Open Circuit Voltage: 49.95 V
• Short Circuit Current: 14.05 A
• Voltage Rating: 1500 Vdc
• Cell Type: Monocrystalline
• Number of Cells: 60
• Operating Temperature: -40 to 185°F
• Efficiency: 21.3%
• Connection Type: MC4
• Standards: UL Certified


Documents

• Specification Sheet
• Warranty Sheet
