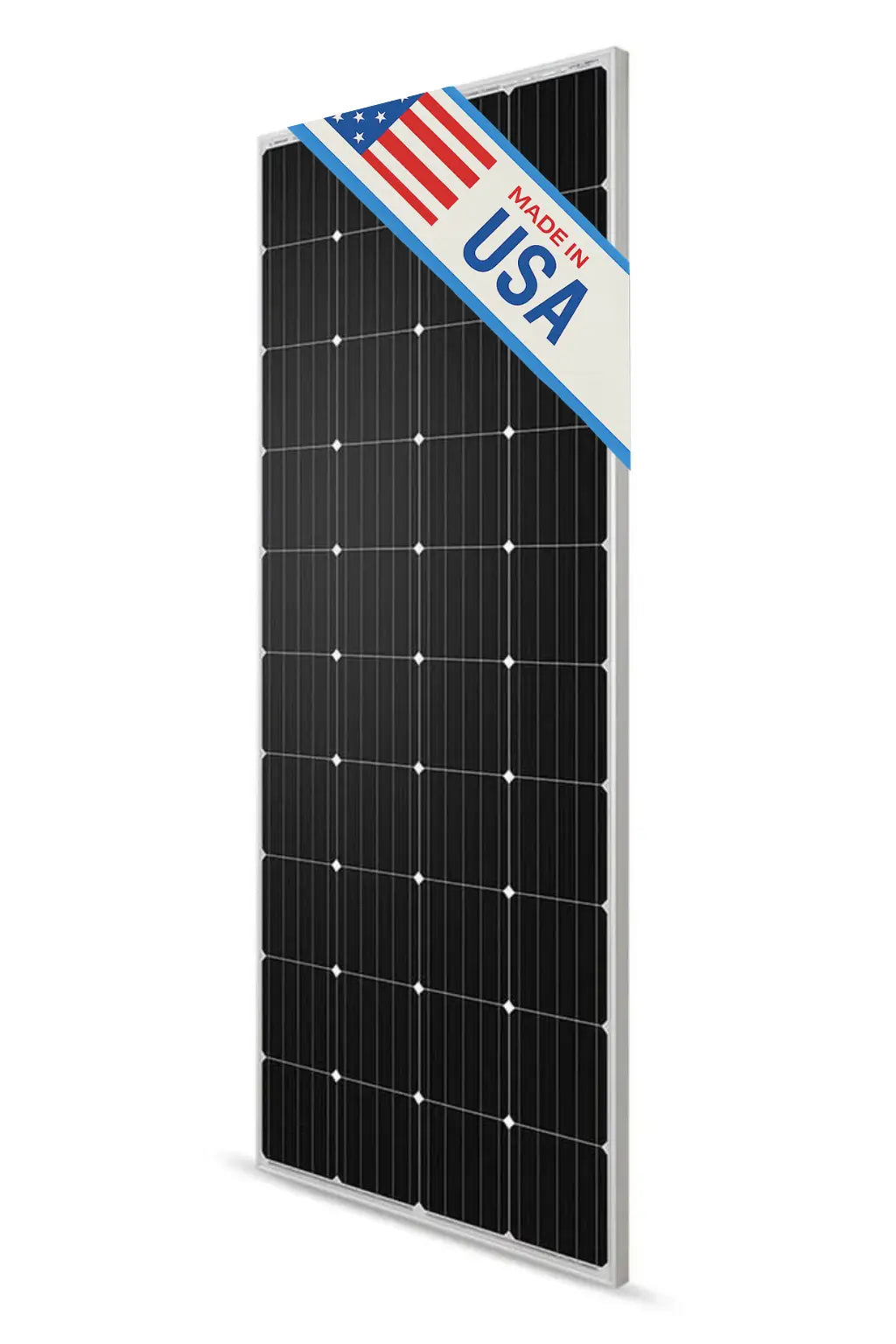

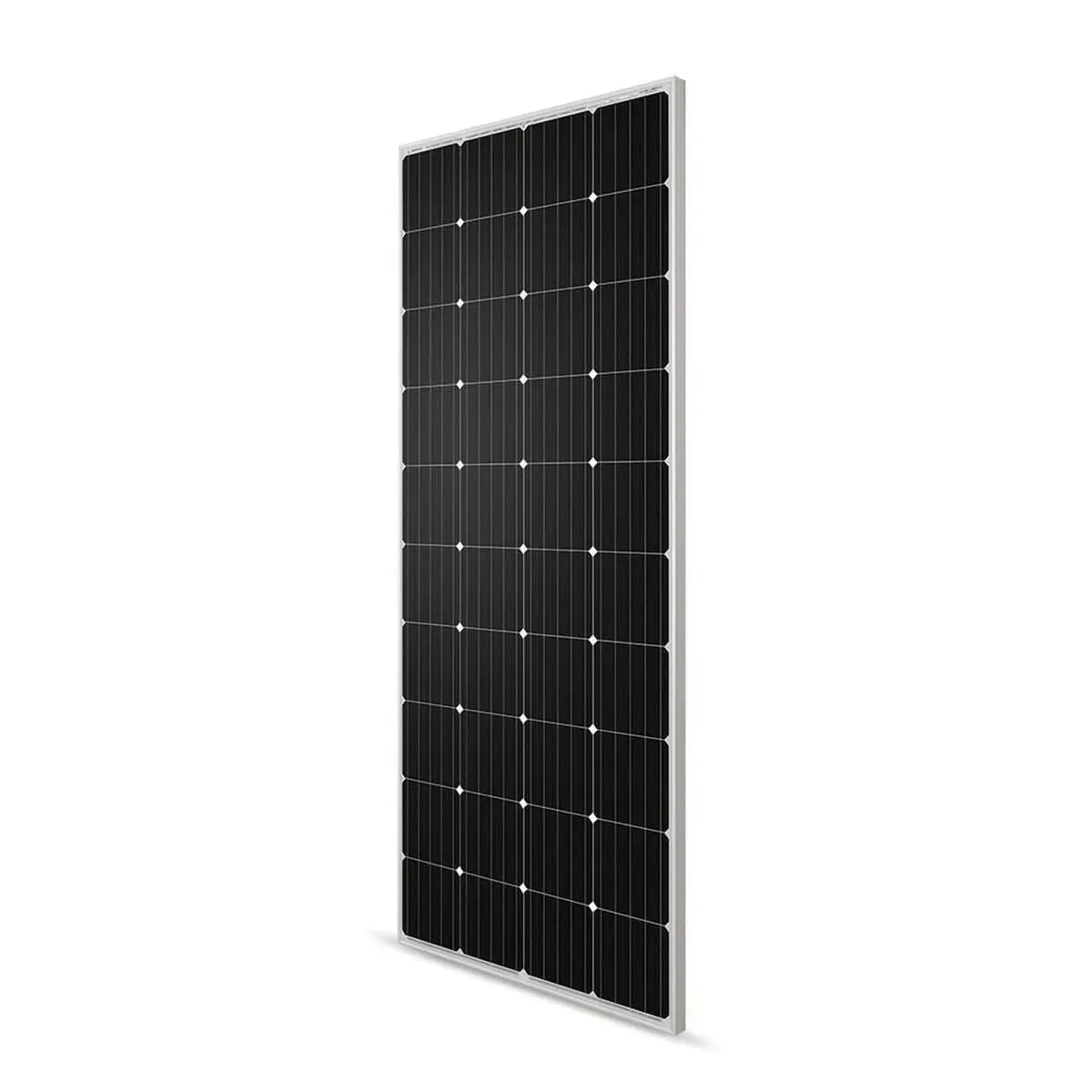

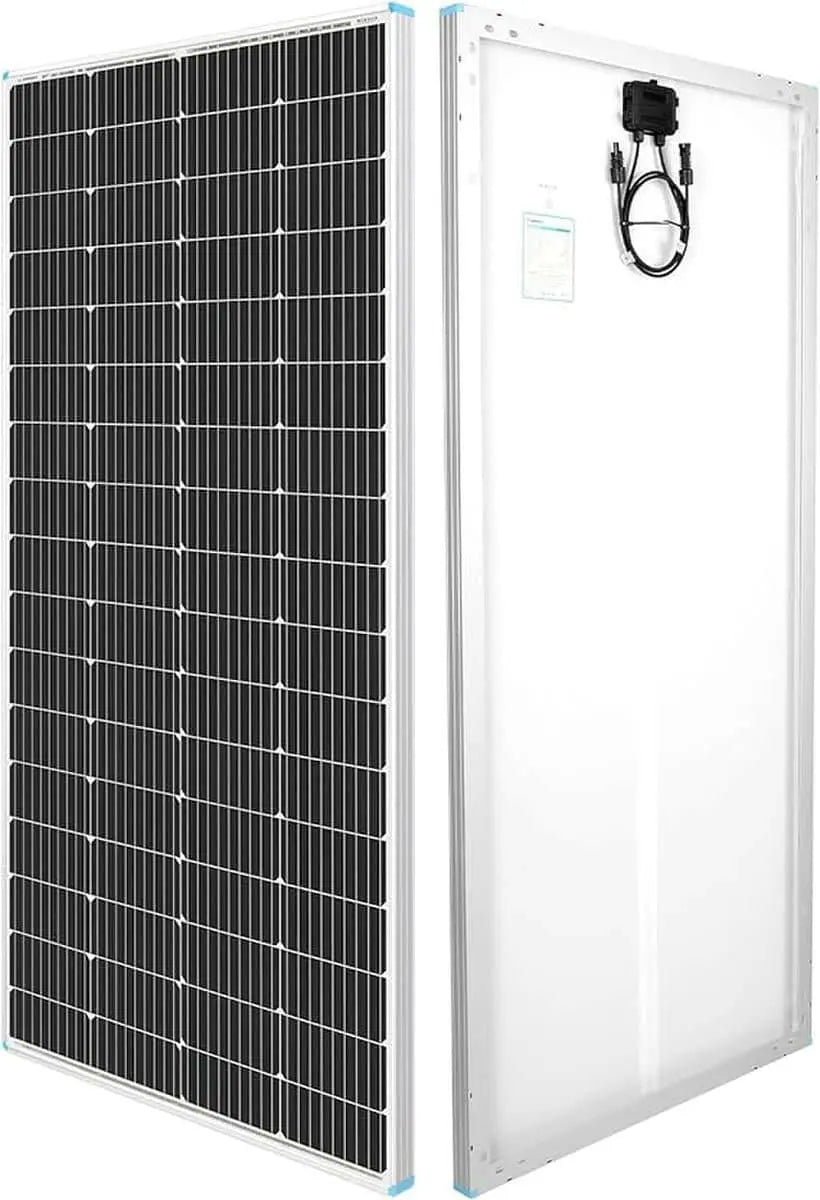

Renogy RSP Series 200 W Monocrystalline Solar Panel

The Renogy 200 W Monocrystalline Panel can be used in various off-grid applications that include 12 and 24 volts arrays, water pumping systems, signaling systems and other off-grid applications.

Features

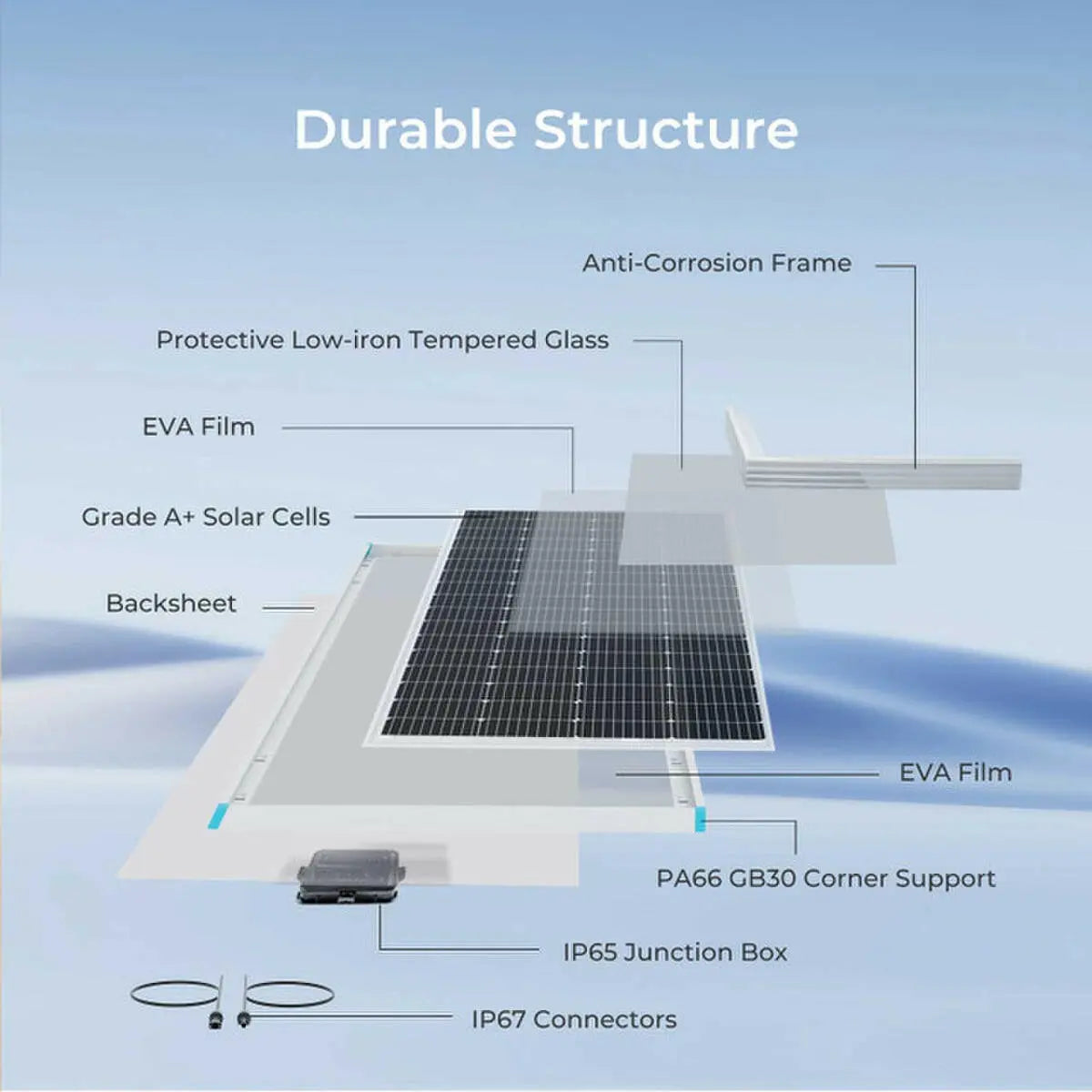

• Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life
• EL-tested solar modules; no hot-spot heating guaranteed

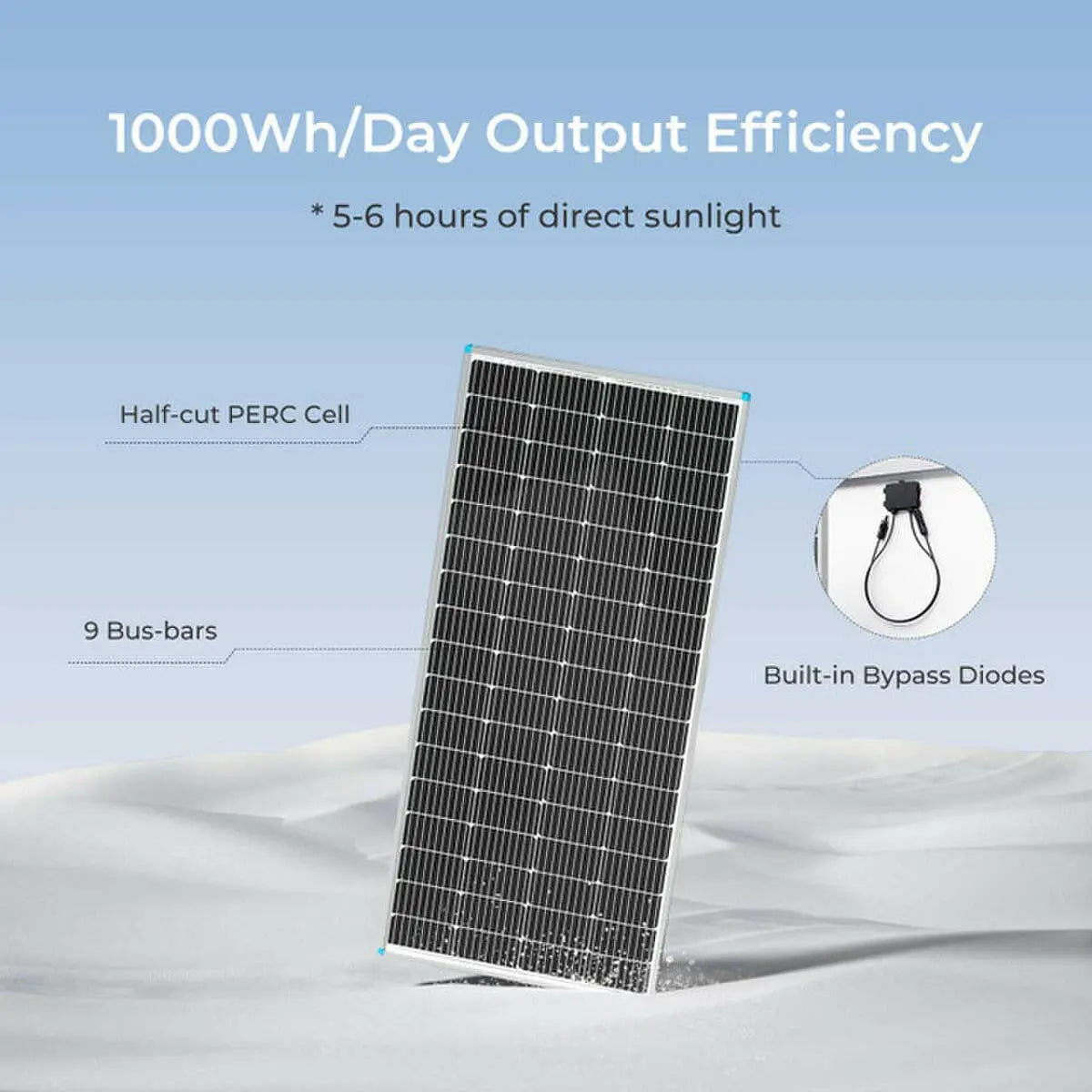

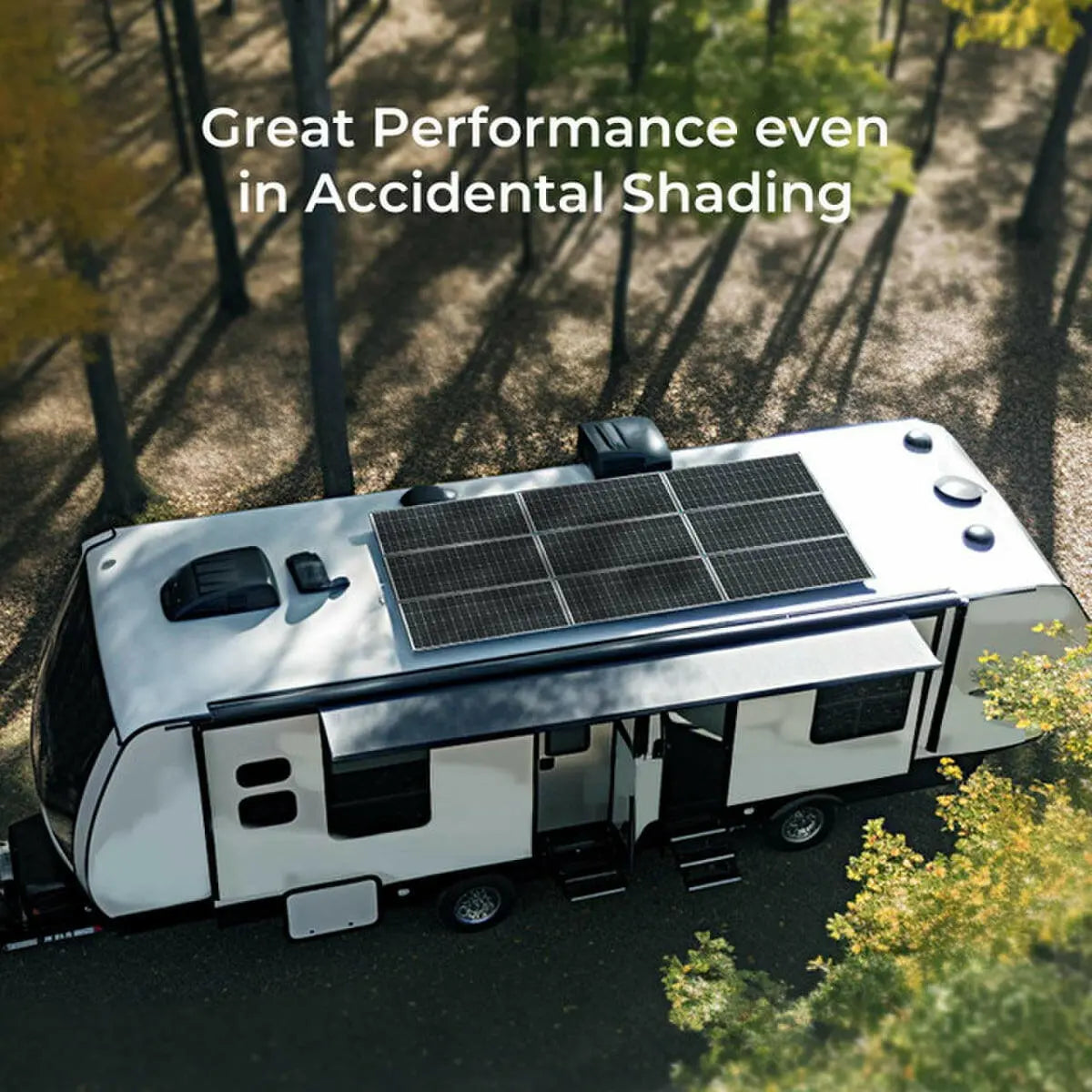

• Bypass diodes minimize power drop caused by shade
• TPT back sheet ensures smooth performance over a long period of time

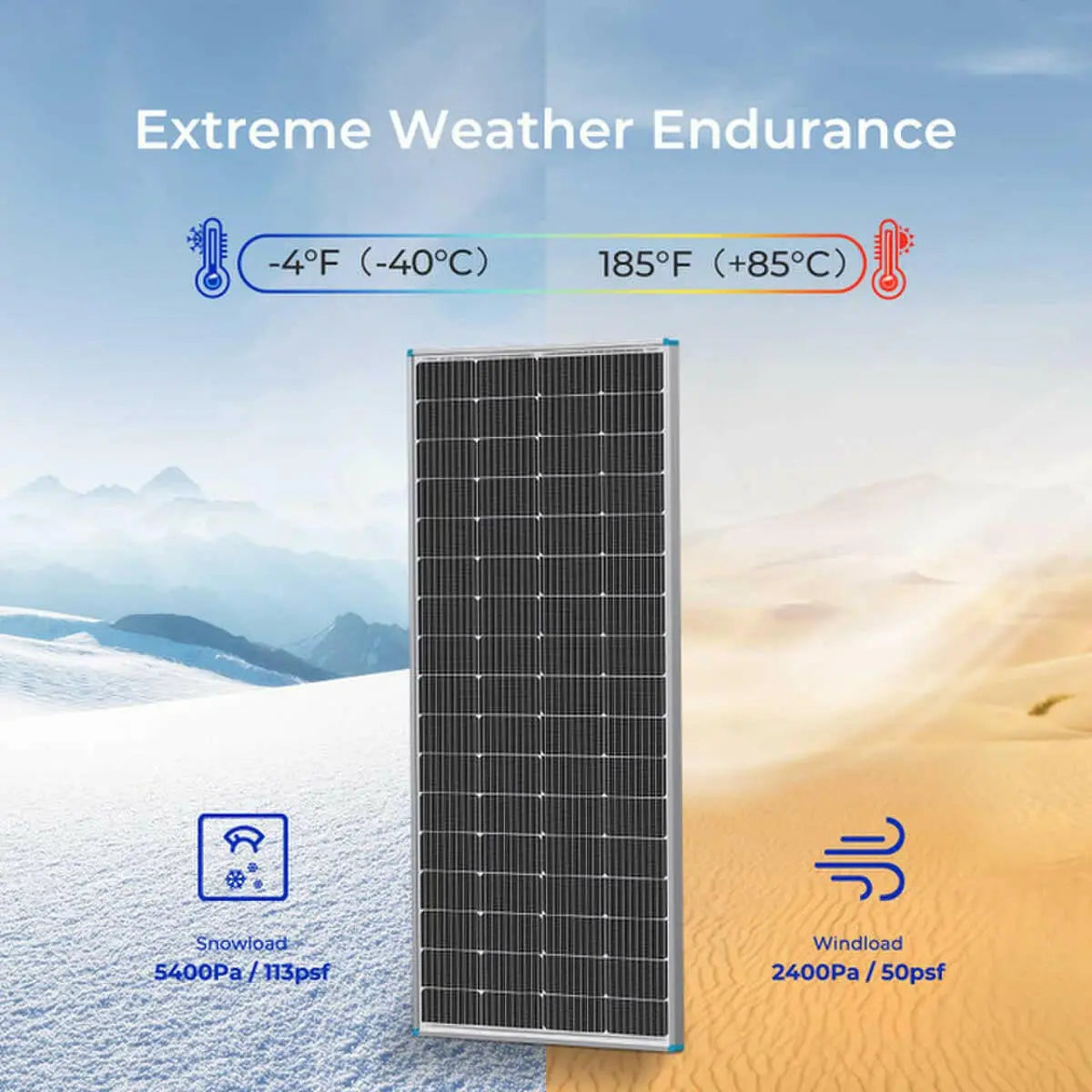

• Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
• Pre-drilled holes included for grounding compatible with different renogy mounting systems such as z-brackets, pole mounts, and tilt mounts
• Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance

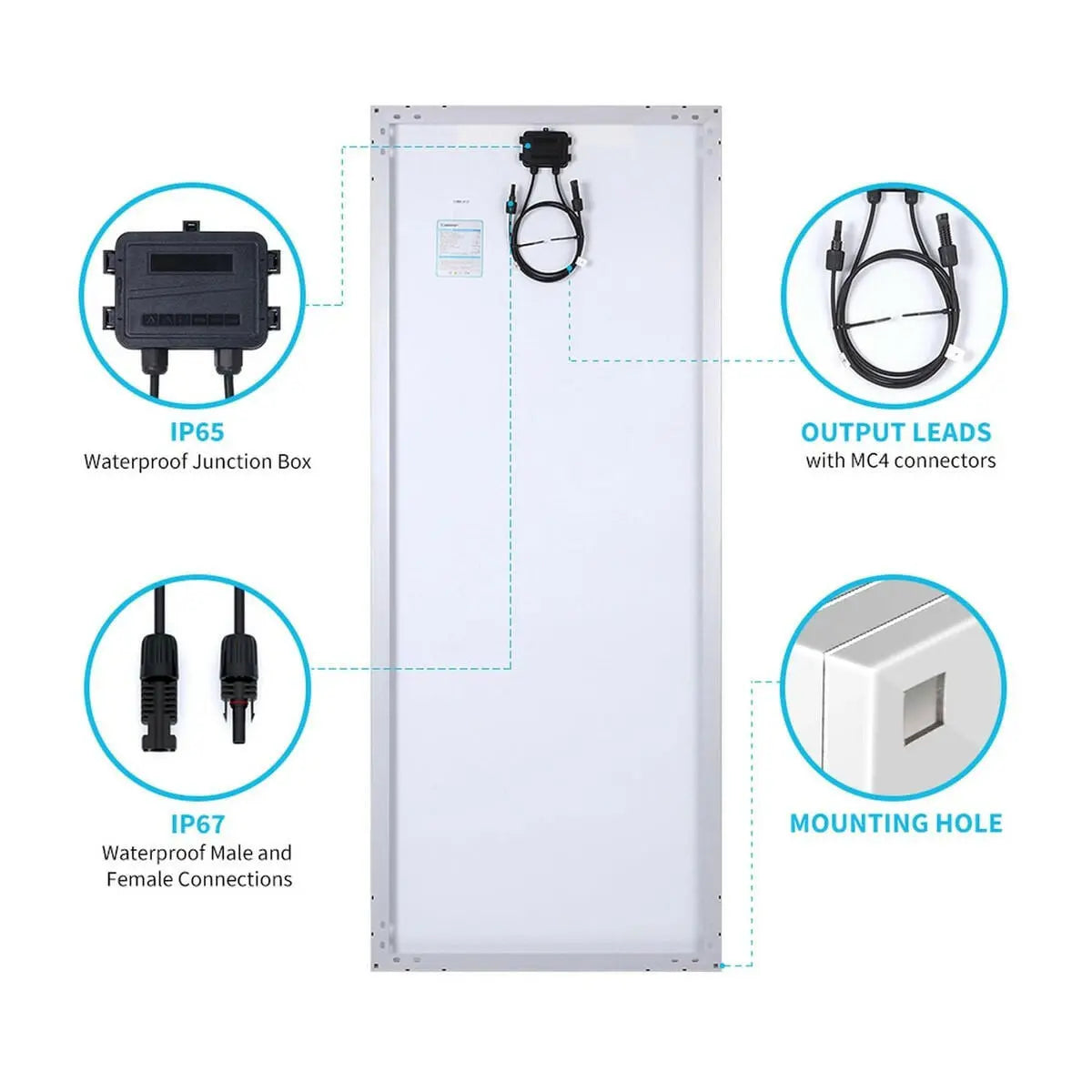

• IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets
• Can be used for many different applications
• Compatible with on-grid and off-grid inverters

Specifications

• Series: RSP

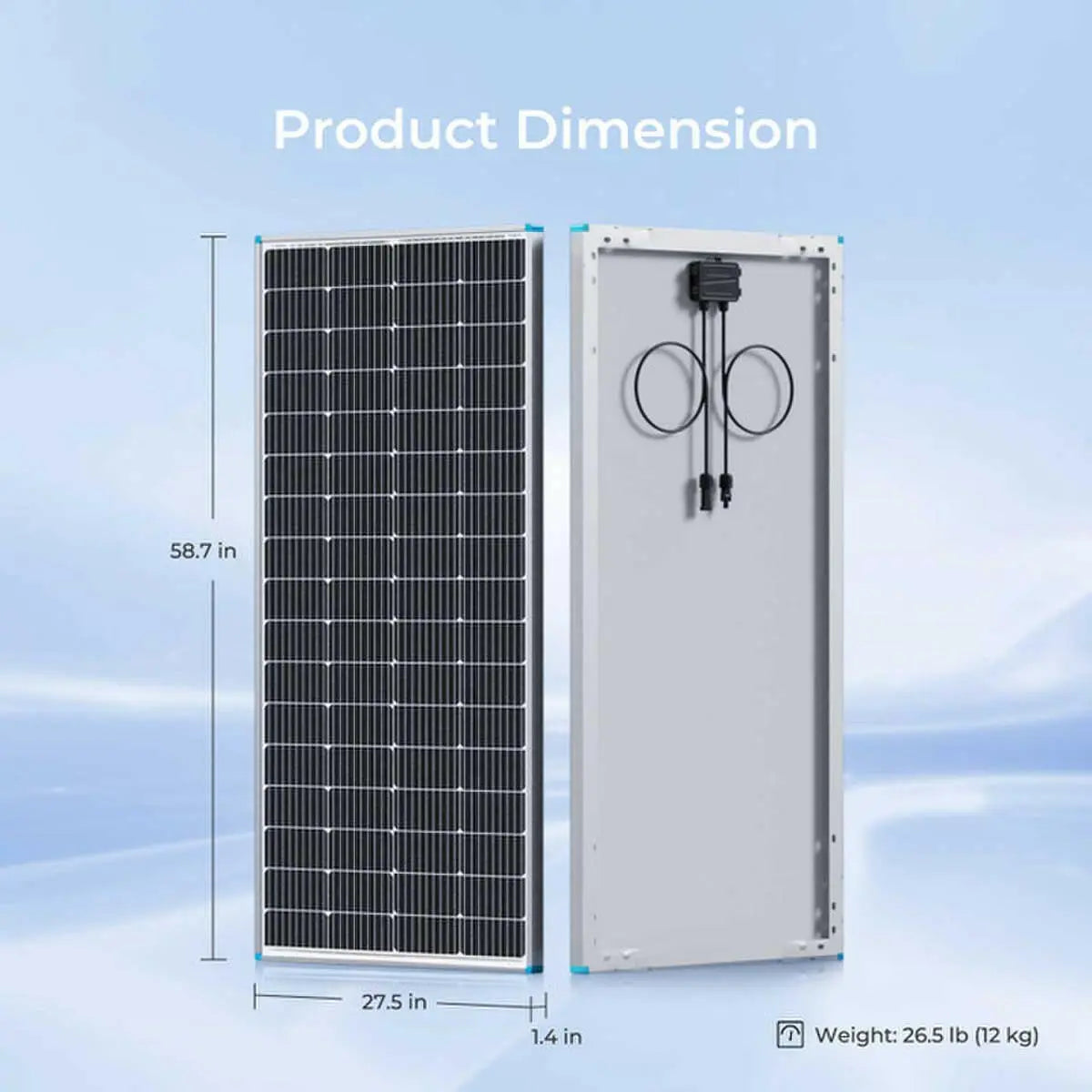

• Length: 58.7 in
• Width: 27.5 in
• Depth: 1.38 in

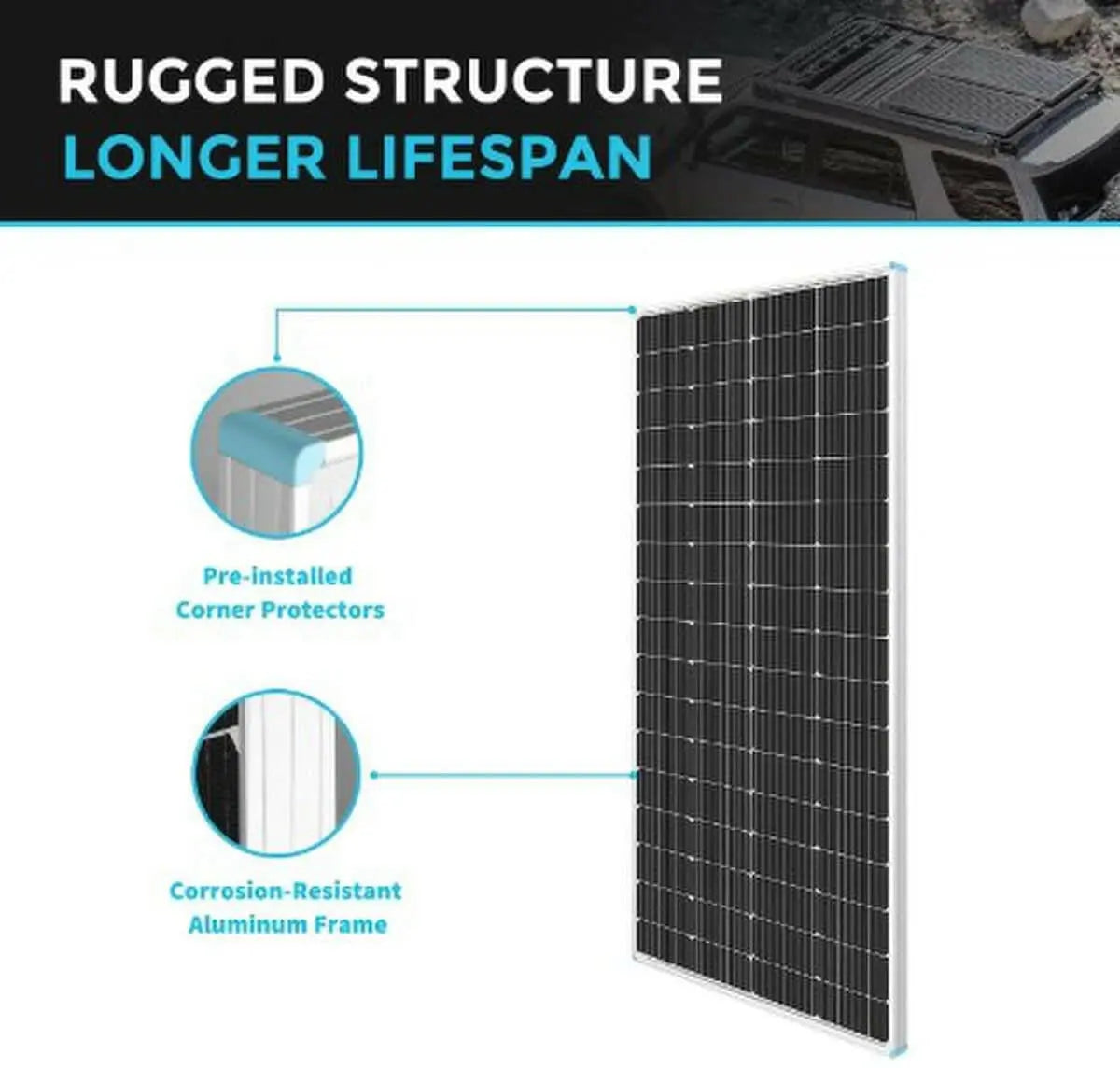

• Material: Anodized Aluminum Frame
• Color: Black
• Power Voltage: 22.6 V
• Power Current: 8.85 A
• Power Rating: 200 W
• Open Circuit Voltage: 22.6 V
• Short Circuit Current: 9.66 A
• Voltage Rating: 600 Vdc
• Cell Type: Monocrystalline
• Number of Cells: 40
• Operating Temperature: -40 to 194°F
• Efficiency: 18.1%
• Connection Type: Solar
• Standards: CE, ISO 9001, cETLus, UL Listed
