Renogy RSP Series 100 W Monocrystalline Solar Panel

The Renogy 200 W 12 V Monocrystalline Solar Panel is the perfect component for a larger solar power (PV) system. Whether you plan to use the solar panel for seaside travels to the beach or your cabin in the mountains, this panel can be a great start or addition to any Renogy off-grid system.

Features

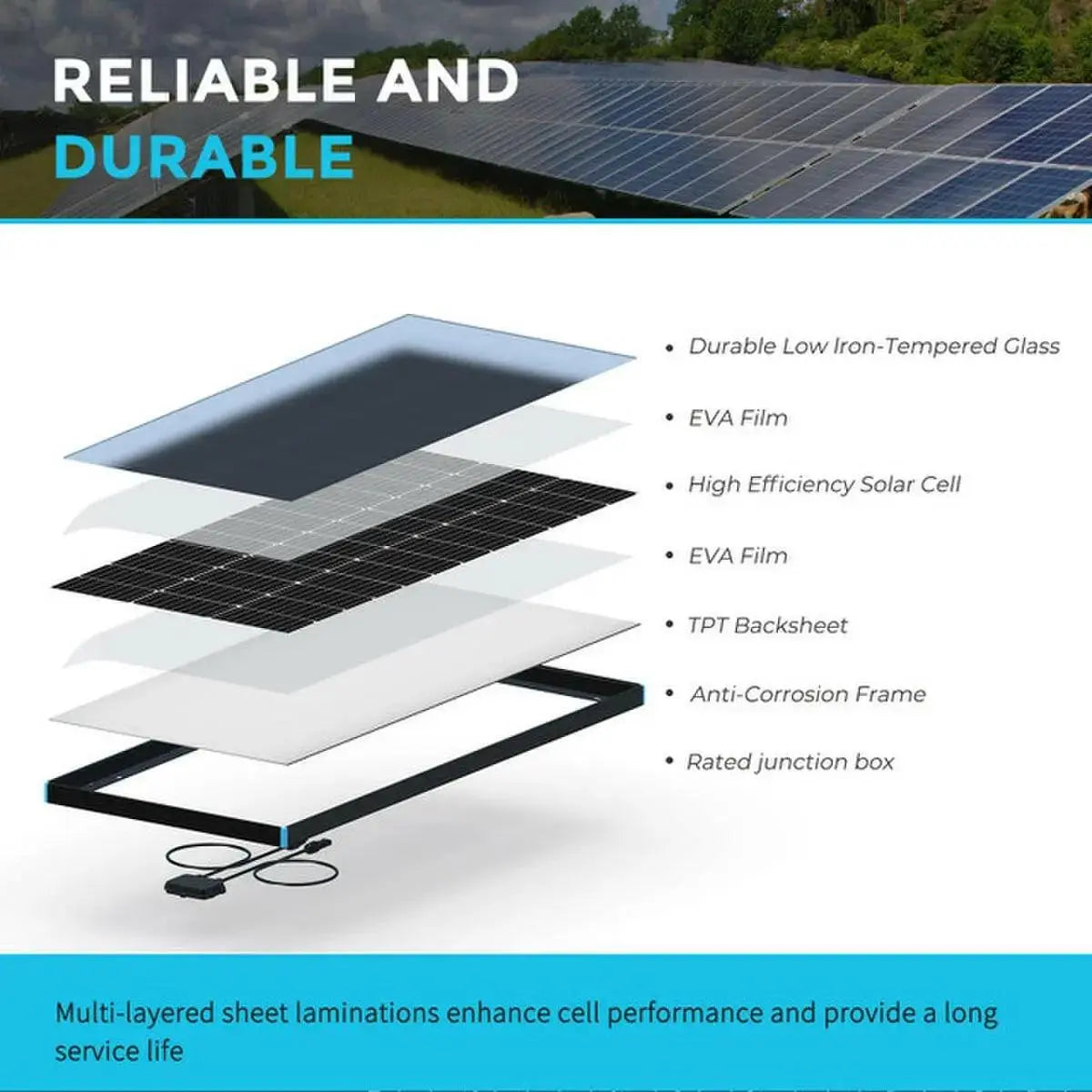

• Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life
• EL-tested solar modules; no hot-spot heating guaranteed

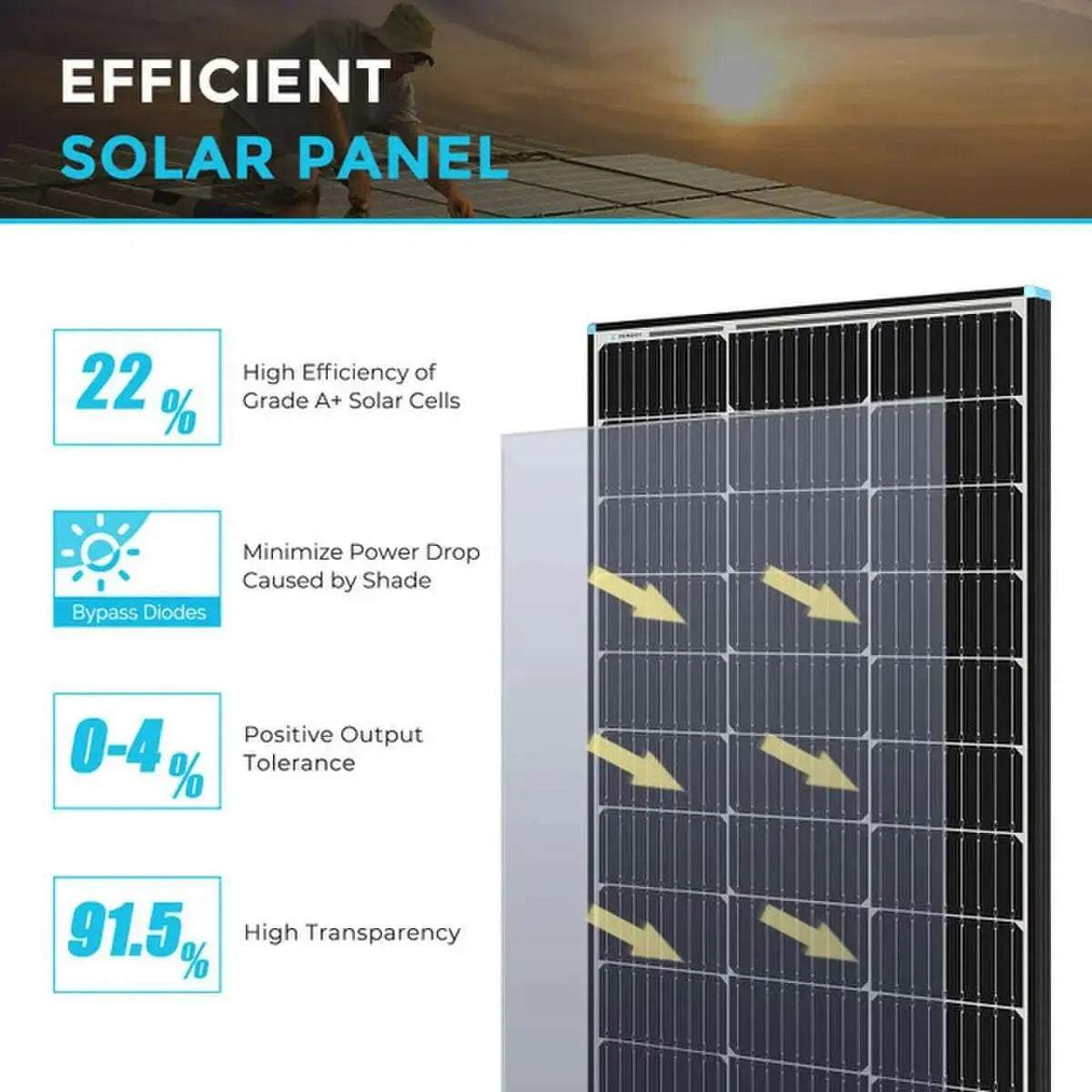

• Bypass diodes minimize power drop caused by shade
• TPT back sheet ensures smooth performance over a long period of time

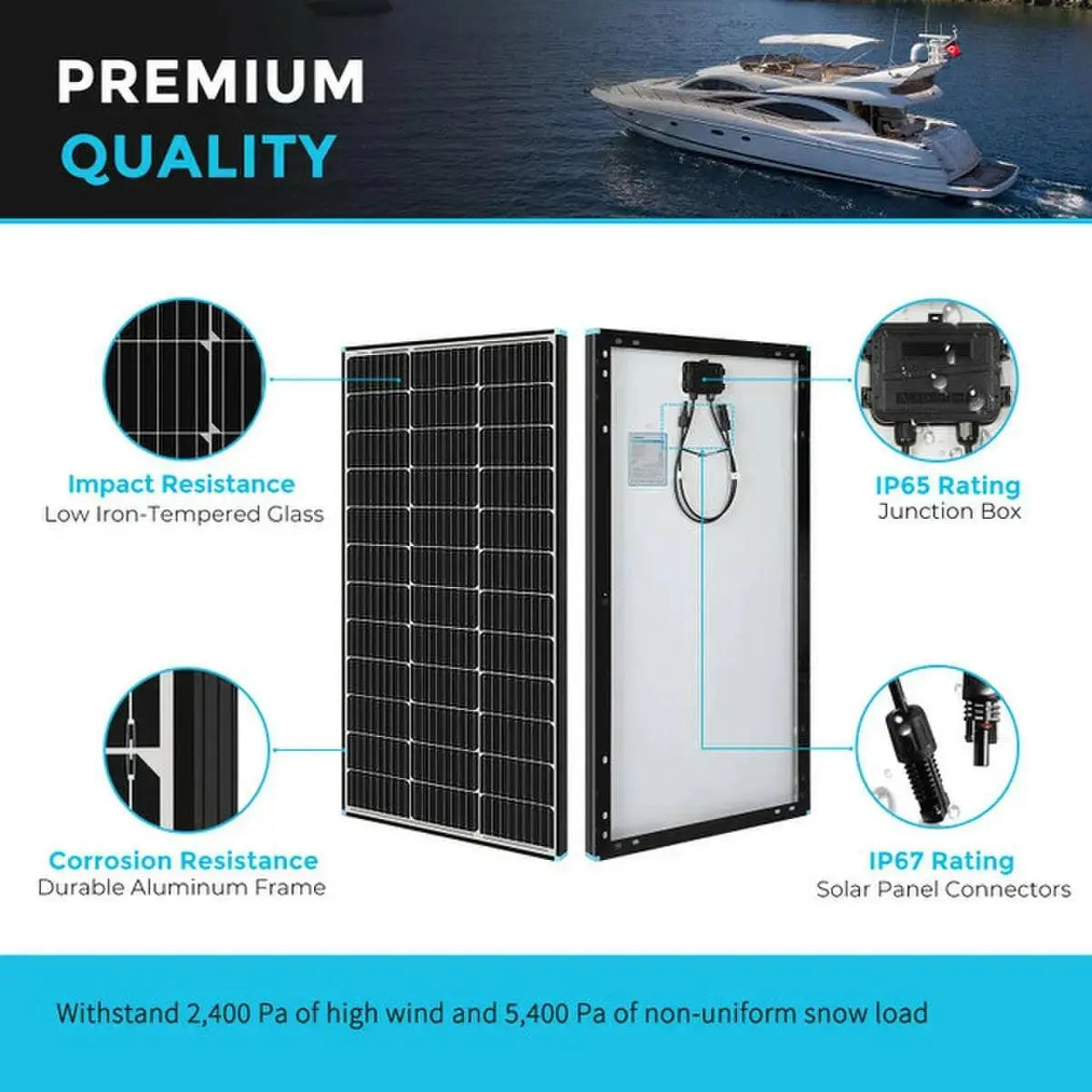

• Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)
• Corrosion-resistant aluminum frame allows extended outdoor use; the panels can last for decades
• Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
• IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets
• Can be used for many different applications
• Compatible with on-grid and off-grid inverters


Specifications

• Series: RSP

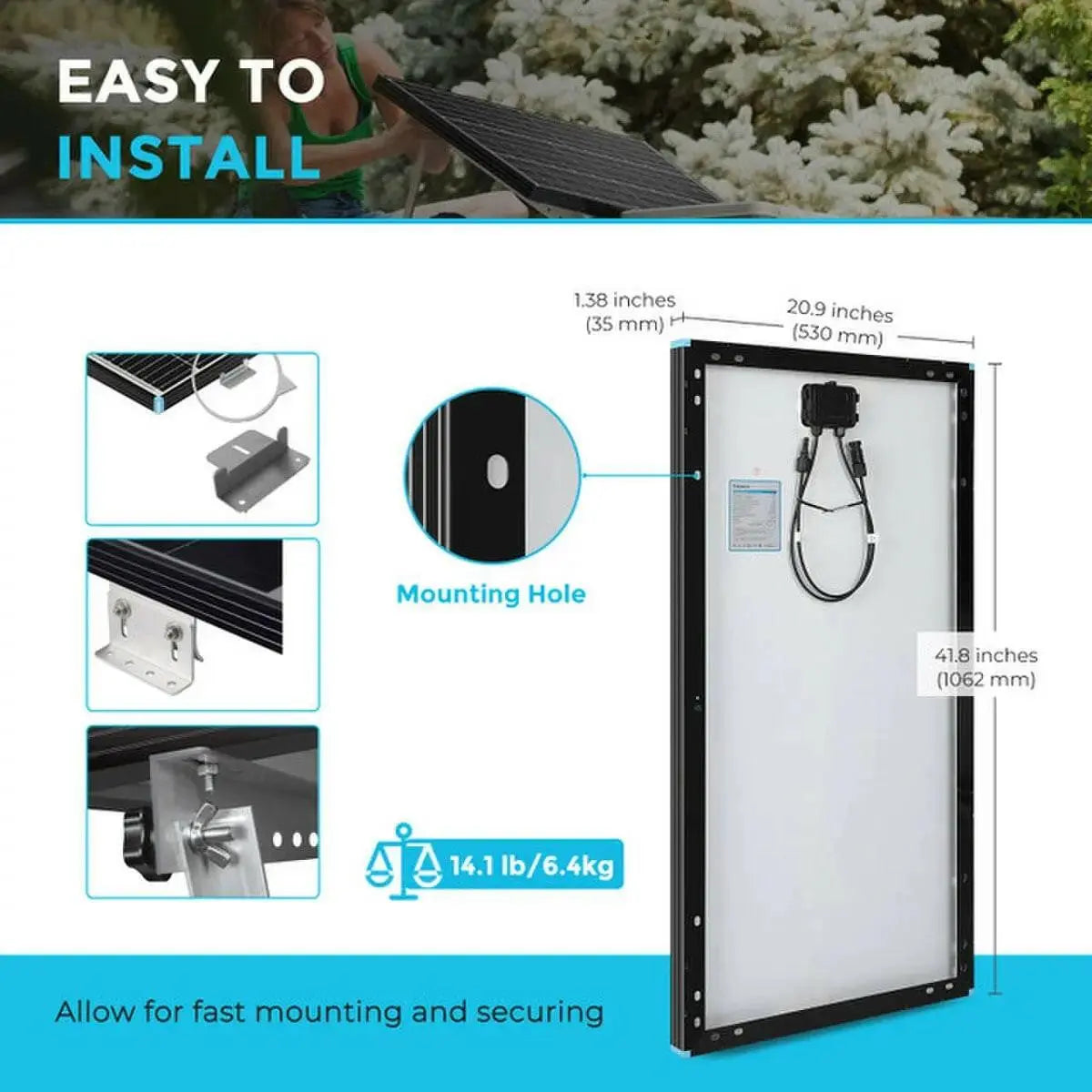

• Length: 1100 mm
• Width: 509 mm
• Depth: 35 mm
• Material: Anodized Aluminum Frame
• Color: Black
• Power Voltage: 20.3 V
• Power Current: 4.93 A
• Power Rating: 100 W
• Open Circuit Voltage: 24.3 V
• Short Circuit Current: 5.39 A
• Voltage Rating: 600 Vdc
• Cell Type: Monocrystalline
• Number of Cells: 36
• Operating Temperature: -40 to 194 °F
• Standards: CE, ISO 9001


Documents

• Specification Sheet
