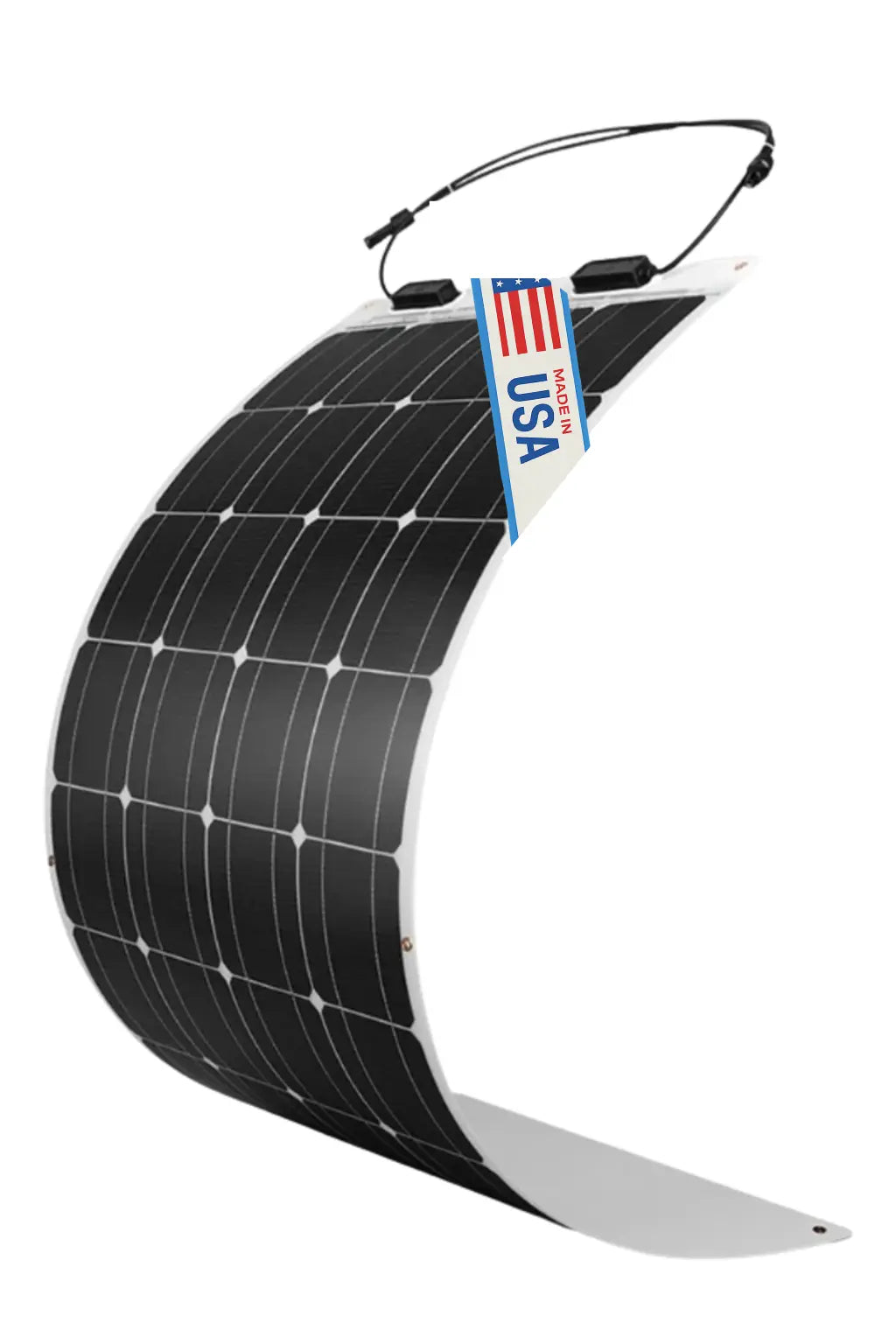

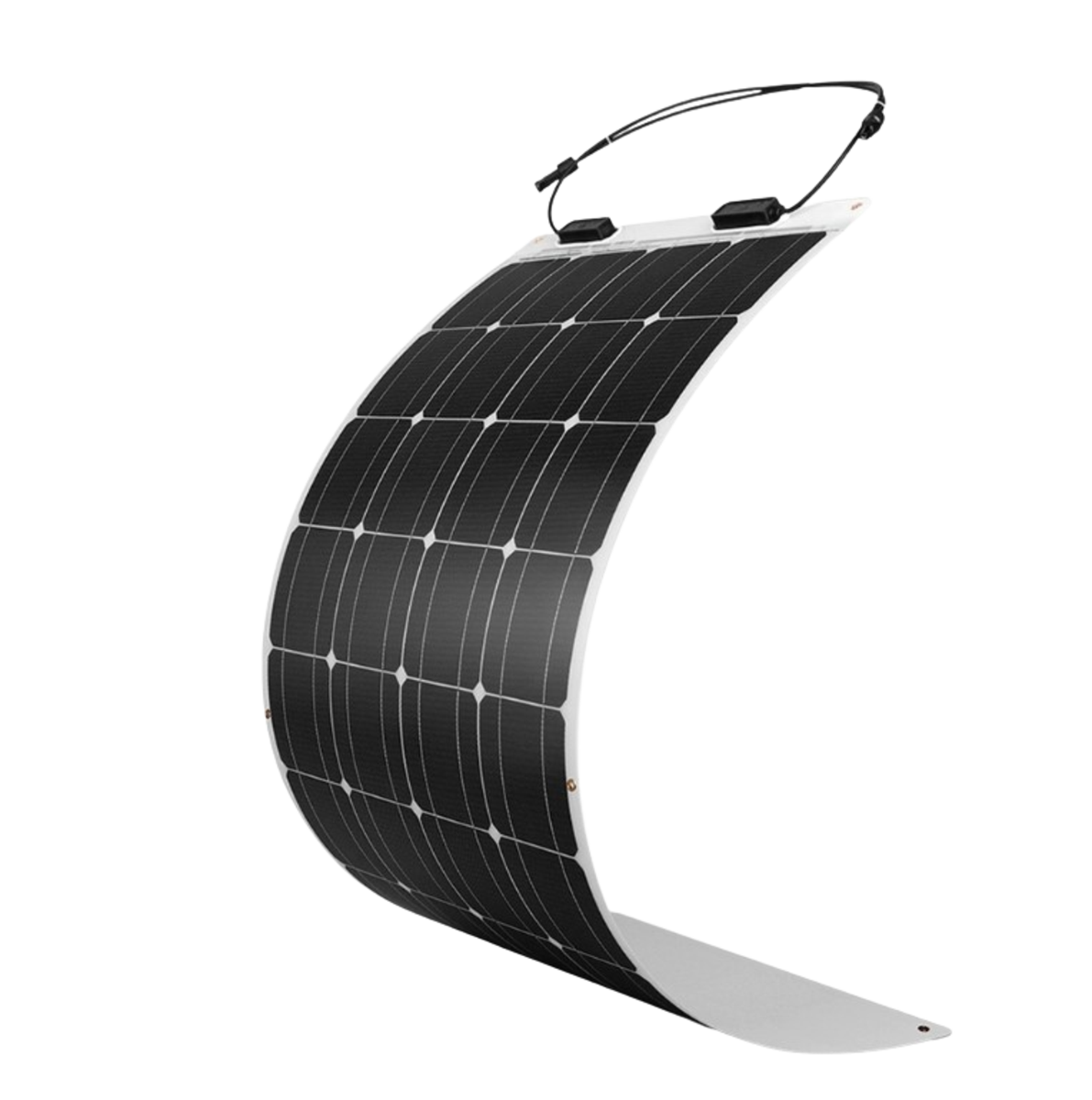

Renogy RNG Series 100 W Monocrystalline Flexible Solar Panel

Explore the Advanced Features of the Renogy Flexible Solar Panel

Traditional solar panels are rigid and often enclosed in tempered glass. The Renogy 100W Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of a van or vehicle, the Renogy 100W Lightweight Solar Panel is thin and capable of flexing up to 248 degrees. At 4 pounds, this flexible solar panel weighs only a quarter of its traditional 100W counterpart. Highly flexible, this lightweight panel can easily be installed on curved surfaces. This panel can also be used for other various applications, including providing power on a boat or teardrop trailer.Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.

Features

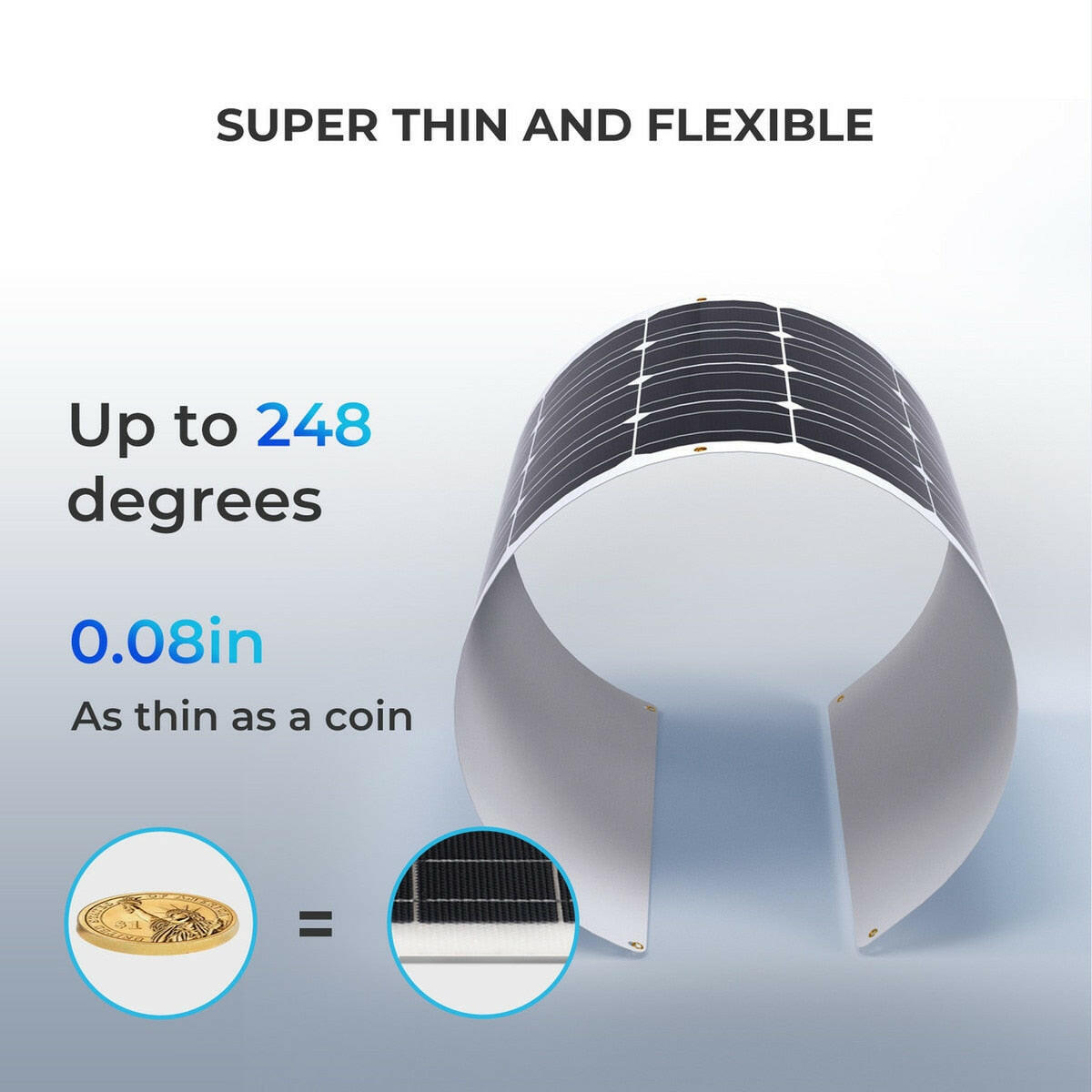

• Extremely flexible: this 100w solar panel can flex up to 248 degrees, minimizing the mounting and even issues for a curved surface. Where rigid panels are inconvenient to install, get this one

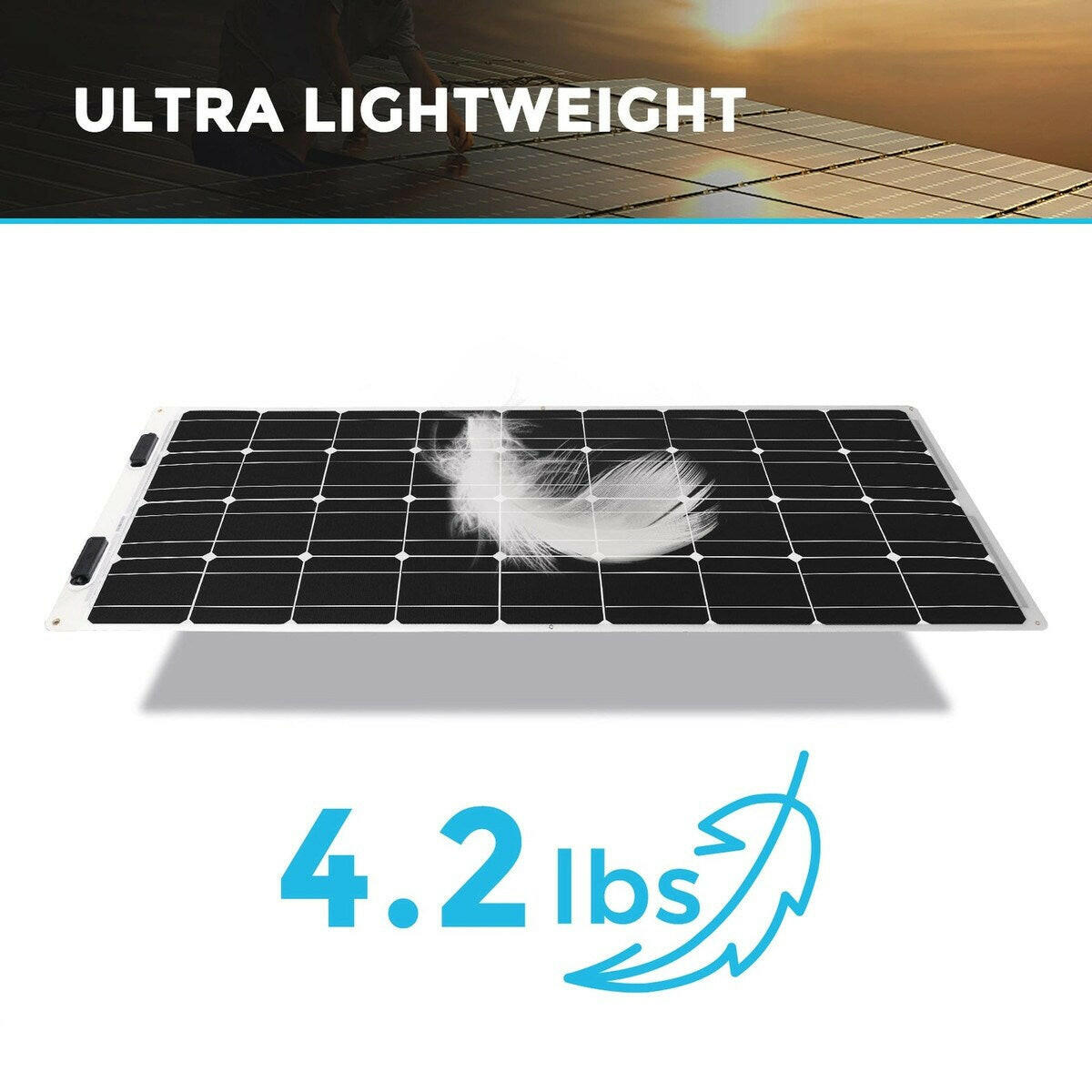

• Ultra Lightweight: Light as 4.2 pounds, this product weighs 1/4 of its rigid counterpart. Travel light with solar, embrace possibilities
• Super Thin Lamination: This Renogy 100W flexible panel is only 0.08 inches thick! It is about 95% thinner than its rigid counterpart, ideal for a stealthy solar setup
• Weather resistance: rigorously tested, the 100w panel can withstand extreme winds of up to 2400 pa and snow loads of up to 5400 pa. Fearless of extreme climates, backup your brave journey
• Easy installation: six metal reinforced mounting holes, simple to install. You can also mount it with silicone structural adhesive
• Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, consult a local contractor

Specifications

• Type: Flexible
• Series: RNG
• Length: 48 in
• Width: 21.6 in
• Depth: 0.08 in
• Material: Anodized Aluminum Frame
• Power Voltage: 18.9 V
• Power Current: 5.29 A
• Power Rating: 100 W
• Open Circuit Voltage: 22.5 V
• Short Circuit Current: 5.75 A
• Voltage Rating: 600 VDC
• Cell Type: Monocrystalline
• Number of Cells: 36
• Operating Temperature: -40 to 185°F
• Efficiency: 21%

Documents

• Specification Sheet
• Warranty Sheet

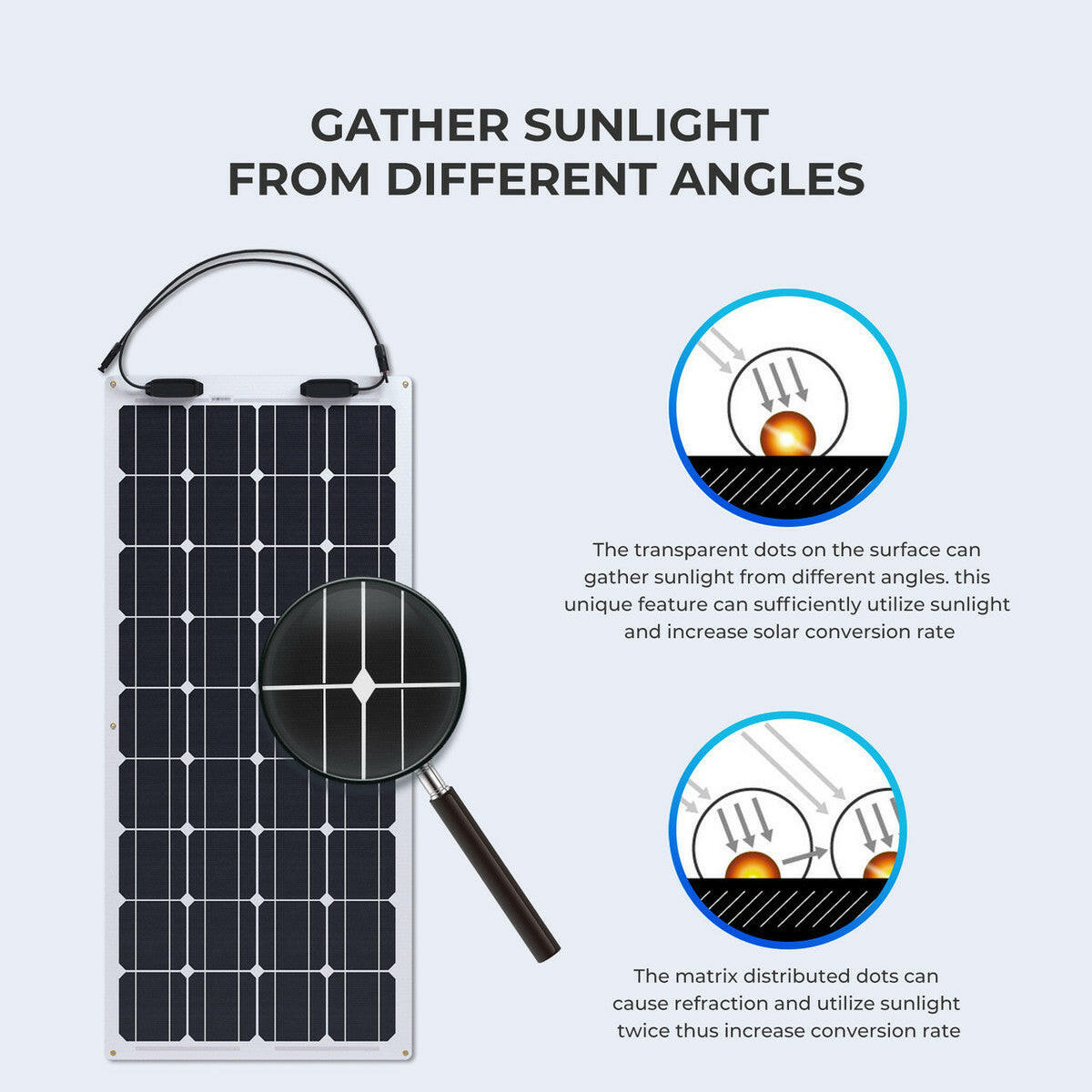

High Efficiency with Monocrystalline Technology

The Renogy flexible solar panel utilizes advanced monocrystalline cells to deliver excellent efficiency in a compact and lightweight design. This technology allows the panel to convert more sunlight into energy compared to traditional solar panels, ensuring reliable power generation even in less-than-ideal sunlight conditions. Its flexible build enables seamless installation on curved or uneven surfaces, making it versatile for a variety of outdoor and mobile applications. This combination of efficiency and adaptability makes the Renogy flexible solar panel a superior choice for maximizing solar energy output.

Durability and Lightweight Construction

Constructed with durable materials, the Renogy flexible solar panel is engineered to withstand harsh environmental conditions. Its lightweight and flexible design significantly reduces the strain on mounting surfaces while providing strong resistance to water and dust. This robustness makes it perfect for use on boats, RVs, tents, and other outdoor gear. The panel’s flexibility doesn’t compromise durability, allowing it to endure bending and vibration without cracking or breaking, thereby ensuring long-lasting performance in demanding situations.

Easy Installation and Versatile Application

The Renogy flexible solar panel offers a user-friendly installation process thanks to its zip-tie holes and lightweight frame, allowing users to easily mount it on various surfaces without complicated hardware. Whether you’re outfitting a camper, boat, or off-grid cabin, its adaptability shines in diverse environments. The panel’s flexibility ensures it can conform to different shapes, maximizing surface area usage and enhancing energy absorption. This versatility, combined with reliable power output, makes the Renogy flexible solar panel ideal for anyone seeking efficient and portable solar energy solutions.
