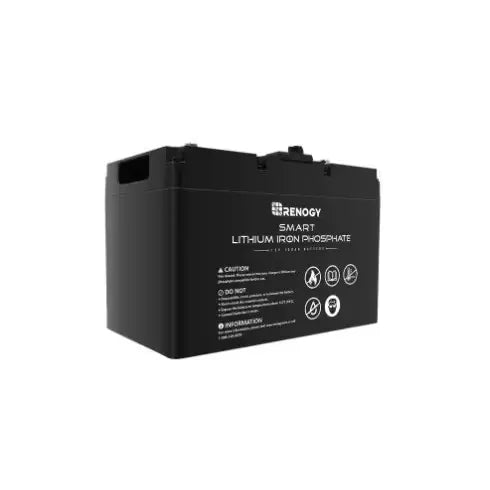

Renogy Core Mini 12.8V 100Ah Lithium Iron Phosphate Battery

Experience reliable, long-lasting energy storage with the Renogy Core Mini 12.8V 100Ah LiFePO₄ Battery, designed for performance, safety, and efficiency in a compact form factor. Built using advanced Lithium Iron Phosphate (LiFePO₄) chemistry, this battery offers exceptional cycle life, lightweight design, and intelligent monitoring for a wide range of solar, RV, marine, and off-grid applications.

Key Features

• Compact and Lightweight:
  At only a fraction of the size and weight of traditional lead-acid batteries, the Core Mini delivers powerful storage in a portable design ideal for tight installations.

• Long Cycle Life:
  Offers over 4,000 cycles at 80% depth of discharge — ensuring years of dependable use without significant capacity loss.

• Smart Battery Management System (BMS):
  Integrated BMS protects against overcharge, over-discharge, overcurrent, and short circuits, maintaining optimal performance and safety.

• High Discharge Rate:
  Delivers consistent power output for demanding loads, supporting inverters, trolling motors, and solar systems.

• Maintenance-Free Operation:
  No acid, fumes, or water refilling required — simply install and enjoy worry-free operation.

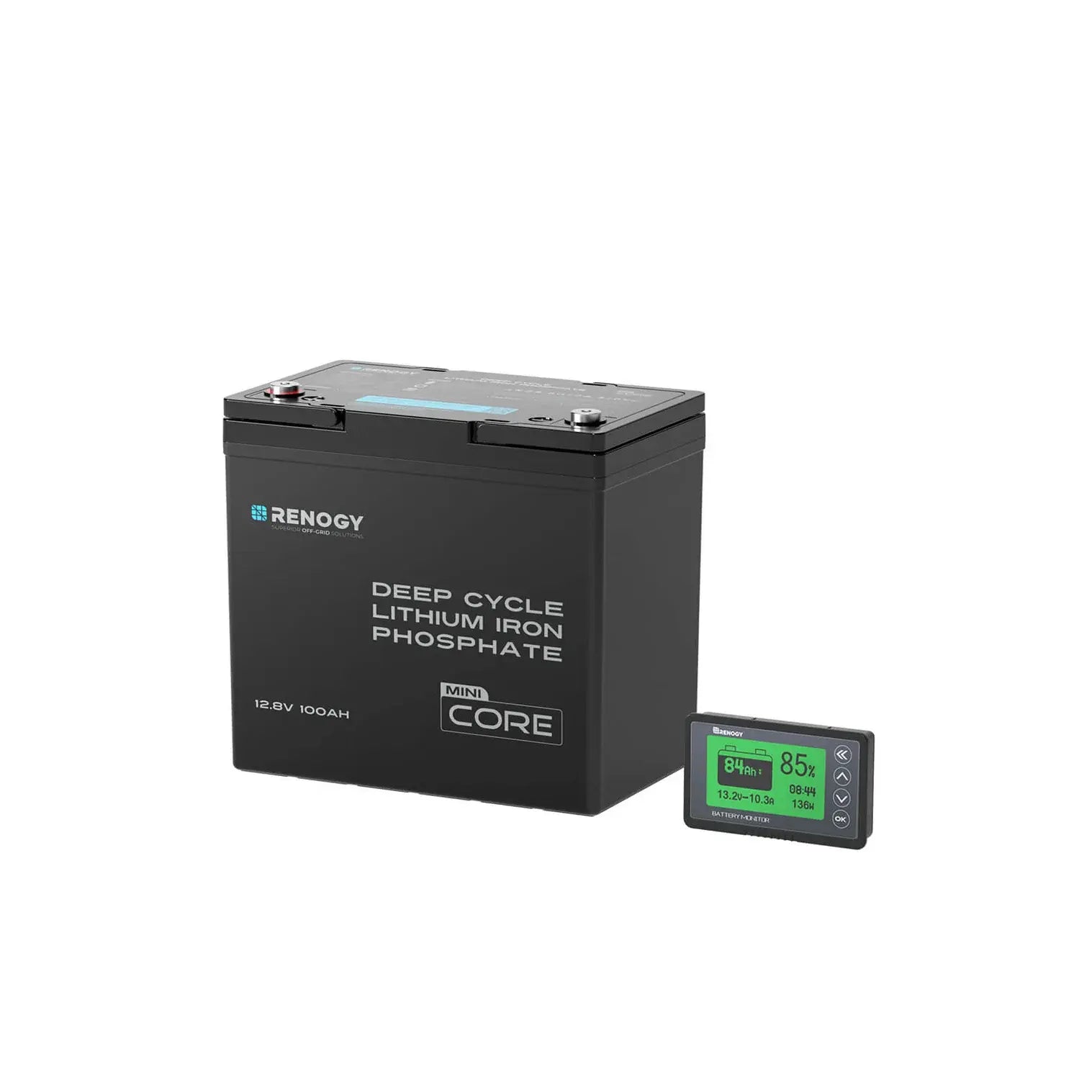

• Bluetooth Monitoring (optional):
  When paired with Renogy’s monitoring accessories, easily track voltage, capacity, and cycle history in real-time.

Technical Specifications

• Nominal Voltage: 12.8 V

• Capacity: 100 Ah (1.28 kWh)

• Battery Type: Lithium Iron Phosphate (LiFePO₄)

• Cycle Life: ≥ 4000 @ 80% DoD

• Max Continuous Discharge Current: 100 A

• Max Continuous Charge Current: 50 A

• Operating Temperature (Discharge): −4 °F ~ 140 °F (−20 °C ~ 60 °C)

• Operating Temperature (Charge): 32 °F ~ 131 °F (0 °C ~ 55 °C)

• Dimensions (L × W × H): 10.2 × 5.8 × 8.4 in (259 × 148 × 214 mm)

• Weight: 24.25 lb (11 kg)

Applications

• Off-grid solar systems

• RVs and camper vans

• Marine and boating setups

• Emergency backup systems

• Portable power stations

Document: Specification Sheet
