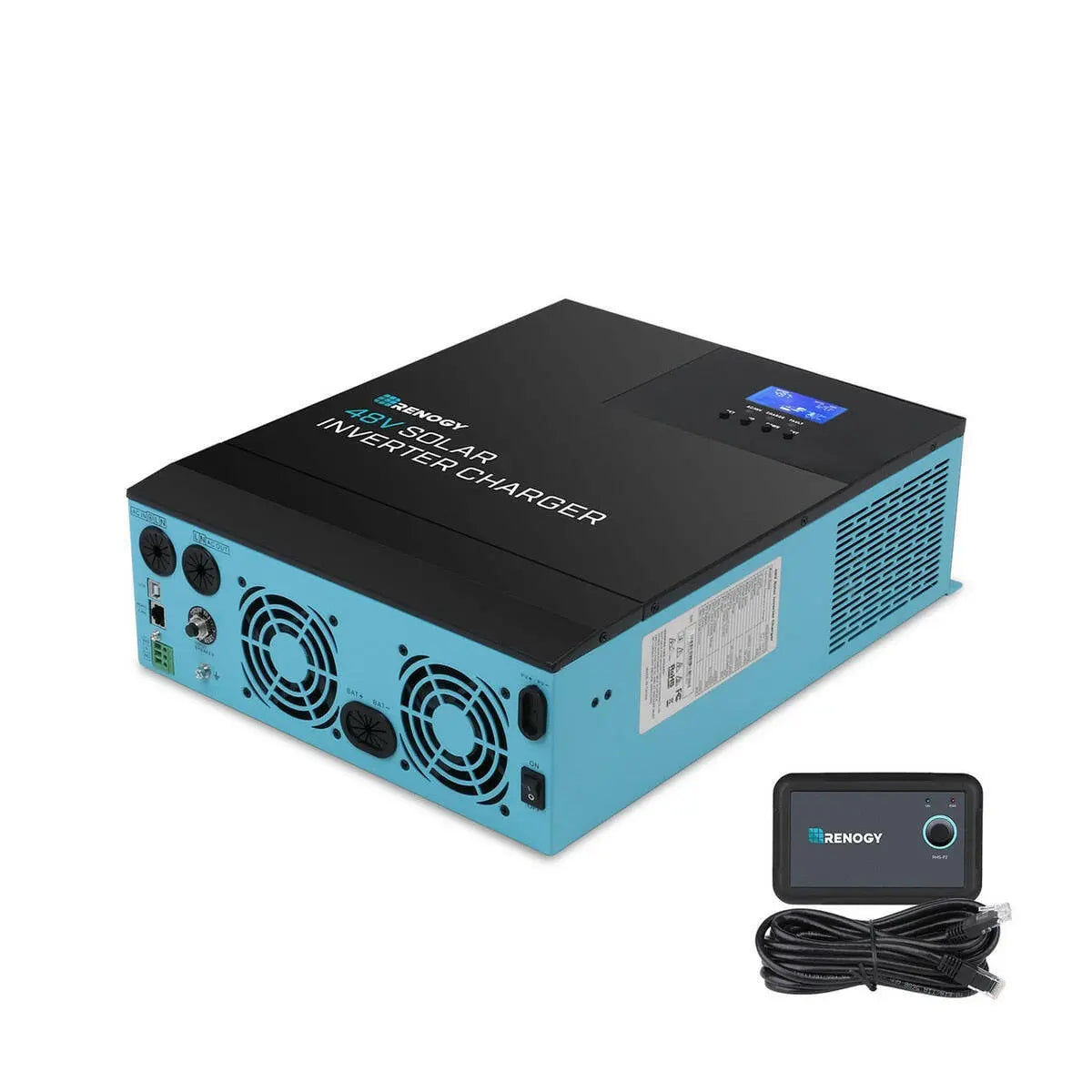

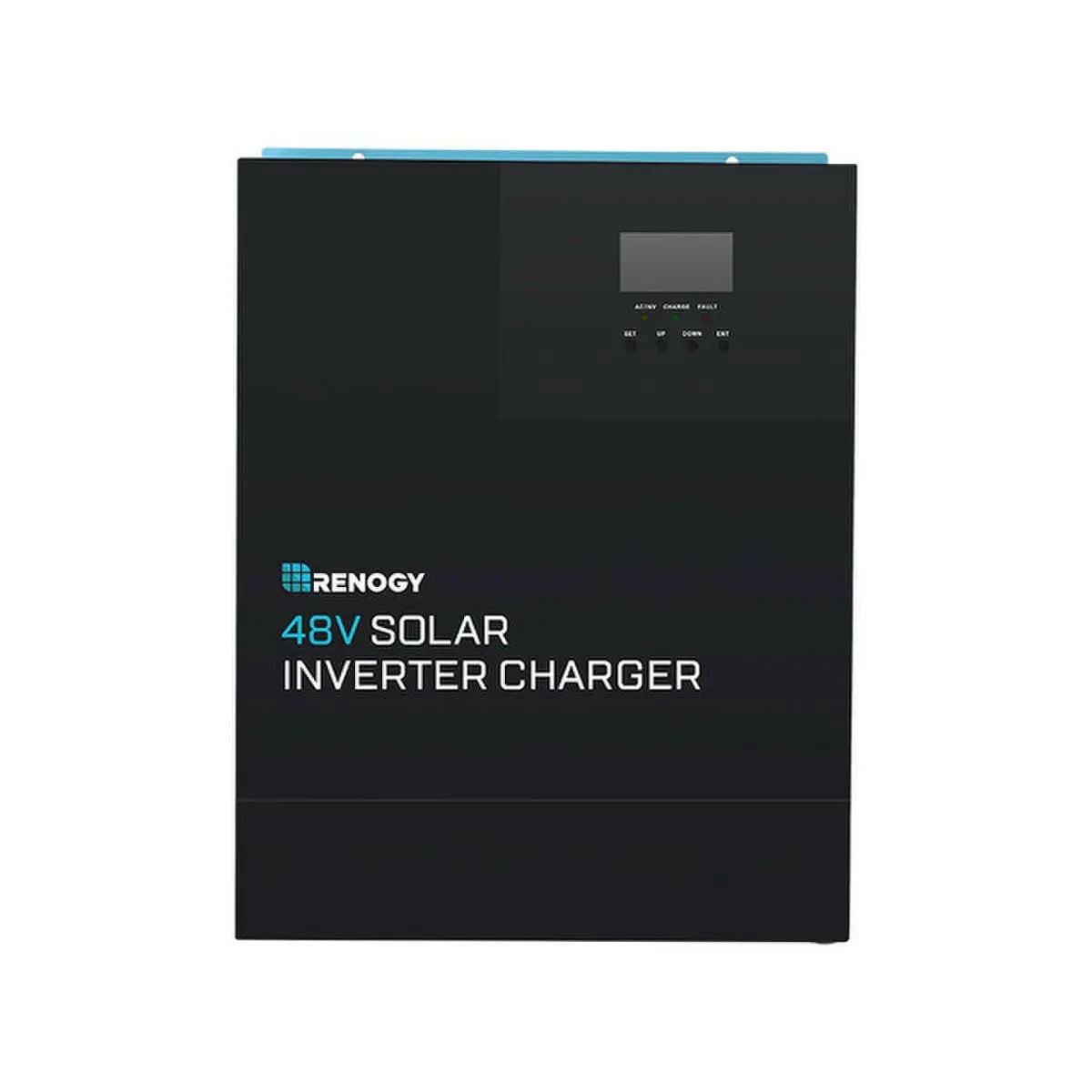

Renogy 3500 W Lead Acid/Lithium Solar Inverter Charger

The 48V 3500W Solar Inverter Charger combines solar charging, AC/generator battery charging, and battery inverting into one convenient solution to take your off-grid system to the hybrid level. Compatible with 48V battery banks, this solar inverter charger gives you the ultimate control with four user-configurable AC/Solar Charging modes, and three Load Output modes that can turn your system into an uninterruptible power supply (UPS), automatically switching to Off-Grid Mode in just 10 milliseconds to keep loads securely powered.

Features

• 3500-Watt pure sine wave inverter output with 7000-Watt surge-features user-configurable battery charger (120 Amp maximum), switchable frequencies (50 Hz/60 Hz), and an optional power-saving mode
• Equipped with state of the art MPPT technology, boasting an efficiency of up to 99%, and a powerful bypass function with UPS
• Preset battery modes for 48-Volt AGM/sealed, gel, flooded, and lithium batteries, includes a user mode for custom inputs to work with virtually all battery types
• 4 charging modes - PV priority, utility priority, hybrid charging, and solar only, 3 load output modes: PV priority, utility priority, and inverter only


Specifications

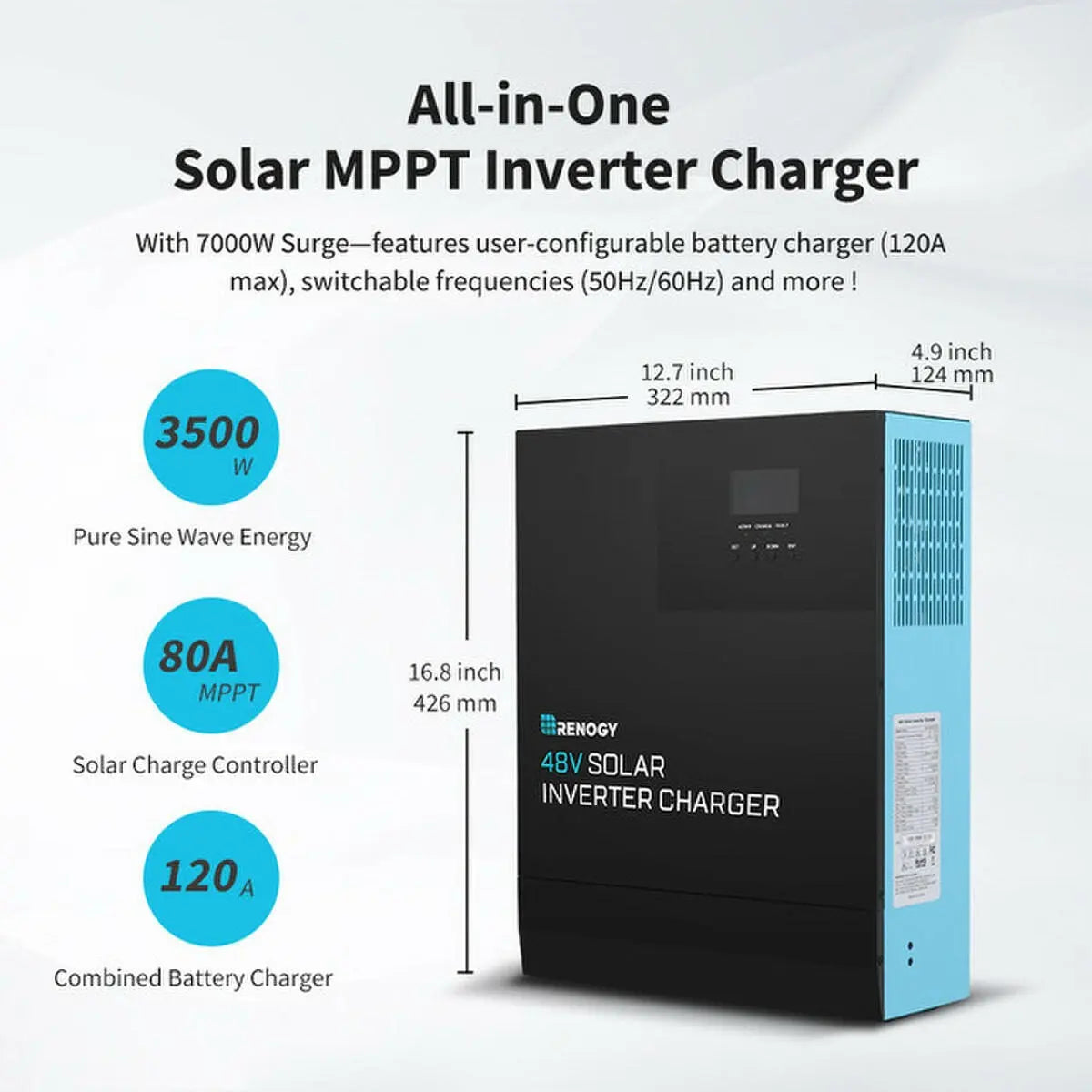

• Length: 16.8 in
• Width: 4.9 in
• Height: 12.7 in
• Input Voltage: 120 Vac
• Output Voltage: 120 Vac
• Amperage Rating: 48 V
• Power Rating: 3500 W
• Battery Chemistry: Lead Acid/Lithium
• Suitable For Use With: Pure Sine Wave Inverter


Documents

• Specification Sheet
•  Instruction/Installation Manual
• Warranty Information
