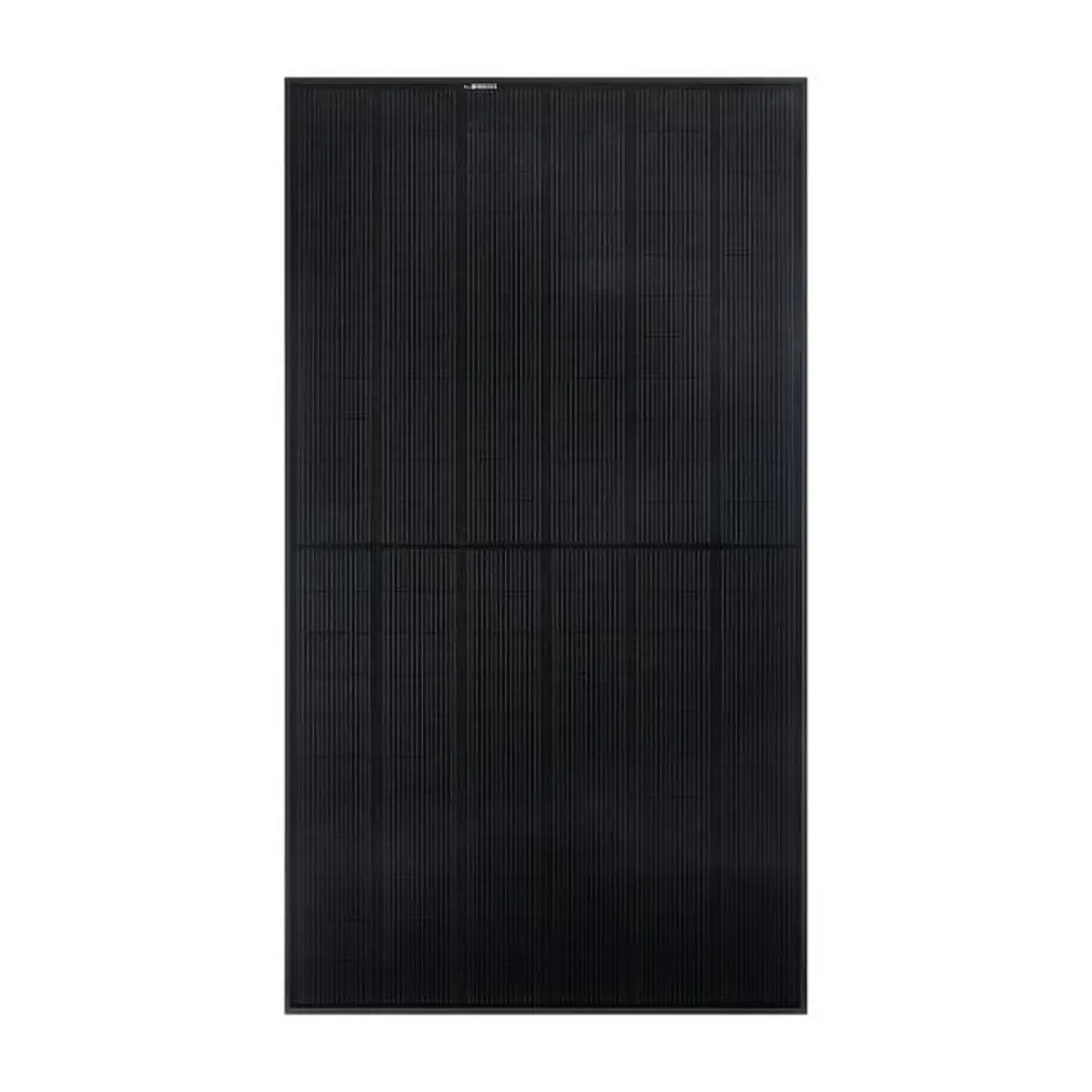

REC Solar Holdings AS Pure-R Alpha Pure-R Series 410 W Half-Cut Bifacial REC Heterojunction With Lead-Free Technology Solar Panel

REC's iconic Twin Design delivers a significant power boost to REC Alpha Pure panels compared to conventional layouts, as well as improving performance in shaded conditions. The REC Alpha Pure-R takes this principle even further by dividing than panel into four zones that mean even more output under shaded conditions.

Features

• Most advanced cell structure for high efficiency
• Maximized power for maximum savings
• Gapless cell layout enable compact panel size for high power density and a better use of rooftop area
• 4 string sectors for more output under shaded conditions
• Low temperature production for longer-lasting quality
• Zero invasive soldering process
• Lead-free cells and gapless connections
• Leading temperature coefficient for more production in hot climates
• Keeps cells working efficiently, even at the hottest times
• N-type cell technology protects against light induced degradation (LID)

Specifications

• Series: Alpha Pure-R
• Length: 67.5 in
• Width: 43.7 in
• Depth: 1.2 in
• Wire Size: 12 AWG
• Material: Anodized Aluminum Frame, Highly Resistant Polymer Backsheet
• Color: Black Frame
• Power Voltage: 49.4 V
• Power Current: 8.3 A
• Power Rating: 410 W
• Short Circuit Current: 8.84 A
• Cell Type: Half-Cut Bifacial REC Heterojunction, With Lead-Free Technology
• Number of Cells: 80
• Operating Temperature: -40 to 185°F
• Efficiency: 0.212%
• Fuse Rating: 25 A

Documents

• Specification Sheet
