REC Pure 2 REC430AA Pure 2 430W Black on Black 132 Half-Cell Heterojunction Solar Panel
-
Estimated Delivery:Dec 23 - Dec 27
-
Free Shipping & Returns: On all orders over $75

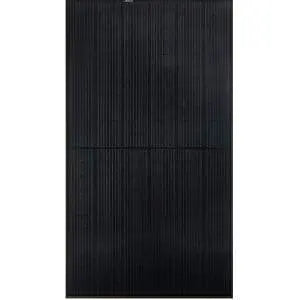

REC Pure 2 REC430AA Pure 2 430W Black on Black 132 Half-Cell Heterojunction Solar Panel
The REC430AA Pure 2 delivers 430 W of high-efficiency power in a sleek, all-black package. Engineered with 132 half-cut Heterojunction (HJT) cells, it achieves up to 22.2% efficiency—ideal for maximizing performance in limited rooftop space. Featuring REC’s advanced Twin design and gapless cell layout, this panel provides excellent shade tolerance and minimal power loss over time.
Key Features & Benefits
-
High Efficiency: Up to 22.2%, offering among the highest power density in its class
-
132 Half‑Cells with HJT Tech: Delivers superior light-induced degradation resistance, especially under hot and low-light conditions
-
All-Black Aesthetic: Black anodized frame and polymer backsheet for a modern, low-profile rooftop appearance
-
Robust Mechanical Rating: Tested for up to +7000 Pa front load and −4000 Pa rear load (146/83 lb/ft²)
-
Excellent Warranties: 20‑year standard product warranty (25 y with ProTrust); ≥ 92% power guaranteed after 25 years with 0.25% annual degradation rate
-
Environmental Certifications: IEC 61215, IEC 61730, PID, salt‑mist, ammonia and hail resistance; UL 61730 Fire Type 2 certified
Technical Specifications
| Specification | Details |
|---|---|
| Rated Power (STC) | 430 W (0/+10 W tolerance) |
| Efficiency (STC) | 22.2% |
| Voc / Isc | 49.3 V / 10.81 A |
| Vmp / Imp | ~42.8 V / ~10.05 A |
| Temperature Coefficient (Pmax) | −0.24%/°C |
| Max System Voltage | 1000 V DC |
| Series Fuse Rating | 25 A |
| Connector / Cable | Stäubli MC4 PV‑KBT4 (12 AWG), ~49.2″ cables on each side |
| Module Material / Frame | 30 mm anodized aluminum (black); 0.12″ anti-reflective glass |
| Operating Temp Range | −40 °C to +85 °C |
| Weight | ~47.8 lb (21.7 kg) |
Why Choose the REC430AA Pure 2?
-
High output in a compact panel: up to 20.7 W/ft², maximizing rooftop power density
-
Excellent in real-world conditions: performs better under heat and shading thanks to REC’s proprietary HJT + Twin/Gapless layout
-
Proven reliability with REC ProTrust warranty upgrade through certified installer registration
Document: Specification Sheet
