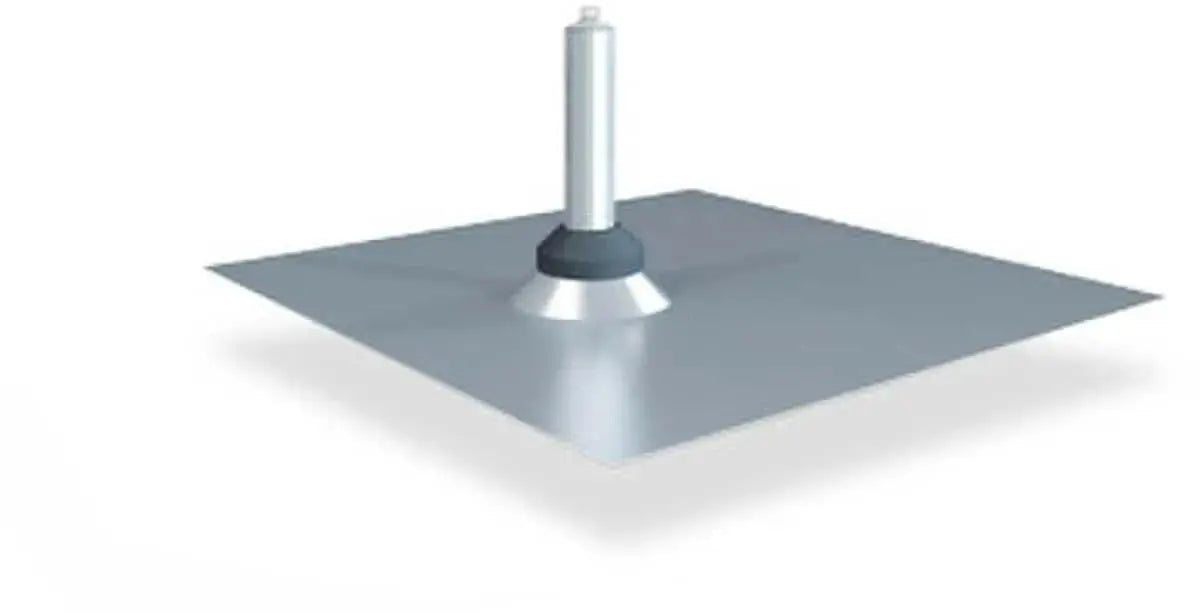

Quick Mount PV QMSFT A 1 Flat Tile Flashing

The QBase Universal Tile Mount uses the QBase foundation and two spun aluminum cone flashings for installing solar panels on tile roofs with superior strength and waterproofing. The installer can conform the secondary top flashing to fit virtually any roof tile, flat or curved.

Features

• Safety - 100% IBC compliant. Meets or exceeds roofing industry best practices
• QBase is the strongest off-the-shelf mechanical mount
• Efficiency - Won't void manufacturer's warranty. Modifiable EPDM post collar/counter flashing accommodates 3 sizes of conduit
• Efficiency - Flashed at both the deck and top levels
• 10-year warranty, 50-year expected life
• All fasteners and hardware included. Available through leading distributors
• All exposed hardware is 18-8 stainless steel
• User Friendly - Works with all leading racks
• Attaches to roof structure with 2 or 4 fasteners. 9x9-inch subflashing with spun aluminum cone
• 18 x 18 in malleable top flashing with spun aluminum cone

Specifications

• Size: 4-1/2 in Post
• Suitable For Use With: Flat Tile Roof
• Standards: UL Listed
• Warranty: 25 Years Limited


Documents

• Technical Drawing
• Installation Manual
