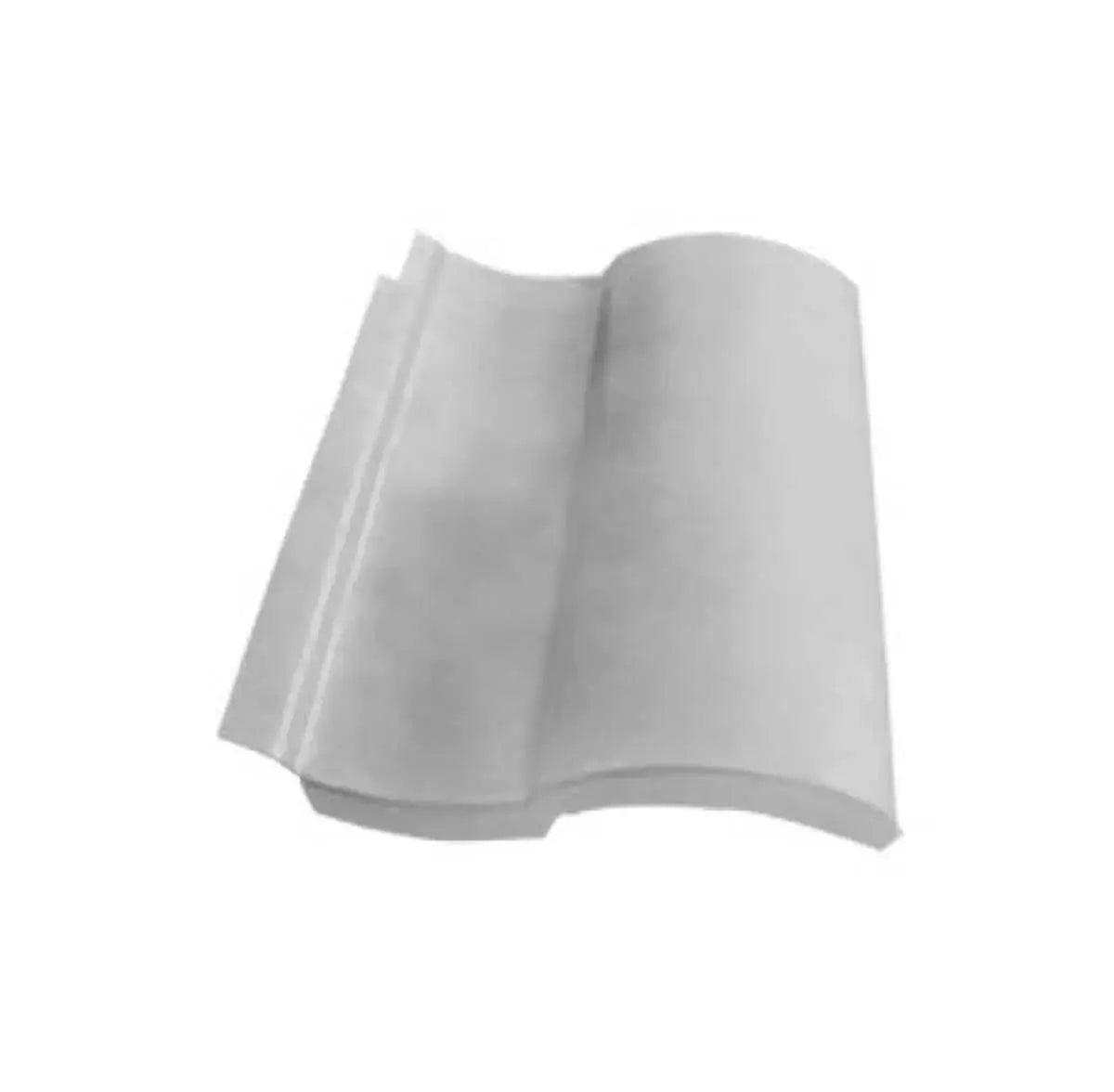

Quick Mount PV QMC-TRF-S A 1 S-Tile Flashing

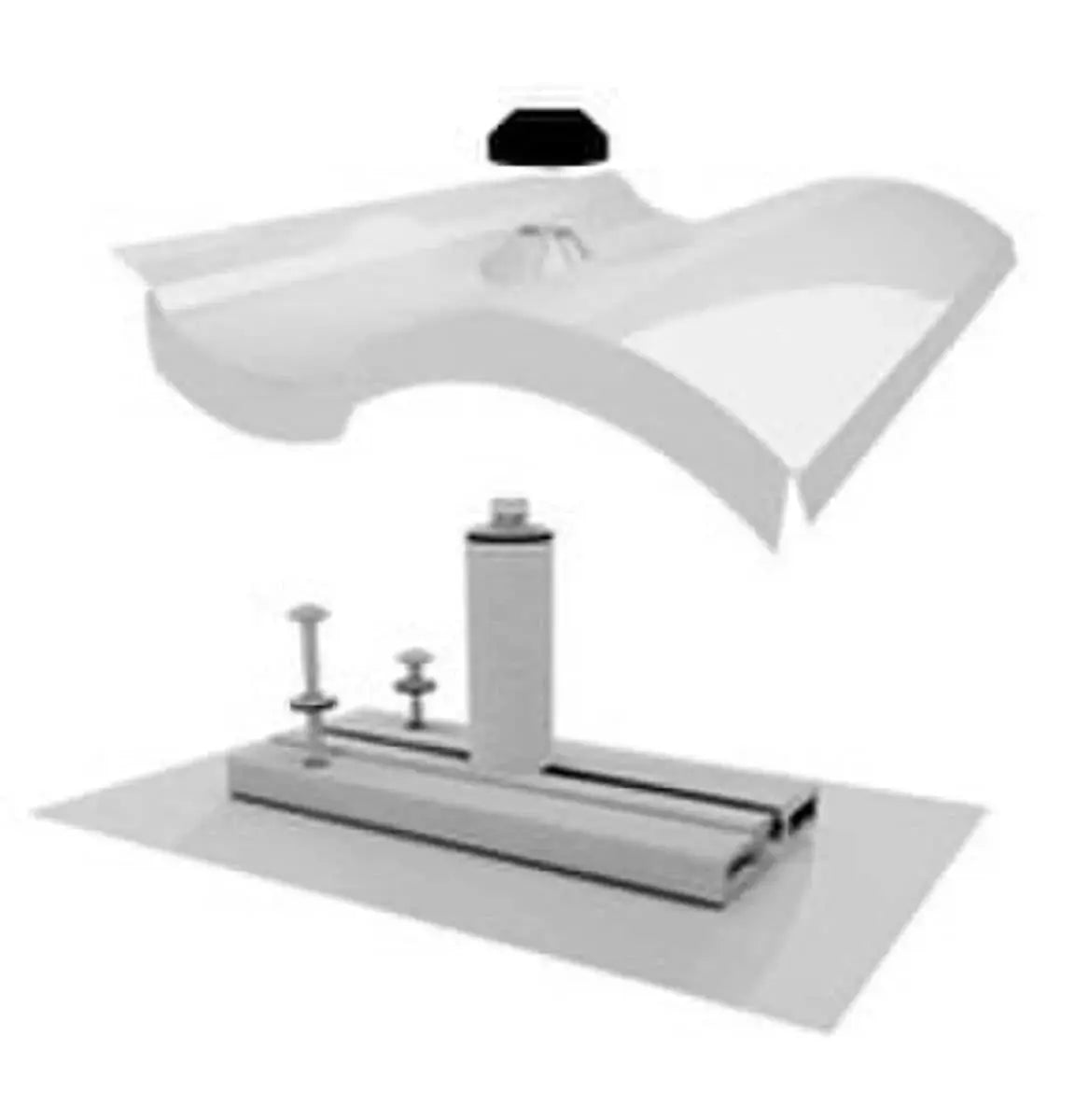

The Tile Replacement Mount provides a fast and easy way to install solar on tile roofs while protecting against water intrusion. Simply remove the tile and replace it with the Tile Replacement Mount. Works with all standard curved and flat tile roofs, and all standard rail-based racking systems. Flashed at both the deck and top levels, the Tile Replacement Mount is fully engineered to meet code requirements and industry best practices. The Tile Replacement Mount features our patented Elevated Water Seal technology for optimal waterproofing. Base mount sold separately from flashing and post.

Features

• Highlights - Versatile: Works with Flat, S-shaped and W-shaped tiles
• Flexible: Works with all standard rail-based racking systems
• Simple and clean: No time-consuming, messy tile grinding or cutting
• Double flashed: Flashed at both the deck and tile levels for code compliance
• Waterproof: Features patented QBlock Elevated Water Seal Technology
• Flashings pre-treated and ready for paint, if desired
• Post and flashing sold separately from base mount for cost effective stocking and packaging flexibility
• Creates replacement tiles on the job. Meets or exceeds tile roofing best practices
• Available through leading distributors
• 100% IBC compliant
• All fasteners and hardware included
• 20-year warranty, 50-year expected life
• Works with all leading racks
• Made in USA


Specifications

• Finish: Mill
• Suitable For Use With: S Tile Roof
• Standards: UL Listed
• Warranty: 25 Years Limited


Documents

• Technical Drawing
• Brochure
