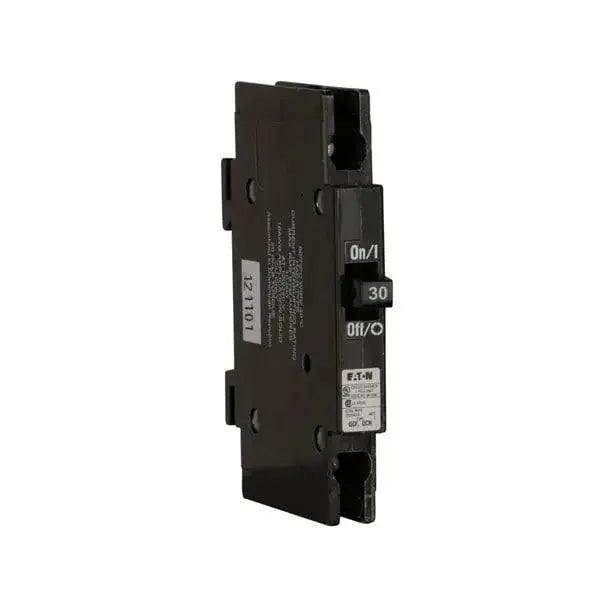

QCR2030 - Eaton Quicklag Type QCR 1/2-Inch Industrial Thermal-Magnetic Circuit Breaker

The Eaton Quicklag Type QCR 1/2-Inch Industrial Thermal-Magnetic Circuit Breaker is designed to provide reliable and efficient overcurrent protection in industrial applications. This two-pole circuit breaker is rated at 30 A with a 10 kAIC (kiloampere interrupting capacity), offering robust protection against both thermal and magnetic faults. Operating at 120/240 V, it is ideal for use in industrial systems where both high performance and safety are essential. Featuring a cable-in/cable-out design, this breaker allows for easy installation and configuration. The fixed design ensures a solid and stable connection, making it a dependable choice for demanding electrical systems.

Key Features:

• Product Type: Eaton Quicklag Type QCR 1/2-Inch Industrial Thermal-Magnetic Circuit Breaker
• Amperage: 30 A
• Interrupting Capacity: 10 kAIC
• Poles: Two-pole
• Voltage Rating: 120/240 V
• Protection Type: Thermal-Magnetic for both overcurrent and short-circuit protection
• Design: Cable-In/Cable-Out for easy installation
• Mounting: Fixed design for a secure and stable installation

This Eaton Quicklag Type QCR Circuit Breaker provides industrial-grade protection and is a trusted solution for ensuring the safety and reliability of electrical systems, protecting against faults while maintaining smooth operation.

Documents:

Catalogs
Circuit Protection, Miniature Circuit Breakers and Supplementary Protectors, Volume 4, Tab 1

Specifications and datasheets
Eaton Specification Sheet - QCR2030
