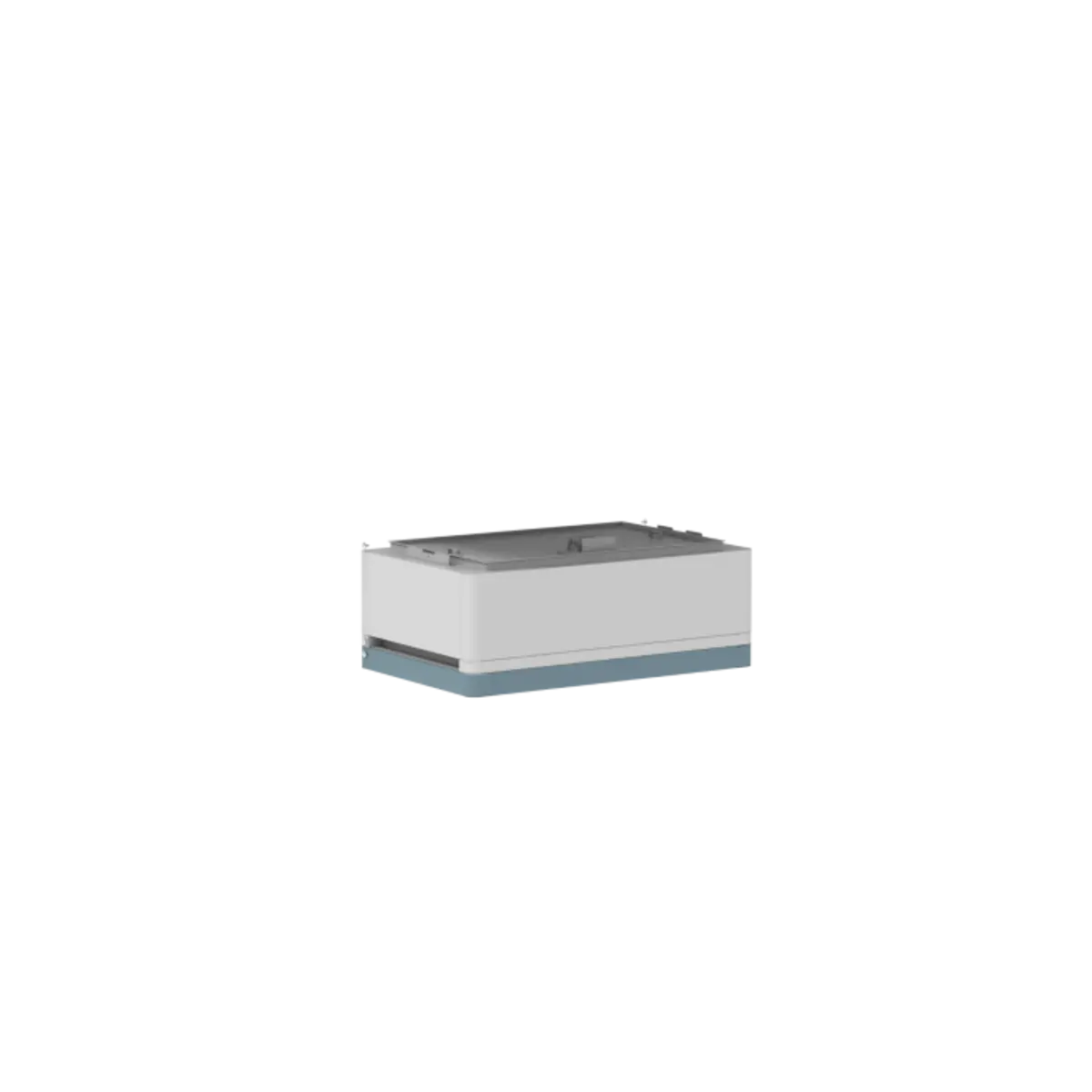

Pylontech Force H1 Stack-7 Batteries, 24.86 kWh (SKU Part Number FH48074-FH1, FC0500-40S-V2-FH1)

The Force H1 is the high voltage battery storage system provided by Pylontech. The newly designed system provides easy connector to save valuable time for installers. The stacking system provides flexible configurations from 96V to 384V voltage and 7.1 kWh to 149.1 kWh capacity.

Features

• Safety and Reliability - ensured by own designed and manufactured cell, modules and BMS
• Optimal electricity cost - long cycle life and superior performance
• Strong scalability - maximum capacity of 215.04 kWh with 6 groups in parallel
• Flexible mounting - plug and play, no additional wiring connection
• Compatibility - Top inverter brands
• Flexible module design
• 95% dod
• 10+ years technical proven
• Expandable from 7-149.1kwh
• Suitable for indoor/outdoor installation
•


Specifications

• Voltage Range: 43.5-54 V
  Depth of Discharge: 95%
  Multi-Group: Maximum 6 Systems in Parallel
  Communication Port: RS485, CAN
  Enclosure Rating: IP55
  Working Temperature: 0-50 deg C
  Shelf Temperature: -20-60 deg C
  Humidity: 5-95% (W/O Condensing)
  Altitude: <6562 ft
  Design Life: 15+ Years
  Cycle Life: >8000
  Standards: VDE2510-50/IEC 62619/IEC 62477/CE Certified/UN38.3
