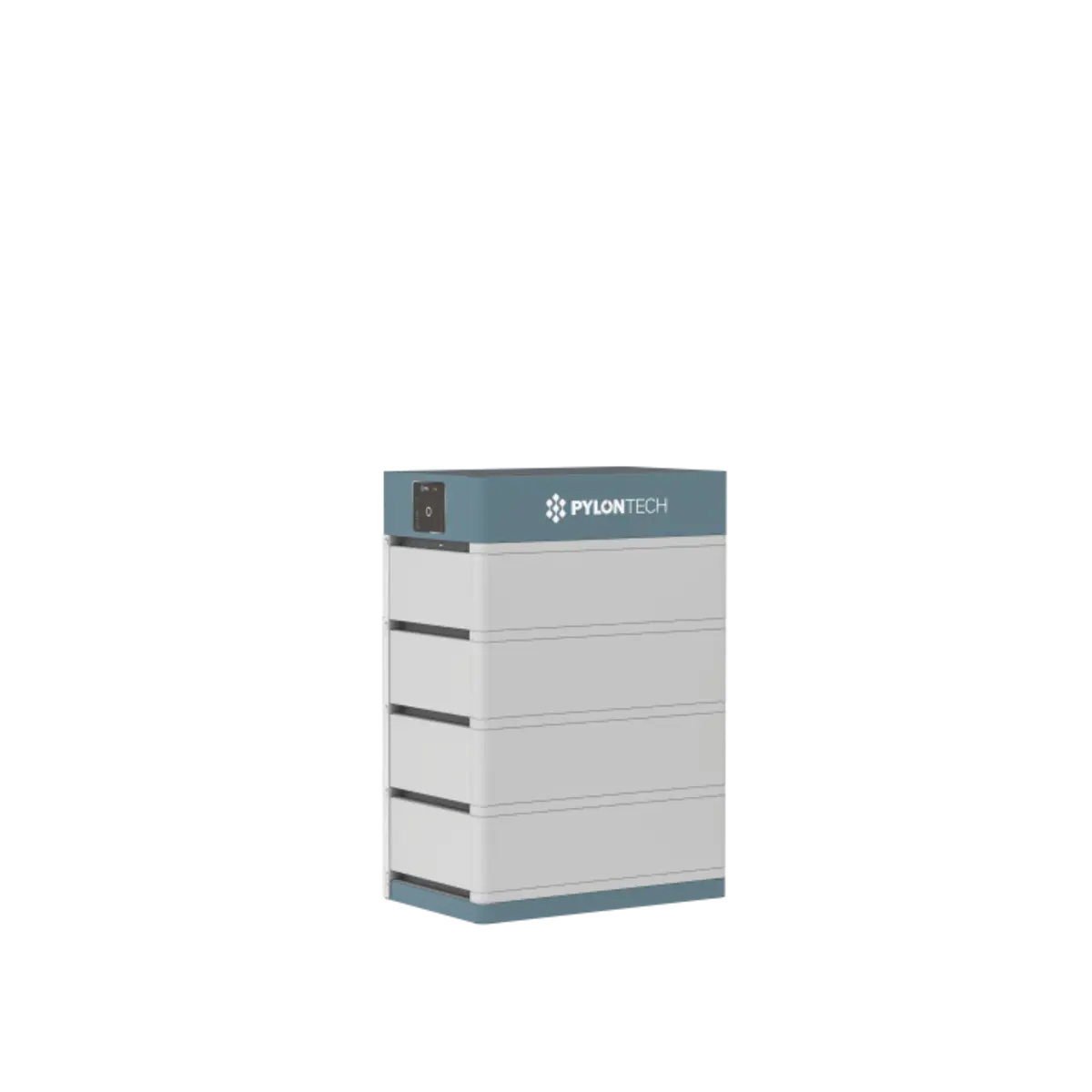

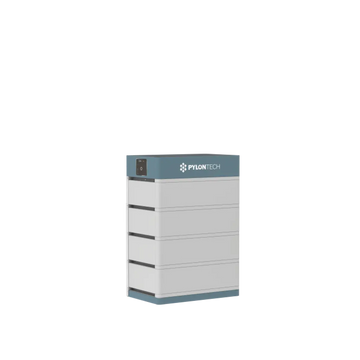

Pylontech Force H1 Stack-4 Batteries, 14.21 kWh (SKU Part Number FH48074-FH1, FC0500-40S-V2-FH1)

The Force H1 is the high voltage battery storage system provided by Pylontech. The newly designed system provides easy connector to save valuable time for installers. The stacking system provides flexible configurations from 96V to 384V voltage and 7.1 kWh to 149.1 kWh capacity.

Features

• Safety and Reliability - ensured by own designed and manufactured cell, modules and BMS
• Optimal electricity cost - long cycle life and superior performance
• Strong scalability - maximum capacity of 215.04 kWh with 6 groups in parallel
• Flexible mounting - plug and play, no additional wiring connection
• Compatibility - Top inverter brands
• Flexible module design
• 95% dod
• 10+ years technical proven
• Expandable from 7-149.1kwh
• Suitable for indoor/outdoor installation


Specifications

• Here are the updated specifications for the Lithium-Ion Battery System:

  • Battery System Capacity: 14.21 kWh
  • Voltage Range: 43.5-54 V
  • Depth of Discharge (DoD): 95%
  • Charge/Discharge Current:
    • Recommended: 60 A
    • Maximum: 100 A
    • Peak (15 sec): 105 A
  • Multi-Group Configuration: Maximum 6 systems in parallel
  • Communication Ports: RS485, CAN
  • Enclosure Rating/IP Rating: IP55
  • Working Temperature: 0-50°C
  • Shelf Temperature: -20-60°C
  • Humidity: 5-95% (without condensation)
  • Altitude: <6562 ft
  • Design Life: 15+ years
  • Cycle Life: >8000 cycles
  • Standards: VDE2510-50, IEC 62619, IEC 62477, CE Certified, UN38.3

Documents

•  Specification Sheet
• Instruction/Installation Manual
