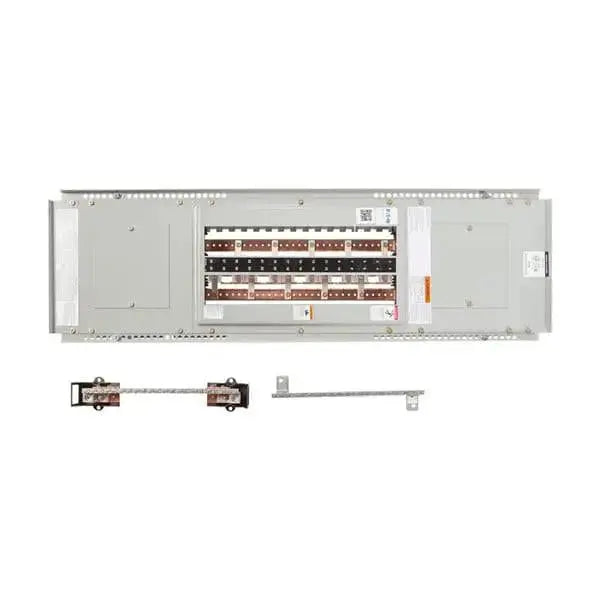

PRL2X3100X30C - Eaton PRL2X Interior 480/277 3P 4W 100A 30 CKT Cu Bus

The Eaton PRL2X Interior 480/277 3P 4W 100A 30 CKT Cu Bus is a high-performance panelboard interior designed for efficient power distribution in commercial and industrial applications. With a 100A amperage rating and a 480Y/277V three-phase, four-wire configuration, this panelboard interior supports up to 30 circuits, providing flexibility for various electrical system requirements. Its copper bus construction ensures excellent conductivity and durability. The PRL2X interior is designed to integrate seamlessly with Eaton’s Pow-R-Xpress panelboard assemblies and meets UL 67 standards for safety and performance.

Key Features:

• Amperage Rating: 100A
• Voltage Rating: 480Y/277V
• Phase: 3P (Three-Phase)
• Wire Configuration: 4W (Four-Wire)
• Bus Material: Copper
• Circuit Capacity: 30 Circuits
• Panelboard Type: PRL2X Interior
• Mounting Type: Bolt-on
• UL Listing: UL 67 for safety and performance

This interior is a vital component for Eaton’s PRL2X systems, offering reliable overcurrent protection and adaptability for a wide range of electrical setups.

Documents:

Brochures
Pow-R-Xpress quick selector reference guide
Eaton's Pow-R-Xpress stocking program
Pow-R-Xpress stocking program flyer

Multimedia
Pow-R-Line Xpert family overview

Specifications and datasheets
Eaton Specification Sheet - PRL2X3100X30C
