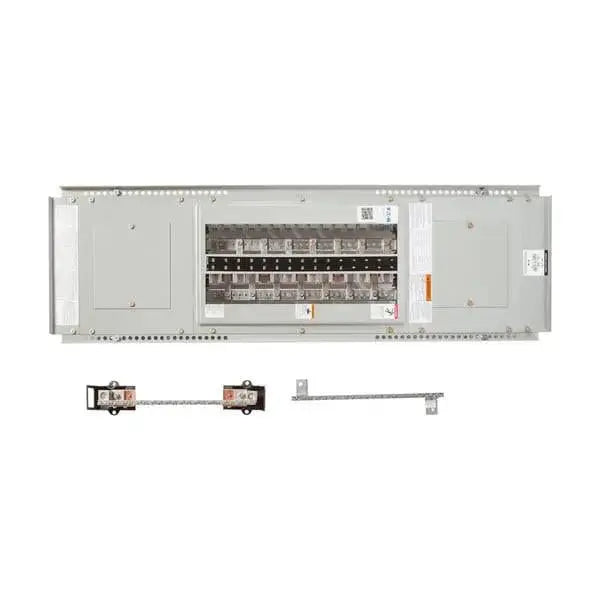

PRL2X3100X30A - Eaton PRL2X Interior 480/277 3P 4W 100A 30 CKT Al Bus

The Eaton PRL2X Interior 480/277 3P 4W 100A 30 CKT Al Bus is engineered for efficient power distribution in commercial and industrial applications. With a 100A amperage rating and a 480Y/277V three-phase, four-wire configuration, this panelboard interior supports up to 30 circuits, providing flexibility for various electrical system requirements. Its aluminum bus construction ensures a lightweight yet durable solution for electrical distribution. The PRL2X interior is designed to integrate seamlessly with Eaton’s Pow-R-Xpress panelboard assemblies and meets UL 67 standards for safety and performance.

Key Features:

• Amperage Rating: 100A
• Voltage Rating: 480Y/277V
• Phase: 3P (Three-Phase)
• Wire Configuration: 4W (Four-Wire)
• Bus Material: Aluminum
• Circuit Capacity: 30 Circuits
• Panelboard Type: PRL2X Interior
• Mounting Type: Bolt-on
• UL Listing: UL 67 for safety and performance

This interior is a vital component for Eaton’s PRL2X systems, offering reliable overcurrent protection and adaptability for a wide range of electrical setups.

Documents:

Brochures
Pow-R-Xpress quick selector reference guide
Pow-R-Xpress stocking program flyer
Eaton's Pow-R-Xpress stocking program

Multimedia
Pow-R-Line Xpert family overview

Specifications and datasheets
Eaton Specification Sheet - PRL2X3100X30A
